RBVS

Universal Ball Valve/Solenoid Coil Supervisory Switch

Contents hide

6 Documents / Resources

6.1 References

7 Related Posts

Application

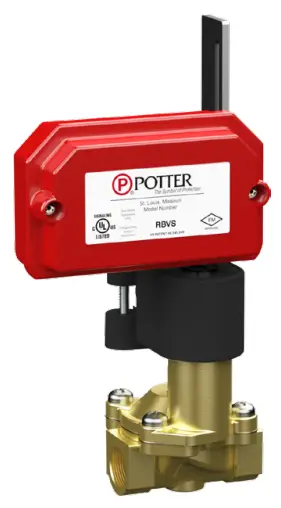

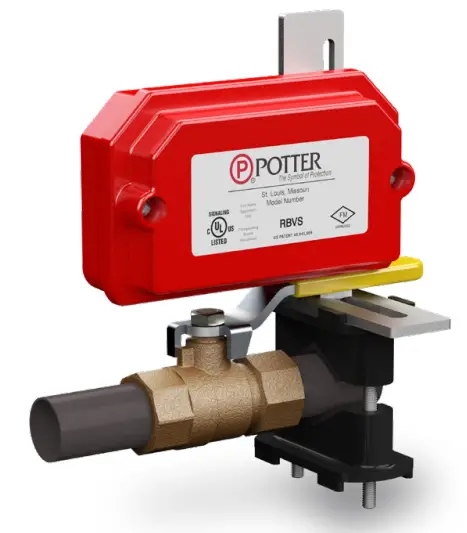

The Model RBVS is designed to monitor the fully open or closed position of a ball valve installed in a sprinkler system as well as monitor the position of a coil on a solenoid for a preaction/deluge system.

Details

Part # …..Universal Ball Valve/Solenoid Coil Switch: 1000065
Cover tamper Kit (Optional): 0090224
Listings …………………………….. UL Listed & FM Approved

Selling Features

Includes mounting hardware to supervise coils on most solenoids
Assembled in USA
Fits most lever/tee type ball valves up to 2”
Fits most backflow preventers up to 2”
Operates on open or closed valves
Accommodates up to 12 AWG wire
Optional field installed cover tamper switch kit (0090224)
RoHS compliant

Code Requirements

Can now be used to satisfy NFPA 13-2019 requirement for Actuator Supervision (8.3.1.2.1)*.

Common Questions

Q : What type of mounting is included?
– A : The unit includes a small “L” bracket and “V” clamp to allow the RBVS to mount directly to the nipple on the coil of a solenoid valve.
Q : Is there a cover tamper switch available?
– A : Yes. If an attempt is made to remove the RBVS by the removal of the mounting brackets, the unit will be set into the tripped mode by this action.

*Will go into effect January 1st, 2021.
