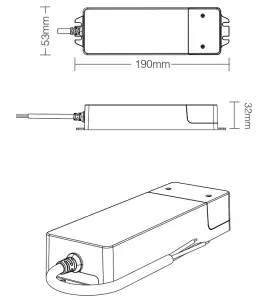

75W Dimming LED Driver
Model No.: CL3-P75V24 / CL4-P75V24
Instructions

1. Product feature Controller adopt the widely used 2.4GHz wireless technology with the features of low power consumption, long signal transmitting, and strong anti-interference, etc. The controller has an auto-transmitting and auto-synchronizing function. Widely used on the controlling of hotel lighting and home lighting.

75W RGB Dimming LED Driver
Model No.: CL3-P75V24
Input: 100-240V~ 50/60Hz
Output Voltage: 24V
Output Current: Max 3A ta: 40°C tc: 85°C
RF: 2.4GHz
Control Distance: 30m

	16 Millions of colors to choose
	Mix Red, Green and Blue light to adjust color temperature
	Dim brightness / saturation
	2.4G RF wireless transmission technology
	Remote control Control distance 30m
	Smartphone App control (2.4GHz gateway is needed)
	Support third party voice control (2.4GHz gateway is needed)

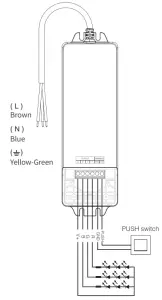

Connection Diagram
75W RGB Dimming LED Driver
Input: 100-240V~

75W RGBW Dimming LED Driver
Model No.: CL4-P75V24
Input: 100-240V~ 50/60Hz
Output Voltage: 24V
Output Current: Max 3A
ta: 40°C tc: 85°C
RF: 2.4GHz
Control Distance: 30m

	16 Millions of colors to choose
	Dim brightness /saturation / white color
	2.4G RF wireless transmission technology
	Remote control Control distance 30m
	Smartphone App control (2.4GHz gateway is needed)
	Support third party voice control (2.4GHz gateway is needed)

Connection Diagram
75W RGBW Dimming LED Driver
Input: 100-240V~

Link Code / Unlink Code with remote

1. Link code
   Note: The “ ” key for FUT089 remote don’t support to link code.
   (1) Making dimming LED driver to enter Link code / Unlink code mode:
   Switch off dimming LED driver, switch on again after 10 seconds.
   (2) Short press zone “ ” or “ ” 3 times on remote within 3 seconds, light blinking 3 times slowly means the linking is done successfully.
2. Unlink code
   (1) Making dimming LED driver to enter Link code / Unlink code mode:
   Switch off dimming LED driver, switch on again after 10 seconds.
   (2) Short press zone “ ” or “ ” 5 times on remote within 3 seconds, light blinking 10 times quickly means the unlinking is done successfully.

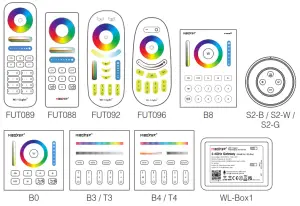

3. Compatible with following remote controls
   (Purchase separately)


Auto-transmitting & Synchronization

1. Signal transmitting Dimming LED driver can transmit the signals from the remote control to another one within 30m, as long as there is dimming LED driver within 30m, the remote control distance is unlimited.
2. Modes synchronization Different dimming LED drivers can work synchronously when they are started at different times, controlled by the same remote, under same dynamic mode and within 30m distance.


Dynamic mode selection

1. Select dynamic mode table 1 :
   Dimming LED driver is powered off for 10 seconds and then powered on, or short ” SET ” button one time.
   Press the ” S+ ” button 5 times within 3 seconds, the blue light blink 3 times slowly, selection is done successfully.
2. Select dynamic mode table 2 :
   Dimming LED driver is powered off for 10 seconds and then powered on, or short ” SET ” button one time.
   Press the ” S- ” button 5 times within 3 seconds, the yellow light blink 3 times slowly, selection is done successfully.
3. Dynamic mode table 1(default in factory)


   Number	Dynamic Mode	Brightess/ Saturaion/ Speed
   1	Mardi Gras	Adjustable
   2	Automatic color change
   3	Sam
   4	Gemstone
   5	Twilight
   6	American
   7	Fat Tuesday
   8	Party
   9	Slow Color Splash

4. Dynamic mode table 2 (need to switch manually)


   Number	Dynamic Mode	Brghtess/Sataaion /Speed
   1	Colors gradual change	Adjustable
   2	White light Gradual change
   3	RGB gradual change
   4	Seven colors jump to change
   5	Jump to change randomly
   6	Red light gradual change +Flash 3 times
   7	Green light gradual change +Flash 3 times
   8	Blue light gradual change +Flash 3 times
   9	White light gradual change +Flash 3 times

5. Attention
   1. Please check whether the voltage of the power supply is in accordance with the dimming LED driver, and please check the connection of both the cathode and anode, otherwise the controller will be broken.
   2. Please do not use the controller in the place with widely range metal area or strong electromagnetic wave nearby, otherwise, the remote distance will be affected seriously. 5. Non-professional users are not allowed to disassemble the equipment directly, otherwise the equipment may be damaged.

Controller can not use in humid are
Made in China
