Omcan Dw-cn-0660 Display Warmer Curved Glass Instruction Manual

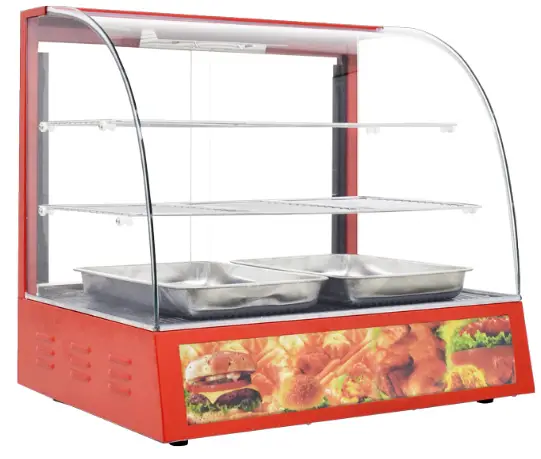

OMCAN DW-CN-0660 Display Warmer Curved Glass

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcanand Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or negligent use of this equipment. The product shall only be operated by someone over the age of 18, of sound mind, and not under the influence of any drugs or alcohol, who has been trained in the correct operation of this machine, and is wearing authorized, proper safety clothing. Any modification to the machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of the machine while in operation.

CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the external packaging, open carton to ensure all ordered items are within the box, and there is no concealed damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse for damaged products that were shipped collect or third party. Before operating any equipment, always read and familiarize yourself with all operation and safety instructions. Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save these instructions for future reference. Also save the original box and packaging for shipping the equipment if servicing or returning of the machine is required.

Safety and Warranty

• Repairs must be performed by qualified technicians or those who are authorized by Omcan.
• When installing, operating or performing maintenance, following the instructions in this manual to ensure the safety use of all persons.
• Keep this instruction manual for future reference and give it to the next user (if applicable).
• When unpacking, make sure none of the parts are missing or damaged. In this case, contact the dealer or Omcan at 1-800-465-0234.
• Keep the packing material out of reach of the children to avoid accidents.
• This appliance is to be only operated by those familiar with the unit.
• Do not operate the unit unsupervised.
• Only use original spare parts when repairing the unit.
• The unit is for commercial use only.
• Do not rinse the equipment with water directly or pressurized jets.
• Clean the surface of stainless steel periodically.

Omcan display warmers are engineered and designed to maintain previously cooked foods at serving temperatures. Improper use of this machine’s maximum temperature for extended periods of time, in an attempt to thoroughly cook food products, is prohibited. Such operation will void the manufacturer’s warranty and may result in under cooked and therefore unsafe food.

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. The right is reserved to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.

1 YEAR PART AND LABOUR BENCH WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.Please see https://omcan.com/disclaimer for complete info.

WARNING:
The packaging components (cardboard, polyethylene, and others) are classified as normal solid urban waste and can therefore be disposed of without difficulty. In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms. DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

Technical Specifications

Installation

1. Before using this machine, please make sure the machine is safely grounded.
2. The voltage supply must be correspond with the rated voltage of the warmer.
3. Screw the side glass into place with the 8 screw provided.
4. Each time before using the machine, add 0.6 liters (0.16 gallons) of water into the water tray of this machine.
5. After connecting the machine to the power supply, the power indicator will be on. Turn on the heating switch to select the desired temperature. Air convection will keep the desired temperature throughout the machine.
6. If light is needed, use the light bulb type equipped with the machine.
7. After using, always clean the machine. For safety reasons, cut off power supply and unplug before any cleaning.
8. If any abnormal objects, substances or noises, turn the machine off and contact a qualified technician.

NOTE: THIS UNIT IS DESIGNED TO HOLD FOOD WARM. IT IS NOT DESIGNED TO COOK FOOD. ALL FOOD MUST BE FULLY COOKED AND HEATED PRIOR TO PLACING IT INTO THE WARMER. DO NOT OPERATE THIS MACHINE AT THE MAXIMUM TEMPERATURE SETTING FOR AN EXTENDED PERIOD OF TIME.

Operation

Before using the machine, a complete cleaning of the machine must be performed. Before placing food in the warmer, let the machine operate at desired temperature for 15 minutes. Food must already be cooked and heated before placing in the machine. This machine is not designed to cook food. Check the temperature inside the machine regularly.

NOTE: Monitor food temperature closely to ensure food safety. DO NOT maintain a temperature of 85°C for extended periods of time. All numbers in brackets below refer to the Parts Breakdown.

1. Plug the machine in and press the power switch. The indicator light (28) will light to indicate power.
2. Then choose the desired temperature by adjusting the switch button (32).
3. After adjusting the temperature, the processing indicator light (29) will turn on. This shows that the unit is in the process of heating up or is already heated up.
4. When finished with the machine, turn the temperature control to the lowest setting and switch OFF. Then unplug the unit. If removing hot items from the unit, use protective gloves.
5. Proceed to clean the machine by the instructions listed.

DO NOT WASH ANY PART OF APPLIANCE DIRECTLY WITH WATER.

TRANSPORTATION AND STORAGE

During transportation, the machine should be careful handled. There should be no shaking. It should not be put up-side-down. The unit should be stored in a ventilated warehouse.

Maintenance

CLEANING

To increase service life, clean equipment daily.

NOTE: Do not use detergents which are acidic, corrosive or contain chlorine.

NOTE: Do not immerse the cord, plug or machine in water or any other liquid. Do not use pressurized water jets to clean the machine

1. Turn the machine off and unplug it from the electrical socket. Let the machine cool completely before cleaning.
2. Use a damp cloth or sponge, use detergent and water to clean the equipment.
3. A high quality, non-toxic glass cleaner can be used to clean the glass on the machine.
4. Completely dry the machine before using.

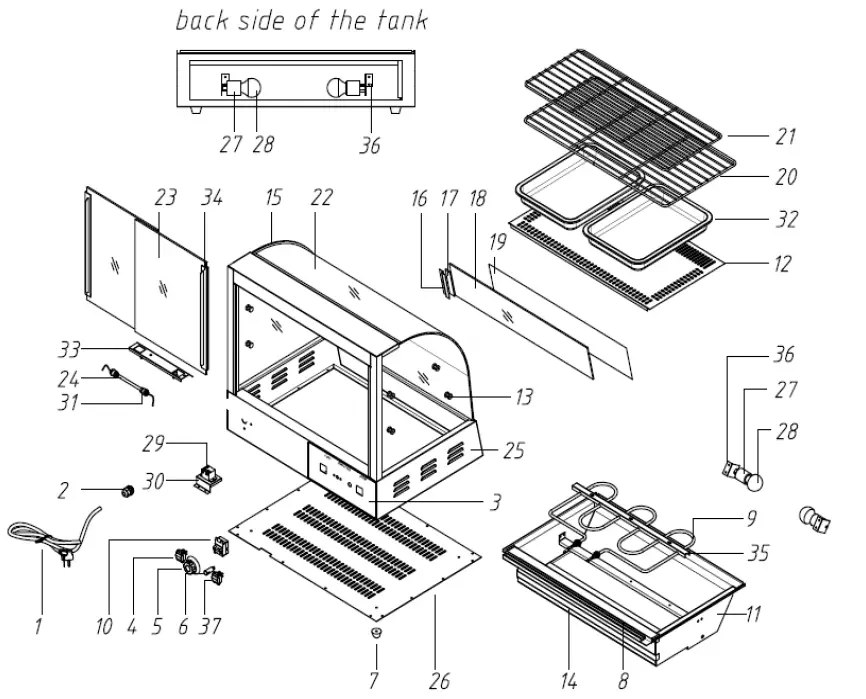

Parts Breakdown

Model DW-CN-0660 21479

Parts Breakdown

Model DW-CN-0660 21479

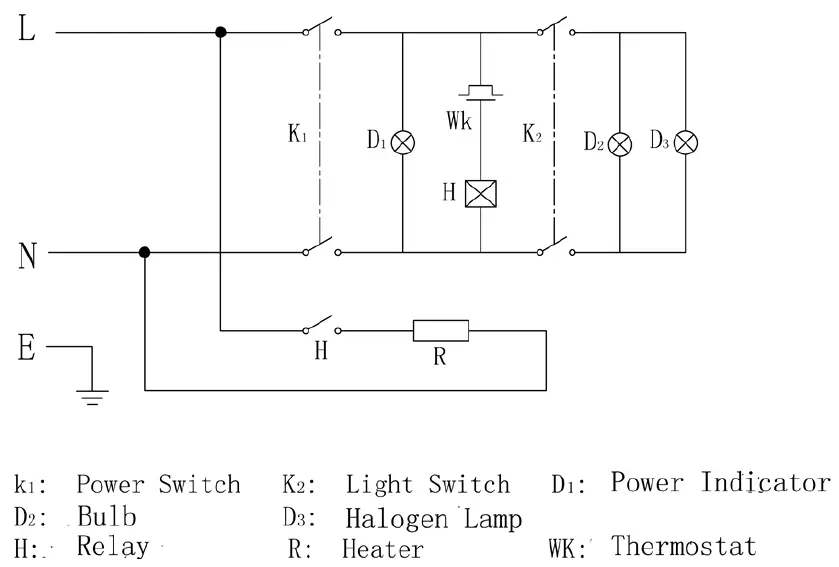

Electrical Schematics

Model DW-CN-0660 21479

Warranty Registration

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting:

OMCAN PRODUCT WARRANTY REGISTRATION 4450 Witmer Industrial Estates, Unit 4, Niagara Falls, New York USA, 14305 or email to: [email protected]

Thank you for choosing Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers. Today with partners in North America, Europe, Asia and South America, we continually work to improve and grow the company. We strive to offer customers exceptional value through our qualified local sales and service representatives who provide convenient access to over 5,000 globally sourced products.
