Ipvoice Ipv59 Ip Phone User Guide

IPVOICE IPV59 IP Phone

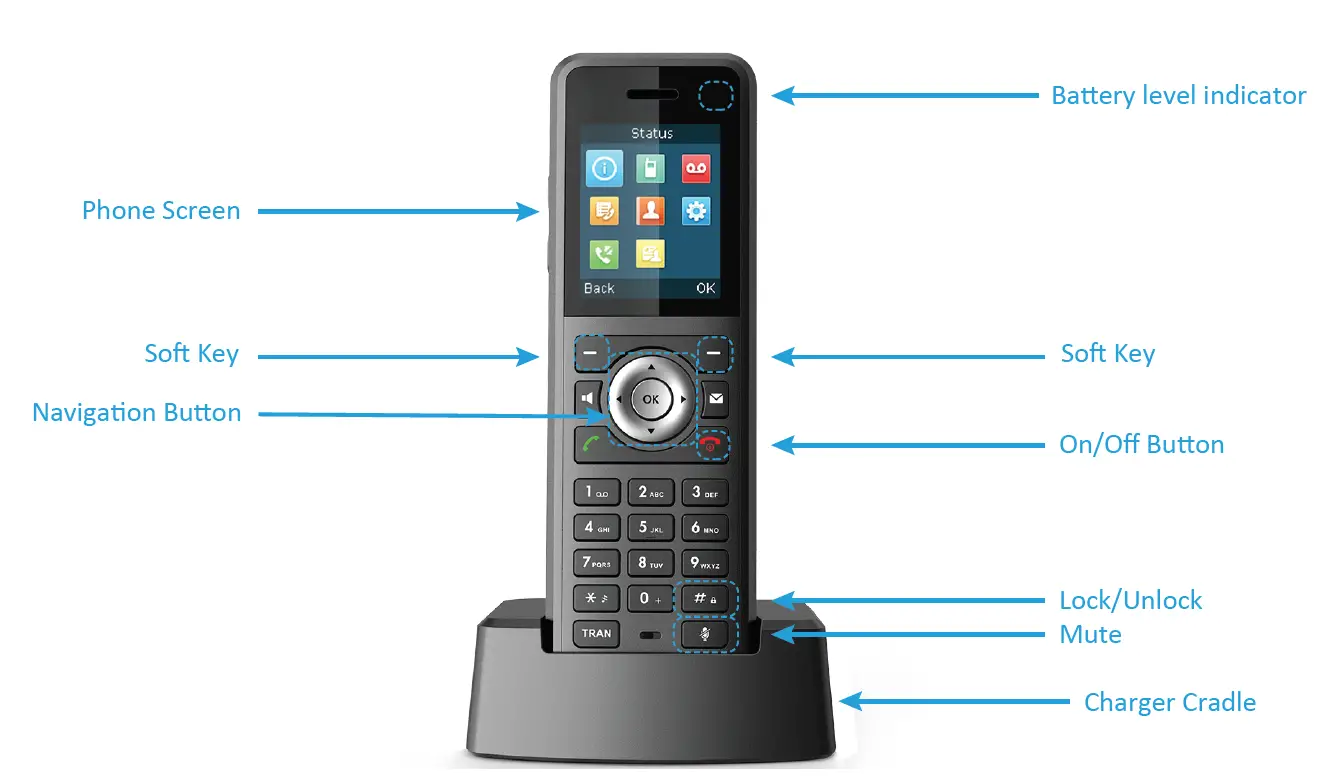

PRODUCT OVERVIEW

Basic Operations

Turning Handset On/Off:

• Press , then the LCD screen lights up.
• Place the Handset in the charger cradle to turn on automatically.
• Long press again to turn the Handset off.

Locking/Unlocking keypad:

• Long press when the Handset is idle to lock the keypad.
• Long press again to unlock the keypad.

Switching Silent Mode On/Off:

• Long press when the Handset is idle to lock the keypad.
• Long press again to unlock the keypad.

Make a Call

Enter the desired number when the handset, then press .

To place a call from the local directory

1.  Press when the handset is idle.
2.  Select the directory.
   •  Internal use directory
   • External use LDAP
3.  Press to highlight the desired entry, and then then press .

Answer a Call, do one of the following:

• Press the Accept soft key.
• Alternatively press

Put a Call on Hold

1.  Press the OK Options soft key during a call, and then select Hold.
2.  To resume the call, press the Resume soft key.

Access the Directory

• Press the key to enter the main menu, and then select Directory OR
• When the Handset is idle press

Transfer a Call to Another Person

1.  Press the Options soft key during call, and then select Transfer.
2.  Enter the number you want to transfers the call to.
3.  Press Transfer soft key.

Make a Call with the Speakerphone

1.  Enter a number using the keypad.
2.  Press Speakerphone

Mute Your Audio

1. Press during a call to mute the call.
2.  Press again to turn mute off.

To end a Call

Press

Listen to Your Voice Messages

Press Messages keys and follow the voice prompts. To check messages for a specific line, press the line buon first.

Adjust the Volume in a Call

Whilst in call, press or

Adjust the Ringtone Volume

Whilst in call, press or

Call Pickup

Dial *88

View Call History

1.  Press history
2.  Press   to highlight the desired entry, and then then press

Redial

1.  Press the green call buon.
2.  Pressto highlight the desired entry, and then then press
