Centsys G-ultra G-speak Ultra Gsm Audio Intercom User Manual

GSM DEVICES
G-ULTRA
QUICK GUIDE Centurion Systems (Pty) Ltd
www.CentSys.com

Important Safety Instructions

1. Do not install this product near the DOSS sensor inside the gate motor housing or near the remote receiver.
2. Do not install this product near any sensitive electrical components.
3. All installation, repair, and service work to this product must be done by a suitably qualified person.
4. Do not in any way modify the components of the system.
5. Do not install the equipment in an explosive atmosphere: the presence of flammable gas or fumes is a serious danger to safety.
6. Do not leave packing materials (plastic, polystyrene, etc.) within reach of children as such materials are potential sources of danger.
7. Dispose of all waste products like packing materials, according to local regulations.
8. Centurion Systems (Pty) Ltd does not accept any liability caused by improper use of the product, or for use other than that for which the GSM system was intended.
9. This product was designed and built strictly for the use indicated in this documentation. Any other use, not expressly indicated here, could compromise the service life/operation of the product and/or be a source of danger.
10.  Anything not expressly specified in these instructions is not permitted.

This icon indicates tips and other information that could be useful during the installation.
This icon denotes variations and other aspects that should be considered during installation.

Technical Specifications

TABLE 1

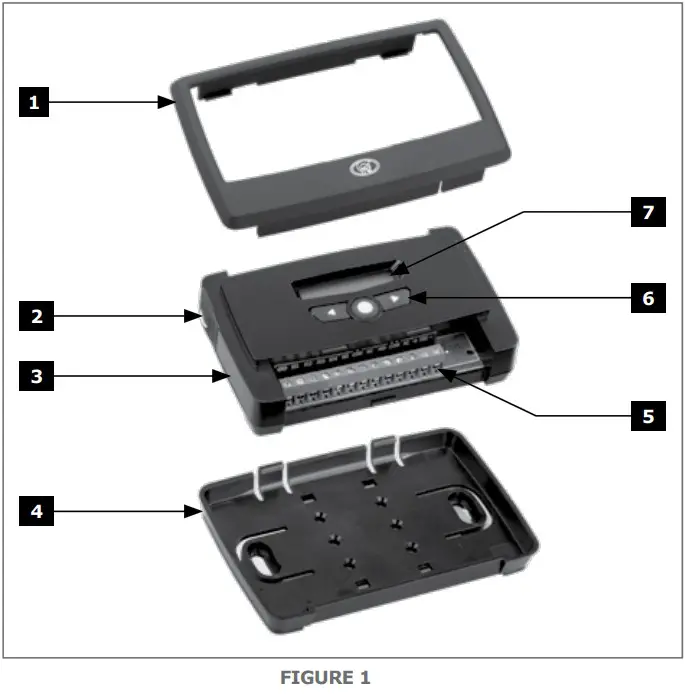

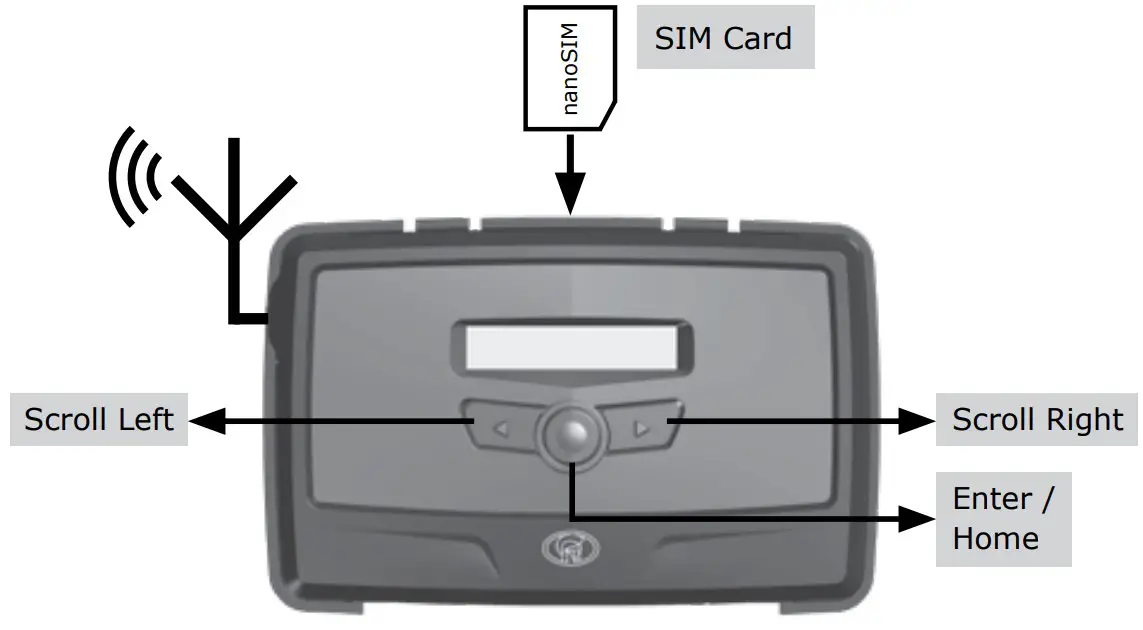

Product Identification

Optional: External Antenna
NOTE:
The Internal Antenna is selected by default.

LCD Interface

Table 2 below lists the information shown on the different screens found on the LCD interface. The left and right scroll buttons are used to toggle between the different screens.

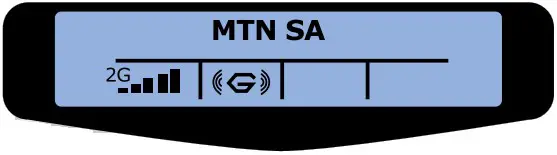

	Home Screen Network Name or Phone Number Applicable to Incoming / Outgoing SMS or Call. Network Signal Strength Connected to Internet Connected to G-WEB Device has Error Condition Incoming SMS Outgoing SMS Incoming Phone Call Events Outgoing Phone Call Events

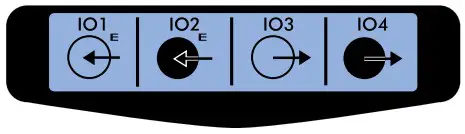

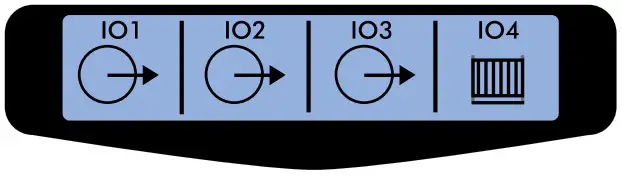

	IO Status Screen Input: Deactivated (“E” = Input event reached) Input: Activated (pulled to ground) (“E” = Input event reached) Output: Off Output: On (pulling to ground)

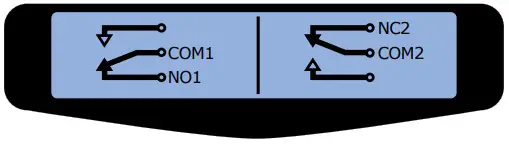

	Output Status Screen Relay X is Switched OFF and the Normally-Closed and Common Contacts are connected. Relay X is Switched ON and the Normally-Open and Common Contacts are connected. X= 1 or 2

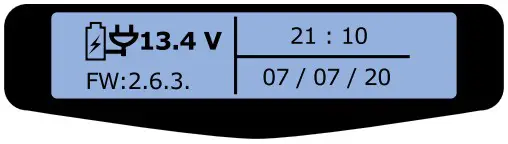

	Voltage/Firmware/Date & Time Screen • Supply Voltage • Firmware Version • Time • Date

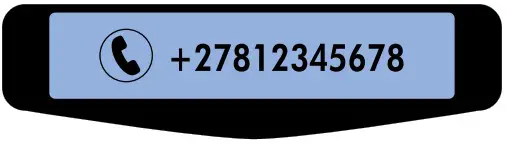

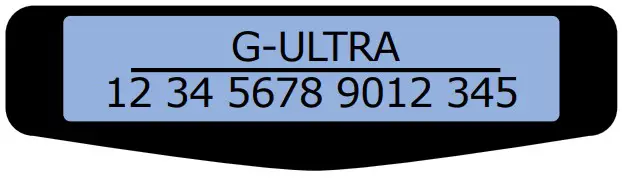

	Phone Number Screen Device SIM Phone Number.
	Airtime Balance Screen Outgoing Call Credits Outgoing SMS Credits

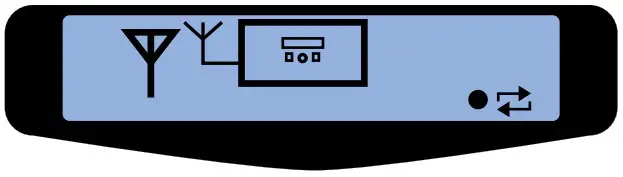

	GSM Antenna Selected Screen Internal GSM Antenna Selected (default). External GSM Antenna Selected (connect own Antenna to SMA connector). Press Enter to change between Internal and External Antennas.
	Gate Status Screen Gate Closed Gate Opening  Gate Open Gate Status Warning

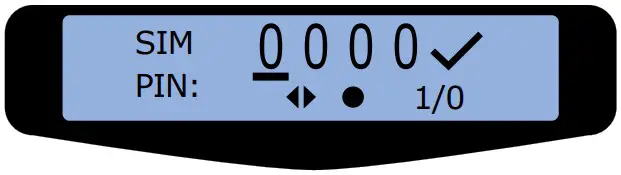

	SIM Screen SIM PIN OK SIM PIN Incorrect SIM Error
	IMEI Screen Displays the device’s IMEI number

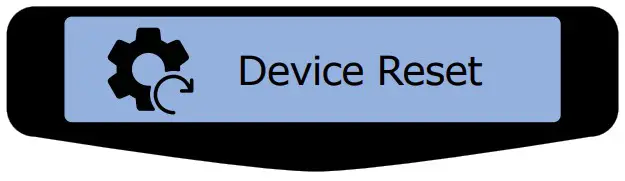

	Device Reset Refresh the connection to G-WEB or restore the device to default factory settings (See Section 5).

TABLE 2

Syncing and Factory Reset

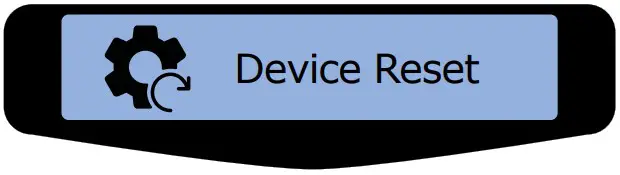

	From the main menu scroll left using the direction buttons until “Device Reset” shows on the screen. Press the enter/home button to enter the sub-menus.

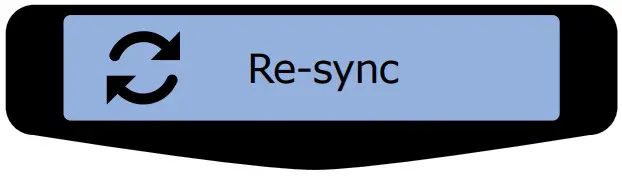

	Re-sync (sub-menu) Re-sync will refresh the connection of the device to G-WEB, and will not erase any settings. Push the enter/home button to confirm a re-sync, if the current settings are still desired.
	Factory Reset (sub-menu) Factory reset will restore the device to factory settings. Press the enter/home button to confirm a factory reset. WARNING! This will erase all settings, and restore the device to its original factory state!

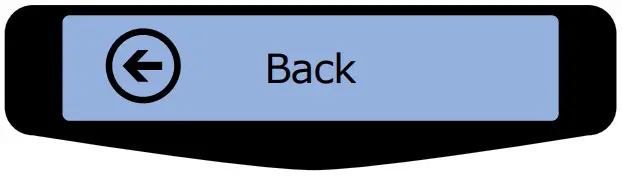

	Back (sub-menu) Press enter/home button to return to main menu.
	Confirmation screen Confirm or decline proceeding with factory defaulting.

TABLE 3

Configurations

6.1. Removing the Mounting Plate and Fascia
To access the terminal blocks of the G-ULTRA, the back plate and fascia need to be removed. Follow the instructions below to do this.
6.1.1. Removing the Mounting Plate

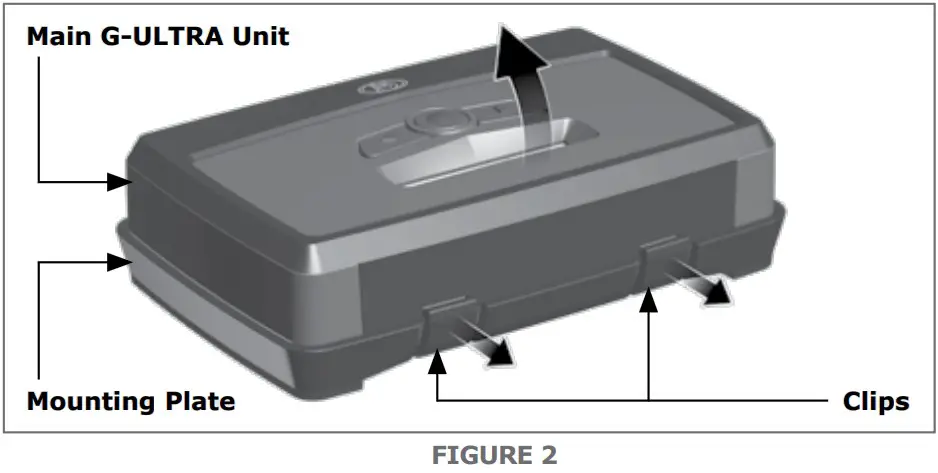

Gently pull the two clips at the back, backward to release the main G-ULTRA unit, and lift the unit out of the mounting plate.

6.1.2. Removing the Fascia

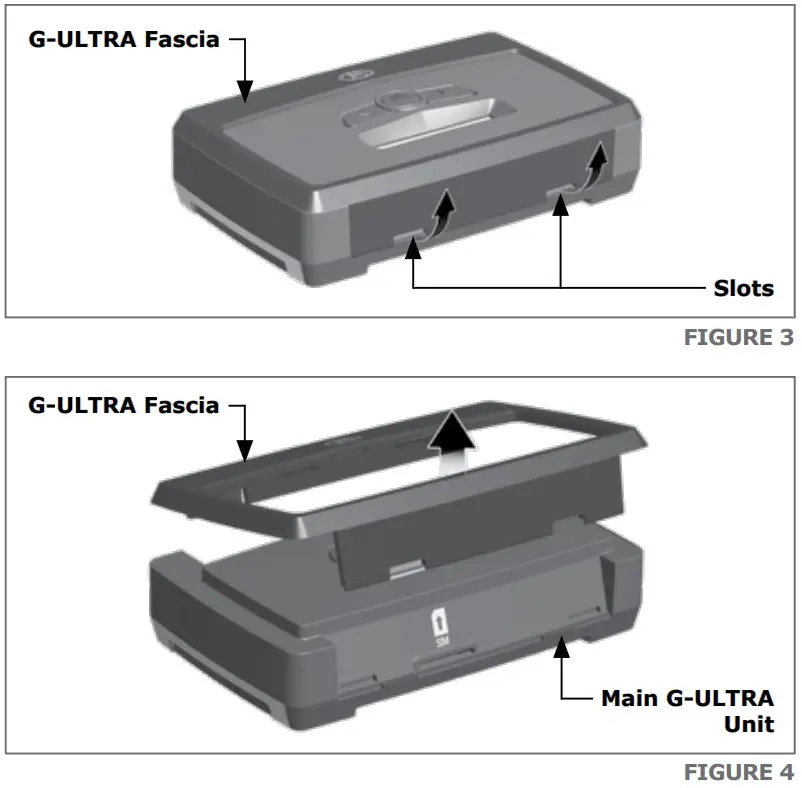

The fascia can be removed by inserting the tips of one’s fingers into the slots (as shown in Figures 3 and 4), and pulling outward and upward.
The fascia should pop off without effort.

Reverse the procedure under Section 6.1 to re-assemble the G-ULTRA.

6.2. Installation
6.2.1. Wall-mounting

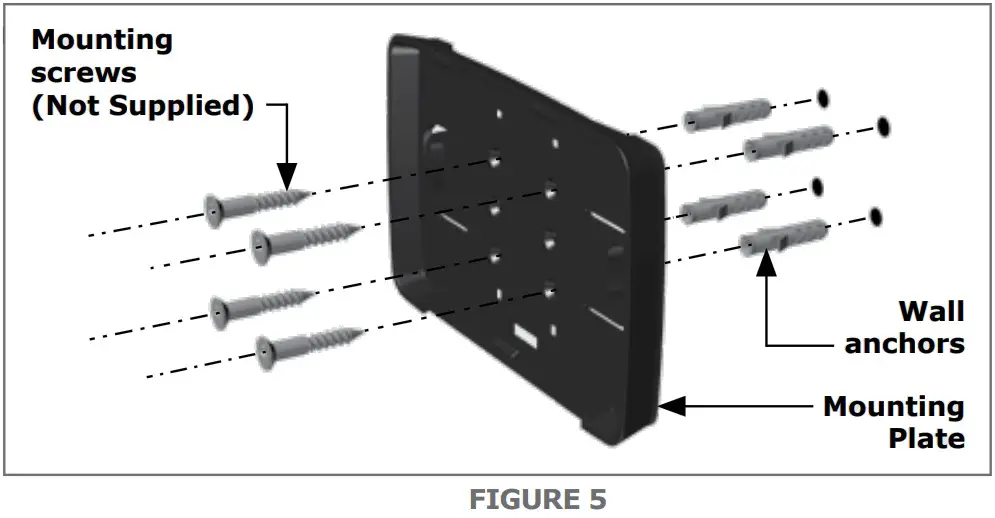

The Mounting Plate is used to mount the G-ULTRA device to a wall. Use four screws with wall anchors (not supplied) to secure Mounting Plate.

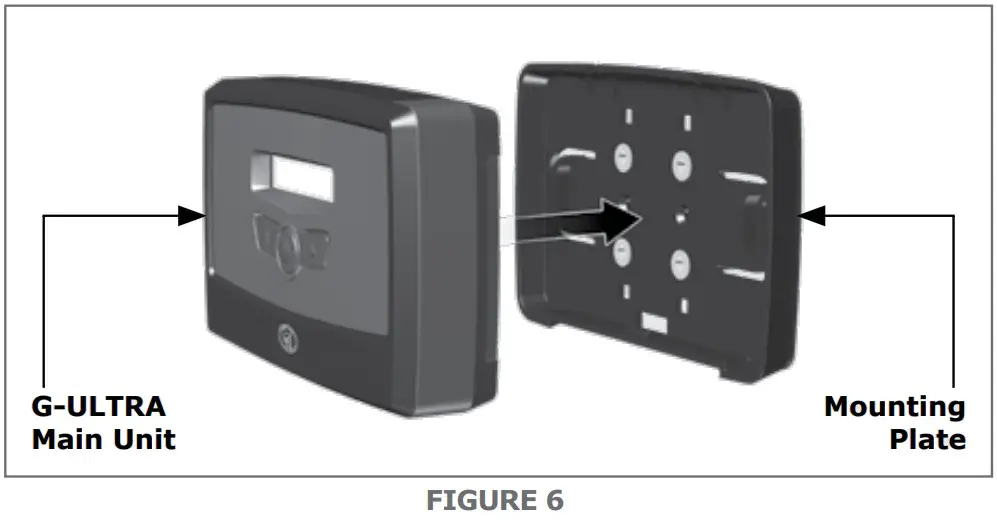

Clip the G-ULTRA main unit into the Mounting plate after it has been secured to the wall; a ‘click’ will be heard if done correctly.

TABLE 3

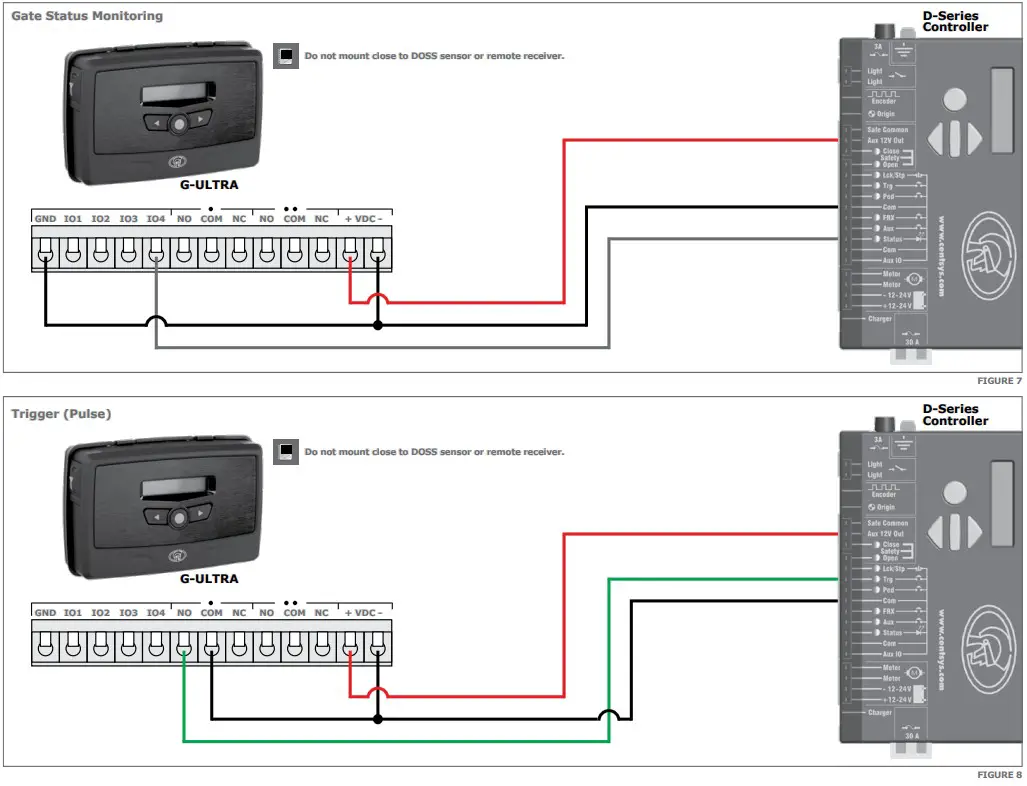

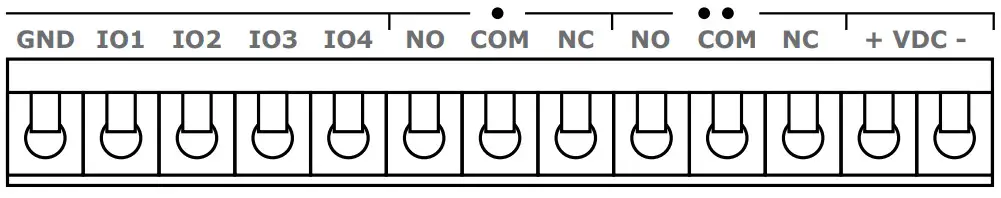

6.4. Wiring Diagrams (Please refer to the online G-ULTRA wiring diagram document for more diagrams)

Looking for more wiring diagrams and product applications?
Scan the QR code on your mobile device to be taken to our wiring diagram library.

https://www.centsys.co.za/pdf/prod/gultra/Centurion%20Systems_
G-Ultra_G-Speak%20ultra%20Wiring%20Diagrams.pdf

6.5. Configuration of features

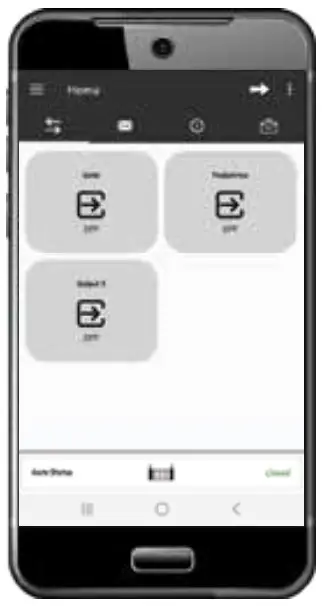

All features – both basic and advanced – can be easily, and remotely, configured via our G-WEB Mobile Phone App or our G-WEB Online Interface.
By simply logging on to the G-WEB App or G-WEB, you can add and delete users, specify text for input notifications and activations, modify device characteristics and many other features.
Download the G-WEB mobile App from your Smart Phone by navigating to the App store or go to http://www.gweb.co.za
It would be necessary to register if you have not previously done so.

6.5.1. G-WEB Mobile App (Installers)

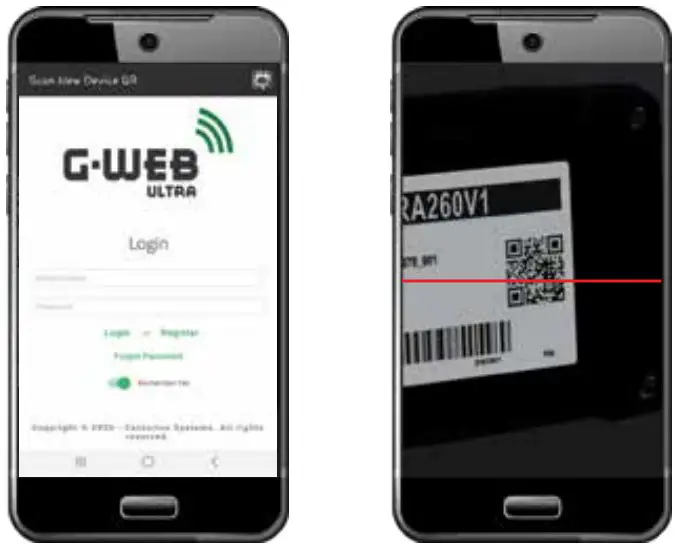

To download the G-WEB Mobile installer app, simply scan the QR code on your mobile device to be taken to the app in the applicable app store for your operating system. The G-WEB app gives you on-the-go access to a multitude of configuration and admin settings.

There is no need to download a third party QR Scanner, as there is a QR Scanner that is built into the G-WEB ULTRA Mobile App.

6.5.2. G-WEB Online
Your CENTURION GSM devices can be remotely managed and configured using the G-WEB online interface. Scan the QR code to be taken to G-WEB online.

https://www.gweb.co.za/

6.5.3. G-REMOTE Mobile App (Users)
Download the G-REMOTE mobile app now for free by scanning the QR code on your mobile device. G-REMOTE lets you remotely control your GSM devices from your phone and receive push notifications for systems that are being monitored.
