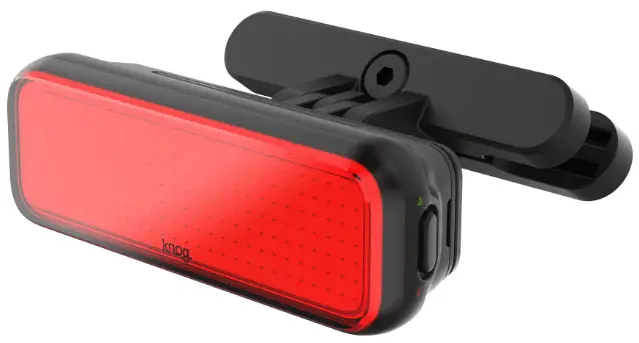

knog Blinder Link Light Saddle Mount

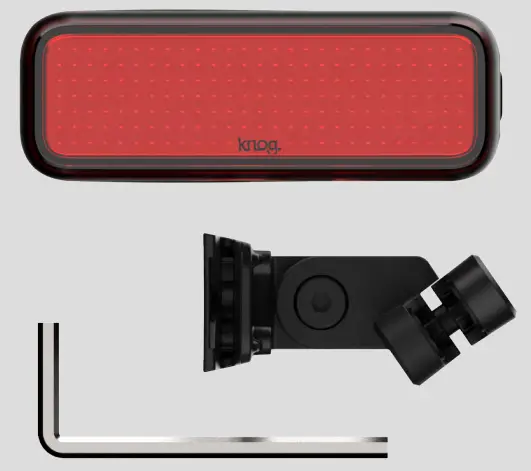

WHAT’S IN THE BOX

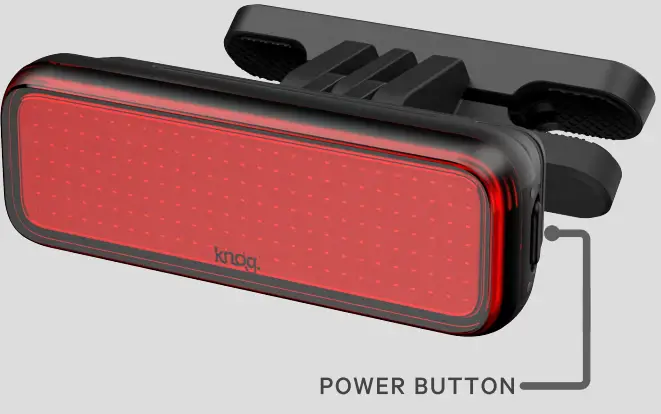

OPERATION
LONG PRESS ON/OFF
STANDARD PRESS CYCLES THROUGH ALL 8 MODES
MOUNTING

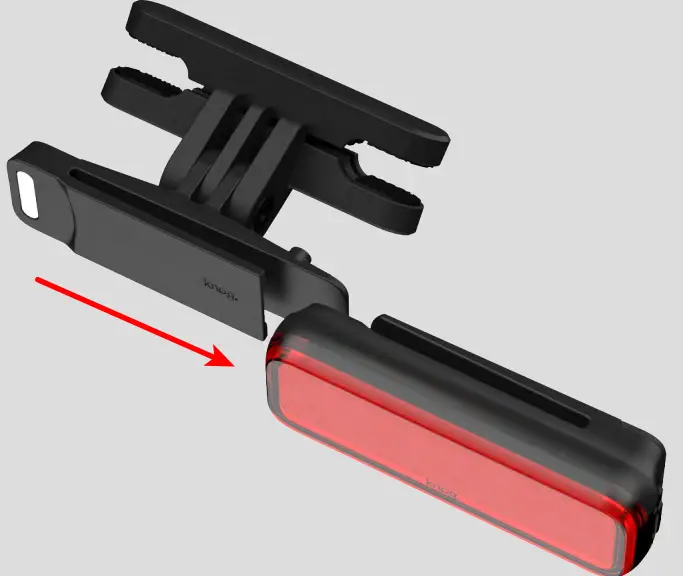

REMOVE THE LIGHT FROM THE MOUNT

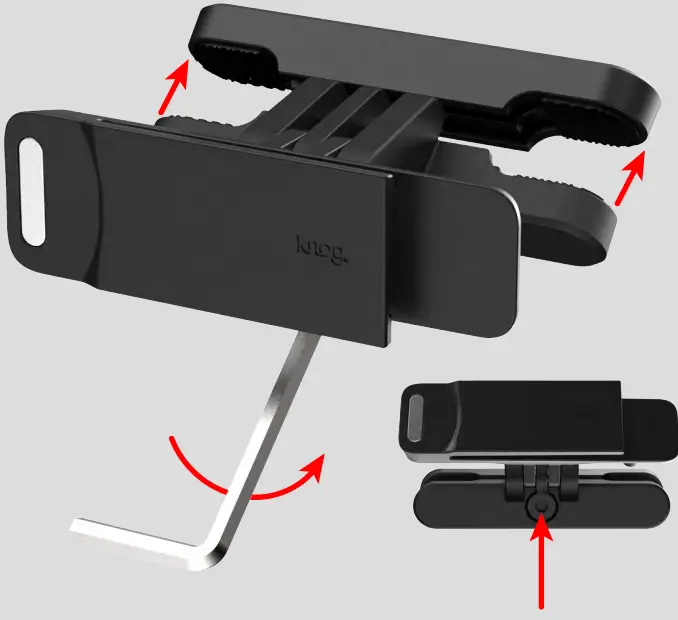

LOOSEN THE BOLT TO OPEN THE CLAMP

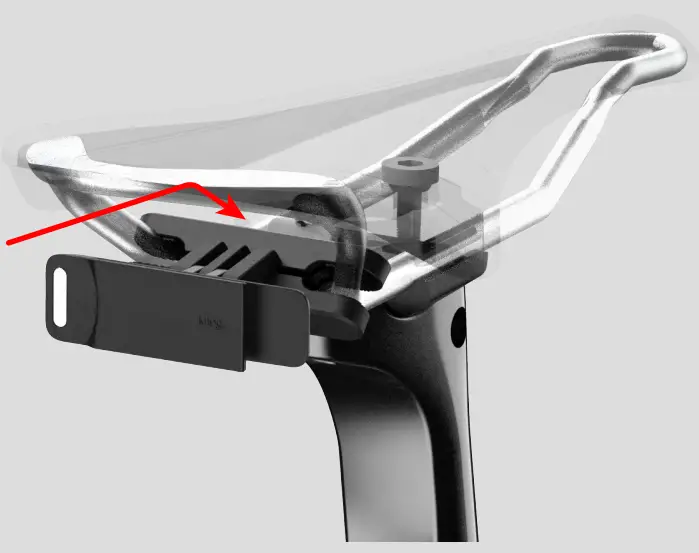

INSERT THE MOUNT BETWEEN THE SADDLE RAILS AT THE WIDEST POINT, THEN LOWER THE MOUNT INTO THE DESIRED POSITION

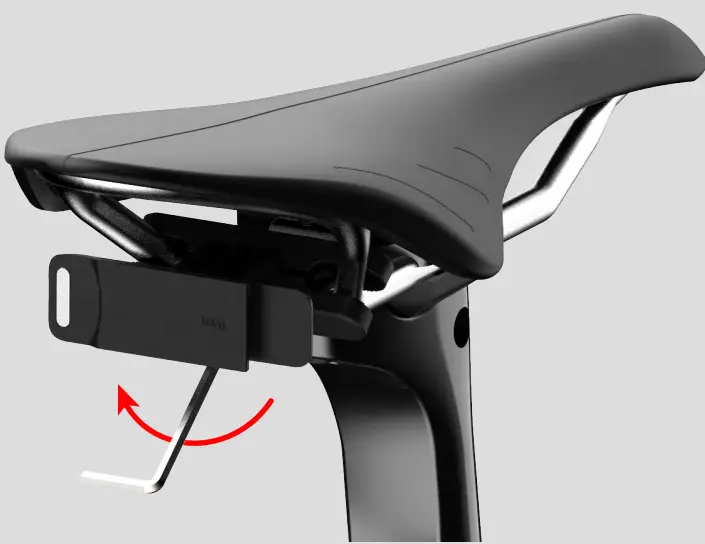

ONCE IN POSITION, TIGHTEN THE BOLT

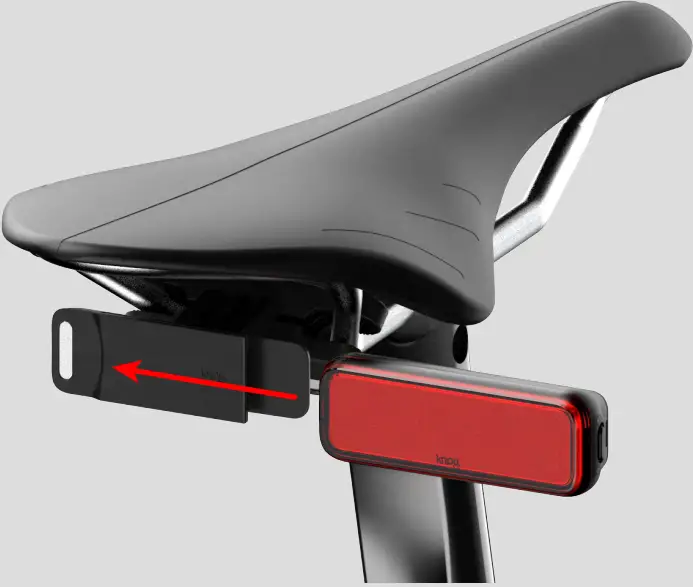

SLIDE THE LIGHT BACK ONTO THE MOUNT

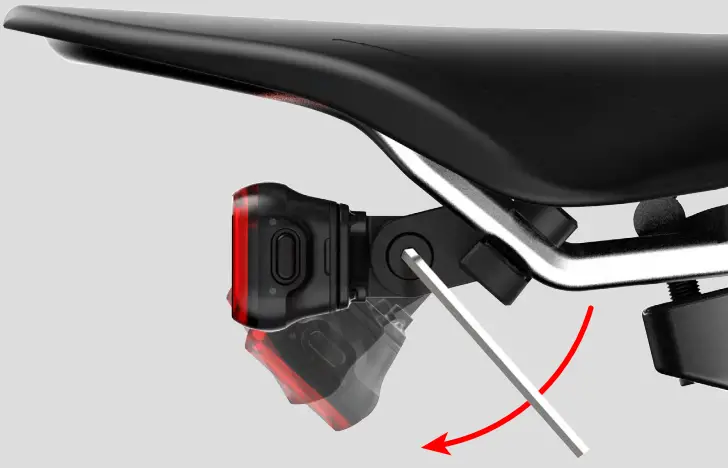

ADJUST THE LIGHT TO THE DESIRED ANGLE & TIGHTEN THE BOLT

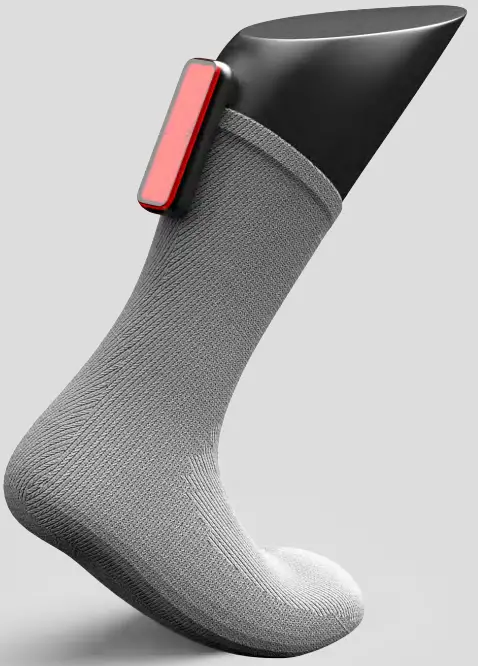

WEARABLE
THE INTEGRATED CLIP-MOUNT TURNS THE BLINDER LINK INTO A WEARABLE LIGHT
- THE CLIP-MOUNT IS DESIGNED TO MOUNT TO THICK MATERIALS AND STRAPS
- MAKE SURE THE LIGHT IS MoUNTED VERTICALLY WITH THE POWER BUTTON AT THE TOP
- WHEN WEARING THE LIGHT, MAKE SURE THE LIGHT IS TIGHTLY
- FITTED AND SECURE BEFORE USE

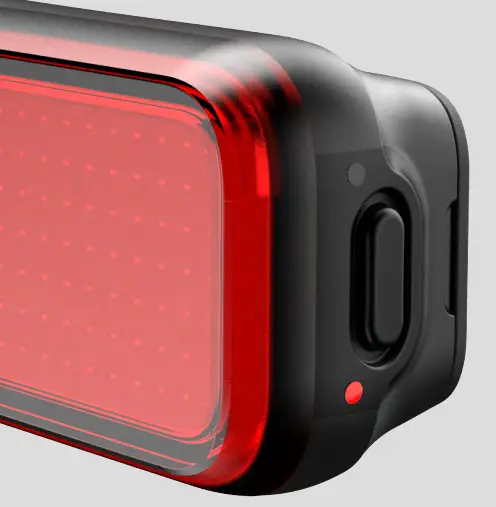

BATTERY STATUS
WHEN THE BATTERY IS RUNNING LOW, THE RED LED WILL APPEAR
CHARGING

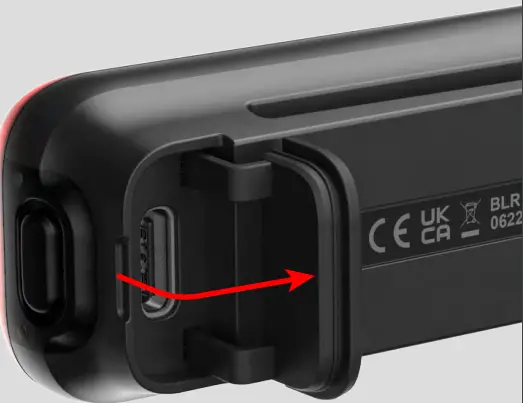

CAREFULLY OPEN THE CHARGING-PORT HATCH

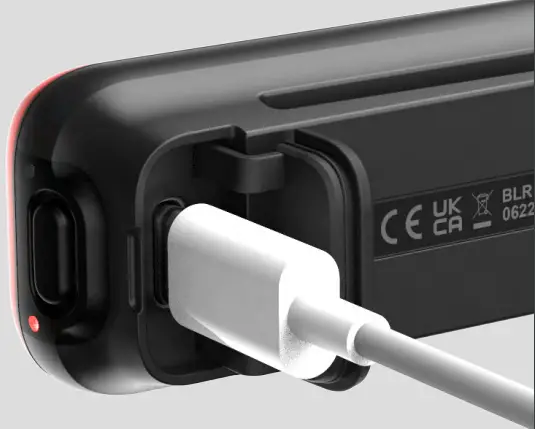

INSERT USB C CHARGING CABLE RED LED INDICATES CHARGING

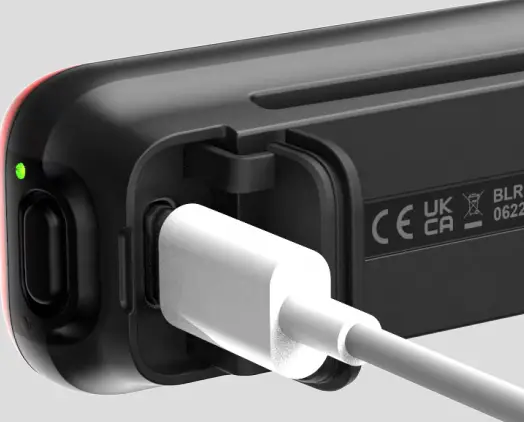

GREEN LED INDICATES FULLY CHARGED

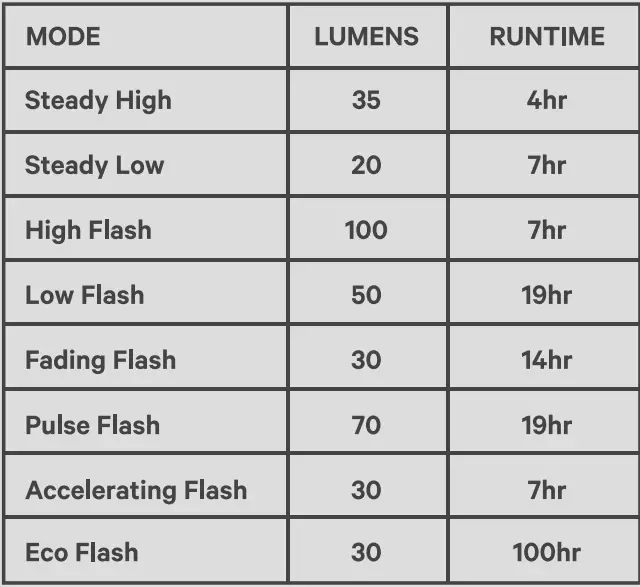

MODES &RUNTIMES
DESIGNED BY KNOG MELBOURNE, AUSTRALIA 2 YEAR WARRANTY
KNOG.COM
