Scanstrut Backstay Self-Levelling Mount Installation Instructions
LMB-F1 / LMB-F2

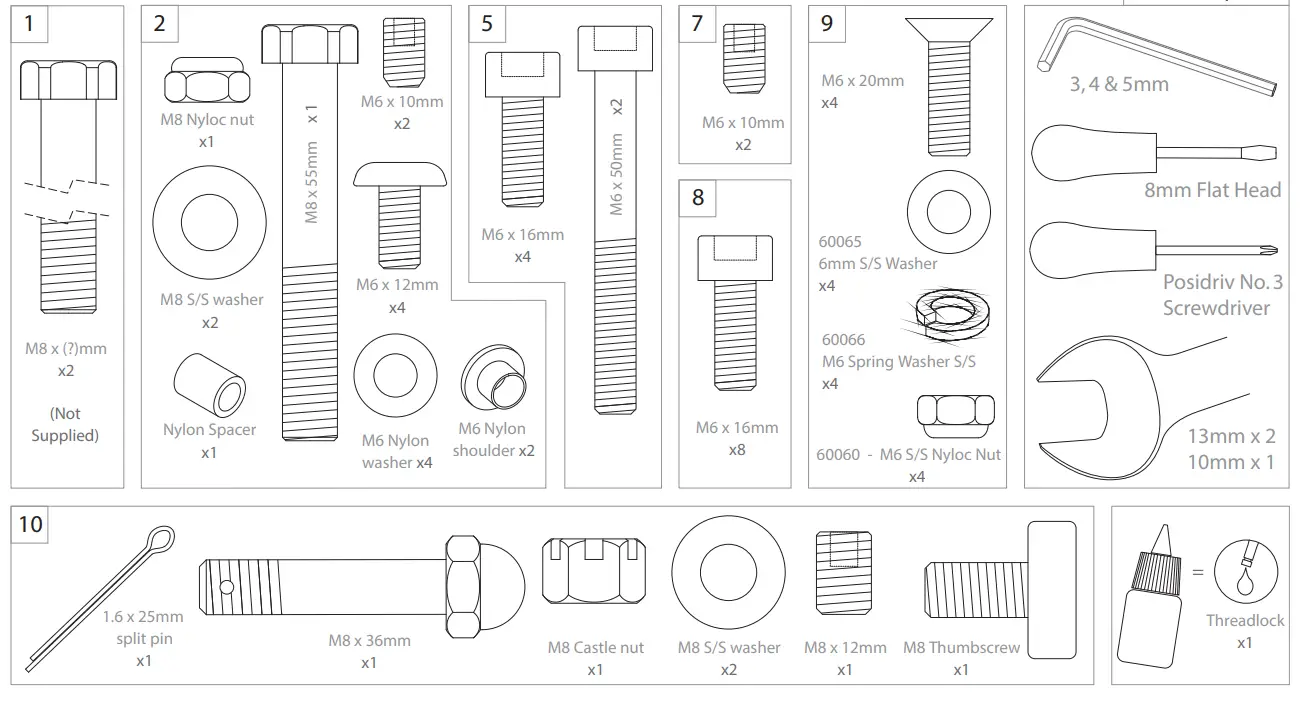

Tools Required
LMB-F1 Backstay Self-Levelling Mount
Issue 7
IMPORTANT NOTES

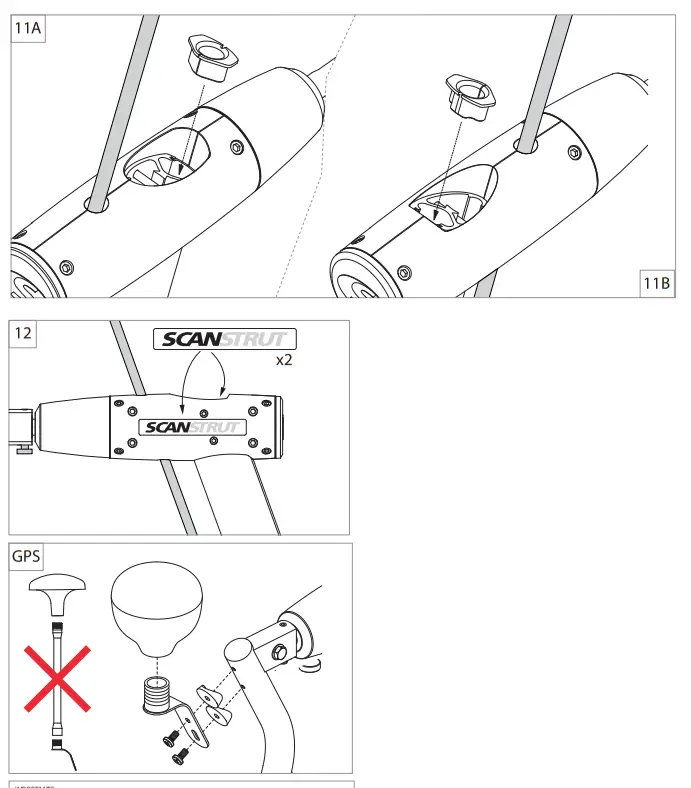

LMB-F1/A1 and LMB-F2/A2 are intended to mount a single radome as stated in the latest Scanstrut Product Guide – subject to change without prior notice. A GPS antenna can be installed using part LM-GPS.
Use of the LMB-F1/A1 and LMB-F2/A2 with unapproved products, or overloading, invalidates any warranty.
No liability is accepted for damage caused by incorrect installation.
Product has been designed specifically for the mounting of approved radar (listed in the latest Scanstrut Pod Product Guide.) under normal boating conditions.
Product is not designed to withstand overload, impact, excessive force or entanglement in sails and rigging.
The installation and assembly must be regularly inspected for evidence of damage or lost parts. This product is designed to it backstay cables from Ø7 [0.27” to Ø14mm].
