PROAIM P-MWP-B Big Multi-Angle Levelling Wedge Plate

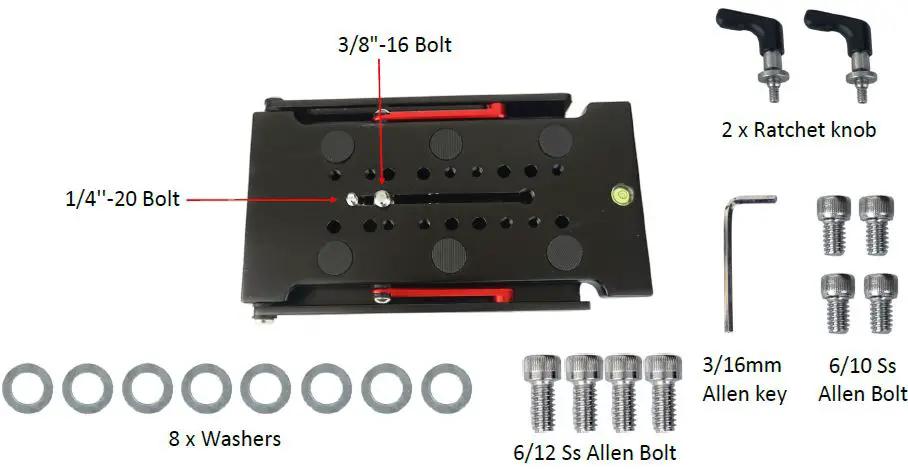

What’s In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
`All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
Big Multi-Angle Wedge Plate Setup

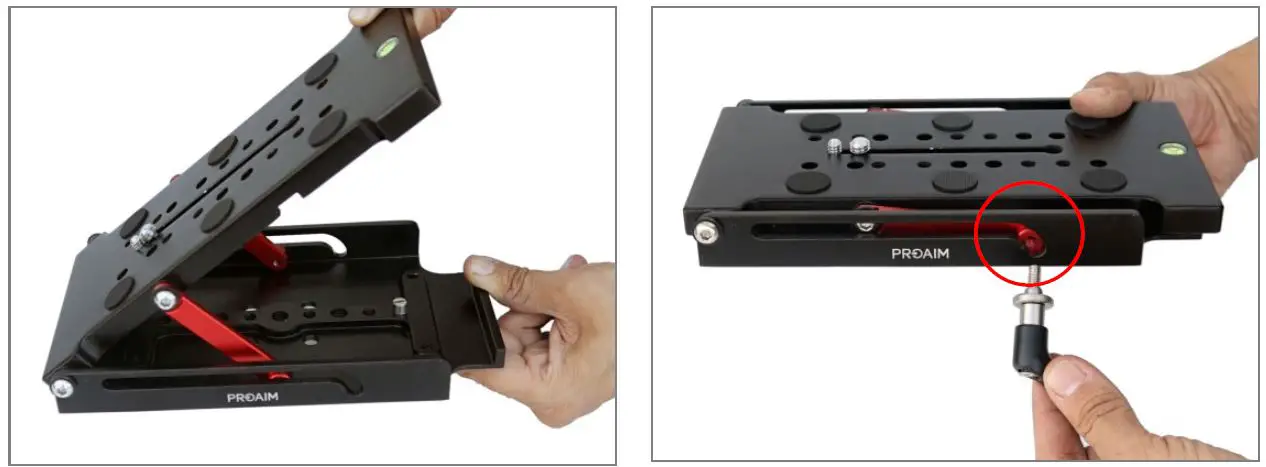

- Open the wedge plate and insert the ratchet knob into the wedge plate.

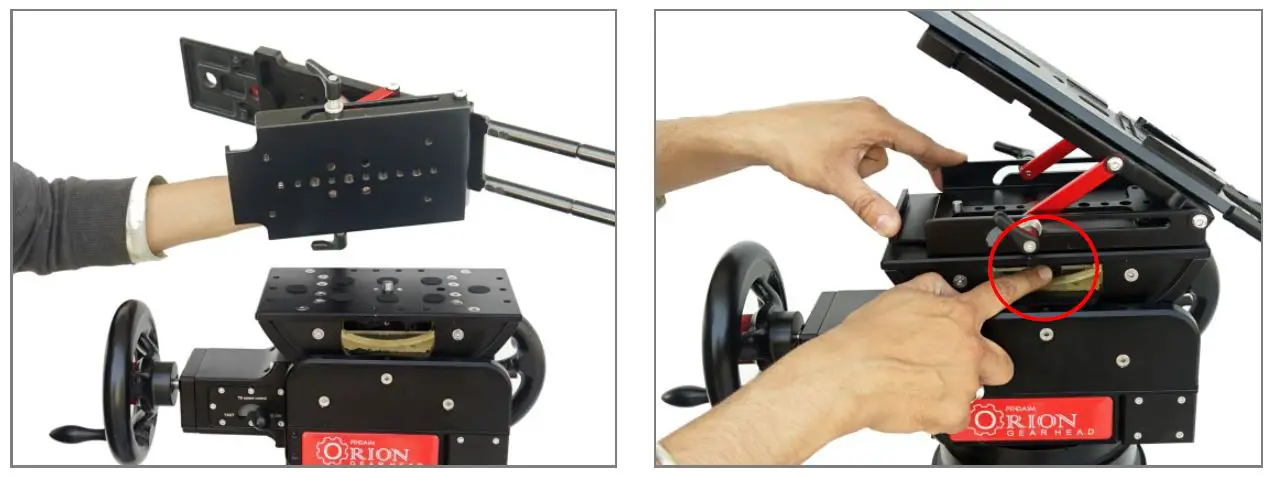

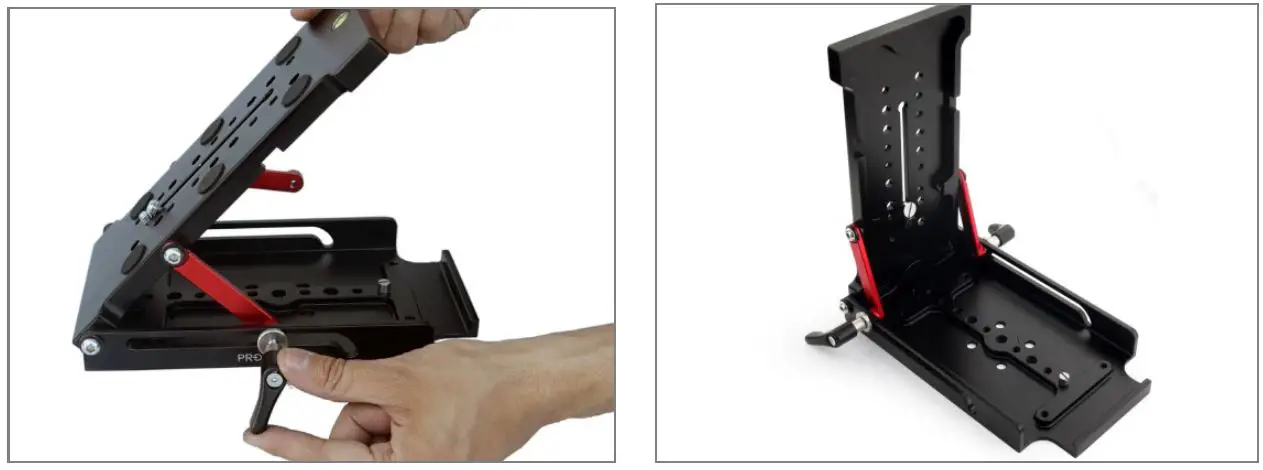

- To position the wedge plate, loosen the knob on the plate and set it to the desired position, as shown in the images.

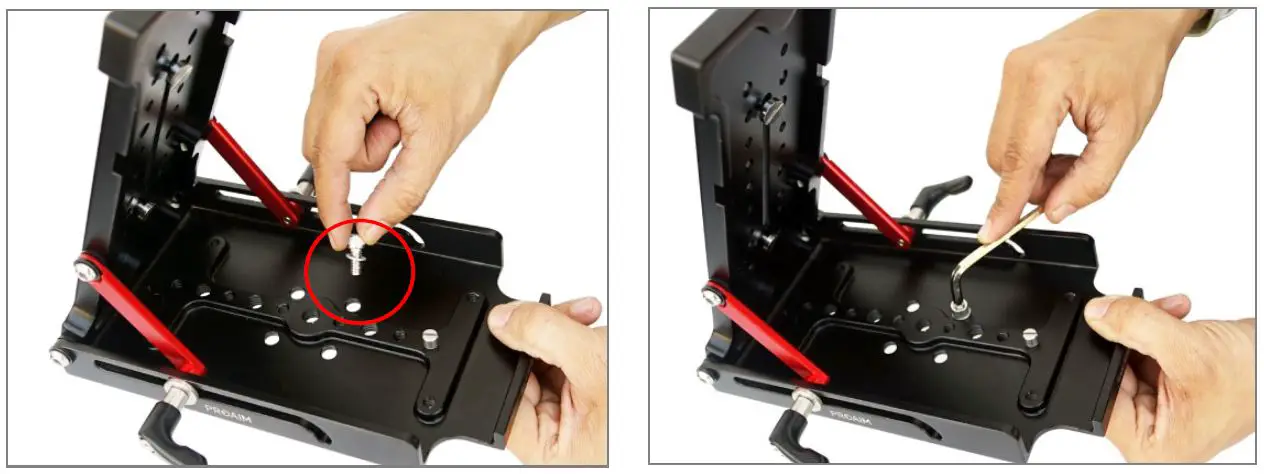

- Insert the 6/12 Ss allen bolt into the thread on the wedge plate and tighten the bolt with the help of a 3/16mm Allen key.

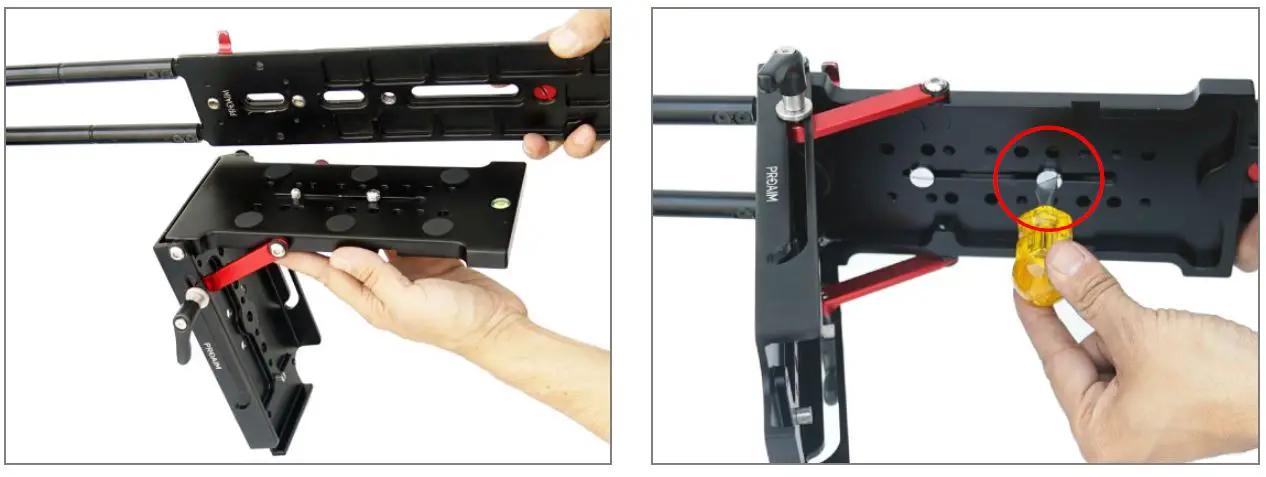

- Attach the dovetail plate (Not included) onto the wedge plate and tighten the bolt with the help of an Allen
- To mount the wedge plate on the Orion geared head (Not included), join the plate’s thread with the screw bolt of the geared head. Then, secure the wedge plate by tightening the screw of the Orion geared head.

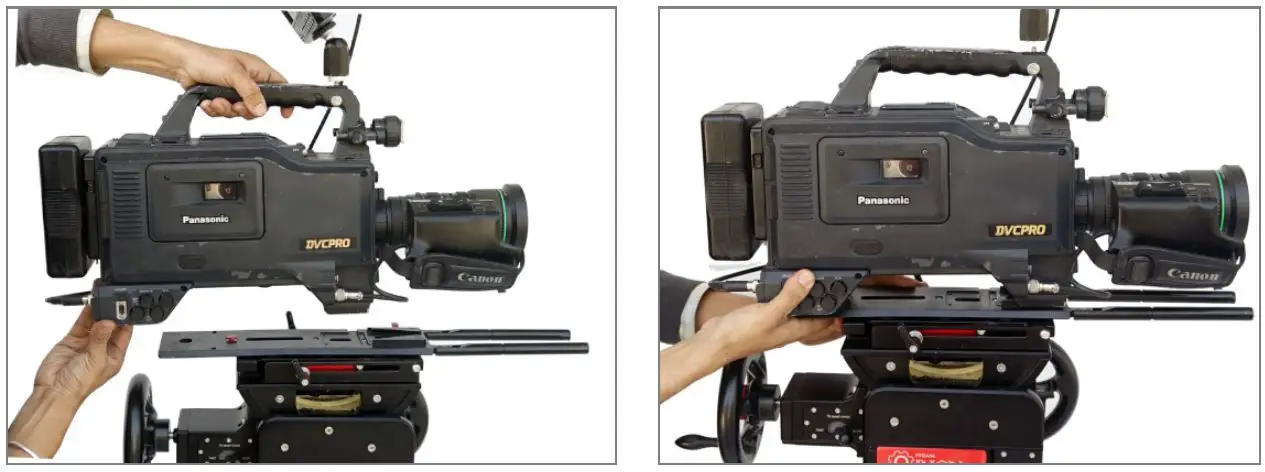

- Mount the camera on the dovetail plate (Not included).
- Image showing wedge tilt plate setup.
YOUR PROAIM BIG MULTI-ANGLE LEVELLING WEDGE PLATE IS ALL DRESSED UP AND READY TO GO!
