HDTVIPM920TR Broadcast 1080p@60 AV over IP Extender Matrix System
User Manual
Introduction
The encoder (HDTVIPM920T) and decoder (HDTVIPM920R) can work together to provide complete end-to-end streaming system or it can work with the network switch to realize a one to many, many to one and many to many systems. It can transmit the video, audio, and RS232 signals together or separately over single LAN cable, with the POE function, the Rx and Tx can be powered by POE from a POE network switch, it helps with a clean installation. Except working as the matrix switch and distribution systems, it also supports the video wall function with maximum configuration of 16×16 Video wall. The resolution of this system can up to 1920x 1080@60Hz.
This system can support friendly-user control options, including RS232, IP control box, PC software, iPad APP control with Source & Videowall preview function. The decoder also supports the CEC/RS232 function to power on and off displays.
This system can be popularly used in the hospital, school, shopping mall, hotels, command center and corporate training etc.
Features
- Transmits the HDMI&USB over IP
- The resolution can up to 1920 x 1080@60Hz.
- Auto scaling function from 480p@60Hz to 1080@60Hz
- One push-key to read the IP address of each unit
- No limitation of the Rx and Tx on this broadcasting system
- Supports sources and TV preview functions on an iPad APP
- Featured video wall up to the configuration of 16 x 16 video wall
- Available API interface for third party control system integration
- Friendly user control through IP control box (IPM-MG), PC software and iPad APP
- Supports firmware upgrade online
- Supports 3-pin audio de-embedded function on both Tx and Rx
- Allows video, audio, and RS232 signals to be routed together or separately.
- Supports EDID importing to encoder and export from display to decoder.
- Supports CEC/RS232 function to power on and off the display.
- HDCP compliant, HDCP1.4, HDMI1.3
- Supports seamless switch with no black/blue screen while sources switching
- Supports POE function or use the DC power adapter
- Supports Auto IP(zeroconf), dynamic IP or static IP address settings
- Supports communications protocols such as H.264, TCP/IP, Telnet, UDP and IGMP
- Supports the bi-directional IR, USB keyboard & Mouse
Specification
Encoder
| Video | |
| Input Port | 1 x HDMI, 1xUSB-A, 1x IR Tx |
| Input Video Type | HDMI 1.3, HDCP 1.4 |
| Input Resolution | 640 x 480@60Hz, 480p@60Hz, 576i@50Hz, 576P@50Hz, 800 x 600@60Hz, 1024 x 768@60Hz, 720p@50Hz, 720p@60Hz, 1280 x 800@60Hz, 1280 x 1024@60Hz, 1360 x 768@60Hz, 1366 x 768@60Hz, 1400 x 1050@60Hz, 1440 x 900@60Hz, 1680 x 1050@60Hz, 1920 x 540@60Hz, 1080i@50Hz, 1080i@60Hz, 1080p@50Hz, 1080p@60Hz |
| Input Video Signal | 0.5~1.2 V p-p |
| Encoding Data Rate | Up to 30 Mbps, configurable |
| Output Video Port | 1 x LAN |
| Output Video Type | H.264/MPEG-4 AVC |
| Output Resolution | • Large IP stream: from 480p@60Hz to 1920 x 1080@60Hz • Small IP stream: 352×288@5Hz |
| Video Impendence | 100 Ω |
| Input DDC Signal | 5 V p-p (TTL) |
| End-to-End Time Latency | When works with decoder: • About 50 ms (Low latency mode) • About 250 ms (High quality mode) |
| Audio | |
| Input Audio Port | 1 x HDMI |
| Input Audio Format | LPCM 2.0 |
| Output Audio Port | 1 x 3-pin Phoenix connector |
| Output Audio Format | Stereo |
| Control | |
| Control Method | IP Control Box (IPM-MG), PC configurator, iPad on iPad |
| General | |
| Operating Temperature | +32°F ~ +113°F (0°C ~ +45°C) 10% ~ 90%, non-condensing |
| Storage Temperature | -4°F ~ 140°F (-20°C ~ +70°C) 10% ~ 90%, non-condensing |
| Power Supply | 12 V 1 A DC |
| Power Consumption | 6W (Max.) |
| ESD Protection | Human body model: • ±8kV (air-gap discharge) • ±4kV (contact discharge) |
| Surge Protection | Voltage: ±1 kV |
| Product Dimensions (W x H x D) | 175 mm x 25 mm x 100.2 mm / 6.9” x 0.98” x 3.9” |
| Net Weight | 0.60kg / 1.32lb |
Decoder
| Video | |
| Input Video Port | 1 x LAN |
| Input Video Type | H.264/MPEG-4 AVC |
| Input Resolution | From 480p@60Hz to 1920×1080@60Hz |
| Output Video Port | 1 x HDMI |
| Output Video Type | HDMI 1.3, HDCP 1.4 |
| Output Resolution | 640 x 480@60Hz, 480p@60Hz, 576P@50Hz, 800 x 600@60Hz, 1024 x 768@60Hz, 720p@50Hz, 720p@60Hz, 1280 x 800@60Hz, 1280 x 1024@60Hz, 1366 x 768@60Hz, 1400 x 1050@60Hz, 1440 x 900@60Hz, 1680 x 1050@60Hz, 1920 x 540@60Hz, 1080p@24Hz, 1080p@25Hz, 1080p@30Hz, 1080p@50Hz, 1080p@60Hz |
| Video Impendence | 100 Ω |
| End-to-End Time Latency | When works with encoder: • About 50 ms (Low latency mode) • About 250 ms (High quality mode) |
| Audio | |
| Input Audio Port | 1 x LAN |
| Input Audio Format | Audio embedded in streaming media input |
| Output Audio Port | 1 x Phoenix connector 1 x HDMI |
| Output Audio Format | LPCM 2.0 |
| Control | |
| Control Method | IP Control Box (IPM-MG), PC configurator, iPad on iPad |
| Control | |
| Operating Temperature | +32°F ~ +113°F (0°C ~ +45°C) 10% ~ 90%, non-condensing |
| Storage Temperature | -4°F ~ 140°F (-20°C ~ +70°C) 10% ~ 90%, non-condensing |
| Power Supply | 12 V 1 A DC |
| Power Consumption | 6W (Max.) |
| ESD Protection | Human body model: • ±8kV (air-gap discharge) • ±4kV (contact discharge) |
| Surge Protection | Voltage: ±1 kV |
| Product Dimensions (W x H x D) | 175 mm x 25 mm x 100.2 mm / 6.9” x 0.98” x 3.9” |
| Net Weight | 0.60kg/1.32lb |
Application

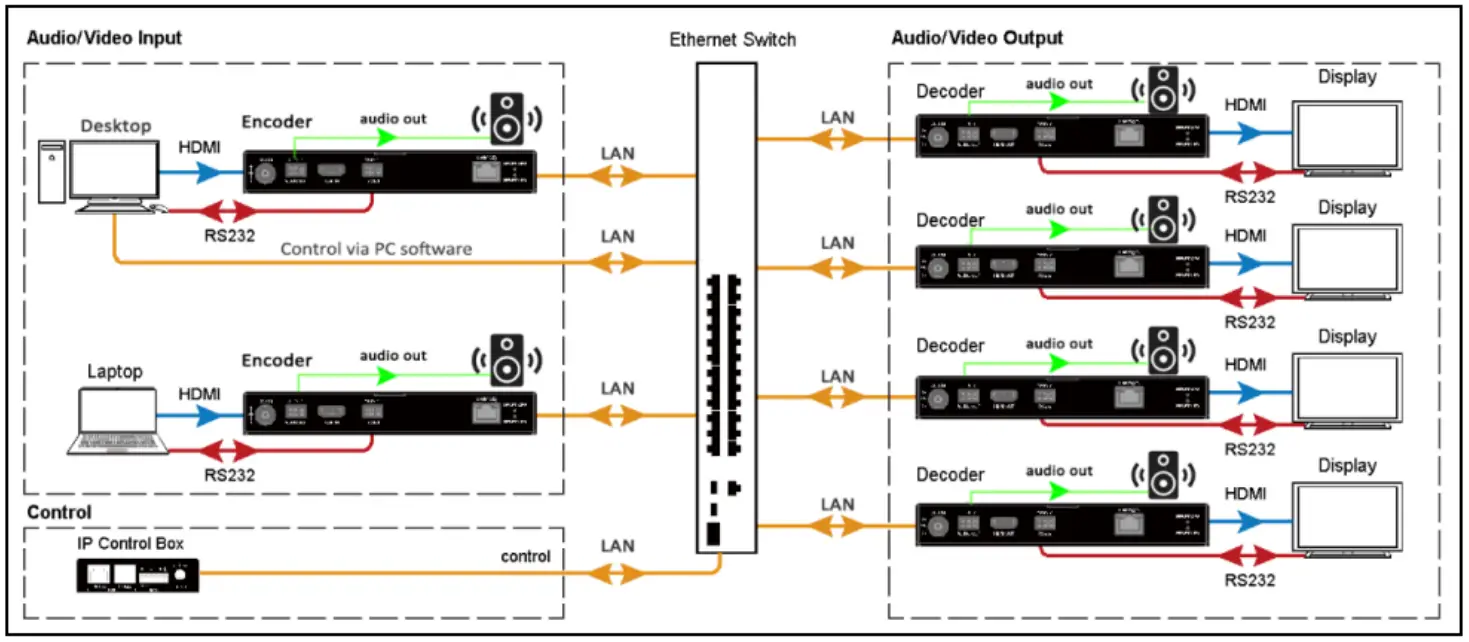

Matrix Switcher

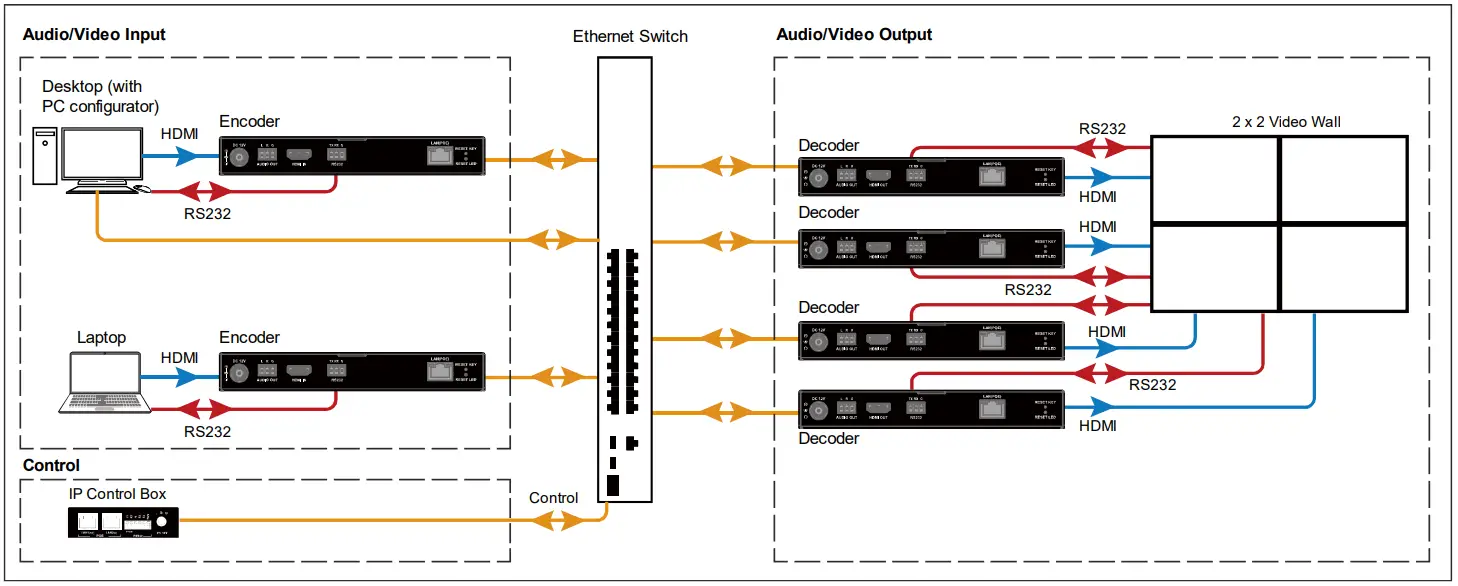

Video Wall

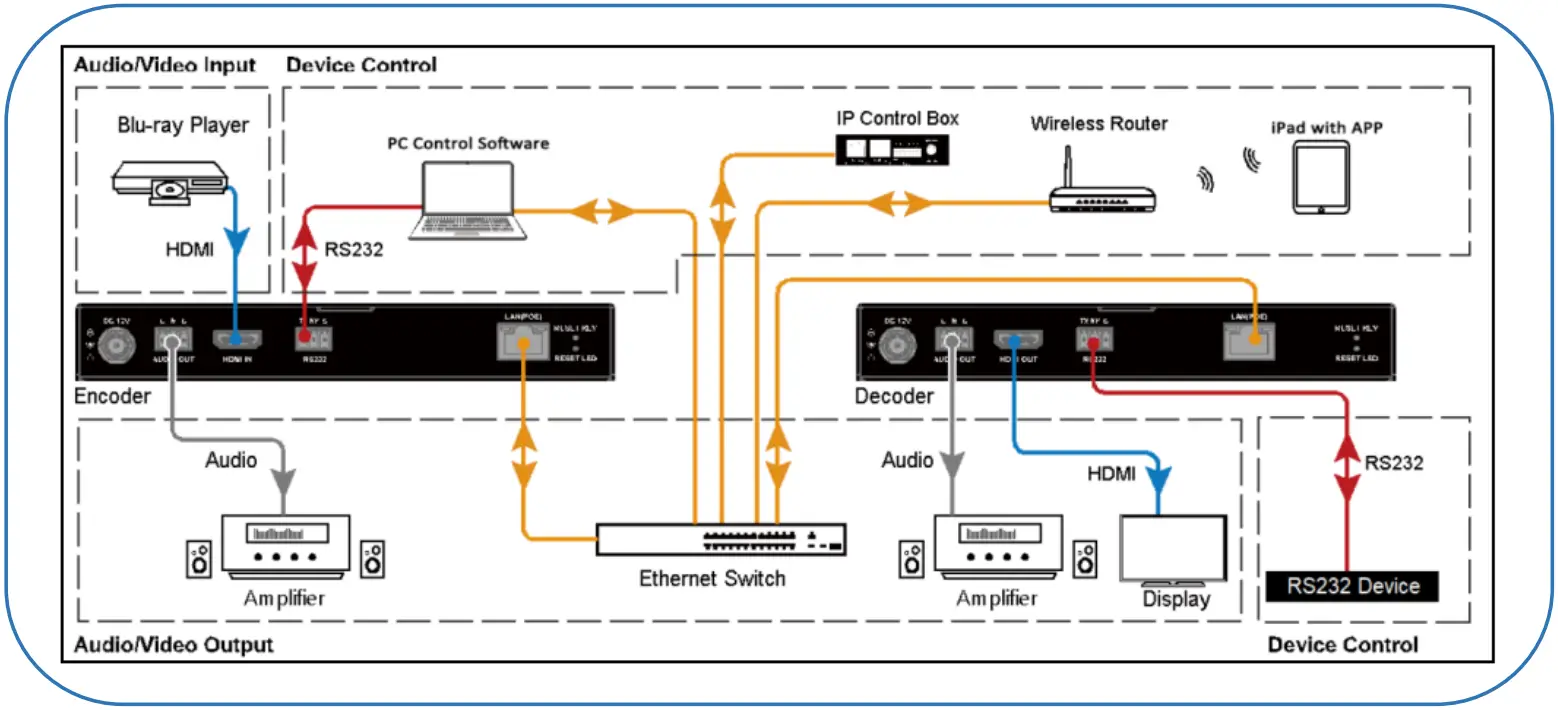

Connection diagram
Broadcast 1080p@60 AV over IP Extender Matrix System
