BRINLY HARDWARE IDENTIFIER Instructions
HARDWARE IDENTIFIER
Illustrations on this page are to scale for faster identification of hardware during assembly
DO NOT RETURN PRODUCT IF YOU ARE MISSING PARTS.
Please Call: 1 (877) 728-8224
20 Washer: Flat: 5/16″ (x6) 45M1111P
21 Washer: Flat: 1/2″ (x4) 45M1717P

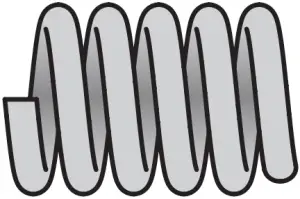

23 Spring (x1): B-3805
18 Nut: Hex: 1/2″ (x2) 30M1600P
19 Nut: Nylock: 1/2″ (x2) B-5096Y
25 Nut: Nylock: 1/4″ (x1) B-4785
26 Nut: Nylock: 5/16″ (x12) B-4786

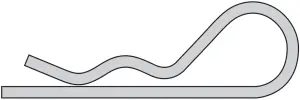

27 Hairpin Cotter (x1) . . . . . . . . . . . . . . . . . . 1019151

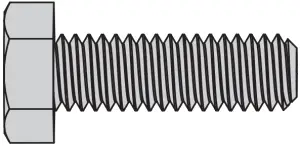

12 Bolt: Hex Head, 5/16 x 2 1/4” (x1) . . . . . 2M1036P-FT

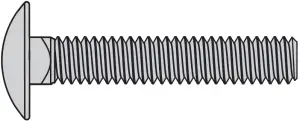

13 Bolt: Carriage, 5/16 x 2” (x2) . . . . . . . . . . . . 10M1032P
14 Bolt; Carriage, 1/4 x 1-1/2” (x1) . . . . . . . . . . . . . . . . . 11M0824P
15 Bolt; Hex Head, 1/2” x 3” (x2) . . . . . . . . . . 1M1648P
16 Bolt; Hex Head, 5/16 x 1” (x8) . . . . . . . . . . . . . . . . . . . . . . . . 2M1016P
24 Drawbar Pin: 1/2″ x 2 1/2″ (x1) . . . . . B-3861

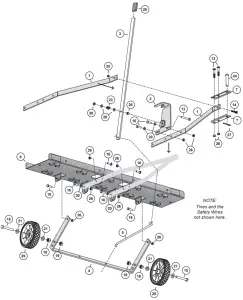

COMPONENT VIEW AND REFERENCE LIST
COMPONENT VIEW AND REFERENCE LIST
DT2-40BH1-G
| Ref # | Part # | Description | Qty |
| 1 | 1019212-16 | Towbar | 2 |
| 2 | 1019213-16 | Lift Lock | 1 |
| 3 | 1019209-16 | Handle | 1 |
| 4 | 1019214-16 | Wheel Bracket | 1 |
| 5 | 1008557 | Control Rod | 1 |

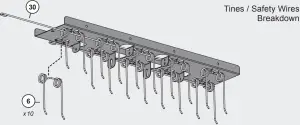

| 6 | R-616 | Tine | 10 |
| 7 | R-892-16 | Clevis | 2 |
| 8 | 1019418 | Tray; with Labels | 1 |
| 29 | 1008587 | Wheel, 6″ x 1.5″ | 2 |
| 30 | R-1503 | Safety Wire, 40″ | 2 |
HARDWARE PACK – Used during assembly:
| 1019104 | SKIN PACK | 1 | |
| 12 | 2M1036P-FT | Bolt; Hex Hd., 5/16″ x 2-1/4″ | 1 |
| 13 | 10M1032P | Bolt; Carriage, 5/16″ x 2″ | 2 |
| 14 | 11M0824P | Bolt; Carriage, 1/4″ x 1-1/2″ | 1 |
| 15 | 1M1648P | Bolt; Hex Hd., 1/2″ x 3″ | 2 |
| 16 | 2M1016P | Bolt; Hex Hd., 5/16″ x 1″ | 8 |
| 18 | 30M1600P | Nut, 1/2″ | 2 |
| 19 | B-5096Y | Nut; Nylock, 1/2″ | 2 |
| 20 | 45M1111P | Washer; Flat, 5/16″ | 6 |
| 21 | 45M1717P | Washer; Flat, 1/2″ | 4 |
| 23 | B-3805 | Spring | 1 |
| 24 | B-3861 | Hitch Pin, 1/2″ x 2-1/2″ | 1 |
| 25 | B-4785 | Nut; Nylock, 1/4″ | 1 |
| 26 | B-4786 | Nut; Nylock, 5/16″ | 12 |
| 27 | 1019151 | Hairpin; Cotter, 1/8″ | 1 |
| 28 | 1019103 | Vinyl Grip | 1 |
