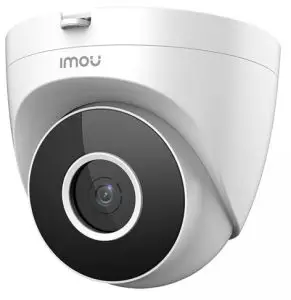

IMOU IPC-T26EP Turret WiFi IP CCTV Camera User Guide
Welcome
Thank you for choosing IMOU.
We are devoted to providing you easy smart home products.
If you have problems using the product, please contact our service team before returning your product.
Our service mail: [email protected]
Frequently asked questions can be found at imoulife.com/support/help
Package content
- Camera ×1
- Mounting Plate ×1
- Positioning Map ×1
- Waterproof Connector ×1
- Power Adapter ×1
- Screw Package ×1
- Quick Start Guide ×1

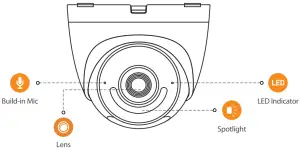

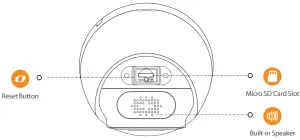

Camera introduction
Note: Press and hold the reset button for 10 s to reset the camera. Double-press the reset button to enable the camera hotspot.
The pattern of the LED indicator is included in the following table.
LED Indicator Status | Device Status |
Off | Powered off/LED turned off Rebooting after reset |
| Red light on | Booting Device malfunction |
Green light flashing | Waiting for network Enter Pairing mode |
| Green light on | Operating properly |
Red light flashing | Network connection failed Pairing failed |
| Green and red light flashing alternately | Firmware updating |

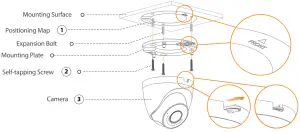

Ceiling Mounting

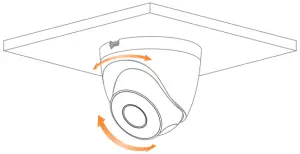

Adjusting Angle:

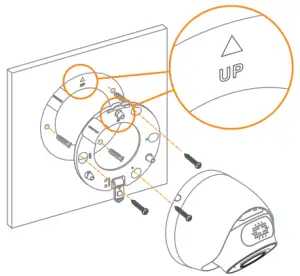

Wall Mount:
Troubleshooting
Problem | Solution |
The camera cannot work normally or start |
|
| Where are the recorded videos saved |
|
The IR effect is not good |
|
