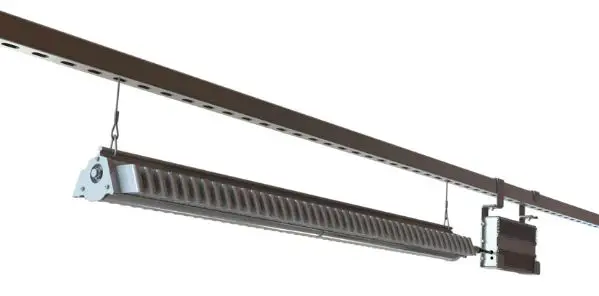

GE current Arize Element R1000 Indoor Lighting
WARNING
RISK OF ELECTRIC SHOCK
- Turn power off before inspection, installation or removal.
- Properly ground electrical enclosure
RISK OF FIRE
- Follow all IEC and local building codes.
- Use only IEC approved wire for input/output connections
The LED luminaire must be connected to the mains supply according to its ratings on the product label.
Electrical products must not be thrown out with domestic waste. They must be taken to a communal collecting point for environmentally friendly disposal in accordance with local regulations. Contact your local authorities or stockist for advice on recycling. The packaging material is recyclable. Dispose of the packaging in an environmentally friendly manner and make it available for the recyclable material collection-service.
IEC/TR 62778 Risk Group 2 (RG2)
| Part Number | Power (W) | Risk Group | Min. Viewing Distance (m) |
| GEHTL-HPKR4-8N*** | 570 | RG1 | N/A |
| GEHTL-HPKB4-8N*** | 580 | RG2 | 19.5m |
| GEHTL-HPKT4-8N*** | 560 | RG1 | N/A |
| GEHTL-HPKF4-8N*** | 590 | RG1 | N/A |
| GEHTL-MPKR4-8N*** | 330 | RG1 | N/A |
| GEHTL-MPKB4-8N*** | 330 | RG2 | 19.5m |
| GEHTL-MPKT4-8N*** | 310 | RG1 | N/A |
| GEHTL-MPKF4-8N*** | 340 | RG1 | N/A |
Horticulture lighting.
Not suitable for household illumination.
CAUTION
- Do not operate the product with damaged parts.
- Turn off power before inspection, installation or removal.
- Luminaire may fall down if not installed properly.
- Wear work gloves to prevent dirt and oil from being transferred to the luminaire.
- Not for direct exposure to the weather.
- To ensure the product warranty is valid, please ensure all installation instructions and environmental conditions for storage and operation are complied with.
- Use only in the manner intended by the manufacturer. If you have any questions, contact the manufacturer.
- For safe operation, and to maximize the longevity of the luminaire; ensure that the light module and driver are clean and free of dirt, dust, oil, or any other debris.
- Do not apply any kind of film on the lens or otherwise cover the driver or light engine in any way.
- The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
Specifications
| Driver Input Ratings | ||||
| Part Number | Detailed Description | Voltage at 50/60Hz (VAC) | Maximum Current (A) | Power Factor |
| GEHTL-HPKR4-8N*** | Toplight R1000 PKR, 600W | 380-415 | 1.6 | > 0.9 |
| GEHTL-HPKB4-8N*** | Toplight R1000 PKB, 600W | 380-415 | 1.6 | > 0.9 |
| GEHTL-HPKT4-8N*** | Toplight R1000 PKT, 600W | 380-415 | 1.5 | > 0.9 |
| GEHTL-HPKF4-8N*** | Toplight R1000 PKF, 600W | 380-415 | 1.6 | > 0.9 |
| GEHTL-MPKR4-8N*** | Toplight R600 PKR, 320W | 380-415 | 1.0 | > 0.9 |
| GEHTL-MPKB4-8N*** | Toplight R600 PKB, 320W | 380-415 | 1.0 | > 0.9 |
| GEHTL-MPKT4-8N*** | Toplight R600 PKT, 320W | 380-415 | 0.9 | > 0.9 |
| GEHTL-MPKF4-8N*** | Toplight R600 PKF, 320W | 380-415 | 1.0 | > 0.9 |
***: X1-R: driver with lead wires; A1-WR: driver with connectors
Accessories
| Part Number | Detailed Description | Components |
| GEHAK-NN-FB-N0 | 600mm Suspension Kit | 2 x 600mm Support Wire + 900mm Extension Cable |
| GEHAK-NN-CC-N0 | 1500mm Suspension Kit | 2 x 1500mm Support Wire + 1800mm Extension Cable |
| GEHAK-NN-DD-N0 | 3000mm Suspension Kit | 2 x 3000mm Support Wire + 3600mm Extension Cable |
| GEHAK-LN-NN-N0 | 50mm x 50mm Driver Bracket Kit | 2 x 50mm Square Bracket + Screws |
| GEHAK-NN-NN-N0 | 75mm x 75mm Driver Bracket Kit | 2 x 75mm Square Bracket + Screws |

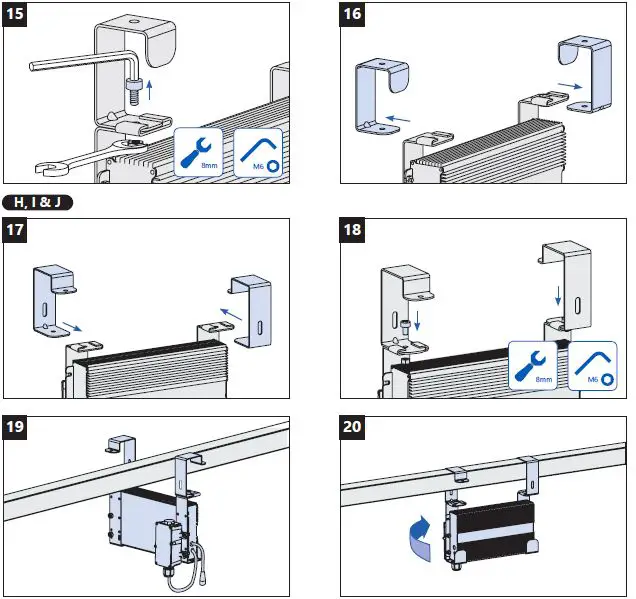

| GEHAK-MN-NN-N0 | Ø20mm-30mm Driver Bracket Kit | 2 x Ø20mm-30mm Bracket + Screws |
| GEHAK-NN-NE-N0 | Driver Universal Wire Mount Kit | 2 x 0.3 m driver support cables |
| GEHAK-NO-CG-N0 | 90° Degree Mounting Kit CE | Clamp, bracket, 2 x carabiners, 1.8 m CE DC cable, 2 x support cables, 2 x toggle cables |

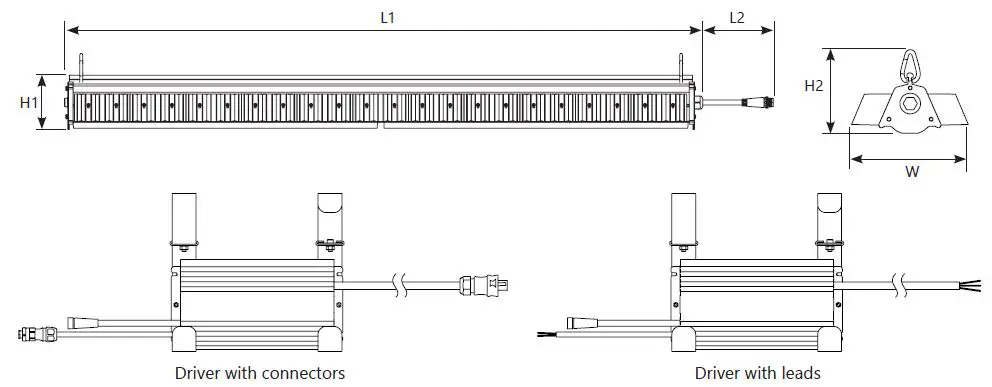

Dimensions and Weight
| L1 | W | H1 | H2 | L2 | Weight | |
| R1000/R600 Luminaire | 1135mm | 170mm | 89mm | 107mm | 126mm | 3.5 kg |
| Driver | 275mm | 144mm | 49mm | – | – | 3.5 kg |

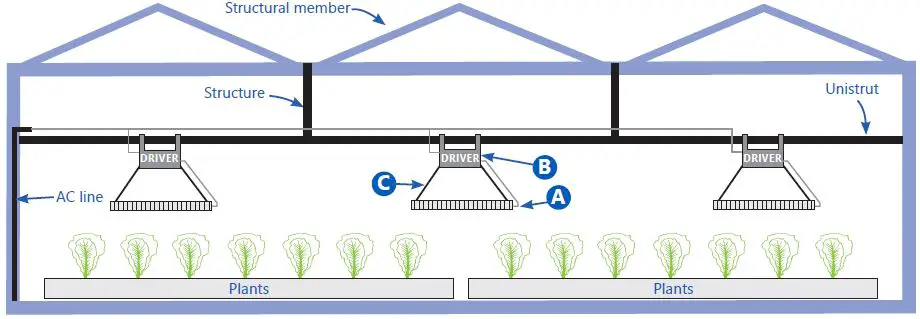

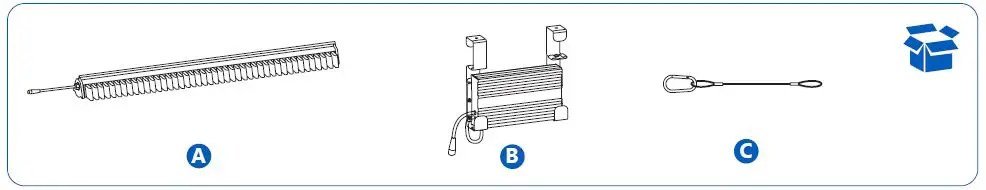

Installation Guide

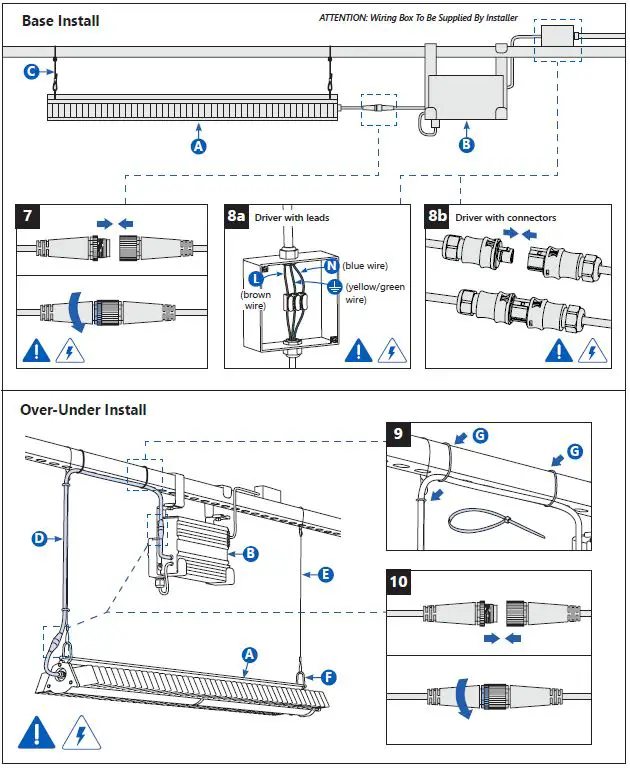

Base Install
Over-Under Installation

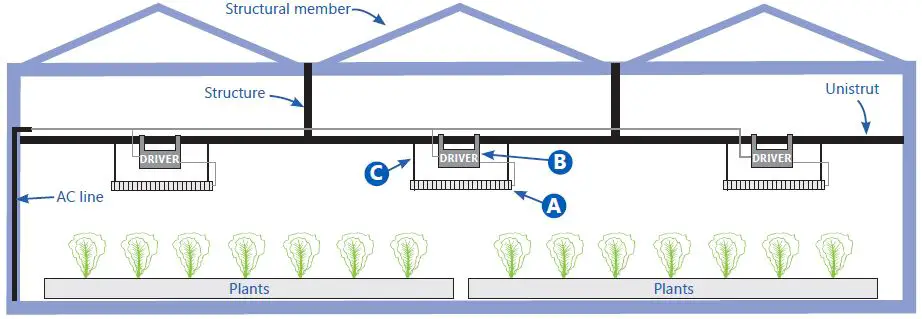

Triangular Installation
SETTING

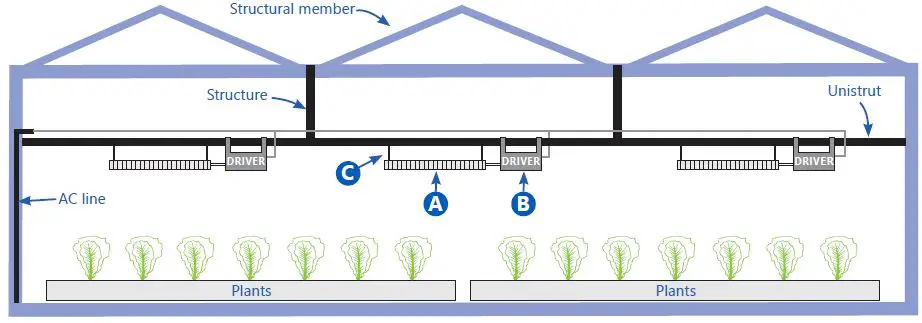

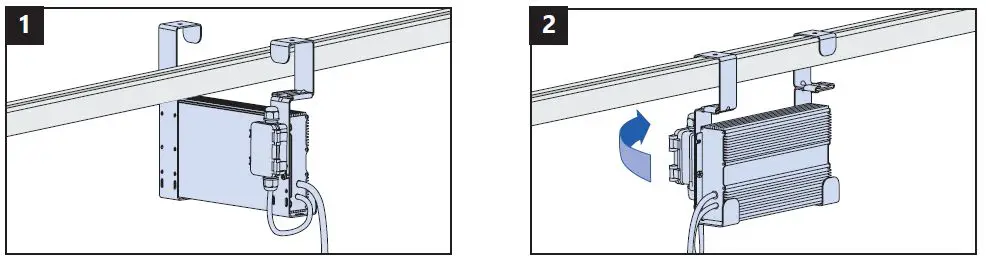

Base Install: Standard ‘Unistrut’ fixing of 41mm cross-section where there is no risk of vibration or accidental collision by equipment onto the luminaire.

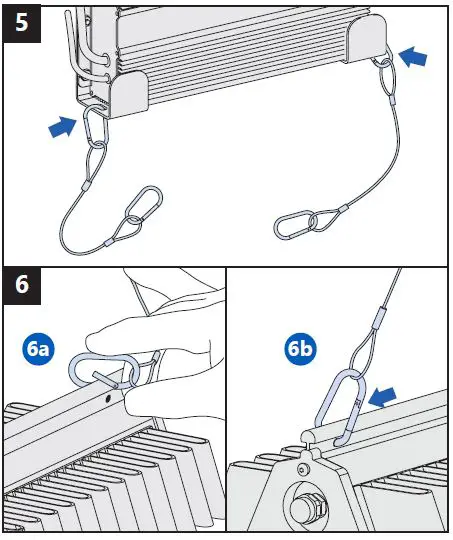

ATTENTION: Where there is a risk of vibration or accidental collision by equipment onto the luminaire, please see Page 6 for recommended accessory installation steps.
Over-Under Installation
Triangular Installation
Order Code
| GEHAK-NN-FB-N0 | 900mm Extension Cable | 600mm Support Wire | Caribiners | Cable Ties |
| GEHAK-NN-CC-N0 | 1500mm Extension Cable | 1500mm Support Wire | Caribiners | Cable Ties |

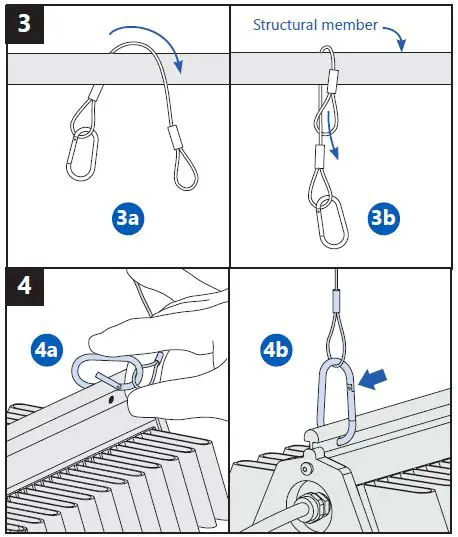

| GEHAK-NN-DD-N0 | 3000mm Extension Cable | 3000mm Support Wire | Caribiners | Cable Ties |
ATTENTION: Before attempting to install units or maintenance, ensure power is off.

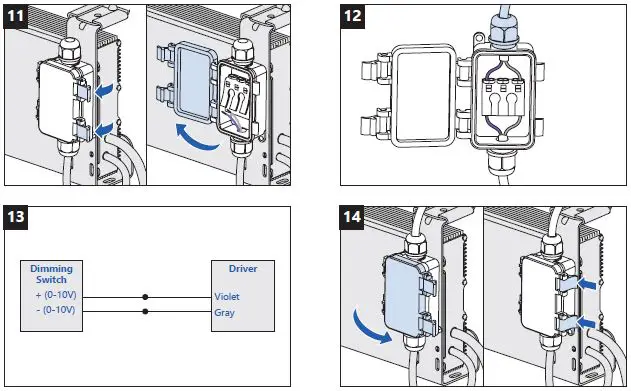

Wired Dimming Connections (Optional)

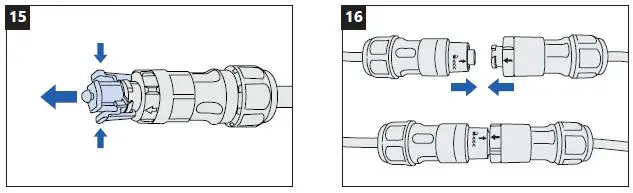

Connector Dimming Connections (Optional)

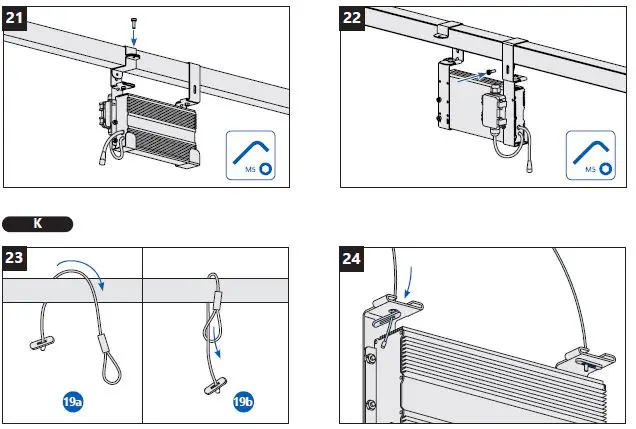

ATTENTION: Where there is a risk of vibration or accidental collision by equipment onto the luminaire,we recommend the following accessories.
Current Lighting Limited, 3rd Floor, 1 Ashley Road, Altrincham, UK, WA14 2DT
Current Netherlands B.V., Programmeurstraat 6, 1033MT Amsterdam, Netherlands
gecurrent.com/arize
© 2022 Current Lighting Solutions, LLC. All rights reserved. Information and specifications subject to change without notice. All values are design or typical values when measured under laboratory conditions.
(Rev 08/10/22)
HORT183 | DOC-2003610
