Shenzhen Xingman Smart Technology HST-180 Bluetooth Telephone Headset

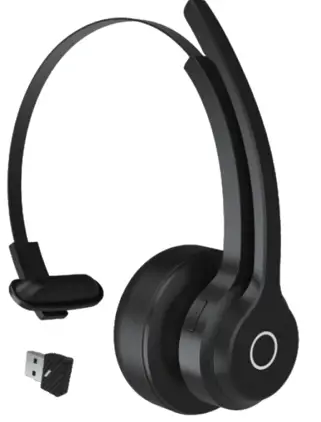

Product Display
Dongle+Headset

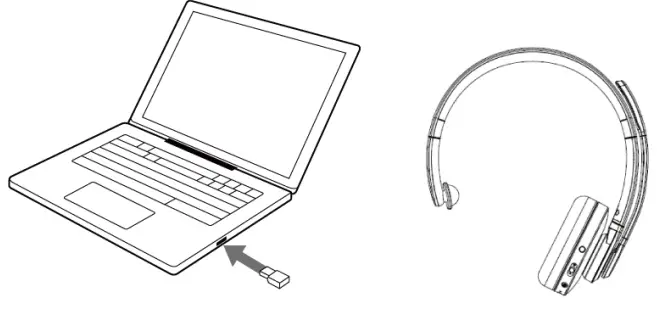

First, Insert the Dongle into the PC, long press the button to enter the pairing mode,the red and blue lights flashing alternately. Second, take out the headset and put it close to the Dongle, the blue light is always on when the Bluetooth connection is successful.

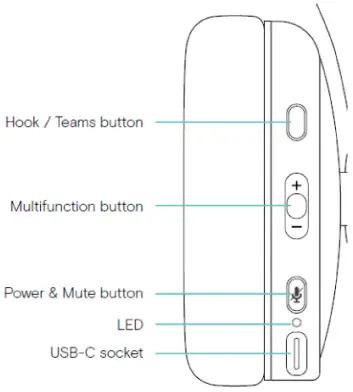

Instructions
|
Power ON/Ol’f | Power On |
Lone press power button for 2s | Blue light on ls |
| Power Off | 1: Lone press power button for 2s 2: Battery less than 3. 1V 3: Without connection 10 min | Red light on ls | |
|
Pairing | Enter Pairing | !:Long press 4s power button from power off | Alternating red and blue |
| 2:Double click power button | |||
| Cancel Pairing |
Click once power button | Blue light blinks once for 500ms | |
| Clear pairing list | Clear pairing 1.. | Long press power&teams for 4s | Red light flash 3 times |
|
lusic | Plav/Pause | Click oncemulti function button | I |
| Previous SOn!Z | Long press Vol+ for ls | I | |
| Kext song | Long press Vol- for ls | I | |
| Volume + | Click once Vol+ | I | |
| Volume – | Click once Vol- | I | |
|
Call | Answer call | Click once Teams button | The blue light flashes until you answer |
| Hang up | Click once Teams button | I | |
| Reject | long press Teams button ls | I | |
| Mic Mute | ave the stalk away from your mouth/Click once power button (Wheat stalk preference) | I | |
| Mic Urunute | Move the straw close to your mouth/Click once power button (Wheat stalk preference) | I |
Product Specifications
- Model: HST-180
- Item: Telephone headset
- Bluetooth Chip: QCC 3020
- Bluetooth version: Bluetooth 5.1 + EDR
- Channel: Mono
- Noise reduction: Dual mic CVC 8.0 Speaker: 040mm
- Impedance: speaker: 320 15%
- Charging time: 1.5h
- Playing music time: about 50H
- Call time: about 30H
- Standby time: 350+
- Dimension: 162. 32*181. 85mm
- Compatible system: Windows 7/8/10, MAC os
FCC Caution
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.
