LARGE HOME
- GIGABIT WIRED ROUTER
- 26-PORT PoE+ MANAGED SWITCH
- WIRELESS CONTROLLER – UP TO 32 ACCESS POINTS
- 8 OULET INTELLIGENT POWER DISTRIBUTION UNIT
- OUTDOOR ACCESS POINT
- INDOOR ACCESS POINT
- DISTRIBUTED AUDIO
- SMART TVS
- SECURITY CAMERAS
- INTERNET SERVICE PROVIDER MODEM
- INTERNET
Network and PoE+ Power Network
Network Solution Guide

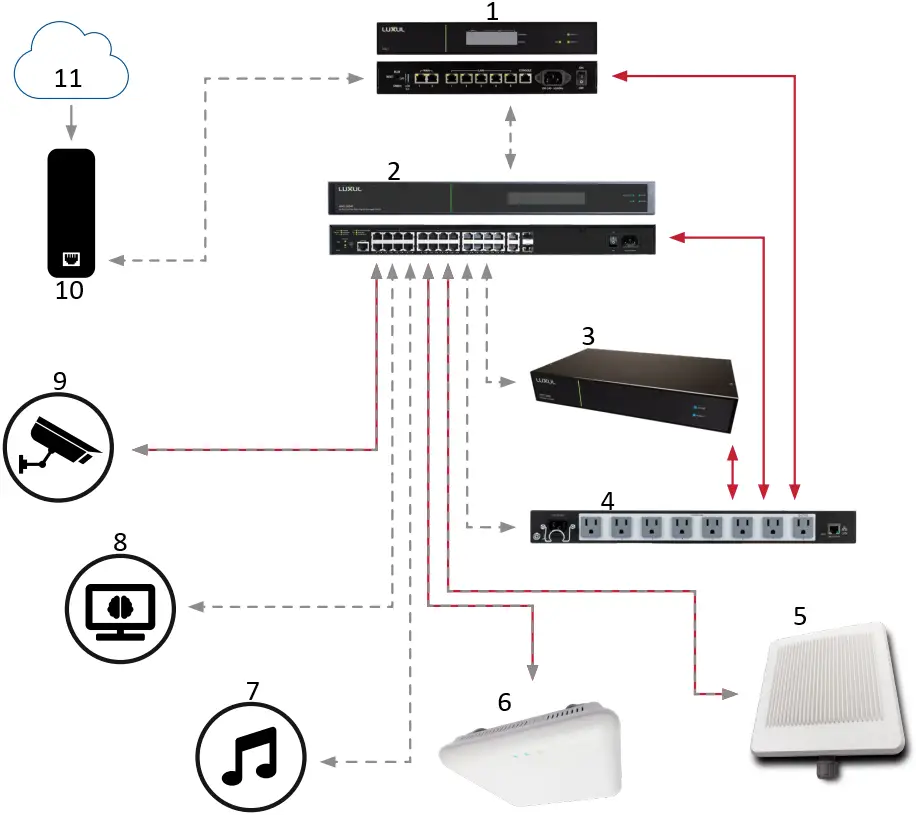

Typical Network Topology
- Ethernet / Max Dist. 328’ (100m)
- Cat5e or better – recommended (Cat6a required for full Gigabit at 100m)
- Shielded cable on runs over 100’ (30.5m) – recommended
- 10/100/1000 Mbps
- Typical Network Speed – 1 GHz
- VLAN 1 – Management/Main
- VLAN 2 – Guest, QoS-Bulk
- VLAN 4 – Security
Need help designing a network for your install?
TAKE ADVANTAGE OF OUR FREE NETWORK DESIGN SERVICES!
Learn More about our
Customer Assurance Program
Parts List
| Description | Model # | QTY |
| Epic 5 Gigabit Router – Rear Ports | ABR-5000 | 1 |
| 24 PoE+ Rear Port Gb Switch w 4 SFP+ | SW-610-24P-R | 2 |
| Eight Outlet Intelligent PDU | RLNK-915R | 1 |
| Wireless Controller, Managed up to 32 APs | XWC-2000 | 1 |
| High Power Wireless AC1200 Dual-Band Outdoor WAP | XAP-1440 | 1* |
| High Power Wave 2 AC3100 Dual-Band WAP | XAP-1610 | 9* |
* Number of WAPs depends on building materials and overall space of project and will vary
Download the BOM
