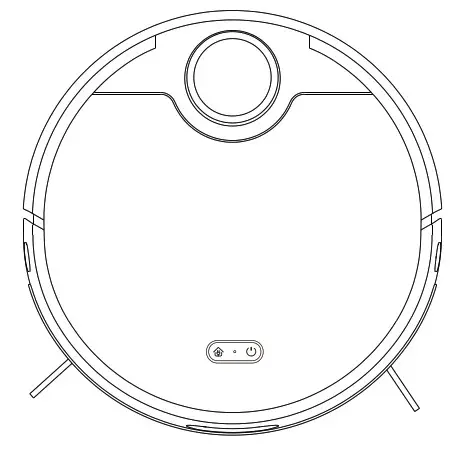

LASER SWEEPER ROBOT
Operation Instructions
Model: ZK902A

(Please read the instruction carefully before use and keep it well)
Machine and accessories
The following product and accessories will be found after opening the package, please check carefully.
(The following pictures are for your reference, and they are subject to the actual product received。)
| Machine Charging stand High-efficiency filter Side brush Power adapter Instruction Cleaning brush Dust box Water tank Mop Component The single suction port component | X1 X1 X1 X2 X1 X1 X1 X1 Xl Xl Xl |

*The accessories are already installed on the machine.
The accessories are optional for the customer.

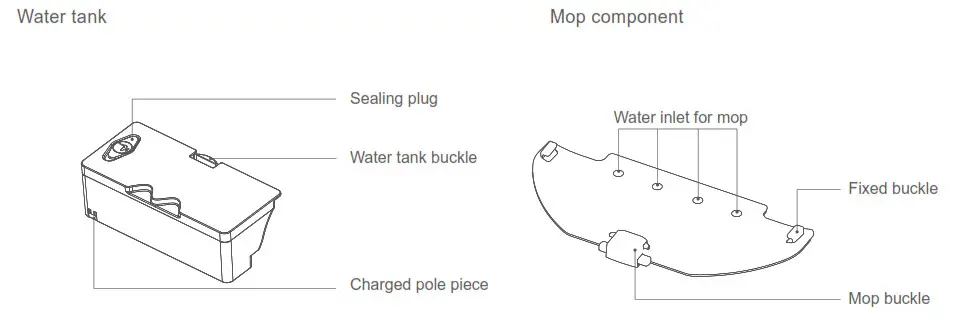

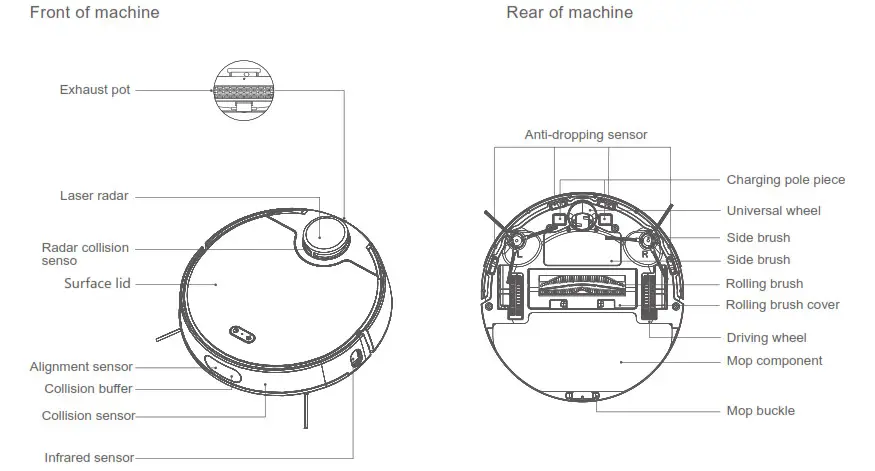

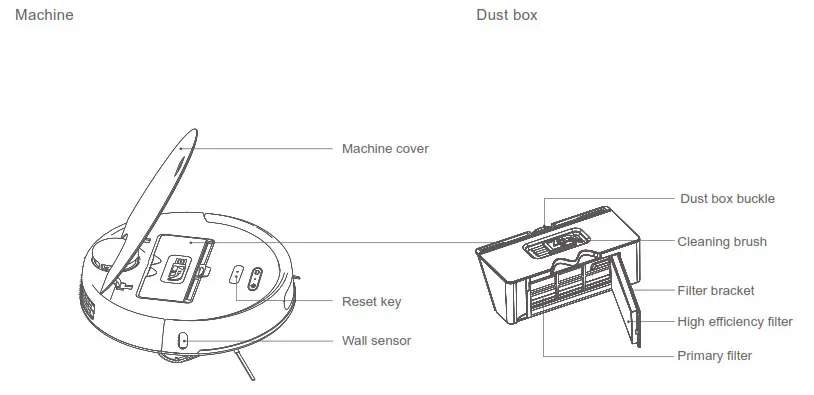

Product introduction

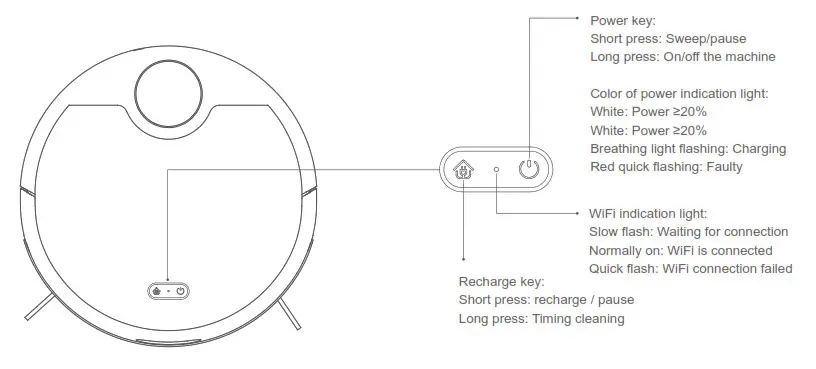

Keys on the machine



How to use the dust box and HEPA filter

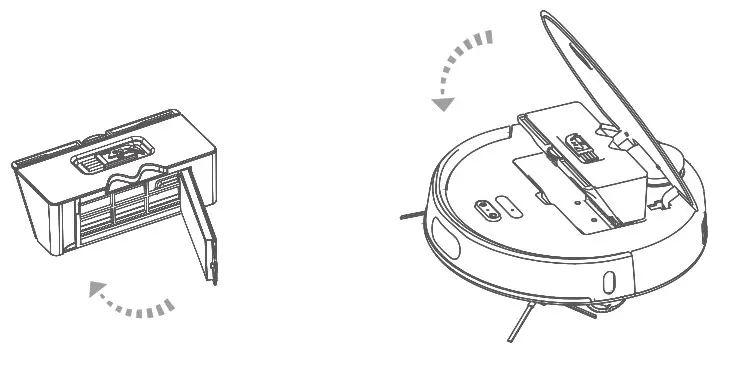

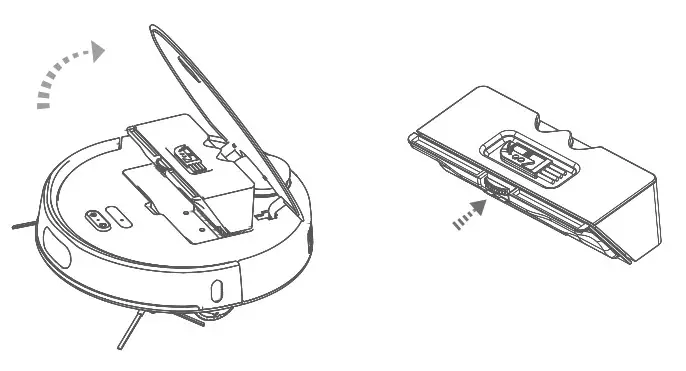

- Fetch out the dust box
Attention: Do not break off the snap-lock of the dust box in the cast of fracture.

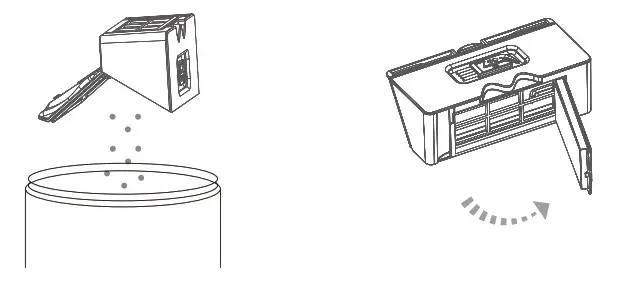

- Open the lid and empty the dust.
- Open the filter holder on the dust box and fetch out the HEPA filter.

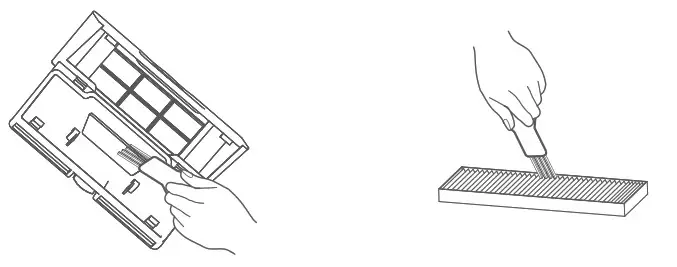

- Always clean the dust box and filter with a cleaning brush, and wash the dust box and primary filter with water.

- Assemble the dust box and filter into the robot after completed dried.

- Please clean the filter regularly and replace it every 6 -12 months to ensure the clean effect well.

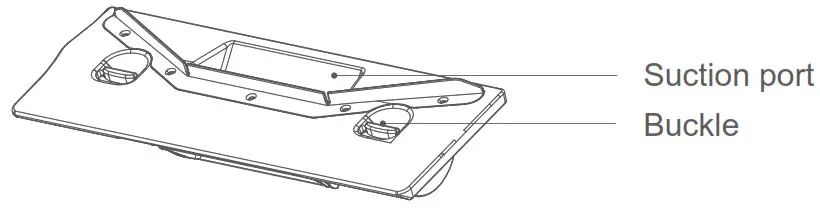

Suction port component
