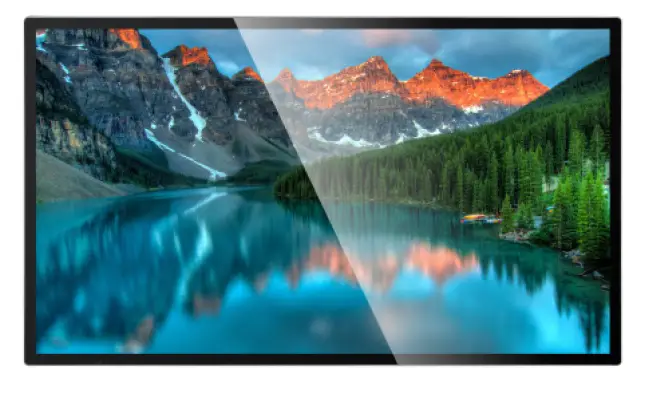

Shenzhen Hao Shi Da Technology HSD-DB 65 Inch Wall Hanging Advertising Machine
product features:
- Hd: Hd 16:9 full view LCD display, resolution 1920*1080, can be upgraded to 3840*2160
- Ultra thin: industrial appearance, the whole machine body 53mm thick, screen printing edge only 18mm
- Process: aluminum alloy oxidation wire drawing frame, body using metal spray metal cold rolled steel plate
- Explosion-proof: surface decorative glass is 3.5mm physical tempered glass with high strength
- Performance: internal heat dissipation by convection mode, long-term load without worry
- System: Android, Windows, input display and other options

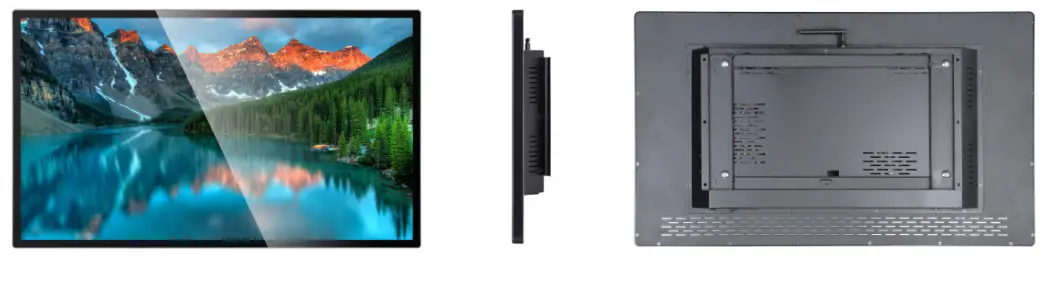

Effect:

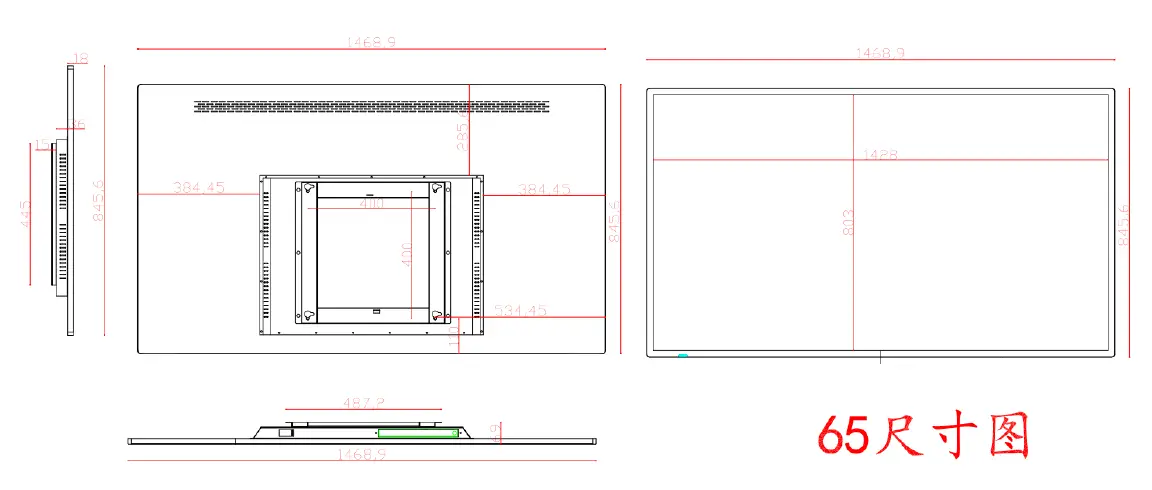

Size chart:
Technical parameters:
|
Display parameters | Liquid crystal size | 65 inches |
| LCD specifications | Brand new original factory original package LED commercial LCD panel | |
| The resolution of the | 1920*1080 | |
| Display area | 1428.6*805mm（H×V） | |
| According to the proportion | 16:9 | |
| Viewing Angle | 89/89/89/89(Left/right/up/down) | |
| brightness | ≥350cd/m2 | |
| Backlight type | ELED | |
| The response time | 16.7M（8-bit） | |
| Working frequency | 60HZ | |
| Pixel permutation | RGBVertical bars installed | |
|
System parameters | The operating system | Android |
| System version | Android 7.1 | |
| CPU | Quan Zhi A40I quad-core chip | |
| Memory | 1GB | |
| Storage | 16GB | |
| Pre-installed software | Information publishing software | |
| The system interface | Dc-in *1 HDMI output *1 RJ45*1 Headphone holder *1 TF card holder *1 USB*2 |
| Video playback | Support WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4 and other formats | |
| Images broadcast | Supports BMP, JPEG, PNG, and GIF formats | |
| Network communication | Support Ethernet, WIFI | |
| Time switch | You can customize the on-off time | |
| Mouse and keyboard | Supports hot swap | |
| Third-party applications | Supporting third-party applications | |
|
The fuselage parameters | Border material | Aluminium profile (oxidation drawing) |
| The fuselage material | Metal cold-rolled steel sheet (metal sprayed) | |
| Toughened glass | ≥3.5mm high strength explosion-proof perspective tempered glass | |
| The fuselage size | 1469*845*69mm(including hanger) | |
| Packing size | 1550*930*148mm | |
| The packing material | Gravity carton | |
| Body weight | 33KG | |
| Packing weight | 37KG | |
| Hanging bracket | Standard horizontal and vertical universal hanger | |
| Guard against theft way | Lock anti-theft screw | |
| installation | Wall hanging optional movable bracket or lifting | |
|
The work environment | Usage scenarios | indoor |
| The input voltage | AC110-120 | |
| Standby power | ≤1W | |
| Working power | ≤94W | |
| Using the environment | Temperature ‐10℃~55℃/ humidity 10%RH~90%RH | |
| Storage environment | Temperature ‐15℃~65℃/ humidity 10%RH~95%RH | |
| Random accessories | Power cable 1 WiFi antenna 1 remote control 1 key 1 warranty card 1 copy each | |
| Installation tools | Electric drill, screwdriver, marker, level, wrench, measuring tape, and M5 expansion screw | |
FCC WARNING
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum 20cm distance between the radiator and your body: Use only the supplied antenna.
