LDH55-FAI400K 55 Inch Wall Mounted Digital Signage
User Manual
LDH55-FAI400K
LDH55-FAI400K

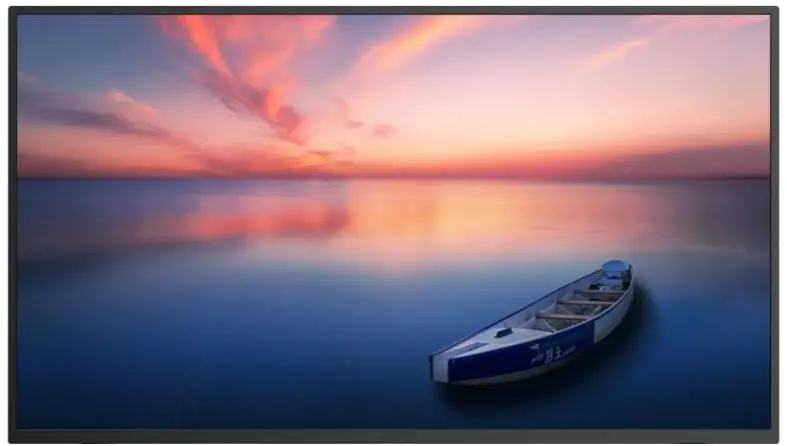

55” Wall-mounted Digital Signage
LDH55-FAI400K 55 Inch Wall Mounted Digital Signage
Features：
- High quality panel, industrial-grade design
- Dahua MPS platform provides unified remote management for system integrators and media operators.
- Strong 4 core processor provides powerful decoding capabilities, enabling premium display performance.
- Multiple installation modes satisfy a broad range of project requirements.
Technical Specification
| Display | |
| Model | LDH55-FAI400K |
| Screen Size | 50” |
| Aspect Ratio | 16:09 |
| Resolution | 3840×2160 |
| Display Colors | 16.7M (8 bits) |
| Brightness | 300 cd/m² |
| Contrast Ratio | 3000:01:00 |
| Viewing Angle(H×V) | 178°/178° |
| Display Mode | Landscape |
| Response Time | 9.5ms |
| Lifespan | 30,000h |
| Connectivity | |
| Input | USB ×2, HDMI ×1, LAN x1 |
| Output | Earphone x1 |
| External Control | IR, RJ45(LAN), USB |
| Wi-Fi | Optional |
| Speaker | 10W×2 |
Power & Environmental Conditions
| Power Supply | AC100-240V,50/60Hz |
| Type | Internal |
| Consumption | 64W(Typical),120W(Max) |
| Consumption(Standby) | Less than 0.5W |
| Operating Temperature | 0℃~+40℃ |
| Operating Humidity | 10%~85% |
Mechanical Specification
| Dimensions | 1236.1 ×715.1 ×76.7mm |
| Package | 1250 x810 x150mm |
| Bezel Width | 12.4mm(T/L/R), 19mm(B) |
| Net Weight | TBD |
| Gross Weight | 15.6kg |
Accessory
| Included in Box | Power cord, user manual, reomote control, bracket |
| Optional Wall Mount Kit | Yes |
| VESA Mount | 200*200 |
Internal Player
| Processor | Cortex-A7 1.6GHz Quad Core CPU |
| RAM | 2GB |
| Storage | 16GB |
| Material Type | Audio, video, image, time, weather, countdown, txt, web page, stream media, pdf |
| Audio/Video Encoding Format | Mp4, avi, mov, asf, wmv, rm, rmvb, mkv, jpg, jpeg, gif, bmp, png, mp3, wma, wav |
| Operating System | Android 8.1 |

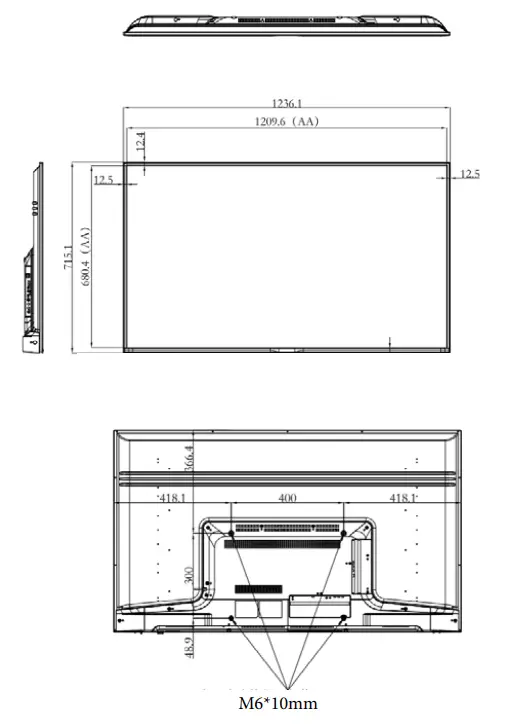

Dimensions(mm)
© 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice.
The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
Rev 002.000
