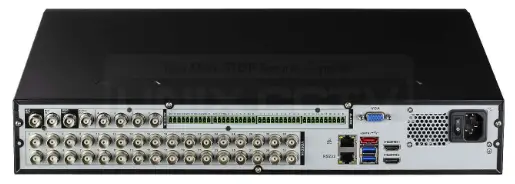

WizSense EYEMAX 32CH 5MP Penta Brid AI DVR System
H.265+ Dual-Stream Full-channel AI-Coding CVI / TVI / AHD / IP / CVBS Support Max 32CH IP, up to 6MP Max 128 Mbps(I)
Overview
It features full-channel SMD Plus for AI upgrade and accurate human/vehicle alarms, reducing false alarms and human surveillance costs. It is suitable for various indoor and outdoor facilities seeking improved security.
Face Recognition
Face Recognition technology identifies individuals by extracting and comparing their facial features with a database
Perimeter Protection
Filter out false alarms caused by animals, rustling leaves, bright lights, etc. and improve alarm accuracy by enabling secondary recognition for targets
AI Search
AI search allows operators to quickly find videos by target attributes and event types, improving efficiency in investigating when and where targets appeared and events occurred.
AI Coding
AI coding reduces bit rate and storage needs by over 50% compared to H.265/H.264, while maintaining decoding compatibility and clear human and vehicle details.
SMD Plus
Smart Motion Detection technology intelligently categorizes motion triggers and filters out non-concerned targets to provide accurate alarms.
HDCVI / AHD / TVI / CVBS Auto-detect
DVR automatically recognizes the front-camera signal without any manual setting, making operation more user-friendly and convenient.
Coaxial Audio / Upgrade / Alarm
Integrated design reduces wiring troubles and makes installation more cost-effective and convenient
Long-distance Transmission
The HDCVI system supports long-distance transmission up to 2300 feet over coaxial cable and up to 3937 feet over UTP, with a maximum distance of 2296 feet for 4K/4MP, 2625 feet for 1080P, and 3937 feet for 720P
Smart H.265+
Smart H.265+ is an improved version of H.265 codec that delivers high-quality videos using scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction. This technology reduces bit rate and storage requirements up to 70%, making it more efficient than standard H.265 compression.
SPECIFICATIONS
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Perimeter Protection | |
| Perimeter Performance AI by Recorder (Number of Channels) | 2 channels, 10 IVS for each channel |
| Face Detection | |
| Face Attributes | Gender, age groups , glasses, expressions , face mask, beard |
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels, and a single channel can detect up to 12 face images |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries& regions and state can be added to each face picture |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 2 channels |
| SMD Plus by Recorder | 16 channels: Smart motion detection alarm for human and vehicles to filter false alarms such as leaves and light |
| Audio and Video | |
| Analog Camera Input | 32 channel BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured |
| Camera Input | |
| CVI: 5 MP, 4 MP, 1080p@25/30 fps / 720p@50/60 fps / 720p@25/30 fps TVI: 5 MP, 4 MP, 3 MP, 1080p@25/30 fps / 720p@25/30 fps AHD: 5 MP, 4 MP, 3 MP, 1080p@25/30 fps, 720p@25/30 fps | |
| IP Camera Input | 32 channels, each channel up to 6 MP |
| Encoding Capacity | All channel 5M-N@(1 fps–10 fps) / 4M-N / 1080p@(1 fps–15 fps) / 1080N / 720p / 960H / D1 / CIF@ (1 fps–25/30 fps) |
| Dual-stream | Yes |
| Video Frame Rate | PAL: 1 fps–25 fps. NTSC: 1 fps–30 fps |
| Video Bit Rate | 32 kbps–6144 kbps per channel |
| Audio Sampling | 8 kHz, 16 bit per channel |
| Audio Bit Rate | 64 kbps per channel |
| Bit Rate Type | Video stream and composite stream |
| Video Output | 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display | 1 / 4 / 8 / 9 / 16 / 25 / 36 |
| Third-party Camera Access | Onvif / RTSP / Panasonic / Sony / Axis / Arecont / Pelco / Canon / Samsung |
| Compression Standard | |
| Video Compression | AI Coding / H.265+ / H.265 / H.264+ / H.264 |
| Audio Compression | G.711A / G.711u / PCM |
| Network | |
| Network Protocol | HTTP / HTTPS / TCP / IP / IPv4 / RTSP / UDP / SMTP / NTP / DHCP / DNS / DDNS / P2P |
| Mobile Phone Access | iPhone / iPad / Android |
| Interoperability | ONVIF 16.12 / CGI Conformant |
| Browser | Chrome / IE9 or later / Firefox |
| Network Mode | Single-address mode |
| Recording Playback | |
| Record Mode | Manual / Schedule (General / Continuous) / MD (Video detection: Motion Detection / Video Loss / Tampering) / Alarm / Stop |
| Recording Playback | 1 / 4 / 9 / 16 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback / general playback / event playback / tag playback / smart playback (face and motion detection) |
| Storage | |
| Disk Group | Yes |
| Alarm | |
| General Alarm | Motion detection, video loss, tampering |
| Anomaly Alarm | No disk / storage error / low space / offline / IP conflict / MAC conflict |
| Intelligent Alarm | Face detection / face recognition / perimeter protection |
| Alarm Linkage | Record / snapshot (panoramic) / IPC external alarm output / access controller / voice prompt / buzzer / log / preset / email |
| Ports | |
| TV Output | 1 channel |
| Audio Input | 1-channel RCA (external) 32-channel BNC (coaxial audio) |
| Audio Output | 1-channel RCA |
| Two-way Talk | Yes (share the same audio input with the first channel) |
| HDD Interface | 2 SATA ports, up to 16 TB for a single HDD, the maximum HDD capacity varies with environment temperature |
| RS-485 | 1 port / for PTZ control |
| USB | 2 USB ports (1 USB 2.0 , 1 USB 3.0) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC, 5 A |
| Power Consumption | Lower than 17 W |
| Net Weight | 4.36 lb (1.98 kg) |
| Gross Weight | 6.94 lb (3.15 kg) |
| Product Dimensions | 1U / 14.76″ × 11.38″ × 2.09″ (375.0 mm × 289.0 mm × 53.0 mm) (W × D × H) |
| Packaging Dimensions | 17.05″ × 5.55″ × 14.41″ (433.0 mm × 141.0 mm × 366.0 mm) (W × D × H) |
| Operating Temperature | +14°F to +131°F (–10°C to +55°C) |
| Operating Humidity | 0%–90% (RH) |
| Installation | Desktop |
| Certifications | CE: CE-LVD: EN 60950 ~ 1/IEC 60950 ~ 1 CE-EMC: EN 61000 ~ 3-2 / EN 61000 ~ 3-3 / EN 55032 / EN 50130 / EN 55024 FCC: Part 15 Subpart B |
