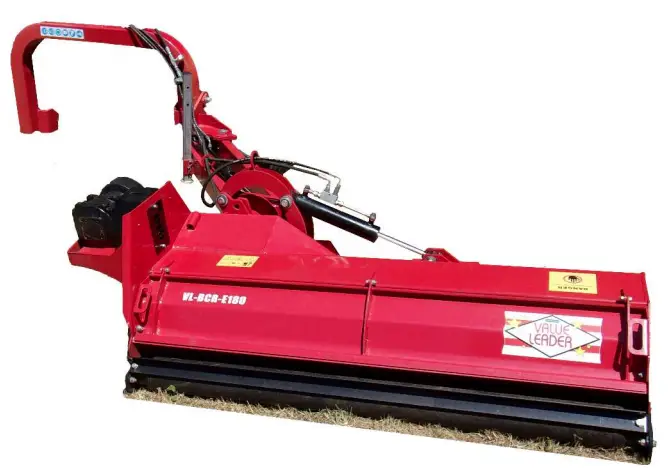

The BCR Series is a range of machinery designed for use with compact tractors. It is available in three models – BCR-140, BCR-160, and BCR-180, which are suited to tractors with 40-75 horsepower engines. The machinery has a working width of 4’6″ to 5’10”, depending on the model, and is compatible with Category 1 and 2 3-point linkages. The gearbox has a power take-off (PTO) of 540 rpm and can handle up to 50 horsepower.

Product Usage Instructions

 General Safety Information: Before using the machine, ensure that all potential operators read the manual thoroughly. Always stop the tractor and machine and remove the keys from the ignition before set-up or maintenance. Failure to follow good safety standards could result in severe injury or even death.

1. Tractor Requirements: Use only compact tractors within the power range specified. Do not use machinery to transport personnel or livestock. Do not touch moving parts when the machine is at work.
2. Machinery Pre-Use Checks: Check over the machine on receipt and again within the first 4 hours of use.
3. Tractor Pre-Use Checks: Conduct running and operating checks before using the machinery.
4. Post-Use Regular Checks: Conduct regular checks after using the machinery.
5. Installation & Set-Up: Ensure that the tractor and machine are stopped, and the key is out of the ignition before set-up or maintenance.
6. Operation Advice: Operate the machinery at the recommended speed at all times. Familiarize yourself with various safety signs, the type of warning, and the area, or particular function related to that area. Never consume alcohol or drugs before using the machinery as these can hinder alertness or coordination. Consult your doctor before using this machine while taking prescription medications.
7. Cutting Height Adjustment: Adjust the cutting height of the machinery as per your requirements.
8. Adjusting Belt Tension: Adjust the belt tension of the machinery as per your requirements.
9. Gear Oil Change & Check: Change and check the gear oil of the machinery as per the recommended schedule.
10. Servicing & Maintenance: Always keep the machinery maintained and in good condition. Where necessary, repair or replace any defective parts. Do not modify the machinery.

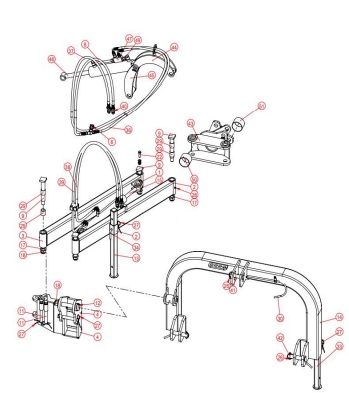

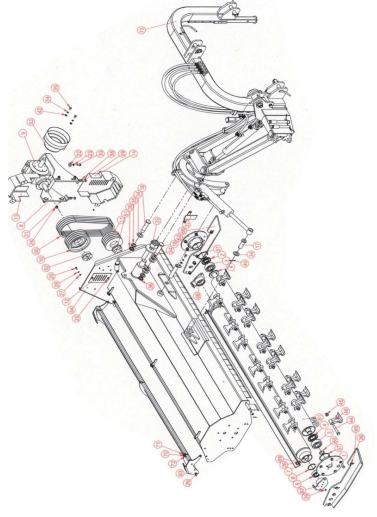

11. Parts Diagram & List: Refer to the parts diagram and list for any replacement or repair needs.
12. PTO Shaft Resizing: Resizing of the PTO shaft should be done as per the recommended guidelines.
13. Troubleshooting: Refer to the troubleshooting section for any issues or problems with the machinery.
14. Warranty Info: Refer to the warranty information for any queries or claims related to warranty coverage.

General Safety Information

• Ensure all potential operators read this manual thoroughly before using the machine
• Safety: Ensure tractor and machine is stopped & keys out of ignition before set-up/maintenance
• Safety: Failure to follow good safety standards could result in severe injury or even death
• Misuse: This machine is designed for use with compact tractors, and should be used only for the indicated purpose. We does not take responsibility if the machine is used for any one purpose. Children must not operate the machine under any circumstance.
• Modification: Do not modify equipment in anv way. This may impair the operation and overall safety of the machine.
• Tractor requirements: Use only with compact tractors within power range specified.
• Misuse transport: Do not use machinery to transport personnelor livestock.
• Condition: For the safety of personneland optimum performance of the machine, you should check the condition of the machine and the tractor before starting. Before use check all nuts and bolts are tight.
• Spatial awareness: Always check the operating area is safe before starting machinery.
• Operator clothing: The operator should not wear loose clothing while operating machinery.
• Safety wear: Always use appropriate ear protection when running a tractor and machinery
• Ensure you are wearing protective gloves when servicing and using machinery.
• Bystander safety: Ensure bystanders keep away from the machine when it is in use. Do not touch moving parts when the machine is at work.
• Public places: When traveling on the road/publicplaces, always keep the PTO turned off
• Maintenance: Always keep the machine maintained and in a good state. Where necessary repair or replace any defective parts. Do not modify the machine.
• Sharp objects: Pay attention to the sharp/pointed parts while servicing the machine.
• Safety guards: All protective parts should be in good condition before operating machinery.
• Safety signs/stickers: Keep all safety signs clean and legible. Replace anywhich are missing or illegible. If a component with safety sign/(s) is replaced, make sure new safety sign/(s) are attached in the same locations.
• Operating speeds: Machinery and PTO should be operated at the recommended speed at all times.
• Safety awareness: Good safety requires that you familiarise yourself with various safety signs, the type of warning and the area, or particular function related to that area.
• Alertness: Never consume alcohol or drugs these can hinder alertness/coordination. Consult your doctor about using this machine while taking prescription medications.

Machinery Pre-Use Checks

• On receipt of your new machine and again within the frt 4 hours of use, or the’shake in’ period as we like to call it, we always recommend checking over the machine.
• Check all bolts, Nuts, and Screws are tight on the unit.
• Tighten/Check any bolts and nuts securing blades.
• If your machine has belts, check the tension and adjust if required.
• Apply grease to greese points if necessary.
• Check gearl oil level. Do not overfill

Tractor Pre-Use Checks

• Check that the machine is properly attached to the tractor. Ensure that secure pins are used on the linkage mountaing pins.
• Be sure to add extra weights to the front of the tractor or add wheel weights ifrequired.
• Check that the tractor PTO shaft turns freely and that the machines PTO drive shaft can extend easily. Grease the PTO drive shaft using the grease points.
• The chain on the PTO shaft should be checked and in a good condition. The universal joints installed should be in a good state with proper protective parts.
• Before installing the PTO shaft, the tractor and machine should be stopped and remove the key.
• Install and secure all saftey gaurdds, doors and covers before starting
• Bystanders should leave the immediate area before connecting the drive from the tractor.

Running/Operating Checks

• Always keep the PTO output from the tractor at 540 RPM when running machinery.

Post-Use Regular Checks

• Check blades, belts and wearing parts. Be sure they are not damaged and blades swing freely in their mount. Repair or replace as required.
• Clean machinery and check for/clear any entangled material which may have got stuck around any rotating parts.

Installation & Set Up

• Safety: Ensure tractor and machine is stopped and the key is out of the ignition before set up/maintenance.
• Safety: Make sure the PTO drive isn’t connected at any point until instructed to do so.

Attaching The Mower

• Start by finding a flat piece of ground. Lower the three point linkage on your tractor to its lowest position and attach the mower to the tractor using the three point linkage pins and linchpins.
• Attach the hydraulic connections [seesection on hydraulic fitting & operation]. Then, with the rear roller on the mower on the ground, adjust the length of the top link arm and use the tractor hydraulics to ensure the skids at the side of the flail mower are parallel with the ground when horizontal.
• By hand, rotate the blad rotor so that a row of blades hang vertically towards the ground to give an idea of the cutting height. Check the clearence between the bottom of the blades and the ground, this should be at least 2 inches.
• The cutting height can be set for longer grass by simply raising the hydraulic lift arms on your tractor or/and by adjusting the rear roller and skids on the machine to increase or decrease the blade clearance as required [ see section on adjusting the cutting height].
• The working speed of the machine should always be at a walking pace, depending on the working conditions. Overgrown grass and weeds should be cut at a much slower pace for the best cut and to avoid any damage to the mower.
• Check your PTO’s shaft’s grease points and apply grease if needed. Then attach the
• PTO shaft and ensure the locking pin is secured on both the tractor and mower. Attach the chain to a secure point on the tractor/implement

Pre-Mowing Checklist

Before starting the machine, always check and adjust the following:

• Hydraulics and fitted and operated correctly
• Set correct cutting height
• Tension of the belt drive
• Oil Level of the gearbox
• Lubrication/Grease Points
• Tighten all bolts, nuts and screws.
• All protective guards are in place and storage stands are removed.

Operating Advice

• Safety: Ensure the tractor and machine is stopped and the key is out of the ignition before set up/maintenance.
  Safety: Before attaching/detaching machinery ensure the hydraulic lift system is in a neutral position

Hydraulic Fitting & Operation

• Always check your tractor’s operating manual for the recommended type of hydraulic fluid for your specific tractor. This should also give an idea of the trac- tors’s reservoir capacity and how to check the level of fluid. Always check your tractor’s hydraulic reservoir is topped us before using any hydraulically operated machinery. Your tractor will fill the pipes and RAMs with the hydraulic fluid on first use. So it is always best to check the hydraulic fluid reservoir after your first con- nection as well.
• Start by setting the hydraulic lever on your tractor in to a position to release the hydraulic pressure. Connect the hydraulic hoses from the machine to the tractor using the quick-release couplings. Start your tractor and activate the hydraulics to test the connection. Check to see if there is any leaks from the tractor or the implement.
• Never suddenly change the direction of hydraulic flow/the direction of the ma- chine as this may cause excess pressure and damage to the machine/tractor.
• Before disconnecting always stope the engine and move the hydraulic control levers backwards and forwards to release any pressure
• One pair pf hoses operate the tilt function on the cutting head. The second pair opperate the offset reach of the cutting head. It is key to get to grips with both before any cutting is started.

Tilt Adjustment

• The mower heads can be moved up to a vertical for cutting low hedgerows (+90 degrees), set horizontally for general paddock mowing (0 or moved downwards to -50 degrees). These measurements are for indication and may require a degree of adjustment on the tractor’s lower linkage arms to acheive.

Cutting Height Adjustment

• Safety: Ensure tractor and machine is stopped and the key is out of the ignition before set up/maintenance.
  Note: Clearance of blades to the ground should be at least 2 inches and higher on uneven ground
• Getting the cutting height right is the key to creating the best cut and finish when mowing. This needs to be adjusted to the way of the land and also the length of the grass and the density of the weeds.
• The cutting height can be set for longer grass by simply raising the hydraulic lift arms on your tractor or/ and by adjusting the rear roller and the skids on the machine.

Roller Adjustment

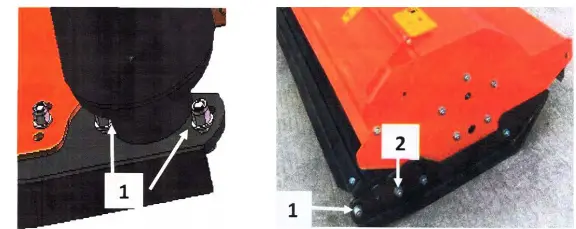

1. Remove bolt/bolts 1 on both sides of machine to adjust to desired height.
2. Adjust roller by aligning the selected holes in the roller support holes at position 2 (using the hole closest to the ground gives the highest work- ing height).
3. Put bolt 1 into selected hole/holes 2 and re-tighten bolt/bolts 1.

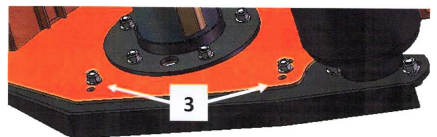

   1. Remove the nuts and bolts 3 on the skids front & back of both sides of the machine
   2. Move the skids up or down to the desired height with the set holes on the skids
   3. Re-fit nuts and bolts 3.

Adjusting Belt Tension

• Safety: Ensure tractor and machine is stopped and the key is out of the ignition before set up/maintenance.

Correct Belt Tension

• The correct belt tension is achieved when the belt can be deflected by the belt thickness about 3/8 at the centre point between the pulleys. Tension should be checked regularly.
• A generic measure across machines is the belt should be able to twist a quarter turn by hand, any more and they are too loose and any less are too tight. You may run the risk of loosing drive to the mower or burning the belts permaturely

Belt Tension

Saftey: Ensure tractor and machine is stopped and the key is out of the ignition before set up/maintenance.

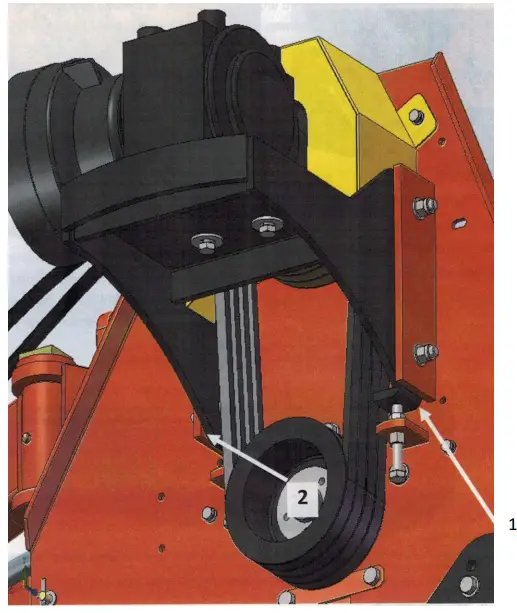

1. Remover the belt cover.
2. loosen four bolts securing the gear box to the mounting plate.
3. Loosen bolts behind the belt cover holding the support shaft.

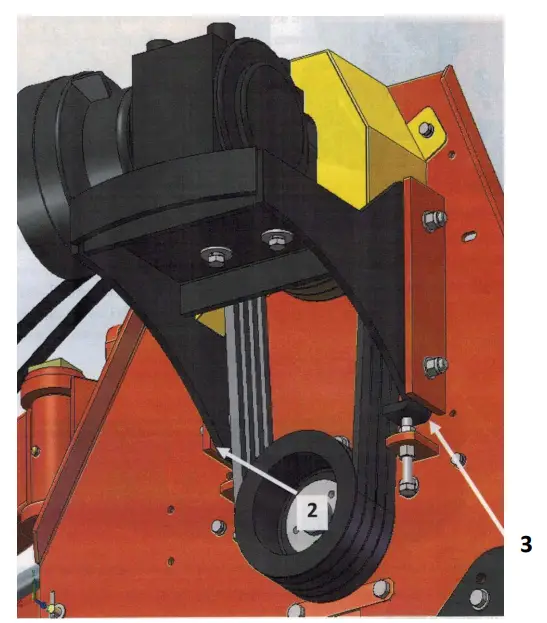

4. loosen off the counter locking nuts 3.
5. Adjust belt tension by adjusting the height of the counter nuts 3.
6. Align the gearbox ensuring the drive shaft is parallel with the body and re-tighten nuts.
7. Re-tighten all bolts.
8. Replace the belt cover.

Gear Oil Change and Check

Safety: Ensure tractor and machine is stopped and the key is out of the ignition before set up/maintenance.
Always check the oil when the machine has cooled down and on a level surface. Make sure bolts are tightened correctly. The filler/level plug should be secure but not over-tightened.

Important Information

Servicing and Maintenance

Saftey: Ensure tractor and machine is stopped and the key is out of the ignition before set un/maintenance

Greasing & Lubrication Points

1. Bearings on the blade rotor x2
2. Bearings on the rear roller ×2
3. PTO shaft ×2
4. Body arm ×4
5. Hydraulic ram ×2

• Wipe grease nipples with a clean cloth before greasing to avoid injecting any dirt and grit. Press grease into each nipple three to five times. We recpmmend using a hand-held grease gun for best results.
• If the grease nipples will not take grease, remove and clean thoroughly. Also clean lubricant passageway. If you notice any grease points are broken, replace or repair them immediately.

Other Maintenance

• Blades: Check condition of the blades and replace if worn or broken. Always be aware while handling blades, wear gloves and use sutible tools for changing blades.
• Belts: Check condition of belts, if worn or frayed, replace. Adjust tension if needed.
• Oils: Ensure oil levels are checked and topped up when needed. Replace any oils per schedule.
• PTO Shaft: Check the condition of your PTO shaft and replace if worn or damaged immediately.
• Cleaning: Ensure the mower deck and blades are cleaned of mud and grass. Remove debris from moving parts. DO NOT spray bearings when cleaning with a high pressure washer.
• Bearings: Check the bearings on the blade roller and the rear roller. If the oil seals are damaged, debris may enter the bearings. Clean or replace if necessary. Run the mower without a load for 3-5 minutes to check bearings are operating smoothly.
• Paintwork: Re-coat any damaged paintwork to prevent corrosion.
• Skids: Check the condition of the kids and replace if worn.

PTO Shaft Resizing

• Safety: Ensure tractor & machine is stopped and keys are out of the ignition before carrying out any work. If you are not confident in carrying out the wor, consult your local supplier or mechanic.
• Most PTO-driven implements are supplied with a standard size PTO shaft. As all tractors vary, this often means cutting it down to size. Always replace worn or damage PTO shafts.
• Attach the machine to the tractor without the PTO shaft, raise the linkage so the PTO shaft is level/horizontal. Measure the length between tractor PTO and the machine’s shaft. If the compressed (closed) PTO shaft lenth exceeds the one measured here then the deriveline will need to be cut.

1. PTO length adjustment, First remove shaft shielding
2. Shorten the driveline tubes to proper equal lengths
3. Tidy edges of the drive tube with a file and clean all fillings from the tubes
4. Shorten the equally long guard tubes to the same length as the driveline tubes
5. Grease the internal driveline tube
6. Fit the gaurd on the shaft
7. Make sure that the length allows for at least 6 inches of overlap

Trouble Shooting

• Name:—————————————
• Address:———————————————
• City State Zip:————————————
• Phone:————————————–
• Email:———————————————–
• Model Number:———————————————
• Serial Number:—————————————————
• Purchased From:———————————————-
• Purchase Date:————————————————-

Limited Warranty

Value-Leader Brand 1 Year Warranty

Unless otherwise stated on the purchase invoice, Betstco warrants to the original Purchaser that Farmer-Helper products are free from major effects in material under normal use and service for a period of 90 Days from the date the product is purchased or shipped, whichever is later. Commercial use 90 days. Use at the address that is not yours, is considered commercial use. Consumable, Expendable, Wear Items (Rubber plastic parts, hydraulic hoses, belts, tires, cables, blades, tines, wedges, teeth, tips, chains, pins, brushes, filters, etc) and cracked hydraulic pumps, bent or broken cylinders rods are not covered under this warranty. The warranty does not cover items that have been modified, damaged by abuse or usage, or not in accordance with design or maintenance.

Betstco’s obligation under this warranty is to repair or replace defective upon approval by; Betstco, 83371 Melton Rd. N, Creswell OR 97426 that Warranty Claim is valid. The product shall be returned upon request of Betstco. Transportation charges are to be prepaid by the user. Gasoline or diesel engines used to power Farmer-Helper products are covered by the warranty of the appropriate engine manufacturer Purchaser must look to the engine manufacturer for all issues relating to engine operation.

Betstco assumes no responsibility for outside labor
PERMISSIBLE BY APPLICABLE LAW, BETSTCO HEREBY DISCLAIMS ALL WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, ANY IMPLIED WARRANTIES WITH RESPECT TO THE PRODUCT PURCHASED, WITHOUT LIMITING THE GENERALITY OF THE FOREGOING, BETSTCO HEREBY EXPRESSLY DISCLAIMS ALL LIABILITY FOR PRODUCT DEFECT OR FAILURE, CLAIMS THAT ARE DUE TO NORMAL WEAR, PRODUCT MISUSE, ABUSE, PRODUCT MODIFICATION, IMPROPER PRODUCT SELECTION, NON-COMPLIANCE WITH ANY CODES, OR MISAPPROPRIATION. BETSTCO MAKES NO WARRANTIES TO THOSE DEFINED AS “CONSUMERS” IN THE MAGNUSON-MOSS WARRANTY-FEDERAL TRADE COMMISSION IMPROVEMENTS ACT. THE FOREGOING EXCLUSION OF IMPLIED WARRANTIES DOES NOT APPLY TO THE EXTENT PROHIBITED BY LAW. PLEASE REFER TO YOUR LOCAL LAWS FOR ANY SUCH PROHIBITIONS.

THERE SHALL BE NO LIABILITY FOR PRODUCT LIABILITY OR LIABILITY ON THE PART OF BETSTCO FOR ANY GENERAL SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE SALE OR USE OF ANY PRODUCTS SOLD BY BETSTCO OR AN AGENT THEREOF, BETSTCO MAKES NO WARRANTIES, EXPRESS OR IMPLIED, (INCLUDING, BUT NOT LIMITED TO, ANY WARRANTY OF MERCHANTABILITY OR FITNESS OF THE PRODUCTS FOR ANY PURPOSE) WITH RESPECT TO THE PRODUCTS COVERED BY THIS AGREEMENT EXCEPT AS IN THIS PARAGRAPH OTHERWISE EXPRESSLY PROVIDED.

THIS IS THE SOLE AND ONLY WARRANTY OF VALUE-LEADER PRODUCTS, NO OTHER WARRANTY IS APPLICABLE, EITHER EXPRESSED OR IMPLIED, IN FACT BY LAW. This warranty shall not be interpreted to render Betstco, or any authorized agent liable for injury or damages of any kind or nature, direct, consequential, or contingent, to a person or property.

The sole and only remedy in regard to any defective product shall be the repair or replacement thereof as herein provided, Betstco, agents) of Betstco shall not be liable for any consequential, special, incidental, or punitive damages resulting from or caused by any such defects Betstco reserves the rights to make improvements in design or changes in specifications at any time, without incurring any obligations to owners of the units previously sold.

WARRANTY VOID IF REGISTRATION IS NOT RECEIVED OR RECORDED ONLINE WITHIN 30 DAYS OF PURCHASE DATE OR SHIP DATE, WHICHEVER IS LATER.

• ITEM:
• MODEL#
• PURCHASE DATE:
• PURCHASED FROM:
• GIFT INV# ORDER#
• OWNER NAME:
• SERIAL #
• OWNER ADDRESS:
• CITY:
• COUNTY:
• ST:
• ZIP:
• PHONE:
• EMAIL:

ACCEPTANCE OF RESPONSIBILITY:
I (THE PURCHASER) HAVE READ THE OPERATOR MANUAL AND LIMITED WARRANTY OR SOMEONE HAS READ/AND EXPLAINED ALL INSTRUCTIONS TO ME. I UNDERSTAND THIS WARRANTY DOES NOT COVER ANY LABOR AND THAT ALL DISPUTES WILL BE SETTLED BY BINDING ARBITRATION. BINDING ARBITRATION IS CONDUCTED BY THE BETTER BUSINESS BUREAU (BBB) LOCATED AT 4004 SW KRUSE WAY PLACE ST 375 LAKE OSWEGO OR 97035 OR THE CURRENT BBB LOCATION CLOSEST TO BETSTCO. I ACKNOWLEDGE MY LIMITED WARRANTY IS VOID IF ANY ATTEMPT TO REPAIR OR REPLACE DEFECTIVE PARTS HAS BEEN MADE BY UNAUTHORIZED PERSONNEL.I ACKNOWLEDGE RECEIPT OF MY OPERATOR’S MANUAL AND HAVE READ THE SAFE OPERATION SECTION. I ACKNOWLEDGE UNDERSTANDING MAINTENANCE AND SAFE OPERATION REQUIREMENTS, ITEM SPECIFICATIONS, OPERATION, CONTROLS, AND STORAGE REQUIREMENTS. I UNDERSTAND THAT

IS ALONE AM RESPONSIBLE FOR THE PROPER MAINTENANCE, CARE, AND SAFE OPERATION OF THIS FARMER-HELPER ITEM
I (THE PURCHASER) AGREE THAT PERSONS NOT FAMILIAR WITH THE OPERATION OF THIS ITEM SHOULD NOT BE ALLOWED TO USE IT. CHILDREN ESPECIALLY SHOULD NOT OPERATE OR BE NEAR POWER PRODUCTS WHEN IN USE. ANYONE OPERATING VALUE-LEADER PRODUCTS SHOULD HAVE READ OPERATIONS MANUALS AND SAFETY MANUALS.

• OWNERS SIGNATURE: x
• DATE:

YOU MUST SIGN THIS WARRANTY AND MAIL OR FAX A COPY TO BETSTCO, 83371 MELTON RD, CRESWELL OR, 97426. IF YOU PREFER YOU MAY COMPLETE YOUR REGISTRATION ONLINE AT WWW.VALUE-LEADER.COM. THIS WARRANTY IS NOT EFFECTIVE UNLESS THE PURCHASER COMPLETES REGISTRATION AND WARRANTY FOR WITHIN 30 DAYS OF PURCHASE OR SHIP DATE WHICHEVER IS LATER.
