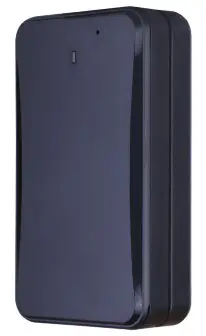

LL301
LTE Cat 1 Asset GNSS Tracker
https://www.jimilab.com/products/jm-ll301-4g-lte-cat.html
ASSET MANAGEMENT
The LL301 is a 4G Cat 1 Asset GNSS Tracker that allows for ultra-long standby time via 10,000mAh large-capacity battery and durable housing. Featuring the multiple positioning systems and indoor & outdoor signal coverage, the device also supports instant alerts of atypical events like device removal, vibration, etc. We also offer the users remote monitoring of the target through our cloud platform and mobile APR which is suitable for such application scenarios as vehicle rental, fleet management, logistics transportation, etc.
 | GPS & BDS & LBS & Wi-Fi Positioning A synergy of multiple positioning systems ensures that locations are accurately displayed on the cloud platform. |
 | 10,000mAh Rechargeable Battery High-capacity battery supports long standby applications and is easily recharged for re-deployment. |
 | Multiple Alerts Instant alerts for atypical events such as cover removal, device removal, abnormal vibration, low battery, etc. |
 | Strong Magnetic Base Near-zero installation; the LL301 tightly and effortlessly fastens to most metal surfaces |
 | LTE & GSM Network Communication via 4G LIE networks with 2G GSM fallback. |
 | Remote Listen-in (VoLTE) Inconspicuous mic allows for remote audio monitoring of the environment around the device. |
 | Multiple Working Modes Configurable working modes according to your actual demands. |
 | Bluetooth Configuration Fast and simple device configuration via app for iOS. |
GNSS
| Positioning system | GPS+BDS+LBS+WiFi |
| Frequency | Ll |
| Positioning accuracy | <2.5m CEP |
| Tracking sensitivity | -165dBm |
| Acquisition sensitivity | -148dBm |
| TTFF (open sky) | Avg. hot start < l sec Avg. cold start C 32sec |
Cellular
| Communication network | LTE/GSM |
| Frequency | LL301 -E LTE-FDD: B1 /B3/B7/B8/B20/B28 GSM: 900/1800MHz LL301 -L LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM: 850/900/1800/1900MHz
|
Power
| Battery | 10,000mAh/3.7V industrial-grade Li-Polymer battery |
| Working modes | Mode 1: Regular GPS mode Mode 2: Tracking mode Mode 3: Power-saving mode |
| Standby time | Up to 2 years in power-saving mode |
Interface
| LED Indication | 1 status Indicator (Red), 4 battery indicators (Blue) |
| SIM | Nano-SIM |
| Tamper proof | Pressure-sensitive button |
Physical specification
| Dimensions | 108.5 x 61.1 x 30mm |
| Weight | 260g |
Operating environment
| Operating temperature | -20C to +70C |
| Operating humidity | 5%-95%, non-condensing |
| IP rating | IP65 |
Feature
| Sensors | 3-axis Accelerometer |
| Bluetooth | Support Bluetooth 5.0 |
| Scenarios | Low battery alert, Tamper alert, Vibration alert Cover removal alert Power off alert |
Jimi loT Co., Ltd.
Web: www.jimilab.com
Email: [email protected]
‘ We reserve the right of final interpretation of this leaflet. All information is for reference only and is subject to change without further notice.
