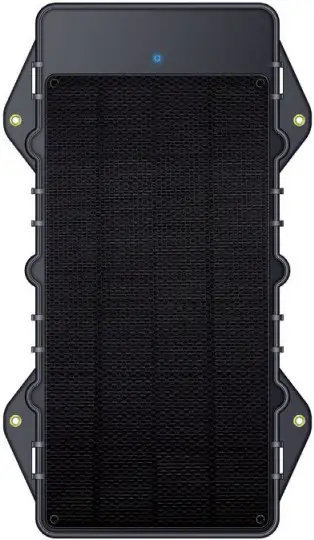

Jimi IoT LL303 LTE Solar Powered GNSS Tracker Owner’s Manual
The LL303 is a 4G solar-powered tracker designed for the management of construction vehicles and vessels. Featuring the solar panel, magnetic charger and IP67 waterproof rating this device is ideal for a variety of deployments that require long standby time and continued optimal performance. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases. In addition to these features multiple working modes various peripheral accessories and the suite of event-triggered alerts will make the LL303 a valuable part of your fleet management strategy.
LTE & GSM Network
Communication via 4G LTE networks with 2G GSM fallback.
Solar & Magnetic Charging
Easy charing via the solar panel and magnetic charger.
Multiple Alerts
Instant alerts for atypical events such as device removal, abnormal vibration, abnormal temperature & humidity, etc.
Bluetooth Accessory Compatibility (Optional)
Various bluetooth peripheral accessories allow for monitoring of fuel consumption door status etc.
GPS & BDS & LBS & Wi-Fi Positioning
A synergy of multiple positioning systems ensures that locations are accurately displayed on the cloud platform.
IP67 Dust & Water Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
Vehicle Status Detection (Optional)
Useful insight into the status of a fleet vehicle; get alerted when it is resting, working or idling.
RFID Reader (Optional)
2 Access the information of devices via the active RFID.
Construction Machinery
Asset & Logistics
Vessel Tracking
GNSS
| Positioning system | GPS+BDS+LBS+WiFi+AGPS |
| Positioning accuracy | < 2.5m CEP |
| Track sensitivity | -I ó5dBm |
| Acquisition sensitivity | -l48dBm |
| TTFF (open sky) | Avg. hot start I sec Avg. cold start < 32sec |
Cellulor
| Communication network | LfE Cat I /Cat MI /Cat NB2/GSM
|
| Frequency | LL303-C: IIE-FDD! B1/B3/B5/B8 IIE-TDD! B34/B38/B39/B40/B4I LL303-E: LTE-FDD: BI /B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 GSM: B2/B3/B5/B8 LL303-L |
| IIE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD: B40 GSM: B2/B3/B5/B8 LL303-A: IIE-FDD: B2/B4/B5/B12/B13/B25/B26/B66 GSM: B2/B3/B5/B8
|
Power
| Battery | 10,000mAh/3.7V industrial-grade Li-PoIymer battery
|
| Solar power | 5V/390mA (Standard Operating Voltage/Current @STC) STC: Direct illumination with 38,000Iux halogen lamp on the test bench.
|
| Magnetic charger | 5V/2A
|
| Working modes | Mode 1: f2egular GPS mode Mode 2: Tracking mode Mode 3: Power-saving mode
|
| Standby time | Up to 2 years in power-saving mode
|
Interface
| LED indication | Cellular (Green), Power (bed) |
| SIM | Nano-SIM |
| Tamper proof | Hall effect sensor |
Physical specification
| Dimensione | 200.0 x 90.0 x 25mm (without base) |
| Weight | 480g (without base) |
Operating environment
| Operating temperature | —20% to +70% |
| Operating humidity | 5% 959a, non-condensing |
| IP rating | IPó7 |
Feature
| Sensors | Accelerometer Temperature & humidity sensor Hall effect sensor |
| Bluetooth | Support BLE 5.0 protocol |
| Scenarios | Low battery alert, Tamper alert, Vibrating Alert |
