Jimi Iot Vl502 Lte Obdii Gnss Tracker Instruction Manual

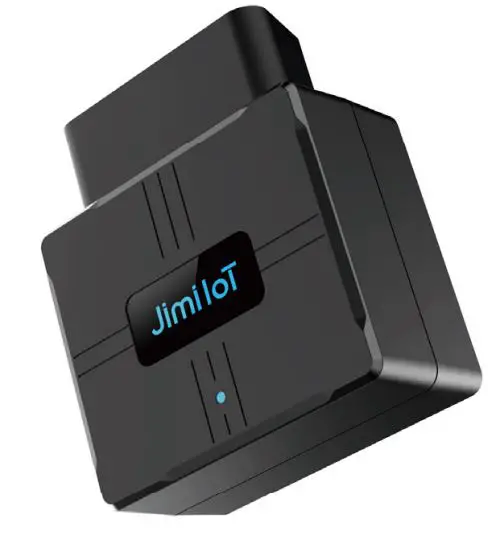

Jimi VL502 LTE OBDII GNSS Tracker

The VL502 is a new generation of 4G Cat l OBD II tracker for corporate cars usage-based insurance, fleet management, and individual cars which can obtain vehicle data such as VIN code, engine speed, water temperature, accumulated mileage, etc. With the UBI-based algorithm for driving behavior analysis. the VL502 can accurately analyze any of 4 kinds of dangerous driving behavior and support the all-round monitoring of vehicles’ real-time status.

• LTE & GSM Network
  Communication via 4G IJE networks with 2G GSM tailback.
• GPS & BDS Positioning
  liM:) complementary positioning SyStems ensure the locations 1o be accurately displayed on cloud platfom,.
• Multiple Alerts
  Instant alerts for atypical events such as car fault, overspeed, ignition detection collision gee-fence entry/ exit, etc.
• On Board Diagnostics
  Obtains real data of vehicle (fault code, ACC status fuel consumption statistics battery voltage. engine speed. etc)
• Driving Behavior Analysis
  Get instant alerts for 4 or 8 kinds of dangerous driving behaviot depending on your need&
• Effortless Installation
  Simply plug this device Into OBD II socket, you don’t have to turn to professional&

GNSS

• Positioning system; GPS/BDS
• Frequency; Ll
• Positioning accuracy; <2.5mCEP
• Track sensitivity; -l62dBm
• Acquisition sensitivity; -148 dBm (cold) /-156 dBM (hot)
• TTFF (open sky):
  •  Avg. hot start < l sec
  • Avg. cold start <32sec

Cellular

• Communication network: IJE + GSM
• Frequency
  • VL502 (L):
    IJE-FDD: B2/B3/B4/B5/B7 /B8/B28/B66 GSM: B2/B3/B5/B8
  • VL502 (E):
    IJE-FDD: Bl /B3/B5/B7 /B8/B20/B28 GSM: B2/B3/B5/B8

Power

• Battery ; 50mAh/3,7V
• Input voltage : 9-36VDC

Interface

• LED Indication: 1 status indicator (Blue)
• SIM: Nano-SIM
• Data storage : 8+16MB

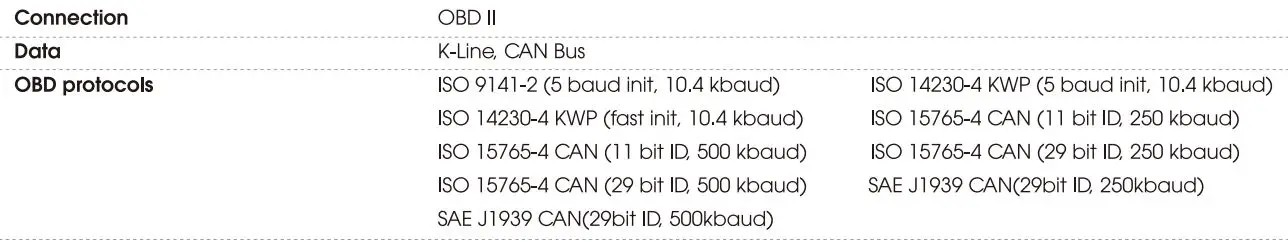

OBD port

• Connection: OBDII
• SIM: Nano-SIM
• Data storage: 8+16MB

OBD port

Physical specification

• Dimensions : 61 x52x 26mm
• Weight: 55g

Operating environment

• Operating temperature: -20’C to 70’C
• Operating humidity: 5%-95%, non-condensing

Feature

• Sensors Accelerometer
• Ignition detection External Power Voltage
• Scenarios Car Fault. Over-Speed, Ignition detection, Collision, Geo-fence entry/exit. Power on, Device pull-out. Engine Idling
• Driving behavior analysis Harsh acceleration, Harsh braking Harsh cornering Collision

J imi lo T Co., Ltd•

• Web: www.Jlmllab.com
• Email: [email protected]

We reserve the right of final Interpretation of this leaflet. All Information Is for reference only and Is subject to change without further notice.
