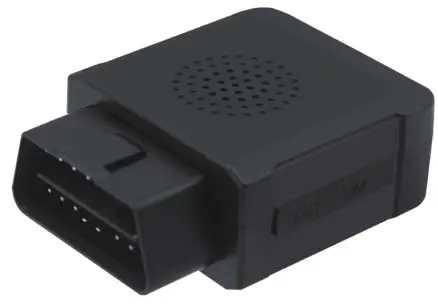

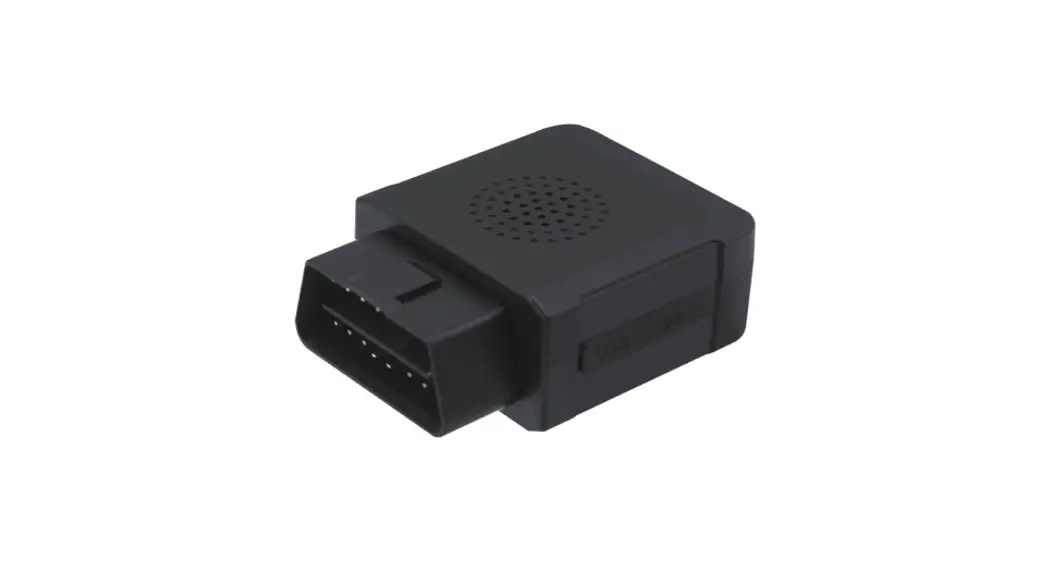

JM-VLO4
LTE OBDII GNSS Tracker
Instructions
https://www.jimilab.com/products/jm-vl04-lte-obd-vehicle-tracker.html
FLEET MANAGEMENT
The JM-VLO4 is a professional 4G OBD vehicle tracker you can easily install. With its advanced accelerometer and special algorithm, JM-VLO4 can detect improper driving behaviors precisely calculate mileages By leveraging different 4G communication modules it covers almost all global LIE frequency bands A revolutionary update is the voice alarm, which can remind drivers to behave correctly when their bad driving activities have been detected. Moreover, it also supports the embedded microphone for remote listen-in.
 | 4G LTE Communication The device can receive and transmit data in the coverage of 4G network. |
 | Ignition Detection Always keeps you informed of the ACC status of your vehicle. |
 | Remote Listen-in An inconspicuous Mic allows you to remotely listen in the sounds around the device. |
 | Driving Behavior Analysis Acceleration braking cornering collision. |
| Voice Alarm In risky circumstances, the Internal speaker will sound human voice to remind drivers to drive carefully. |
 | BLE4.0 Supported Through Bluetooth connection, you can configure parameters upgrade software and debug. |
GNSS
| Positioning system | GPS/Glonass/BDS/GALILEO, AGPS/LBS assisted |
| Frequency | LI |
| Positioning accuracy | <2.5m CEP |
| Track sensitivity | -165 dBm |
| Acquisition sensitivity | -148 dBm (cold)1-163 dBM (hot) |
| TIFF (open sky) | Avg hot start ≤ lsec Avg. cold start ≤ 32sec |
POWER
| Battery | 50mAh industrial-grade LiCo battery |
| Input voltage | 9-36VDC |
Interface
| LED indication | GNSS (Blue), Cellular (Green), Power (Red) |
| Connector | OBD II port |
| SIM | Nano-SIM |
| USB | 1 x Micro-USB for configuration |
| Data storage | 8MB flash memory |
Physical specification
| Dimensions | 65.0 x 50.0 x 25.0mm |
| Weight | 60g |
Operating environment
| Operating temperature | -20°C to 70°C |
| Operating humidity | 5%-95%, non-condensing |
| IP rating | IP41 |
Feature
| Voice monitoring range | ≤5 meters |
| Sensors | Accelerometer |
| Ignition detection | External Power Voltage |
| Scenarios | Vehicle movement alert, Over-speed alert, Geo-fence, Voice-monitoring, Vehicle battery detection, Power supply disconnection |
| Driving behavior analysis | Harsh acceleration Harsh braking, Harsh cornering, Collision. |
Jimi loT Co., Ltd.
Web: www.jimilab.com Email: [email protected]
