PTCR8 & AT&T codified
ASSET MANAGEMENT
https://www.jimilab.com/products/jm-ll01-asset-tracker.html

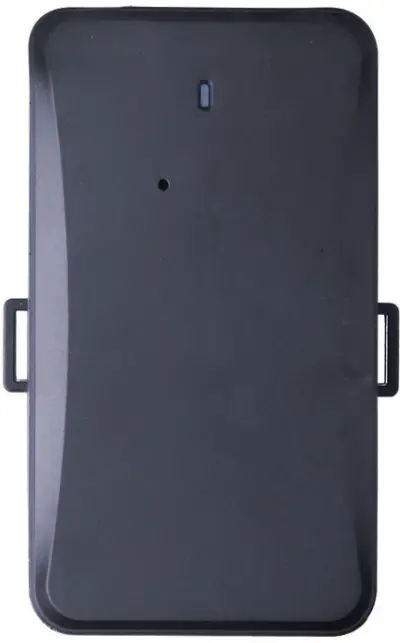

JM-LLO1
LIE Cat M1 & NB2 Asset GNSS tacker
The JM-LLOI is a Cat-MI /Nb-loT asset tracker with ultra-long standby time. Depending on reporting frequency, its low consumption internal battery can provide up to 3 years of working time on a single charge.
The JM-LLOI’s strong magnetic mount allows for effortless installation onto almost any metal surface, and a light sensor will be triggered and an alert sent once detachment occurs helping users to feel totally assured that their assets are under constant protection.
 | GPS & WiFi & LBS Positioning A synergy of multiple positioning systems ensures that locations are accurately displayed on the Cloud platform. |  | LTE Cat M1 /NB2 & GSM Communications over lot-specific LIE networks with reliable 2G GSM fallback. |
 | 10,000mAh Rechargeable Battery High-capacity battery is ideal for long standby applications and is easily recharged for re-deployment. |  | Tamper Alert Receive a tamper alert when the light sensor detects device removal. |
 | IP65 Dust and Water Resistance Rugged design ensures continued optimal perfonnance, even In the toughest conditions |  | Bluetooth Configuration Fast and simple device configuration via app for 10S. |
 | Strong Magnetic Base Fast and easy installation via strong magnetic mount or eyelets |  | Multiple Working Modes Configurable working modes according to your actual demands |
| Vehicle remtal | Fleet managment | lagistics |
 |  |  |
GNSS
| Positioning system | GPS+BDS+LBS+ WiFi |
| Frequency sits | L1 |
| Positioning accuracy | <2.5m CEP |
| Track sensitivity | -165CBM |
| Acquisition sensitivity | -148dB |
| TIFF(open sky) | Avg. hot ster≤1sec Avg. cold start ≤40 sec |
Cellular
| Communication network | LIE/GSM |
| Frequency | UE CAT M1 /NB2: B1/82/83/84/85/88/812/813/B18/B19/820/826/828/866 EGPRS: 850/900/1800/1900 MHz |
Power
| Battery | 10,000mAh/3.7V industrial-grace Liolymer battery |
| Working modes | Mode 0: Standby mode Mode 1: hacking mode Mode 2: Power-saving mode |
| Standby time | Up to 3 years in pawersaving mode |
Interface
| LED indication | 1 status indicator (Red), 4 battery indicators (Blue) |
| SIM | Stondard-SIM |
| Data Strage | 32432Mb |
| Tamper proof | Light sensor |
Physical specification
| Dimensions | 109.0 x 61.0 x 30.5mm |
| Weight | 297g |
Operating environment
| Operating temperature | – 20C to +70C |
| Operating humidity | 5%~95%, Non-condensing |
| IP rating | IP65 |
Feature
| certificates | FCC. CE. PTCRE AT&T TELEC |
| Sensors | 3-axis Accelerometer |
| Scenarios | Low battery alert, Tamper alert, Vibrating Alert, Overspeed alert, Cover removal alert, Installation alert, Geo-fence |
Jimi loT Co., Ltd.
Web: www,jimilab.com
Email: [email protected]
* We reserve the right of final interpretation of this leaflet.
All information is for reference only and is subject to change without further notice.
