REEF OCTOPUS HY-1000W HY Water Blaster Pump
Overview
- Exceptionally durable ceramic impeller made with Silicon Nitrite to resist abrasion and lower operating temperature.
- HY-10000S, HY-10000W, HY-12500W, HY-16000W uses alloy.
- Uses Neodymium
- Pump Body is manufacture with a mixture of high-grade PC+PET This material can be submerge long term in water without fatigue associated with regular plastic and is able to withstand ozone.
- Cooling chambers build within pump body to lower the operating temperature and thus enhance the pump longevity.
- Suitable for both Fresh and Marine
- Suitable for Wet or Dry
Safety Tips
- Do not operate this pump without water flowing through. Overheating pump could potentially be a Fire Hazard.
- Do not operate this pump in water where debris (sand, mud, pebbles etc) are found, this will damage the impeller and short-circuit the pump.
- For Skimmer Pump, always operate with air intake open to prevent damage to the needle wheel impeller.
- Please do not carry the pump via the power cable only, this will cause the power cable to break.

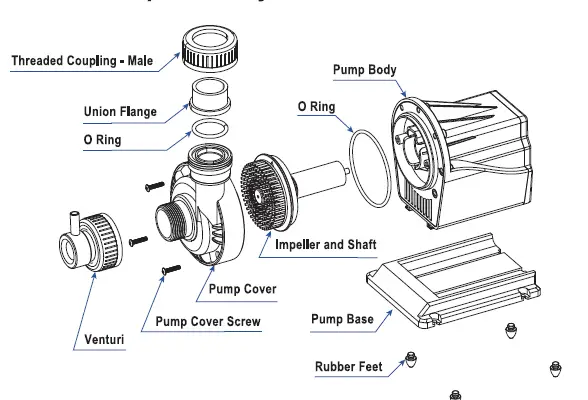

Skimmer Pump Assembly

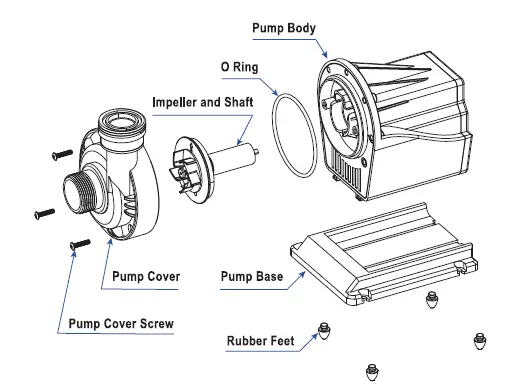

Water Pump Assembly
Package
Please check content in the package
- Pump Bod
- Skimmer Pump Accessories
- Water Pump Accessorie
(g B El El D D 0 Model 2 2 2 2 2 4 HY-1000W 2 2 2 2 2 4 HY-2000W 2 2 2 2 2 4 HY-3000W 2 2 2 2 2 4 HY-4000W 2 2 2 2 4 HY-5000W 2 2 2 2 4 HY-7000W 2 2 2 4 HY-10000W 2 2 2 4 HY-12500W 2 2 2 4 HY-16000W
Size
| Model | Inlet Size | Outlet Size | A | B | C | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | |
| HY-1000W | 25 | 3/4 | 20 | 1/2 | 115 | 4.5 | 175 | 6.9 | 90 | 3.6 |
| HY-2000W | 25 | 3/4 | 20 | 1/2 | 115 | 4.5 | 175 | 6.9 | 90 | 3.6 |
| HY-3000W | 32 | 25 | 3/4 | 145 | 5.7 | 200 | 7.9 | 105 | 4.2 | |
| HY-4000W | 32 | 25 | 3/4 | 145 | 5.7 | 200 | 7.9 | 105 | 4.4 | |
| HY-5000W | 40 | 1-1/4 | 32 | 145 | 5.7 | 235 | 9.3 | 110 | 4.4 | |
| HY-7000W | 40 | 1-1/4 | 32 | 145 | 5.7 | 235 | 9.3 | 110 | 4.4 | |
| HY-10000W | 40 | 1-1/4 | 32 | 165 | 6.5 | 255 | 10.0 | 130 | 5.2 | |
| HY-12500W | 40 | 1-1/4 | 40 | 1-1/4 | 165 | 6.5 | 255 | 10.0 | 130 | 5.2 |
| HY-16000W | 40 | 1-1/4 | 40 | 1-1/4 | 165 | 6.5 | 255 | 10.0 | 130 | 5.2 |
- Skimmer Pump Specifications
Model Voltage/ HZ Power Air Intake Flow Rate V/HZ w LPH GPH LPH GPH HY-1000S
220-240/50 15 540 143 520 137 120/60 20 644 170 568 150 HY-2000S
220-240/50 25 960 253 900 238 120/60 30 1022 270 946 250 HY-3000S
220-240/50 30 1100 290 1550 409 120/60 35 1136 300 1609 425 HY-5000S
220-240/50 40 2100 554 1700 449 120/60 55 2385 630 1817 480 HY-10000S 220-240/50 100 4000 1056 3200 845 120/60 125 4542 1200 3293 870 - Water Pump specification
Model Voltage/ HZ Power Head Height Flow Rate V/HZ w m Ft. LPH GPH HY-1000W
220-240/50 13 1.4 4.6 1600 422 120/60 13 1.4 4.6 1666 440 HY-2000W
220-240/50 18 1.8 6.0 2000 528 120/60 18 1.8 6.0 2101 555 HY-3000W
220-240/50 30 2.3 7.5 3400 898 120/60 35 2.6 8.5 3483 920 HY-4000W
220-240/50 40 2.7 8.9 4200 1109 120/60 45 2.9 9.5 4599 1215 HY-5000W
220-240/50 55 3.3 10.8 5200 1373 120/60 60 3.4 11.0 5489 1450 HY-7000W
220-240/50 70 3.6 11.8 6900 1822 120/60 80 4.3 14.0 7382 1950 HY-10000W
220-240/50 95 4.3 14.0 10000 2640 120/60 120 4.9 16.0 10221 2700 HY-12500W
220-240/50 165 4.8 15.7 12500 3300 120/60 175 5.6 18.5 12492 3300 HY-16000W
220-240/50 200 5.1 16.7 15000 3960 120/60 250 6.7 22.0 15596 4120

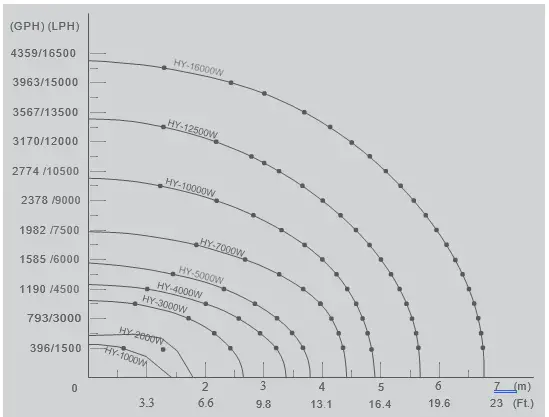

Pump Perfomance
- Optimal operating water temperature between 0-35 ‘C.
- Do not operate and expose this pump to direct
Maintenance
- For your safety, please ensure that this pump is plug into a power supply with earthing (grounding) connection.
- Please ensure that your pump is unplug before
- Please ensure that both the power plug and your hands are dry before plugging in and turning on this pump.
- Warranty will be void if you attempt to extent or splice power cable or make any modifications to the pump.
- During operation, pump will be warm to touch, this is.
Troubleshooting
| Abnormal noise when pump is running. | Debris is trap inside pump chamber. | Off the pump, unplug the pump from power supply and remove debris from pump’s chamber and impeller. | |
| Pump not able to start/run. | 1. Larger debris could be trap inside the pump’s chamber. 2. Impeller is stuck or not turning. | Check the Impeller to ensure that it is not cracked or broken. | |
| Plug in pump and the circuit breaker activated. | Electrical fault. | Disconnect the pump and contact our After Sales Service in your region. | |
| Minimal flow or no flow. | 1. Intake is block, remove blockages. 2. Pump is not fully submerged in water. | Check both water level and/or intake. | |
| Abnormal or low air volume for Skimmer pump. | 1. Intake pipe is blocked or kinked. 2. Air Diffuser is blocked. 3. Misplaced Impeller. 4. Silencer is choked. | Check all the above. | |
| Abnormal vibrations. | Abnormal low power operations. | Ensure power supply grid is restore before plugging pump in. | |
