Programmable Logic Controller Installation Guide
XGT RAPIEnet Multiport Switch XOL-ES4T/ES4H
10310001548
This installation guide provides simple function information or PLC control. Please read carefully this data sheet and manuals before using products. Especially read precautions then handle the products properly.
Safety Precautions
- Meaning of warning and caution label
 WARNING | WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury |
| CAUTION | CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices |
WARNING
- Do not contact the terminals while the power is applied.
- Be sure there are no foreign metallic matters.
- Do not manipulate the battery(charge, disassemble, hitting, short, soldering).
CAUTION
- Be sure to check the rated voltage and terminal arrangement before wiring
- When wiring, tighten the screw of terminal block with the specified torque range
- Do not install the flammable things on surroundings
- Do not use the PLC in the environment of direct vibration
- Except expert service staff, do not disassemble or fix or modify the product
- Use the PLC in an environment that meets the general specifications contained in this datasheet.
- Be sure that external load does not exceed the rating of output module.
- I/O signal or communication line shall be wired at least 100mm away from a highvoltage cable or power line.
Operating Environment
- To install, observe the below conditions.
| No | Item | Specification | Standard | ||||
| 1 | Ambient temp. | 0 – 55 C | – | ||||
| 2 | Storage temp. | -25 – 70 C | – | ||||
| 3 | Ambient humidity | 5 – 95%RH, non-condensing | – | ||||
| 4 | Storage humidity | 5 – 95%RH, non-condensing | – | ||||
| 5 | Vibration Resistance | Occasional vibration | – | – | |||
| Frequency | Acceleration | IEC 61131-2 | |||||
| 5f<8.4Hz | – | 3.5mm | 10 times in each direction for X, Y, Z | ||||
| 8.4fs150Hz | 9.8m15(1g) | – | |||||
| Continuous vibration | |||||||
| Frequency | Frequency | Frequency | |||||
| 5f<8.4Hz | – | 1.75mm | |||||
| 8.4fs150Hz | 4.9mic(0.5g) | – | |||||
Applicable Support Software
- For system configuration, the following version is necessary.
1) XG5000 Software : V4.30 or above
Accessories and Cable Specifications
- Cable is recommended for S-FTP over CAT5e. Cable types vary Depending on your system configuration and environment. Please consult a professional supplier before installation.
1) Electrical Characteristic
| Item | Unit | Value | Condition |
| Conductor resistance | 0/km | 93.5 Or less | 25°C |
| Voltage endurance(DC) | V/1min | 500 | In air |
| Insulation resistance(Min) | MO-km | 2,500 | 25°C |
| Characteristic impedance | 0 | 100±15 | 10MHz |
| Attenuation | dB/100m Or less | 7. | 10MHz |
| 8. | 16MHz | ||
| 9. | 20MHz | ||
| Near-end crosstalk Attenuation | dB/100m Or less | 47 | 10MHz |
| 44 | 16MHz | ||
| 42 | 20MHz |

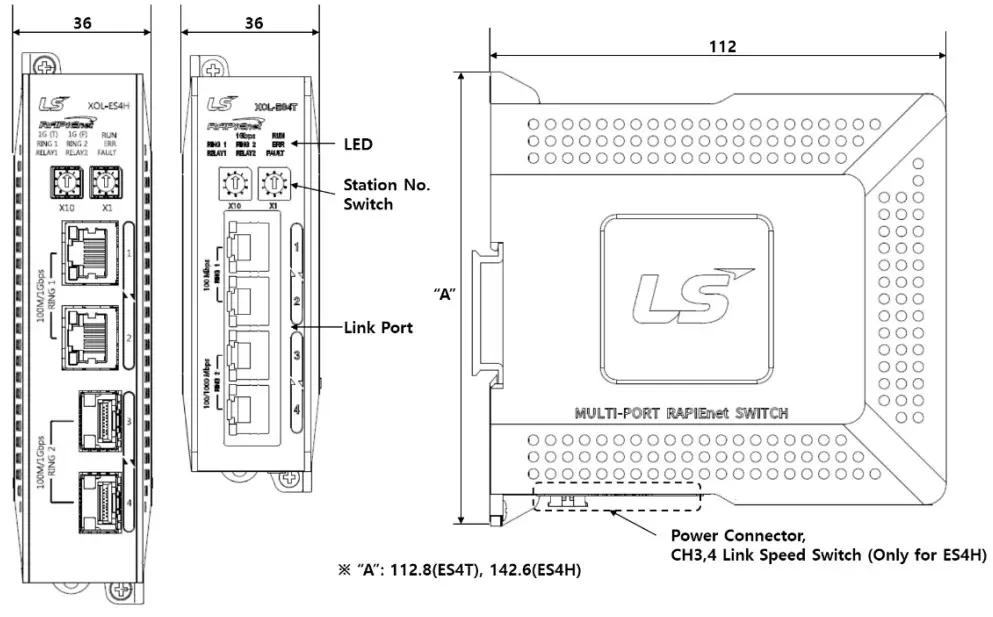

Parts Name and Dimension (mm)
- This is front part of the Module. Refer to each name when operating the system. For more information, refer to user’s manual.
LED details (Shared)
| Silk | LED Status | |
| On | Off | |
| RUN | Power on and normal operation | Power off or abnormal operation |
| RING1 | Ch1, Ch2 Ring network establish | Ch1, Ch2Line network establish |
| RING2 | Ch3, Ch4 Ring network establish | Ch3, Ch4 Line network establish |
| RELAY1 | Ch1, Ch2 when frames are relayed | Ch1, Ch2 when frames are not relayed |
| RELAY2 | Ch3, Ch4 when frames are relayed | Ch3, Ch4 when frames are not relayed |
| FAULT | When module has error (Ex, Station conflict) | – |
| ERR | When hardware has error | – |
| 1Gbps 1 G(T) 1 G(F) | When channels 3 and 4 of ES4T operate at 1 Gbps When channels 1 and 2 of ES4H operate at 1 Gbps When channels 3 and 4 of ES4H operate at 1 Gbps | – |

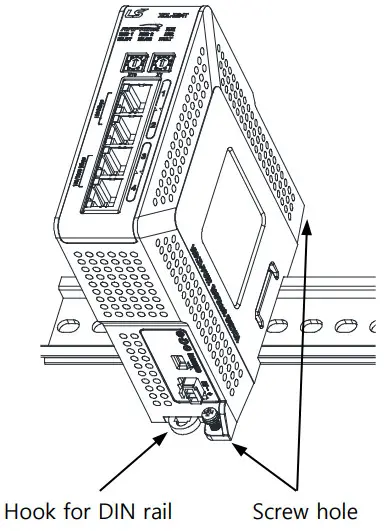

Installing / Removing Modules
- XOL-ES4T is having hook for DIN rail (rail width: 35mm) so that it can be installed at DIN rail.
- In case of installing at DIN rail
- Pull hook for DIN rail at the bottom of module and install it at DIN rail
- Push hook to fix the module at DIN rail after installing module at DIN rail
- In case of installing at panel
- You can install XOL-ES4T at panel directly using screw hole.
- Use M3 type screw to install the product at panel.

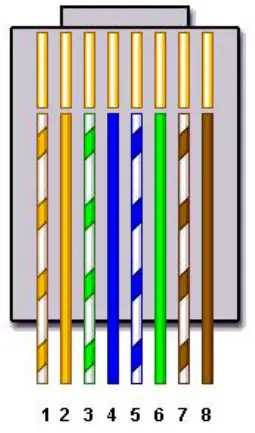

Wiring
| Pin No. | Sign | Cable wiring | |||
| Straight cable | Cross cable | ||||
| 1 | TD+ | 1 —– 1 | 1 —– 3 | ||
| 2 | TD- | 2 —– 2 | 2 —– 6 | ||
| 3 | RD+ | 3 —– 3 | 3 —– 1 | ||
| 4 | TRD2+ | 4 —– 4 | 4 —– 7 | ||
| 5 | TRD2- | 5 —– 5 | 5 —– 8 | ||
| 6 | RD- | 6 —– 6 | 6 —– 2 | ||
| 7 | TRD3+ | 7 —– 7 | 7 —– 4 | ||
| 8 | TRD3- | 8 —– 8 | 8 —– 5 | ||
- White orange
- Orange
- White green
- Blue
- White blue
- Green
- White brown
- Brown
Warranty
- Warranty period:
The product warranty covers product malfunction, under normal operating conditions, 12months from the date installation. If the date of installation is unknown, 18 months from the date of manufacturing. - Scope of Warranty: 18 month warranty is available except:
1) The troubles caused by improper condition, environment or treatment except the instructions of LS ELECTRIC.
2) The troubles caused by external devices
3) The troubles caused by remodeling or repairing based on the user’s own discretion.
4) The troubles caused by improper usage of the product
5) The troubles caused by the reason which exceeded the expectation from science and technology level when LS ELECTRIC manufactured the product
6) The troubles caused by natural disaster - Change in specifications
Product specifications are subject to change without notice due to continuous product development and improvement.
