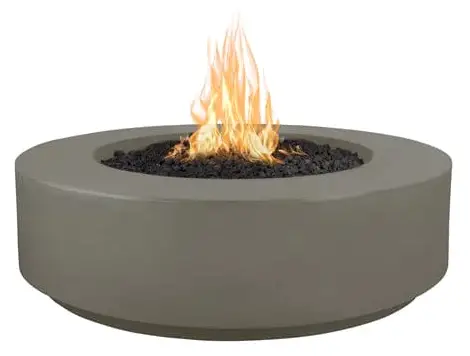

42 Inch Florence Low-Profile Concrete Fire
Pit Instructions

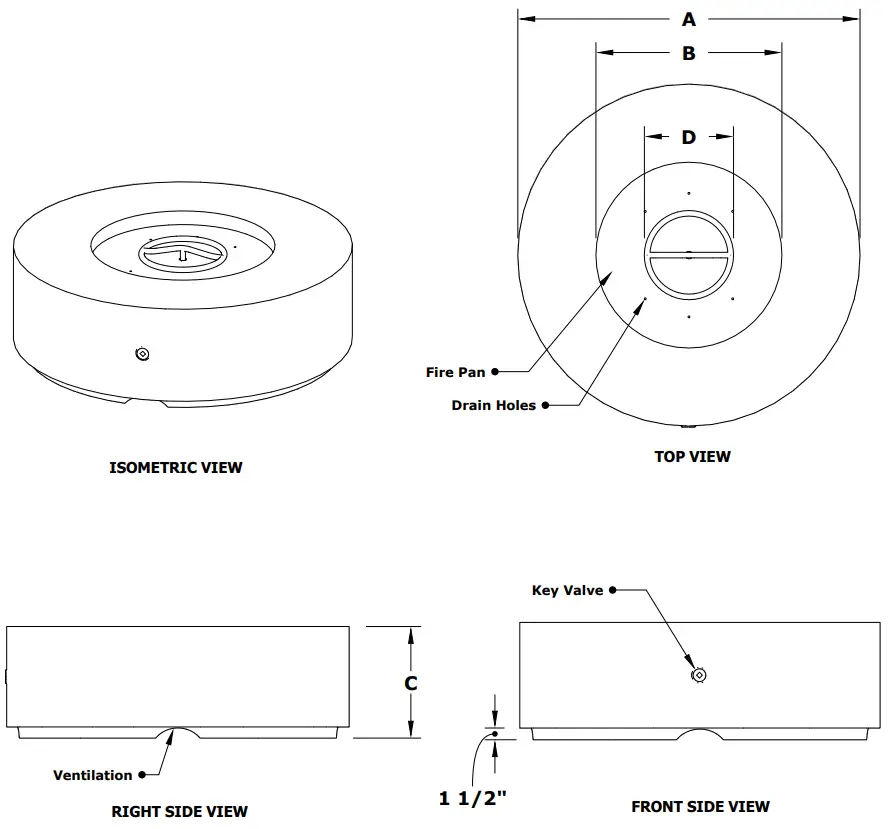

FLORENCE CONCRETE FIRE PIT
LOW PROFILE UNITS – NO DOORS
| SKU | A | B | C | D | BTU |
| OPT-FL42 | 42″ | 25″ | 12″ | 12″ | 65,000 |
| OPT-FL42EKIT | 42″ | 25″ | 12″ | 12″ | 65,000 |
UNITS WITH PROPANE TANK STORAGE
| SKU | A | B | C | D | BTU |
| OPT-FL4224 | 42″ | 25″ | 24 | 12″ | 65,000 |
| OPT-FL4620 | 46″ | 21″ | 20″ | 12″ | 65,000 |
| OPT-FL54 | 54″ | 30″ | 20″ | 12″ | 65,000 |
| OPT-FL72 | 72″ | 48″ | 20″ | 24″ | 65,000 |
| OPT-FL4224EKIT | 42″ | 25″ | 24 | 12″ | 65,000 |
| OPT-FL4620EKIT | 46″ | 20″ | 20″ | 12″ | 65,000 |
| OPT-FL54EKIT | 54″ | 30″ | 20″ | 12″ | 65,000 |
| OPT-FL72EKIT | 72″ | 48″ | 20″ | 24″ | 65,000 |
Fire Pit Material: GFRC Concrete
Pan Material: 304 Stainless Steel
Burner Material: 304 Stainless Steel
Standard 2″ Depth on all pans
110V ELECTRONIC IGNITION
ANSI Z21.97-(2017) / CSA 2.41-(2017)
Match Lit Unit Includes: Pan, Burner, Gas Orifice, Gas Hoses, Key Valve, Key, 110v Ignition Unit Includes: Pan, Burner, Gas Orifice, Gas Hoses, Key Valve, Key, Plug & Play Electronic Valve, Pilot Igniter.
Proprietary & Confidential: The information contained in this drawing is the sole property of The Outdoor Plus. Any reproduction or as a whole without written permission of The Outdoor Plus is prohibited.
