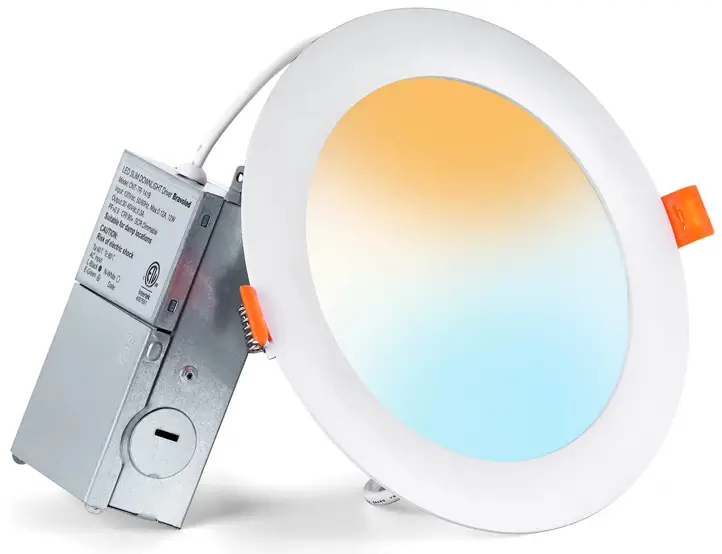

Miootly 2700-5000k 6 Inch Recessed Lighting 12 Pack User Manual (+ PDF)

2700-5000K 6 Inch Recessed Lighting 12 Pack
User Manual 2700-5000K
LED Recessed Light
User Manual

Contents hide

1 COMMON TROUBLESHOOTING

2 Contact US

3 SAFETY INSTRUCTION

4 STEP – BY STEP INSTALLATION

5 SPECIFICATIONS

6 DIMMER COMPATIBILITY GUIDE

7 CUSTOMER SERVICE

8 Documents / Resources

COMMON TROUBLESHOOTING

We are an LED manufacturer with 20-year experiences and According to our statistics, 95% of customers’ problems are related to the method of installation and the use of dimmer, which could be solved by customers themselves. please read this introduction first, if you encounter any problems.
Problems you may encounter

PROBLEM	POSSIBLE CAUSE	SOLUTION
Unlit	The wire falls off/loosens/breaks	Double check the connection of the wire Plug the wire hard into the hole of the plastic connector till the wire end sticks out of the inside metal clip end.if the wire is too thick, peel off the wire cover at least 10mm to make sure the wire is inserted firmly.
	The connector is missing or the connector lacks metal shrapnel	Double check the connector.
	Voltage is too high	Work on 110-130 volts
Dim	The wire falls off/ loosens/ breaks	Double check the connection of the wire.
	Not setting the dimmer right	Double check the setting.
	Mix the junction boxes(4″and 6″)	Check Voltage,9W for 4″and 12W for 6″
	Compatible dimmer,but too many lights connect to one dimmer	Reduce the number of lights connected to the one dimmer.(Total Power of the Lights 75% of the Rated Power of the Dimmer)
	Total brightness of the lights/house area:too small	Install more lights. Recommended spacing for installation of 4lights:2-4ft (6″ights:5-7ft)
Flickering	the wire falls off/ loosens/ breaks	Double check the connection of the wire.
	not setting the dimmer right	Double check the setting.
	mix the junction boxes (4″ rand 6″)	Check the Voltage,9W for rand 12W for 6″
	(x)incompatible dimmer	Select a dimmer from the recommended dimmer list.
	(V)compatible dimmer,but too many lights connect to one dimmer	Connect fewer lights to the one dimmer. Total Power of the Lights75% of the Rated Power of the Dimmer)
	high-power electrical appliances on the same circuit	Remove and set them further away from each other.
Buzzing noise from dimmer/ junction box/ circuit breaker (>20Db)	(x)incompatible dimmer	Select a dimmer from the recommended dimmer list.
	(V)compatible dimmer,but too many lights connect to one dimmer	Reduce the number of lights connected to the one dimmer(Total Power of the Lightss75% of the Rated Power of the Dimmer)
	(x)incompatible circuit breaker	A.Mechanical circuit breaker:replace a compatible dimmer. B.Electronic control circuit breaker:replace the circuit breaker first.
	high-power electrical appliances on the same circuit(radio, air conditioners, refrigerators, etc.)	Remove and set them further away from each other.

Contact US

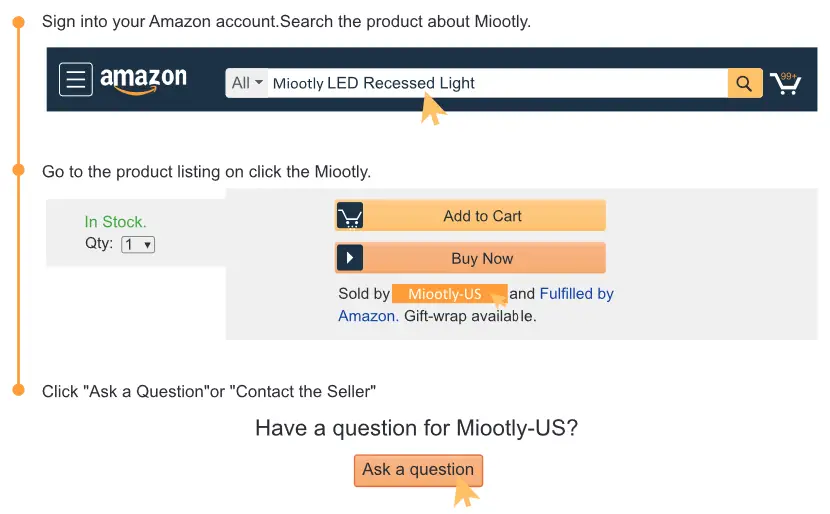

Contact by “Ask a question”on the “Miootly “Seller Page.(7x24H)
Because Amazon’s information system sometimes can’t successfully receive and send information, in which case you may not receive our response. We wil never be able to reply to your inquiry. If you find that we have not responded to you within 24 hours please send us an e-mail.
Contact via Email: [email protected](7x24H)

SAFETY INSTRUCTION

Motley’s recessed lighting is certfied by ETL & Energy Star of a high standard. This canless LED recessed light is C rated, with more convenient and secure UL. connectors. But to reduce the risk of death, personal injury or property damage from fire, electric shock and other hazards, please read all warnings and instructions included with and on the fixture box and all fixture labels. please review instructions carefully before proceeding.
WARNING
RISK OF ELECTRIC SHOCK

All electrical connections must be in accordance with local and National Electric Code(N.E.C.) standards.
Consult a qualified electrician if you are unfamiliar with proper electrical wiring connections.
Turn off the switch and circuit breaker before installing this LED light.
Do not alter, re-locate or remove wiring.
Double-check all connections to be sure they are tight and correct.
Verify that supply voltage is correct by comparing it with the luminaire label information.

RISK OF FIRE

Keep combustibles and other materials that may burn away from lights.
The maximum ambient temperature is 104F. Do not operate fixture at temperatures higher than it

CAUTION
RISK OF INJURY

The knockouts may be sharp. Wear gloves and safety glasses at all time when removing luminaire, installing or performing maintenance.
Avoid direct eye exposure to the light source while it is on.
Wear rubber-soled shoes and work on a sturdy wooden ladder.

RISK OF BURN

Do not touch enclosure or light source.lt is normal of the luminaire surface heating up during work.Allow lights to cool before handling

RISK OF PRODUCT DAMAGE

lectrostatic Discharge(ESD): ESD can damage LED fixtures. Personal grounding equipment must be worn during all installation or servicing of the unit.
Do not touch individual electrical components as this can cause ESD, shorten lamp life, or alter
performance.Do not mix our product with other products including Miootlys light. eg.4″and 6″). Mixing junction box of different power wil lead to the destruction of the product.
Do not let the product directly contact with water. Our product is damp-rated but it is not water-proof
Do not make or alter any open holes in an enclosure of wiring or electrical components
Never connect components under load.
Please make sure that all wires in and out are wired firmly and sufficiently. If not. there wil be a flickering issue or the light will just stop

IMPORTANT

Our temperature has been strictly monitored. But the temperature will be slightly different with varied monitors Please test them before installation up in the ceiling wall and see the color if it meets your needs
If there is anything wrong with our lights please see the Troubleshooting page. If you could not find an answer in that page please contact us

ROUTINE MAINTENANCE

Please make sure the power is off before maintenance
To avoid any damage to the product,please do not use any chemical solvents during the routine maintenance.
To ensure better lighting. please clean the lamp at regular intervals.

LIMITED WARRANTY
This product is warranted to be free from defects in workmanship and materials for up to 5 years from date of purchase.lf it fails to do so, please contact the Customer Service Team

STEP – BY STEP INSTALLATION

TOOLS REQUIRED: Saw, Measuring Tape, Electrical Wiring(The wire should be AWG14-18 for application to connect the fixture), Safety glasses and gloves.

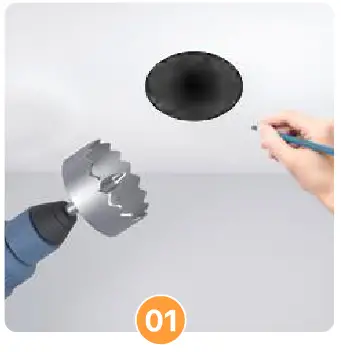

Cut a hole with 1:1 size of the cutting template

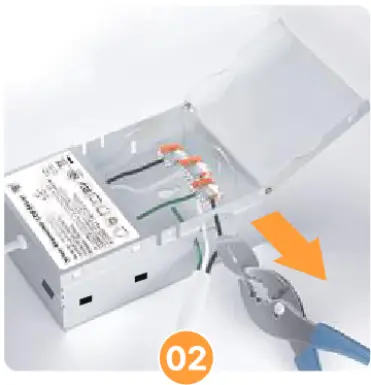

Open the junction box and remove knock-out on the side.
Run wire from the power source through the hole.
Use the connector to tuck the wires according to the color. flip the switch on the side of the junction box to locate the setting that you like.
Connect(tightly by hand) the junction box to the light panel.

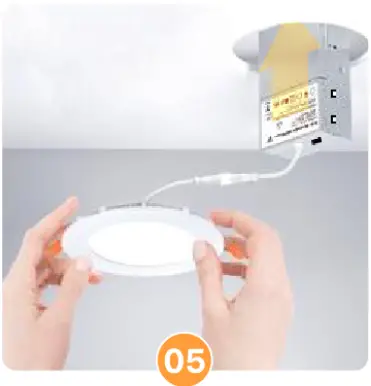

Put the box in the ceiling hole. Push up the spring clips.

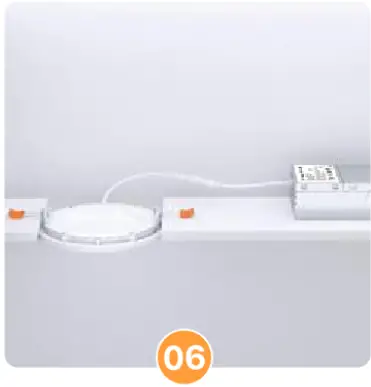

Push the light in to the ceiling and power on.

SPECIFICATIONS

SPECIFICATIONS	4″	6′
Voltage	120V	120V
Wattage	9W	12W
Current	0.075A	0.1A
Power Factor	0.9	0.9

LIGHTING PERFORMANCE

Lumens	750LM	1050LM
Equivalency	75W	110W
Color Temperature	2700K-5000K	2700K-5000K
Color Rendering Index(CRI)	>80	>80
Beam Angle	120°	120°
Dimmable	Yes	Yes
Effciency(Im/w)	83Im/w	87.5Im/w

ENVIRONMENT

Operating Temperature	14F to 104F	14F to 104F
Suitable Damp Location	Yes	Yes
Fits Around Joists	Yes	Yes
Fits Soffit to Double Drywall Ceilings	Yes	Yes

CONSTRUCTION

Housing Material	Aluminum+PC	Aluminum+PC
Weight	300g	410g

LIFESPAN

Average Life(hours)	50000+	50000+
Warranty	5 years	5 years
Switching Time	>40000	>40000

DIMMER COMPATIBILITY GUIDE

Brand	Model	Star Rating
LUTRON	DV-600P-WH S-600P-WH CTCL-153P-WH DVCL-153P-WH LG-603PH-AL TG600PH-WH
LEVITON	MACL-153M-WH,6631,6674,6683,1PL06-10Z,6684,6672
COOPER	9534WS-K,S106P,DLCO3P,9573SG
ENERLITES	50321

The number of lights that a dimmer can control in one circuit

6″:the dimmer rated power(wattyl2watte75%
4:the dimmer rated power(watty9watts’75%

CUSTOMER SERVICE

12 HOURS QUCIK RESPONSE
If there is any problem with our light,please refer to the Trouble shooting page on the back. If you still could not fix this, please contact us immediately. It doesn’t matter if you have installed the product, we will respond within 12 hours
30-DAY MONEY-BACK
For 30 days after the date of purchase, return your Miootly productand receive a full refund for ANY reason.
5-YEAR WARRANTY
For 5 years after the date of purchase,if there is any issue with the product.we will send a new product for free or a full refund.(no need to return the purchased product)
Under most conditions, we will not require you to return the purchased items. Sure, if you would return the defective ones) to us, we will be very happy for that would help us to make continuous
Free Replacement No Repair
After the buyer purchases the product, if the product has a quality problem within the scope of the seller’s warranty service validity period then will replace the buyer with a new product for free.
Friendly Reminder
Please rest assured that our service aim is to make customers 100% satisfied. If there is any problem,please contact us as soon as possible.
