Rabalux 3163 Recessed Light User Manual

rabalux 3163 Recessed light

Terminal block not included. Installation may require advice from a qualified person.

Installation Instruction

Art

3163 / 3164 / 3165 / 3166 / 2678 / 2679 / 2680 / 2681

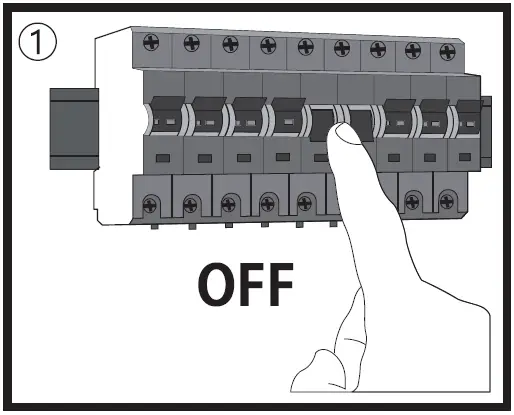

1.

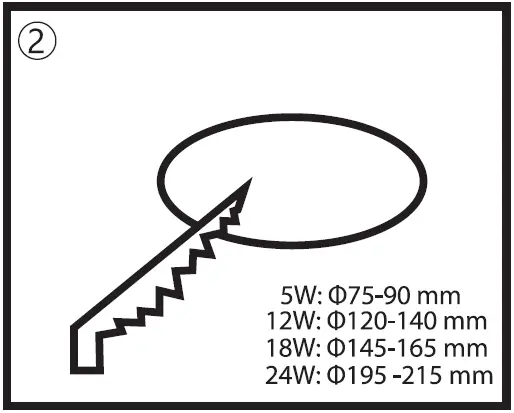

2. Ceiling open

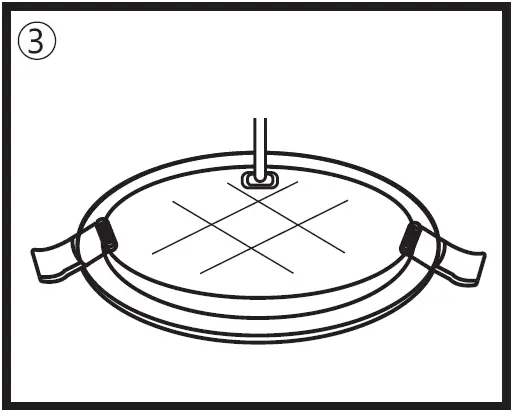

3. Connect the driver to AC 230V power

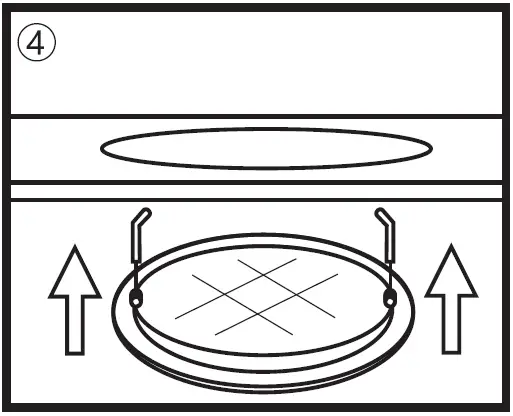

4. Make the spring clips vertical and put them into the ceiling hole.
5. Hold the spring clips horizontally and push the downlight into position.

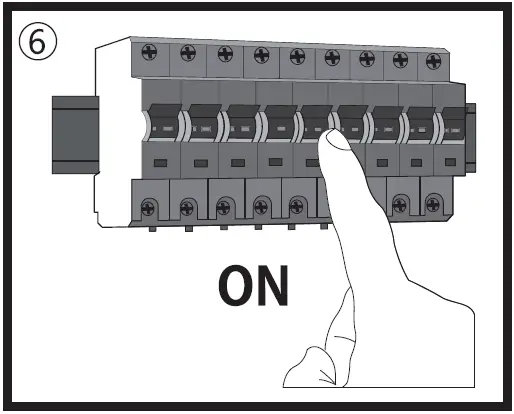

6.

Art

3171 / 3172 / 3173 / 2686 / 2687 / 2688 / 2692

1.

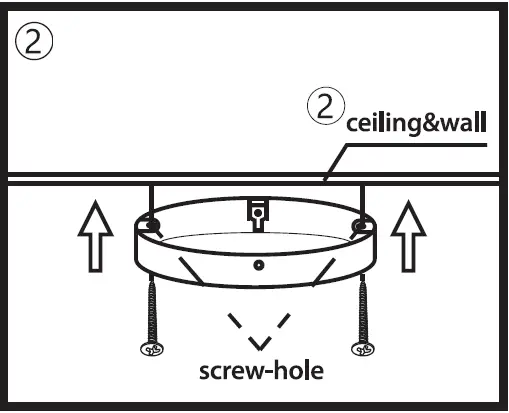

2. Fix the surface-mounted frame with screws to the ceiling or wall.

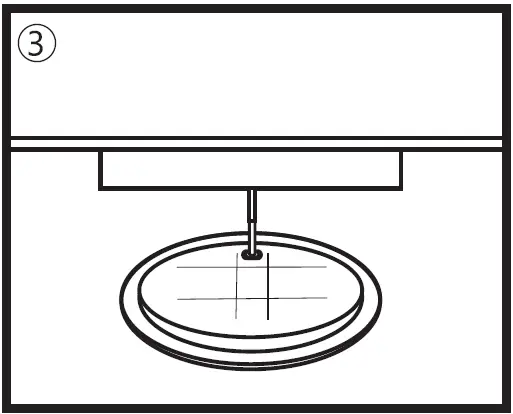

3. Connect the driver to AC 230V power.
4. Align the rectangle hole of the downlight with the buckle of the frame, and install upwards.

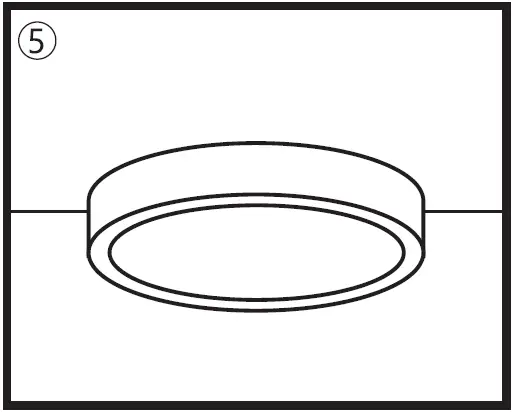

5. Installation finished.
6.
