The LED KNOWLED Bi-color LED Light is a high-quality product manufactured by GODOX Photo Equipment Co., Ltd. The product is made in China and its model number is 705-MG12B0-00. The LED light has a COB LED with a power output of 1200W and 1400W. It works with a voltage range of 100V-240V and has an IP54 rating. The color temperature range of the light is 2800K-6500K with a CRI of 96 and TLCI of 96.
Product Usage Instructions
Before using the LED KNOWLED Bi-color LED Light, please read the instruction manual carefully. Follow the steps mentioned below to use the product:
- Connect the power supply of AC100V-240V.
- Switch on the power button to turn on the light.
- Choose the mode of operation from MODE / FX MODE. The MODE allows you to adjust the brightness of the light from 0%-100% and the color temperature from 2800K-6500K. The FX MODE allows you to select various lighting effects.
- Adjust the parameters according to your requirement using the MENU button. You can adjust parameters like brightness, color temperature, and lighting effects.
- The LED light can be controlled using DMX512/Lumen Radio CRMX/APP/2.4GHz. You can connect it to a DMX console or use a remote controller like RC11 or 2.4GHzRC-A6II.
- You can also control the light using the Godox Light APP, which can be downloaded from the app store.
- The LED KNOWLED Bi-color LED Light is compatible with Art- Net &s ACN. You can use Art-Net or SACN to control the light.
Follow the above instructions carefully to use the LED KNOWLED Bi-color LED Light effectively and efficiently.
Safety Instructions and Attentions
First of all, as the most basic principle: This product is a professional lighting set equipment and should be used by professional lighting engineers or under the guidance of professionals. Basic safety attentions must always be followed during use, as follows:
- Before use, please read and understand these instructions and attentions.
- Professional lighting is prohibited for children. When children are near, parents or accompanying persons must supervise closely to prevent children from personal injury due to collision with lamps or private use of lamps.
- This lighting product is not ordinary lighting product and cannot be used for general lighting. Anyone who has suffered eye damage or has sensitive eyes should avoid using this product.
- When the lamp is on, it must be used with care. Do not touch high-temperature parts, such as LED lamp beads, to avoid burns.
- When the lamp is on, it is forbidden to look directly at the lamp beads under any circumstances. Strong light should be used under the guidance of professional lighting engineers. Avoid prolonged exposure to strong light under any circumstances. If eye discomfort, please turn off the lamp in time, suspend use, and see a doctor immediately.
- If the lamp bead is damaged or deformed by heat, stop using this equipment, and contact the manufacturer, service agent or qualified maintenance personnel to replace the lamp bead in time to avoid accidents.
- This product is only suitable for use in -20℃ to 45℃ operating environment and normal humidity environment.
- Do not use damaged equipment or accessories, and wait for professional mainte-nance personnel to check and repair to confirm being normal before use.
- During using, if the casing of this product is broken due to being dropped, squeezed or subjected to strong impact, please do not use it, so as to avoid electric shock injury due to contact with internal electronic components.
- If an extension cord is required, please use an extension cord with a current rating greater than or equal to that of the equipment. If an extension cord is rated less than the equipment, overheating may result.
- Some products have long power cords, please place the power cords properly and keep them in a safe place. Avoid contacting the power cord with overheating surfaces, avoid improper placement that could cause pulling damage, or trip on-site personnel. Please use the certified power cord from the original manufacturer. If the product is damaged by using a non-certified power cord, it will not be repaired by our factory.
- Be sure to unplug equipment from the power outlet before cleaning and repairing. When not in use, do not pull the power cord to unplug the equipment. For normal power-off, please hold both ends of the plug of the equipment with your hands and pull the plug out of power outlet. This equipment needs to be connected to a grounded outlet.
- Do not disassemble the product without permission. If the product fails, it must be checked and repaired by authorized maintenance personnel.
- Before storing, make sure that the equipment has cooled down completely. For storage, unplug the power cord from the equipment. The equipment should be placed in the carrying case or in a ventilated dry place.
- Do not place equipment near flammable and volatile solvents such as alcohol and gasoline.
- Do not use accessories that are not recommended by our factory to avoid fire, electric shock or personal injury.
- When cleaning, do not wipe it with a damp cloth, please use a dry cloth or a soft cloth to wipe the dirt of the equipment.
- Please take off the protective cover before using.
- This product complies with ROHS，CE and FCC certification, please refer to the relevant national standards for use and operation.
- The safety instructions are formulated according to the strict testing of the factory, and the design and specifications of the equipment are subject to change without prior notice. For latest product information, please check the GODOX website and view latest electronic instruction.
- Some products have built-in lithium batteries. Please use specified chargers, and use them within a proper range of the specified voltage and temperature according to the correct operating instructions.
- Some products are battery powered. Do not use any batteries, power sources or accessories not specified in the instructions for such products. Keep batteries and other accessories out of the reach of children and infants. In the instance that a child or infant swallows a battery or accessory, immediate emergency medical attention is required. If the battery leaks, becomes discolored, deformed, emits smoke, or emits an abnormal odor, remove it immediately. Be careful during removal to avoid burns. Continued use could result in fire, electric shock, or burns. Do not use any deformed or modified batteries. Do not disassemble or modify this product or battery. Do not heat or solder the battery. Keep the battery away from fire or water. Do not incorrectly insert the positive and negative ends of batteries, or mix old and new batteries or batteries of different types together.
- One-year warranty period, accessories such as consumable batteries, adapters, power cords, etc. are not covered by this warranty.
- If it is found that the equipment is repaired without authorization, the one-year warranty period will be cancelled and relevant fees will be charged for maintenance.
- Machine failures caused by non-standard operation are not covered by the warranty.
keep these instructions
Warning
Thank you for purchasing ！
MG1200Bi is the latest and greatest bi-color LED light ever, with the following powerful features and functions: input power of 1400W and output power of 1200W, support 100V-240V power supply, ultra-high and thousand-bit adjustable brightness, separat-ed design of light body and controller, protection grade of IP54, four dimming curves, wide CCT range from 2800K to 6500K, average CRI≥96 & average TLCI≥96, various wireless controlling methods, and etc. This new product is suitable for shooting scenes in large film studios, broadcast studios, outdoor exteriors and large field scenes.
Main Features

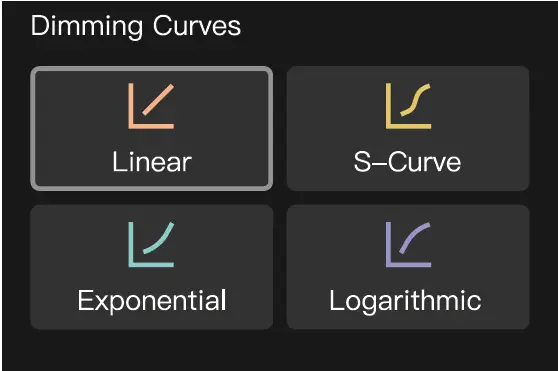

- Four dimming curves: linear, S-curve, exponential, logarithmic.
- 1200W strong output power in full CCT range.
- Thousand-bit adjustable brightness from 0％ to 100％.
- Wide CCT range adjustable from 2800K to 6500K.
- Super high color rendering index: average CRI≥96, average TLCI≥96, average TM-30 RF≥92, average R15≥92.
- Various controlling methods: support DMX 512/LumenRadio CRMX/
- Bluetooth APP/2.4GHz wireless control.

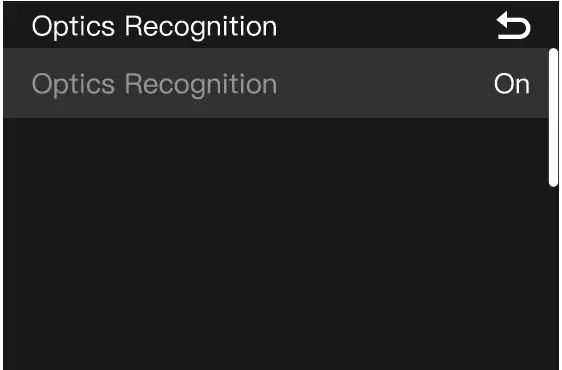

- Brand new Godox mount enables smart optics recognition.
- Protection grade of IP54 keeps the light head and controller from dust and water. Adopt efficient heat dissipation system design with large fan to meet the cooling needs of large LED light.
- 11 FX modes: flash, lightning, cloudy, broken bulb, TV, candle, fire, firework, explosion, welding, SOS.
Warnings
- Do not look directly at the LED light or illuminate at others’ eyes.
- Do not plug or unplug the power cable or connecting cable when the power is turned on, otherwise personal injuries may occur.
- Do not cover the heat dissipation vent in working status.
- Keep out of reach of children.
- Please make sure to follow the instruction manual and correctly use this profession-al lighting device.

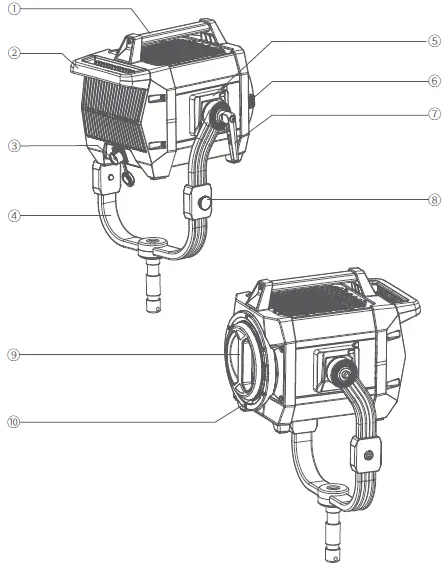

Name of Parts
- Handle 1
- Handle 2
- DC Input Port
- U-type Bracket
- Quick Install Device
- Mount Locking Pusher
- Direction Adjust Handle
- Cable Hanging Device
- Light Protection Cover
- Godox Mount

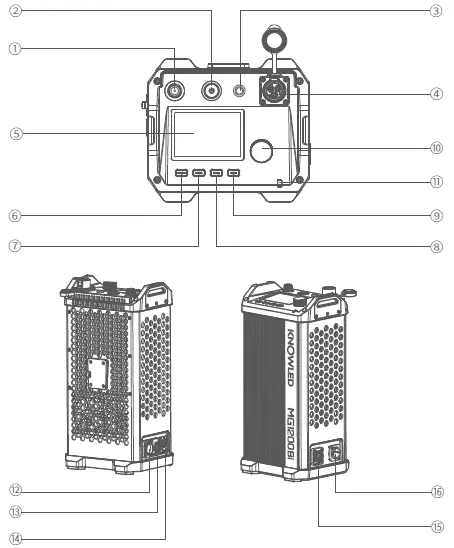

Controller
- Antenna Port
- Power Switch
- Remove Controller Port
- DC Output Port
- MODE Button
- Adjust Dial
- LED Status Indicator
- DMX OUT Port
- DMX IN Port
- USB-A Port
- Ethernet Port
- AC Input Port
- DMX IN Port
- USB-A Port
- Ethernet Port
- AC Input Port
What’s Inside
Note
Due to continuous updates and upgrades of the products, there may be differences between the actual products and the pictures. Therefore, the pictures are for reference only, products to prevail in kind.

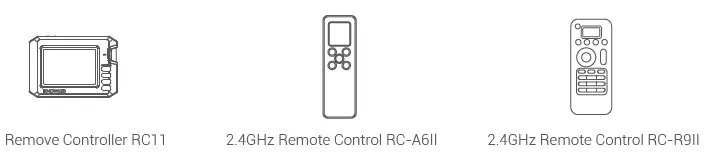

Optional Accessories
Installation and Disassembly
- Installing the U-type Bracket
- Place the light on a flat surface with the heat dissipation side upward.
- Press down the quick install device button and remove the wrench.
- Align both ends of the U -type bracket with the quick install device, lock the wrenches on both sides, and then “click ” means successfully installed.
- Install the light on the roller stand and lock the fixing k nob on the roller stand.
Please be careful when installing the light as it is quite heavy.
- Disassembly the U-type Bracket
- Hold the handle of the light and remove it from the roller stand then place it on a flat surface.
- Press and hold the quick install device button and release the wrench to remove the light.

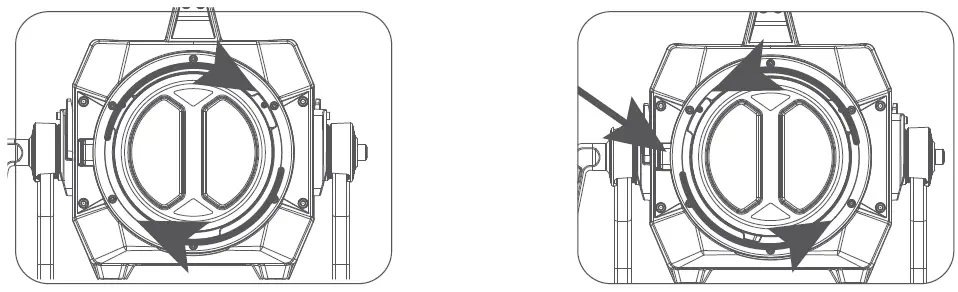

- Installation/Disassembly the Light Protection Cover
- Align the light protection cover with the mount and rotate clockwise to install.
- Press and hold the mount locking pusher and rotate counterclockwise to remove the light protection cover.

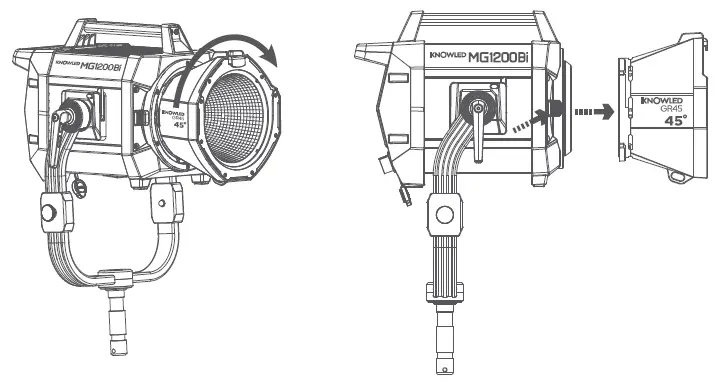

- Installation/Disassembly the Reflector
- Align the reflector with the mount, insert and then rotate clockwise to install.
Note
Make sure to insert after aligning with the mount. - Press and hold the mount locking pusher and rotate counterclockwise to remove the light protection cover.
- Align the reflector with the mount, insert and then rotate clockwise to install.

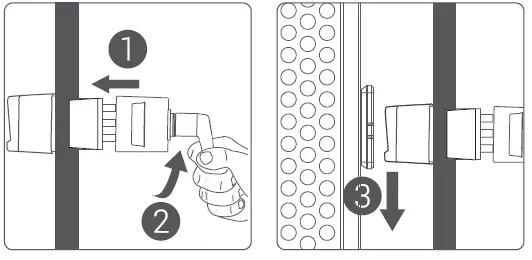

- Installing the Controller onto the Light Stand
- Loosen the handle of controller mounting device and insert the light stand pole, rotate the handle clockwise to lock the mounting device, then align the quick install device with the slot of mounting device and insert it.
Note: The DMX 512 controller is sold separately. Multi-connected
- Loosen the handle of controller mounting device and insert the light stand pole, rotate the handle clockwise to lock the mounting device, then align the quick install device with the slot of mounting device and insert it.

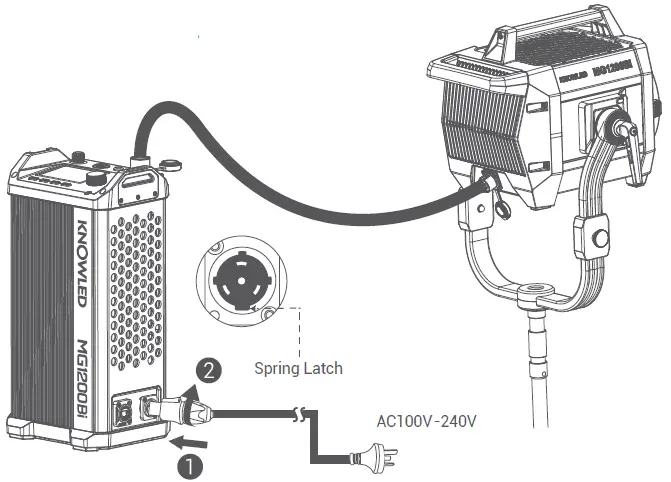

Note: The DMX 512 controller is sold separately. Multi-connectedPower Supply
Do not plug or unplug the power cable or connecting cable when the power is turned on, otherwise injuries may occur.
Operation Instruction

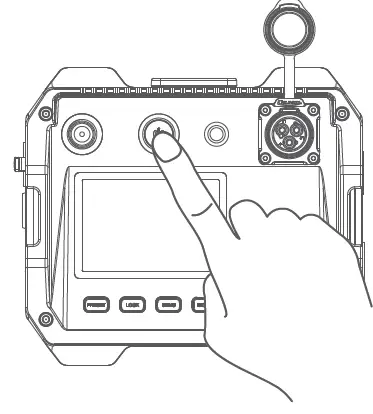

Power Switch
Short press the power switch on the controller after connected to power source to turn on or off the device.

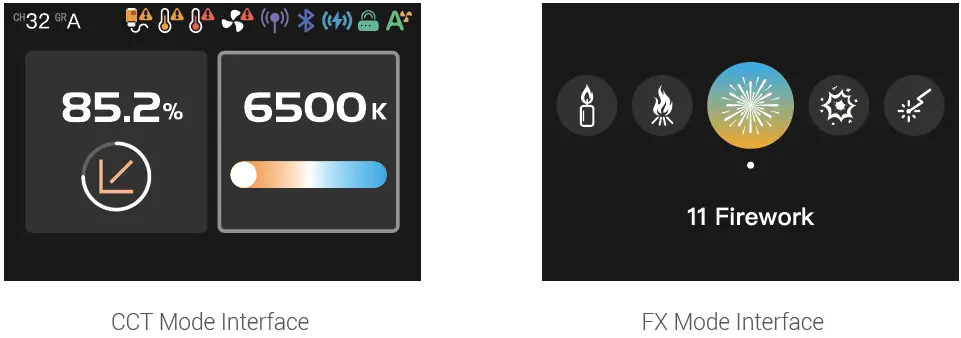

Modes

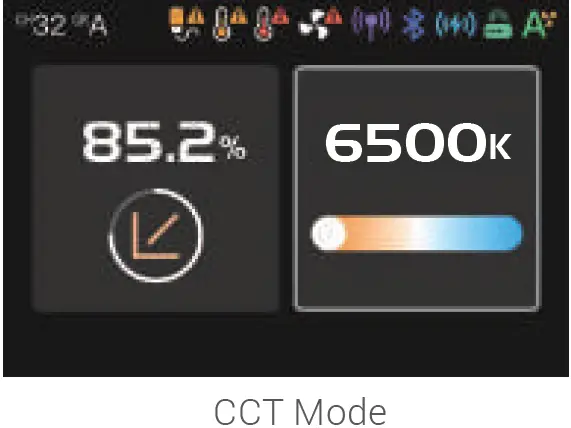

CCT Mode
Short press the MODE button to switch to CCT mode. Short press the adjust dial to switch between the brightness setting interface and color temperature setting interface.
- In the brightness setting interface, turn the adjust dial to adjust the brightness ratio from 0% to 100%. Rotate the adjust dial clockwise once can increase the value by 0.1 unit, while rotate counterclockwise once can decrease the value by 0.1 unit. Quick adjustment is also available when rotating quickly.
- In the color temperature setting interface, turn the adjust dial to adjust the color temperature from 2800K to 6500K. Rotate the adjust dial clockwise once can increase the value by 100 units, while rotate counter clockwiseoncec an decrease the value by 100 units.

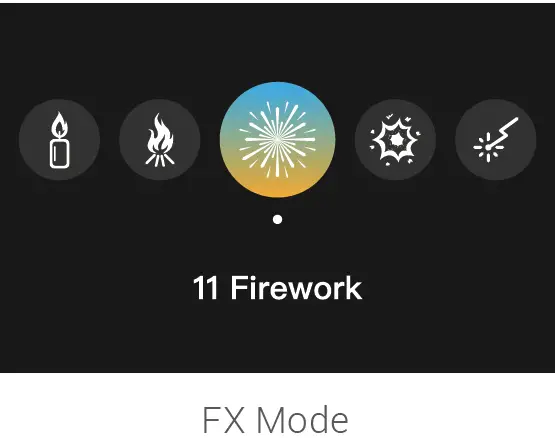

FX Mode
Short press the MODE button to switch to FX mode. Short press the adjust dial to switch among the following effects: flash, lightning, cloudy, broken bulb, TV, candle, fire, firework, explosion, welding, SOS. Select the desired effect and short press the adjust dial to enter the effect setting interface.
Note
The dimming curve is linear by default in FX mode.

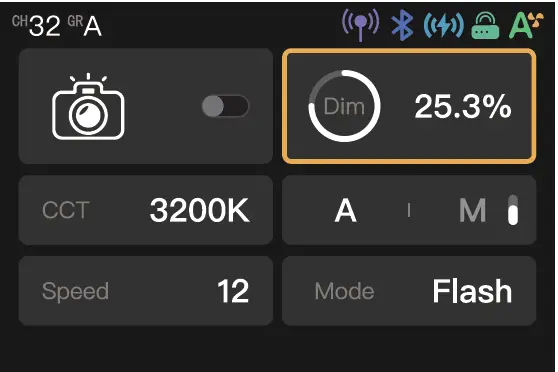

Flash Effect
In the flash effect setting interface, rotate the adjust dial to select options among switch, dim, CCT, auto, manual, speed, mode, etc. Shor t press the adjust dial to select the desired option then rotate to adjust settings (except for the auto and manual options). Finally, long press the adjust dial/short press the MODE button to return to the previous menu.
| Option | Adjust Range |
| Switch | Turn on/off the effect |
| Dim | 0％-100％ |
| CCT | 2800K-6500K |
| Speed | 1-100 |
| Mode | Camera Flash/Flash Bulb |

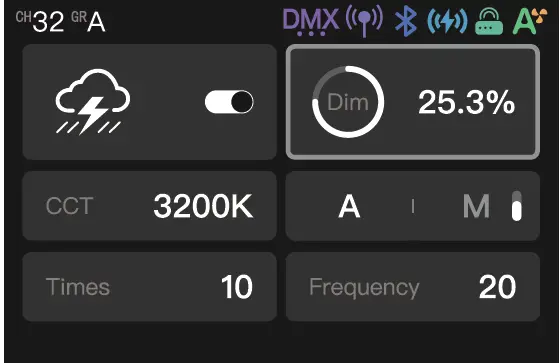

Lightning Effect
In the lightning effect setting interface, rotate the adjust dial to select options among switch, dim, CCT, auto, manual, times, frequency, etc. Short press the adjust dial to select the desired option then rotate to adjust settings (except for the auto and manual options). Finally, long press the adjust dial/short press the MODE button to return to the previous menu.
| Option | Adjust Range |
| Switch | Turn on/off the effect |
| Dim | 0％-100％ |
| CCT | 2800K-6500K |
| Times | Random/1-10 |
| Frequency | Random /2-20 |
Note
Select manual, then the lightning effect can be triggered once by short press the adjust dial once.
Cloudy Effect
In the cloudy effect setting interface, rotate the adjust dial to select options among switch, dim, ratio, speed, etc. Short press the adjust dial to select the desired option then rotate to adjust settings. Finally, long press the adjust dial/short press the MODE button to return to the previous menu.
| Option | Adjust Range |
| Switch | Turn on/off the effect |
| Dim | 0％-100％ |
| Ratio | 10％-90％ |
| Speed | Random/1-100 |
Broken Bulb Effect
In the broke bulb effect setting inter face, rotate the adjust dial to select options among switch, dim, CCT, speed, etc. Short press the adjust dial to select the desired option then rotate to adjust settings. Finally, long press the adjust dial/short press the MODE button to return to the previous menu.
| Option | Adjust Range |
| Switch | Turn on/off the effect |
| Dim | 0％-100％ |
| CCT | 2800K-6500K |
| Speed | 1-100 |
TV Effect
In the TV effect setting interface, rotate the adjust dial to select options among switch, dim, speed, etc. Short press the adjust dial to select the desired option then rotate to adjust settings. Finally, long press the adjust dial/short press the MODE button to return to the previous menu.
| Option | Adjust Range |
| Switch | Turn on/off the effect |
| Dim | 0％-100％ |
| Speed | 1-100 |
Candle Effect
In the candle effect setting interface, rotate the adjust dial to select options among switch, dim, speed, etc. Short press the adjust dial to select the desired option then rotate to adjust settings. Finally, long press the adjust dial/short press the MODE button to return to the previous menu.
| Option | Adjust Range |
| Switch | Turn on/off the effect |
| Dim | 0％-100％ |
| Speed | 1-100 |

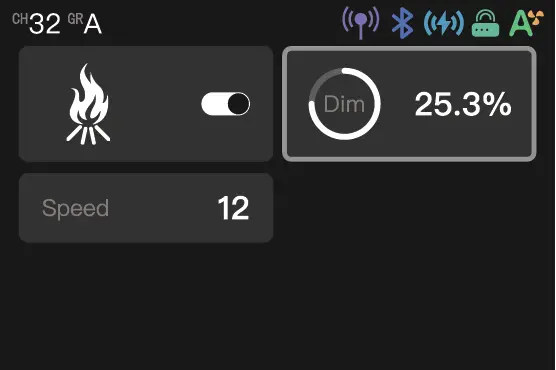

Fire Effect
In the fire effect set ting inter face, rotate the adjust dial to select options among switch, dim, speed, etc. Short press the adjust dial to select the desired option then rotate to adjust settings. Finally, long press the adjust dial/short press the MODE button to return to the previous menu.
| Option | Adjust Range |
| Dim | 0％-100％ |
| Speed | 1-100 |
Firework Effect

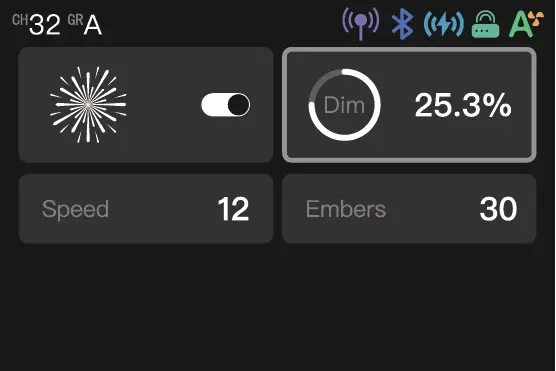

In the firework effect setting interface, rotate the adjust dial to select options among switch, dim, speed, embers, etc. Shor t press the adjust dial to select the desired option then rotate to adjust settings. Finally, long press the adjust dial/short press the MODE button to return to the previous menu.
| Option | Adjust Range |
| Dim | 0％-100％ |
| Speed | 1-100 |
| Embers | 01-100 |

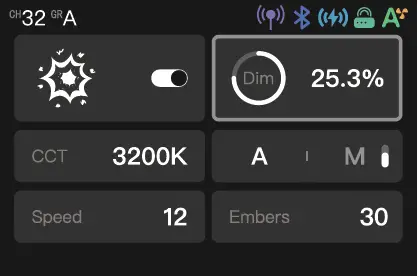

Explosion Effect
In the explosion effect setting interface, rotate the adjust dial to select options among switch, dim, CCT, auto, manual, speed, embers, etc. Short press the adjust dial to select the desired option then rotate to adjust settings (except for the auto and manual options). Finally, long press the adjust dial/short press the MODE button to return to the previous menu.
| Option | Adjust Range |
| Dim | 0％-100％ |
| CCT | 2800K-6500K |
| Speed | 1-100 |
| Embers | 1-100 |
Note
Select manual, then the explosion effect can be triggered once by short press the adjust dial once.
Welding Effect
In the welding effect setting interface, rotate the adjust dial to select options among switch, dim, CCT, speed, etc. Short press the adjust dial to select the desired option then rotate to adjust settings. Finally, long press the adjust dial/short press the MODE button to return to the previous menu.
| Option | Adjust Range |
| Dim | 0％-100％ |
| CCT | 2800K-6500K |
| Speed | 1-100 |
SOS Effect
In the SOS effect setting inter face, rotate the adjust dial to select options among switch, dim, CCT, etc. Shor t press the adjust dial to select the desired option then rotate to adjust settings. Finally, long press the adjust dial/short press the MODE button to return to the previous menu.
| Option | Adjust Range |
| Dim | 0％-100％ |
| CCT | 2800K-6500K |

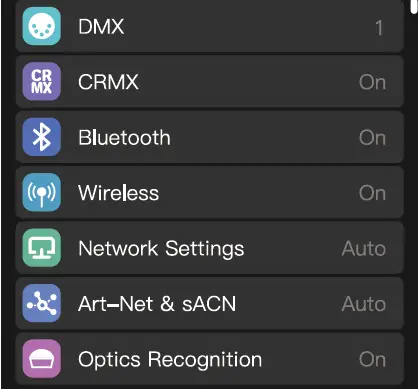

Short press the MENU button to enter menu settings, rotate the adjust dial to select among the following options: DMX , C RMX , Bluetooth , wire less , network settings, Art-Net & SACN, dimming curves, optics recognition, fan, display, language, version & upgrade, factory reset, fixture info.
DMX

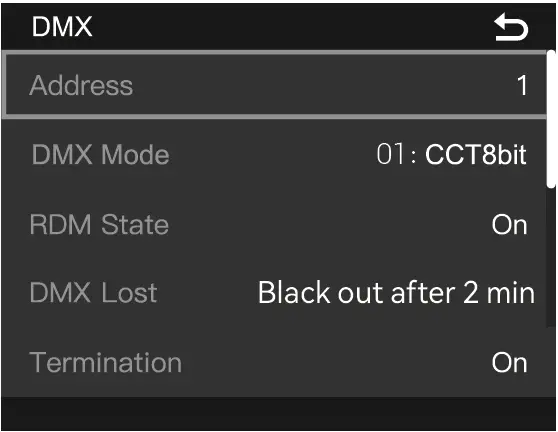

Short press the adjust dial to enter DMX setting interface. Rotate the adjust dial to select options among address, DMX mode, RDM state, RDM lost, termination, extend DMX channels. Short press the adjust dial to select the desired option then rotate to adjust settings. Finally, short press the adjust dial to exit the current setting, short press the MENU button to return to the previous menu.
| Level 1 Option | Level 2 Option | Description |
| Address | 1-512 | Initial address |
| DMX Mode | 01:CCT 8 bit | CCT Mode in 8 bit |
| 02:FX 8 bit | FX Mode in 8 bit | |
| 03:CCT 16 bit | CCT Mode in 16 bit | |
| 04:FX 16 bit | FX Mode in 16 bit | |
| 05:ULTIMATE DMX 8 bit | DMX Mode in 8 bit | |
| 06:ULTIMATE DMX 16 bit | DMX Mode in 16 bit | |
| RDM State | On | Turn on RDM |
| Off | Turn off RDM | |
| DMX Lost | Hold Last Command | After the DMX control signal is lost, continue to use the last received DMX control signal until power down or a valid DMX control signal is received again. |
| Black Out | The light is off immediately. | |
| Black Out After 2 Min | After the DMX control signal is lost, continue to use the last received DMX control signal for 2 minutes then black out. Note: If a valid DMX control signal is received within 2 minutes, then use the new DMX control signal. | |
| Termination | On | Turn on DMX terminal |
| Off | Turn off DMX terminal | |
| Extend DMX Channels | On | Turn on extend DMX channels |
| Off | Turn off extend DMX channels |
Note
Please refer to the “MG1200Bi DMX Practical Table” to control the device by DMX/RDM. The electronic version can be downloaded from the official website https://www.godox.com.

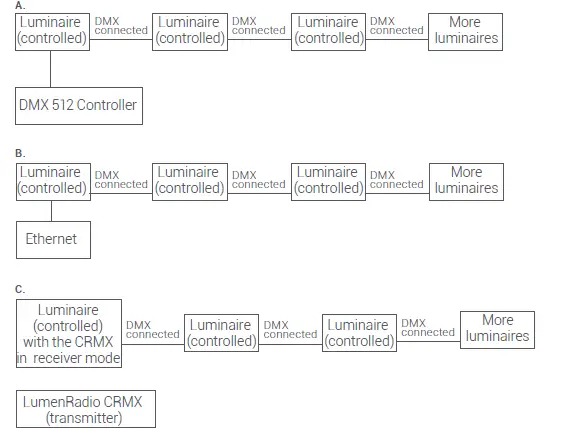

DMX Cascading Illustration
CRMX
Short press the adjust dial to enter CRMX setting interface. Rotate the adjust dial to select options between switch and mode. Short press the adjust dial to select the desired option then rotate to adjust settings. Finally, short press the adjust dial to exit the current setting, short press the MENU
button to return to the previous menu.
Note
Please reset before choosing transmitter/receiver mode.
| Level 1 Option | Level 2 Option | Description |
| CRMX | On | Turn on CRMX |
| Off | Turn off CRMX | |
| Mode | Transmitter | Transmitter mode |
| Receiver | Receiver mode | |
| Output Power | 5dBm | Output power value = 5dBm (only adjustable in transmitter mode) |
| 11dBm | Output power value = 11dBm (only adjustable in transmitter mode) | |
| 16dBm | Output power value = 16dBm (only adjustable in transmitter mode) | |
| 20dBm | Output power value = 20dBm (only adjustable in transmitter mode) | |
| Status | Link | To enter linked status (only adjustable in transmitter mode) |
| Linking | Linking (only adjustable in transmitter mode) | |
| Reset | Reset | Restore to factory settings |

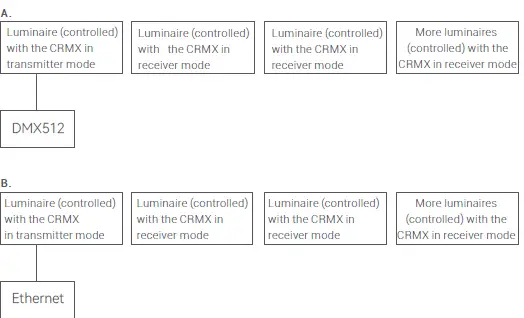

CRMX Usage Illustration

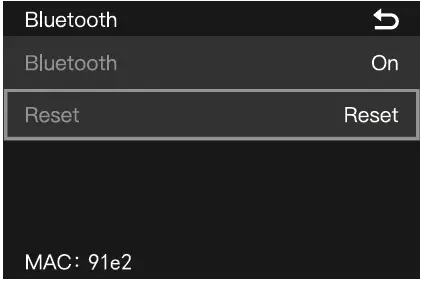

Bluetooth
Shor t press the adjust dial to enter Bluetooth setting interface. Rotate the adjust dial to select options between switch and reset. Short press the adjust dial to select the desired option then rotate to adjust settings. Finally, short press the MENU button to return to the previous menu.
Scan the QR code to download the “Godox Light” smartphone APP (can be used in Android and Apple).
Note
The APP can be used directly on the firstly installed device (smartphone or iPad). When change to other mobile device (smartphone or iPad), the light shall be reset before the normal connection of APP.
Note
The APP should be upgraded to version 3.0 or above.

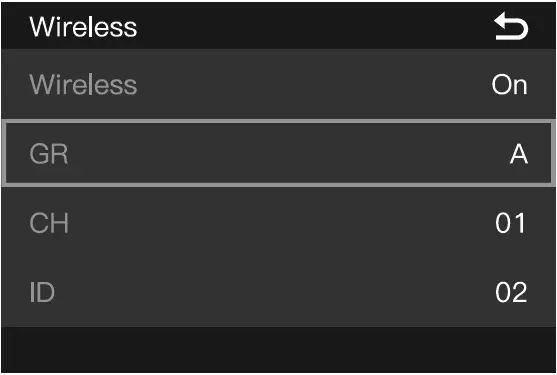

Wireless
Shor t press the adjust dial to enter wireless setting interface. Rotate the adjust dial to select options among switch, GR, CH, ID. Shor t press the adjust dial to select the desired option then rotate to adjust settings. Finally, short press the MENU button to return to the previous menu.
| Option | Adjust Range |
| 2.4G | Turn on/off 2.4G wireless |
| GR | 0-9/A-F |
| CH | 01-32 |
| ID | OFF/01-99 |
Note
When using the remote control RC-A6 (sold separately) or remote control RC-R9II (sold separate-ly), the group, channel and ID of the remote control and MG1200Bi should be the same.

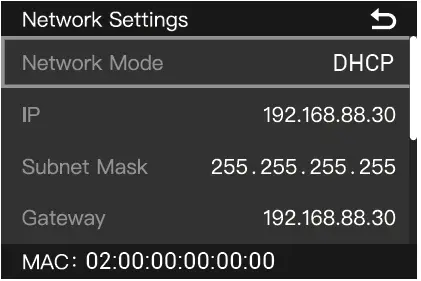

Network Settings
Shor t press the adjust dial to enter network settings interface. Rotate and short press the adjust dial to select network mode, then rotate to select among DHCP, Art-Net 2.x, Art-Net 10.x and manual. Finally, short press the MENU button to return to the previous menu.
| Level 1 Option | Level 2 Option | Description |
| Network Mode | DHCP | DHCP mode |
| Art-Net 2.x | To use 2.B.C.D network | |
| Art-Net 10.x | To use 10.B.C.D network | |
| Manual | Set the network IP, subnet mask, and default gateway manually. | |
| IP | AAA.BBB.CCC.DDD | The ID address is assigned by DHCP in DHCP mode. The ID address is 2.B.C.D in Art-Net 2.x mode. The ID address is 10.B.C.D in Art-Net 10.x mode. In manual mode: AAA＝0-255 BBB＝0-255 CCC＝0-255 DDD＝0-255 |
| Subnet Mask | 255.BBB.CCC.DDD | The subnet mask is 255.BBB.CCC.DDD and can not be adjusted by menu settings in DHCP/ Art-Net 2.x/Art-Net 10.x mode. In manual mode: AAA＝0-255 BBB＝0-255 CCC＝0-255 DDD＝0-255 |
| Gateway | AAA.BBB.CCC.DDD | The ID address is assigned by DHCP in DHCP mode. The ID address is 2.B.C.D in Art-Net 2.x mode. The ID address is 10.B.C.D in Art-Net 10.x mode. In manual mode: AAA＝0-255 BBB＝0-255 CCC＝0-255 DDD＝0-255 |
Art-Net & SACN
Shor t press the adjust dial to enter A r t-Net & SACN set ting inter face. Rotate and short press the adjust dial to select options among auto, Art-Net, SACN and off, then other level 2 options are available to adjust. Finally, short press the MENU button to return to the previous menu.
| Level 1 Option | Level 2 Option | Description |
| Art-Net & sACN | Auto/Art-Net/sACN/Off | Auto：Art-Net & sACN two protocols are accepted. Art-Net：Only Art-Net protocol. sACN：Only sACN protocol. Off：No network protocols are accepted. |
| Art-Net Net | 0-127 | Art-Net network |
| Art-Net Sub-Net | 0-15 | Choose Art-Net subnet in Art-Net network. |
| Art-Net Port | 0-15 | Art-Net port |
| Art-Net Universe | 0…32767 | Art-Net universe |
| sACN Universe | 1…63999 | sACN universe |
Optics Recognition
Shor t press the adjust dial to enter optics recognition setting interface. Rotate and short press the adjust dial to turn on or off the function. Finally, short press the MENU button to return to the previous menu.
Dimming Curves
Shor t press the adjust dial to enter dimming curves set ting inter face. Rotate and short press the adjust dial to choose among linear, S-curve, exponential and logarithmic. Finally, short press the MENU button to return to the previous menu.

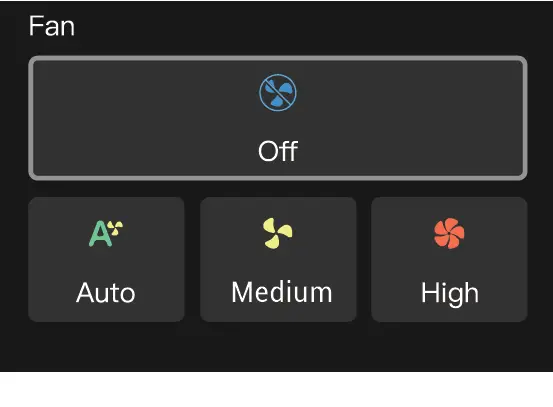

Fan
Short press the adjust dial to enter fan setting interface. Rotate and short press the adjust dial to choose among auto, medium, high and off. Finally, short press the MENU button to return to the previous menu.

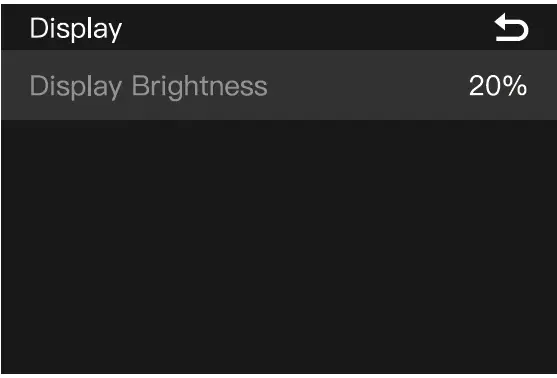

Display
Shor t press the adjust dial to enter display setting interface. Rotate and short press the adjust dial to adjust display brightness from 10 ％ to 100%. Finally, short press the MENU button to return to the previous menu.
Language
Shor t press the adjust dial to enter language setting interface. Rotate and short press the adjust dial to select between Chinese and English. Finally, short press the MENU button to return to the previous menu.

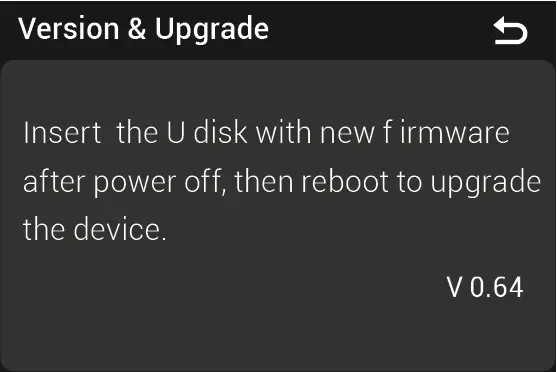

Version & Upgrade
Shor t press the adjust dial to enter version & upgrade setting interface to check the firmware version and upgrade instruction. Then, short press the MENU button to return to the previous menu.

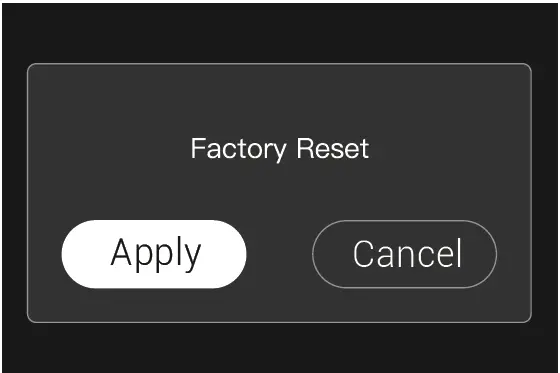

Factory Reset
Shor t press the adjust dial to enter factory reset setting interface. Rotate and short press the adjust dial to select yes or no. The brightness value will turn to 100% and reboot automatically after factory reset.

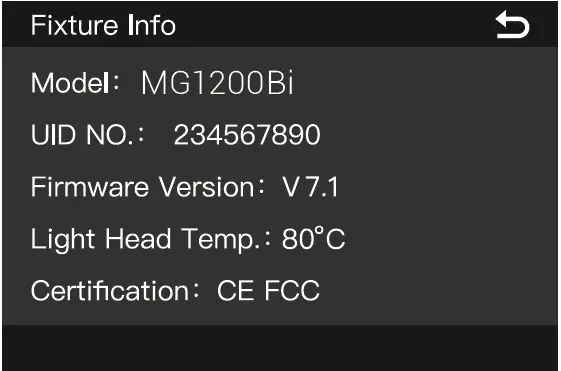

Fixture Info
Shor t press the adjust dial to enter fixture info setting interface to check model, UID NO., firmware version, light head temp., certification. Then, short press the MENU button to return to the previous menu.
Lock Setting
Short press the LOCK button, the panel is locked when < > is displayed on the panel, short press again to unlock.
Note
The locking function only works on the controller panel, other operations are still available.

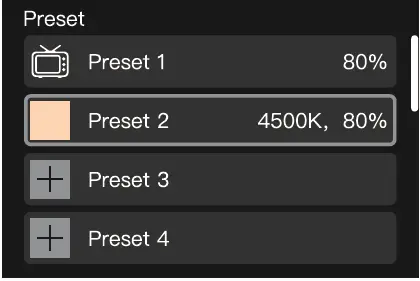

Preset Setting
Short press the PRESET button to enter preset effects interface. Rotate and short press the adjust dial to choose and enter preset effects 1-20, then short press to choose save or cancel. Then, short press the adjust dial to return to the previous menu and short press the PRESET button to exit.
| Level 1 Option | Level 2 Option | Description |
| Preset 1 ～ Preset 20 | Save | Save the current effect data. |
| Cancel | Return to the previous menu. |
Software Upgrade
- Download the new firmware to the U disk from official websit(https://www.godox . com/firmware-continuous-light).
- Turn off the device. Insert the U disk with new firmware into the Type-A USB port.
- Turn on the device, and it will automatically enter the upgrading interface.
- It will return to main interface after completion.
Notes
- New firmware must be downloaded from the official website, and keep only one BIN file in the root directory of the USB disk.
- The Type-A USB port can only support output voltage and current of 5V/1.5A. Do not connect to over-rated USB device.
Maintenance
This product, except consumables, is supported with a one-year warranty. Unauthorized service will void the warranty. Maintenance of the light must be performed by our authorized maintenance department which can provide original accessories. If the product had failures or was immersed into water, do not use it until it is repaired by professionals. Shut down the device immediately should abnormal operation be detected. Changes made to the specifications or designs may not be reflected in this manual.
Max. Brightness Value (%) of the Light Body in Different Status
| Fan Status | linear | S-curve | exponential | logarithmic |
| Off | 15％ | 33％ | 45％ | 6.4％ |
| Auto | 100％ | 100％ | 100％ | 100％ |
| Medium | 75％-100％ | 60％-100％ | 86％-100％ | 40％-100％ |
| High | 100％ | 100％ | 100％ | 100％ |
Note
When the fan is in medium speed mode, the maximum brightness value changes with the temperature of the environment.
Illuminance Data
| CCT | Test Condition | Illumination Unit | 3m | 5m | 7m | 9m |
|
2800K | Bare Light | lux | 4850 | 1990 | 1150 | 763 |
| fc | 451 | 185 | 107 | 70.8 | ||
| With Reflector GR15 | lux | 107000 | 36100 | 17800 | 10600 | |
| fc | 9940 | 3350 | 1650 | 982 | ||
| With Reflector GR30 | lux | 49800 | 17000 | 8540 | 4280 | |
| fc | 4620 | 1570 | 793 | 397 | ||
| With Reflector GR45 | lux | 22300 | 7890 | 4210 | 2230 | |
| fc | 2080 | 733 | 391 | 207 | ||
| With Reflector GR60 | lux | 12300 | 4470 | 2580 | 1390 | |
| fc | 1140 | 415 | 240 | 129 | ||
| With Fresnel Lens GF14(spot) | lux | 65300 | 22600 | 11500 | 6990 | |
| fc | 6060 | 2100 | 1070 | 649 | ||
| With Fresnel Lens GF14(flood) | lux | 15700 | 6030 | 3500 | 2100 | |
| fc | 1460 | 560 | 325 | 195 | ||
|
3200K | Bare Light | lux | 5330 | 2180 | 1270 | 838 |
| fc | 495 | 202 | 118 | 77.9 | ||
| With Reflector GR15 | lux | 121000 | 40400 | 19700 | 11700 | |
| fc | 11200 | 3750 | 1830 | 1090 | ||
| With Reflector GR30 | lux | 54300 | 18700 | 9330 | 4690 | |
| fc | 5040 | 1740 | 867 | 435 | ||
| With Reflector GR45 | lux | 24400 | 8690 | 4610 | 2440 | |
| fc | 2270 | 807 | 428 | 227 | ||
| With Reflector GR60 | lux | 13400 | 4890 | 2820 | 1520 | |
| fc | 1240 | 454 | 262 | 141 |
| With Fresnel Lens GF14(spot) | lux | 71400 | 24900 | 12700 | 7620 | |
| fc | 6630 | 2310 | 1180 | 708 | ||
| With Fresnel Lens GF14(flood) | lux | 17200 | 6650 | 3850 | 2290 | |
| fc | 1600 | 618 | 357 | 213 | ||
|
4300K | Bare Light | lux | 5990 | 2470 | 1420 | 942 |
| fc | 557 | 229 | 132 | 87.5 | ||
| With Reflector GR15 | lux | 139000 | 46900 | 22900 | 13700 | |
| fc | 12900 | 4360 | 2130 | 1270 | ||
| With Reflector GR30 | lux | 61900 | 21400 | 10700 | 5350 | |
| fc | 5750 | 1990 | 991 | 497 | ||
| With Reflector GR45 | lux | 27800 | 10000 | 5350 | 2780 | |
| fc | 2580 | 929 | 497 | 258 | ||
| With Reflector GR60 | lux | 15200 | 5610 | 3200 | 1610 | |
| fc | 1420 | 521 | 298 | 149 | ||
| With Fresnel Lens GF14(spot) | lux | 81600 | 28500 | 14500 | 8750 | |
| fc | 7590 | 2640 | 1350 | 813 | ||
| With Fresnel Lens GF14(flood) | lux | 19500 | 7490 | 4320 | 2600 | |
| fc | 1810 | 696 | 401 | 242 | ||
|
5600K | Bare Light | lux | 6290 | 2590 | 1490 | 994 |
| fc | 585 | 2340 | 138 | 92.4 | ||
| With Reflector GR15 | lux | 149000 | 49900 | 24400 | 14600 | |
| fc | 13900 | 4630 | 2260 | 1350 | ||
| With Reflector GR30 | lux | 64700 | 22600 | 11200 | 5610 | |
| fc | 6010 | 2100 | 1040 | 521 | ||
| With Reflector GR45 | lux | 29100 | 10500 | 5530 | 2910 | |
| fc | 2700 | 975 | 514 | 270 | ||
| With Reflector GR60 | lux | 15900 | 5870 | 3340 | 1730 | |
| fc | 1480 | 545 | 310 | 161 | ||
| With Fresnel Lens GF14(spot) | lux | 86100 | 30100 | 15300 | 9180 | |
| fc | 7990 | 2790 | 1420 | 853 | ||
| With Fresnel Lens GF14(flood) | lux | 20600 | 7910 | 4510 | 2750 | |
| fc | 1910 | 735 | 418 | 255 | ||
|
6500K | Bare Light | lux | 6250 | 2850 | 1480 | 990 |
| fc | 580 | 240 | 138 | 92 | ||
| With Reflector GR15 | lux | 147000 | 49300 | 24300 | 14500 | |
| fc | 13600 | 4580 | 2250 | 1340 | ||
| With Reflector GR30 | lux | 63900 | 22200 | 11000 | 5520 | |
| fc | 5940 | 2070 | 1030 | 513 | ||
| With Reflector GR45 | lux | 28700 | 10400 | 5460 | 2870 | |
| fc | 2670 | 964 | 507 | 266 | ||
| With Reflector GR60 | lux | 15700 | 5780 | 3280 | 1800 | |
| fc | 1460 | 537 | 305 | 165 |
| With Fresnel Lens GF14(spot) | lux | 85000 | 29700 | 15100 | 9100 | |
| fc | 7900 | 2760 | 1400 | 845 | ||
| With Fresnel Lens GF14(flood) | lux | 20300 | 7870 | 4420 | 2720 | |
| fc | 1890 | 731 | 410 | 253 |
Note
All the above tests are based on the condition of 100% brightness. Reflector GR30, GR60 and Fresnel Lens GF14 are sold separately. The above data are average value, not absolute value.
Technical Data
| Model | MG1200Bi |
| Power Supply | 100V-240V~50/60Hz 14A(Max.) |
| Max. Power | 1400W |
| CCT | 2800-6500K |
| Brightness Range | 0％-100％ |
| Dimming Curves | linear, S-curve, exponential, logarithmic |
| FX Modes | 11 |
| Average CRI | ≥96 |
| Average TLCI | ≥96 |
| Average TM-30 RF | ≥92 |
| TM-30 RG | 97~103 |
| Average CQS | ＞94 |
| Average R9 | ≥90(3200K) |
| ≥85(5600K,6500K) | |
| Average R15 | ≥92 |
| Waterproof Grade of Light Body/Controller | IP54 |
| Controlling Methods | DMX 512 Control(support RDM protocol） / LumenRadio CRMX Control / RC-A6II Remote Control/Bluetooth APP Control /Ethernet (support Art-Net & sACN proto- col)/Remove Controller/Light Body Control （ RC-A 6 Remote Control and Remove Controller are sold separately） |
| Bluetooth Controlling Distance | Max. 50m |
| 2.4G Remote Control Distance | Max. 100m |
| U-type Bracket Angle | 360° |
| Type-A USB Port | Firmware Upgrade/5V 1.5A Power Supply |
| Dimension（U-type Bracket is included in the light body） | Light Body：378mm*579mm*354mm Controller：162mm*190mm*372mm |
| Netweight≈ | Light Bod（y including U-type bracket and reflector）：16kg Controller：6.68kg |
Warranty
Dear customers, as this warranty card is an important certificate to apply for our maintenance service, please fill in the following form in coordination with the seller and safe-keep it. Thank you!
| Product Information | Model | Product Code Number |
| Customer Information | Name | Contact Number |
| Address | ||
| Seller Information | Name | |
| Contact Number | ||
| Address | ||
| Date of Sale | ||
| Note: | ||
Applicable Products
The document applies to the products listed on the Product Maintenance lnformation (see below for further information). Other products or accessories (e.g. promotional items, giveaways and additional accessories attached, etc.) are not included in this warranty scope.
Warranty Period
The warranty period of products and accessories is implemented according to the relevant Product Maintenance lnformation. The warranty period is calculated from the day(purchase date) when the product is bought for the first time, And the purchase date is considered as the date registered on the warranty card when buying the product.
How to Get the Maintenance Service
If maintenance service is needed, you can directly contact the product distributor or authorized service institutions. You can also contact the Godox after-sale service call and we will offer you service. When applying for maintenance service, you should provide valid warranty card. If you cannot provide valid warranty card, we may offer you maintenance service once confirmed that the product or accessory is involved in the maintenance scope, but that shall not be considered as our obligation.
Inapplicable Cases
The guarantee and service offered by this document are not applicable in the following cases:
- The product or accessory has expired its warranty period;
- Breakage or damage caused by inappropriate usage, maintenance or preservation, such as improper packing, improper usage, improper plugging in/out external equipment, falling off or squeezing by external force, contacting or exposing to the improper temperature, solvent, acid, base, flooding and damp environments, etc;
- Breakage or damage caused by non-authorized institution or staff in the process of installation, maintenance, alternation, addition and detachment;
- The original identifying information of product or accessory is modified, alternated, or removed;
- No valid warranty card;
- Breakage or damage caused by using illegally authorized, nonstandard or non-public released software;
- Breakage or damage caused by force majeure or accident;
- Breakage or damage that could not be attributed to the product itself. Once met these situations above, you should seek solutions from the related responsible parties and Godox assumes no responsibility. The damage caused by parts, accessories and software that beyond the warranty period or scope is not included in our maintenance scope. The normal discoloration, abrasion and consumption are not the breakage within the maintenance scope.
Maintenance and Service Support Information
The warranty period and service types of products are implemented according to the following Product Maintenance Information:
| Product Type | Name | Maintenance Period(month) | Warranty Service Type |
| Parts | Circuit Board | 12 | Customer sends the product to designated site |
| Battery | 3 | Customer sends the product to designated site | |
| Electrical parts e.g.battery charger, etc. | 12 | Customer sends the product to designated site | |
| Other Items | Flash tube, modeling lamp, lamp body, lamp cover, locking device, package, etc. | NO | Without warranty |
Godox After-sale Service Call 0755-29609320-8062
GODOX Photo Equipment Co.,Ltd.
