IGG-1 Single Loudspeaker Socket
User Manual
IGG-1 Single Loudspeaker Socket

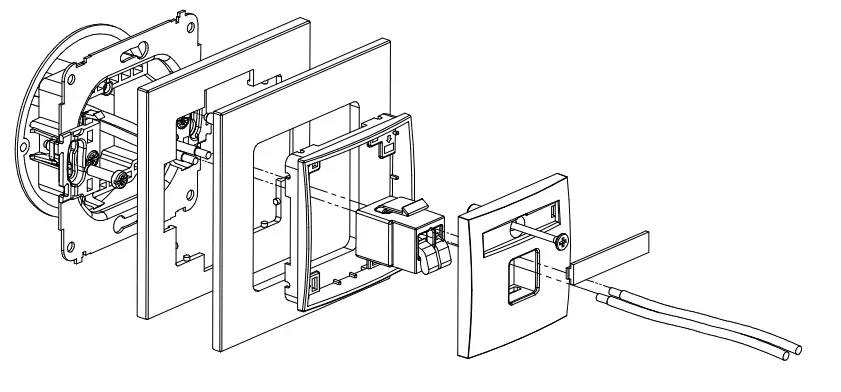

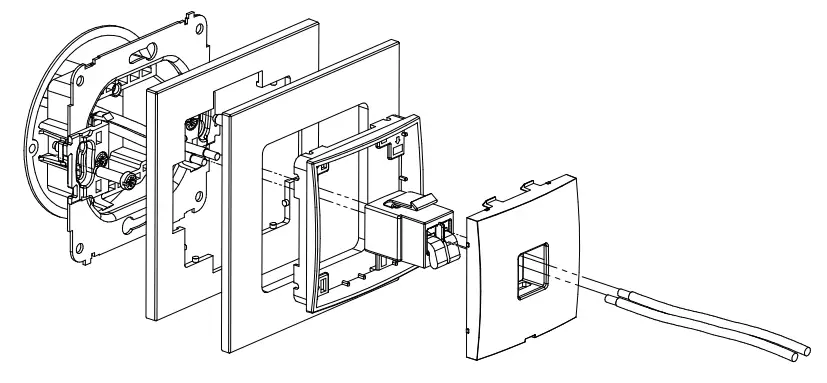

IGG-1 + …IRSK-1
Single loudspeaker socket (2,5mm² ) mechanism + universal square glass effect frame
| Connection type | Connection |
| Terminal | Screw clamps |
IGGBO-1 + …IRSK-1
Single loudspeaker socket (2,5mm² ) mechanism without description field + universal square glass effect frame
| Connection type | Connection |
| Terminal | Screw clamps |

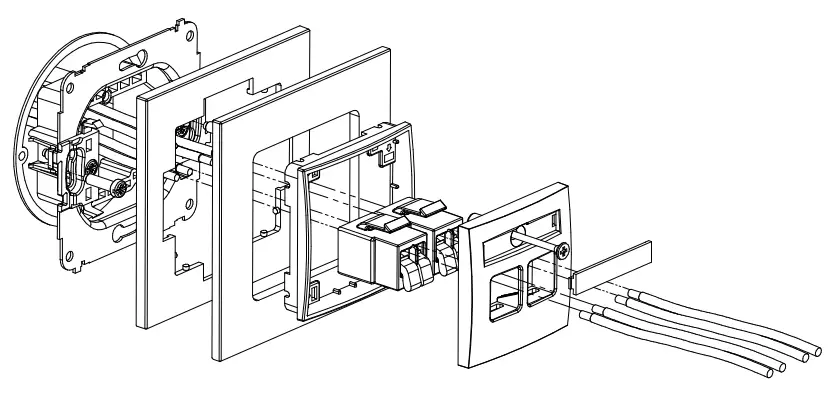

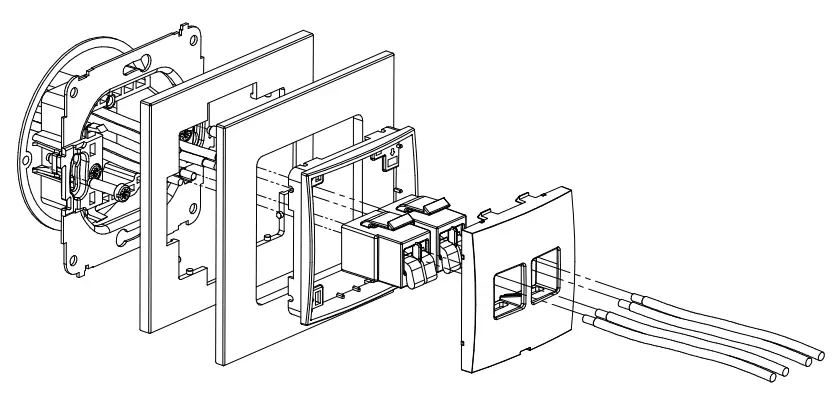

IGG-2 + …IRSK-1
Double loudspeaker socket (2,5 mm²) mechanism + universal square glass effect frame
| Connection type | Connection |
| Terminal | Screw clamps |
IGGBO-2 + …IRSK-1
Double loudspeaker socket (2,5 mm²) mechanism without description field + universal square glass effect frame
| Connection type | Connection |
| Terminal | Screw clamps |

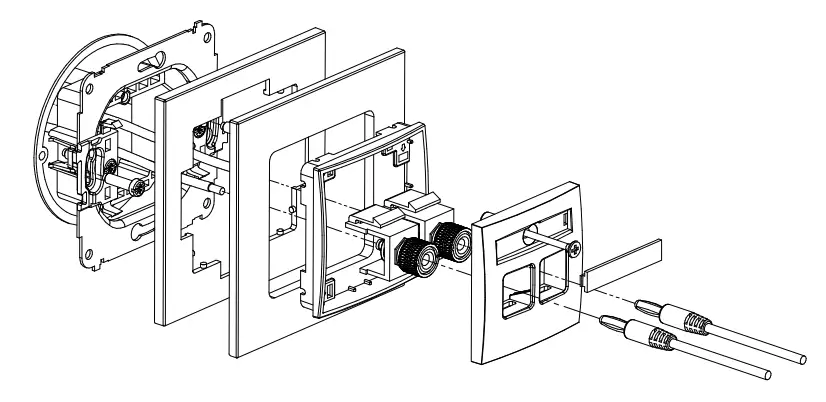

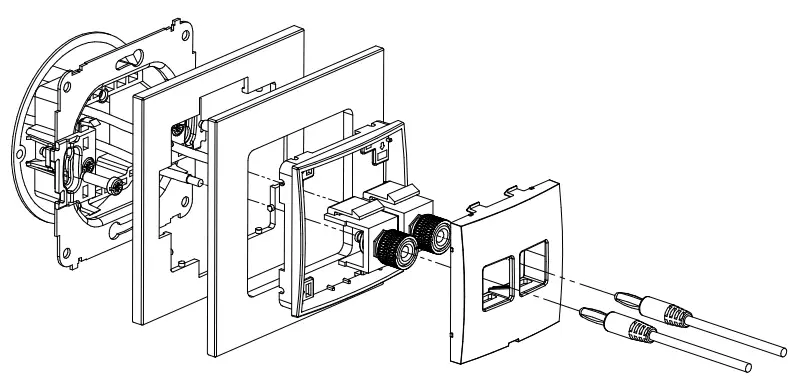

IGG-3 + …IRSK-1
Single loudspeaker socket (banana type – red and black, gold-plated, 4 mm², soldering) mechanism + universal square glass effect frame
| Connection type | Connection |
| 2 x banana gold plated (red and black) | For soldering |

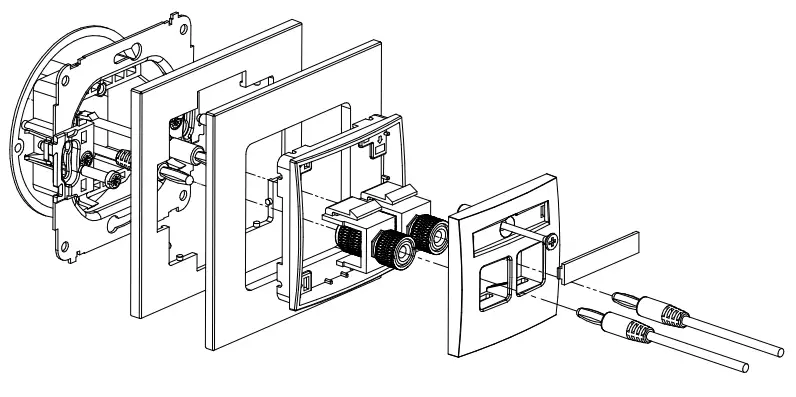

IGGBO-3 + …IRSK-1
Single loudspeaker socket (banana type – red and black, gold-plated, 4 mm² , soldering) mechanism without description field + universal square glass effect frame
| Connection type | Connection |
| 2 x banana gold plated (red and black) | For soldering |

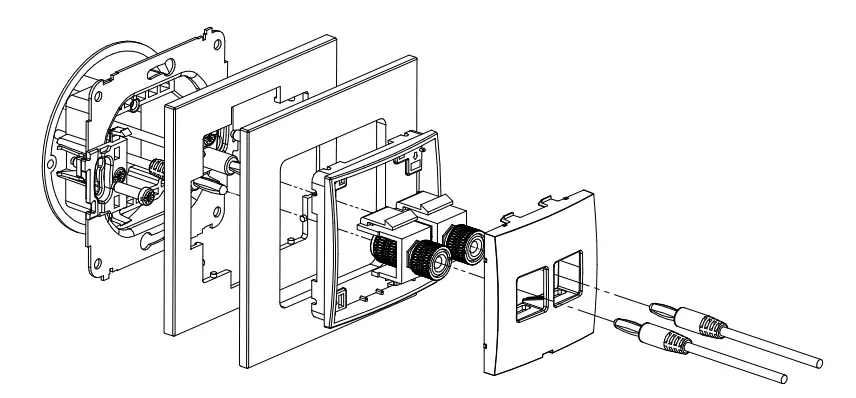

IGG-4 + …IRSK-1
Single loudspeaker socket (banana type – red and black, gold-plated, 4 mm², twisted) + universal square glass effect frame
| Connection type | Connection |
| 2 x banana gold plated (red and black) | Screwed |
IGGBO-4 + …IRSK-1
Single loudspeaker socket (banana type – red and black, gold-plated,4mm² , twisted) mechanism without description field + universal square glass effect frame
| Connection type | Connection |
| 2 x banana gold plated (red and black) | Screwed |

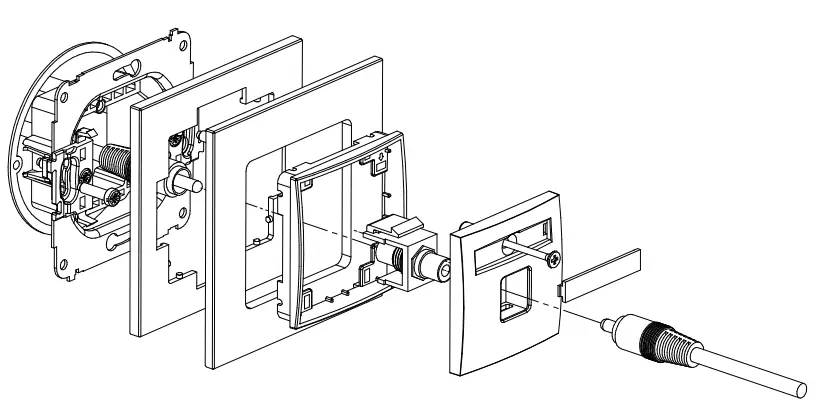

IGRCA-1 + …IRSK-1
RCA single socket (cinch type – yellow, gold-plated) mechanism + universal square glass effect frame
| Connection type | Connection |
| RCA gold-plated | 1 x RCA (cinch) female, yellow marker, gold plated |
IGRCABO-1 + …IRSK-1
RCA single socket (cinch type – yellow, gold-plated) mechanism without description field + universal square glass effect frame
| Connection type | Connection |
| RCA gold-plated | 1 x RCA (cinch) female, yellow marker, gold plated |

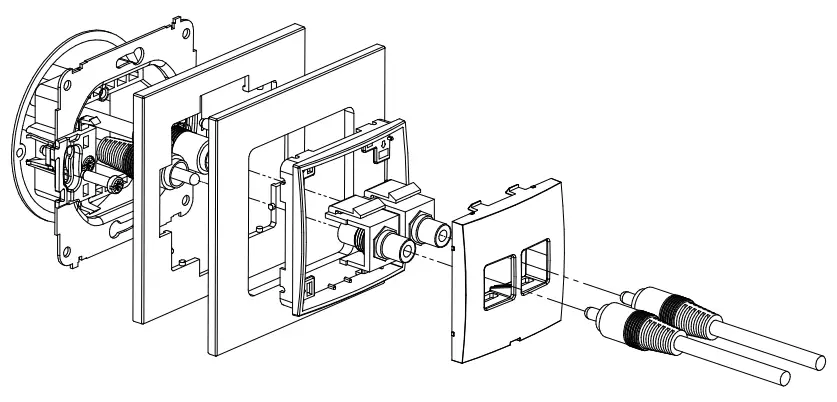

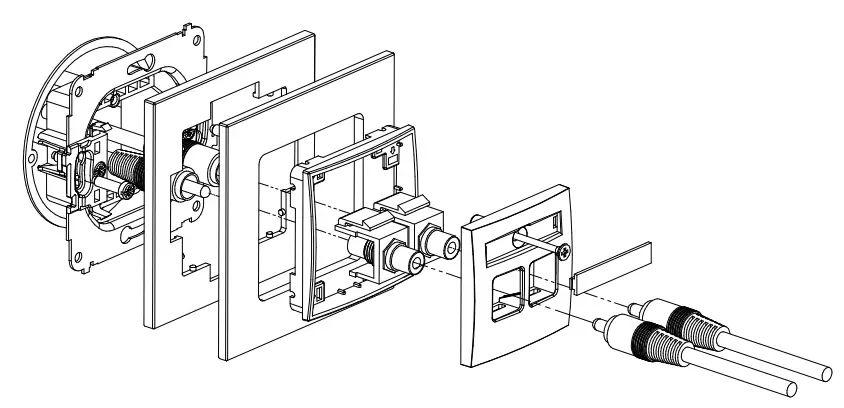

IGRCA-2 + …IRSK-1
RCA double socket (cinch type – white and red, gold-plated) mechanism + universal square glass effect frame
| Connection type | Connection |
| RCA gold-plated | 2 x RCA (cinch) female, white and red marker, gold plated |
IGRCABO-2 + …IRSK-1
RCA double socket (cinch type – white and red, gold-plated) mechanism without descriptions field + universal square glass effect frame
| Connection type | Connection |
| RCA gold-plated | 2 x RCA (cinch) female, white and red marker, gold plated |

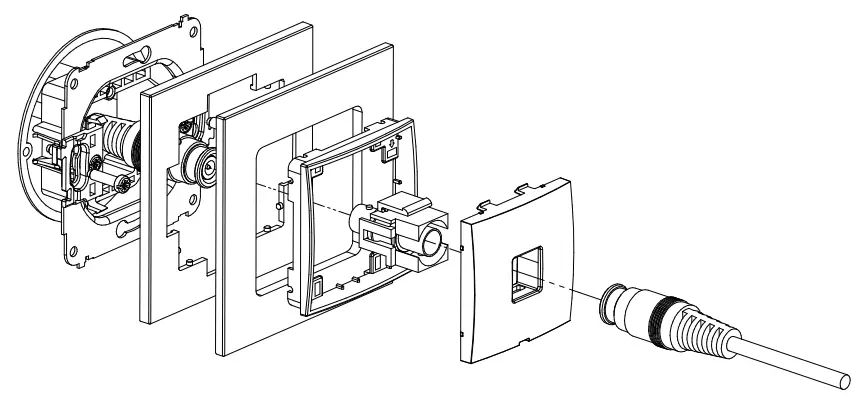

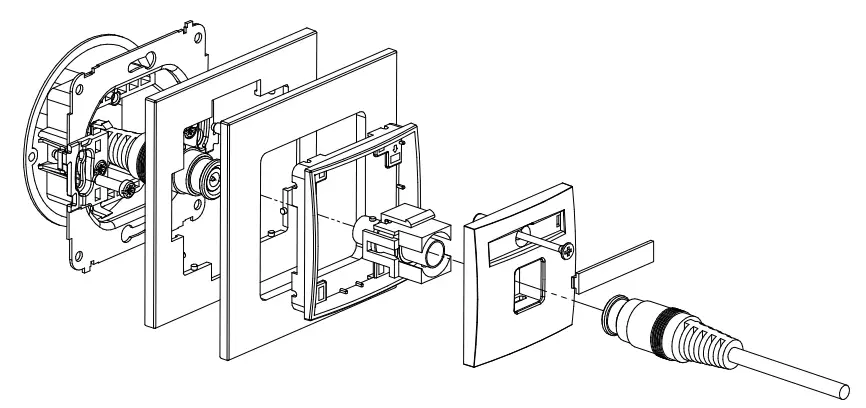

IGBNC-1 + …IRSK-1
BNC single socket mechanism + universal square glass effect frame
| Connection type | Connection |
| BNC | Screwed |
IGBNCBO-1 + …IRSK-1
BNC single socket mechanism without description field + universal square glass effect frame
| Connection type | Connection |
| BNC | Screwed |

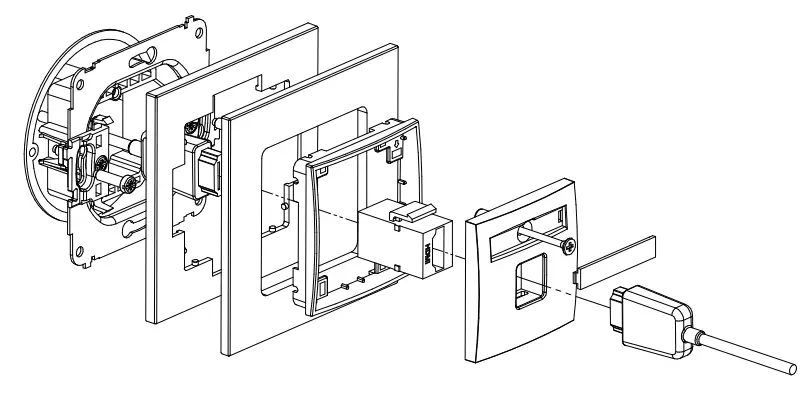

IHDMI-3 + …IRSK-1
HDMI 2.0 single socket mechanism + universal square glass effect frame
| Connection type | Connection |
| HDMI | 1 x HDMI socket female |
IHDMIBO-3 + …IRSK-1
BNC single socket mechanism + universal square glass effect frame
| Connection type | Connection |
| HDMI | 1 x HDMI socket female |

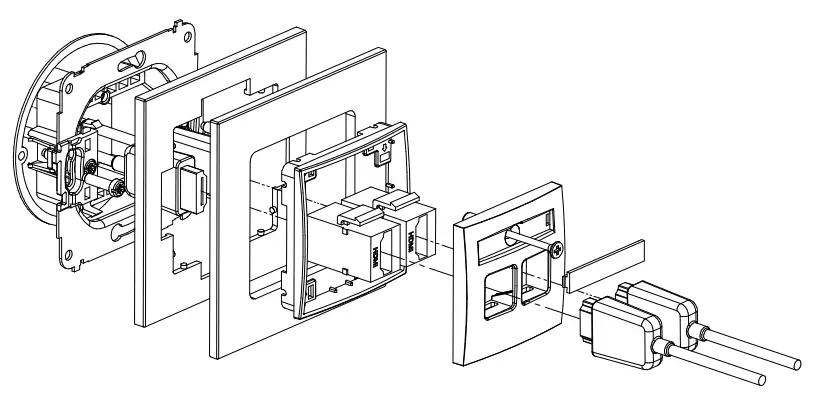

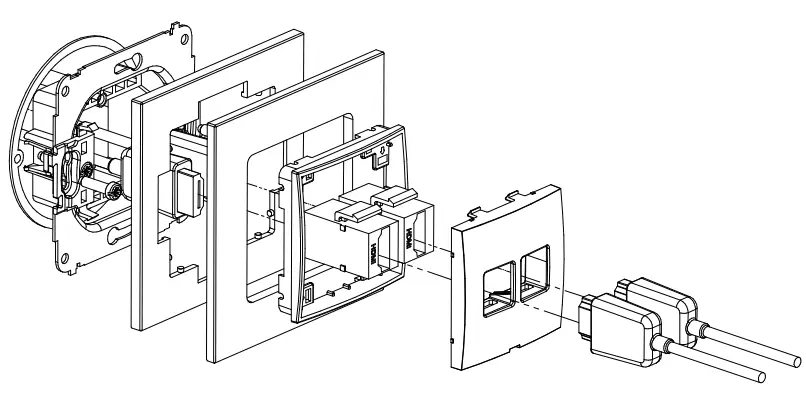

IHDMI-4 + …IRSK-1
HDMI 2.0 double socket mechanism + universal square glass effect frame
| Connection type | Connection |
| HDMI | 2 x HDMI socket female |
IHDMIBO-4 + …IRSK-1
HDMI 2.0 double socket mechanism without description field + universal square glass effect frame
| Connection type | Connection type |
| HDMI | HDMI |

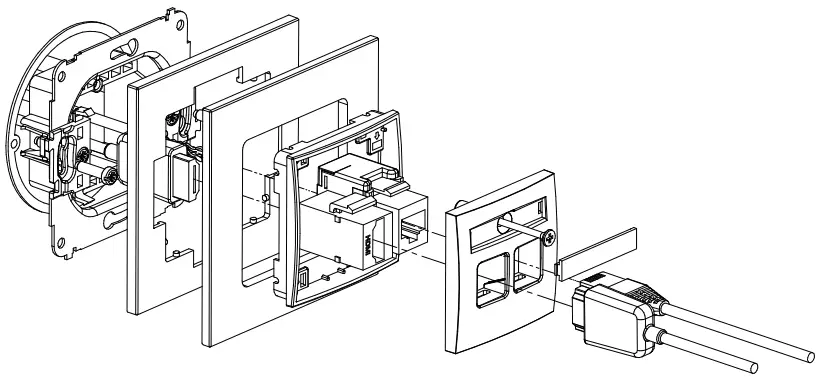

IGHK + …IRSK-1
HDMI 2.0 single socket mechanism + single computer socket mechanism 1xRJ45, cat. 5e, 8-contact + universal square glass effect frame
| Connection type | Connection |
| HDMI, | 1 x HDMI socket female |
| 1 x Rj45 8-contakt | Clamp penetrating insulation |
IGHKBO + …IRSK-1
HDMI 2.0 single socket mechanism + single computer socket mechanism 1xRJ45, cat. 5e, 8-contact without description field + universal square glass effect frame
| Connection type | Connection |
| HDMI, | 1 x HDMI socket female |
| 1 x Rj45 8-contakt | Clamp penetrating insulation |

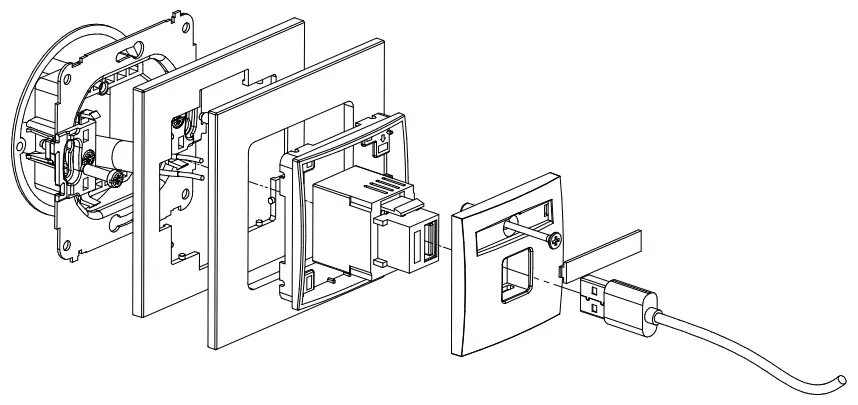

ICUSB-1 + …IRSK-1
Single USB charger mechanism, 5V, 1A + universal square glass effect frame
| Connection type | Connection |
| USB-A | Screw clamps |
ICUSB-3 + …IRSK-1
Single USB charger mechanism, 5V, 2A + universal square glass effect frame
| Connection type | Connection |
| USB-A | Screw clamps |

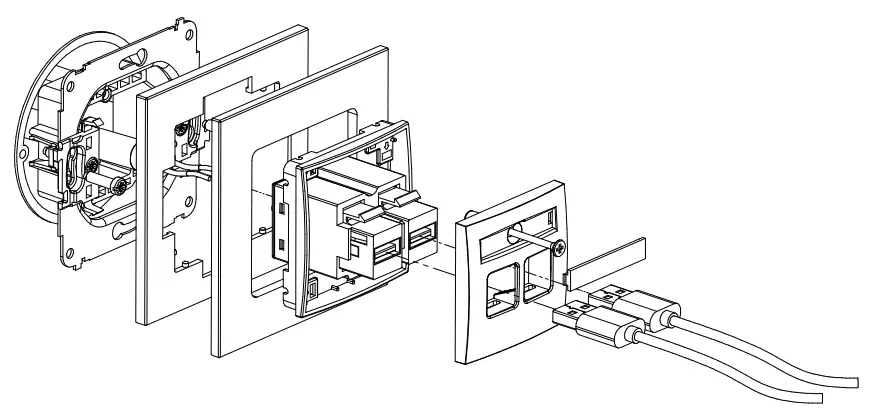

ICUSB-6 + …IRSK-1
Double USB charger mechanism, 5V, 3.1A + universal square glass effect frame
| Connection type | Connection |
| USB-A | Screw clamps |

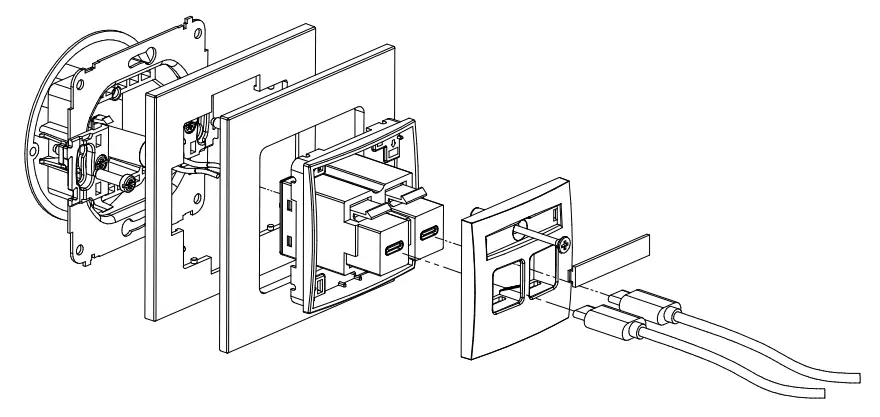

ICUSB-7 + …IRSK-1
Double USB charger mechanism 2xUSB C, 20W max. + universal square glass effect frame
| Connection type | Connection |
| USB-C | Screw clamps |

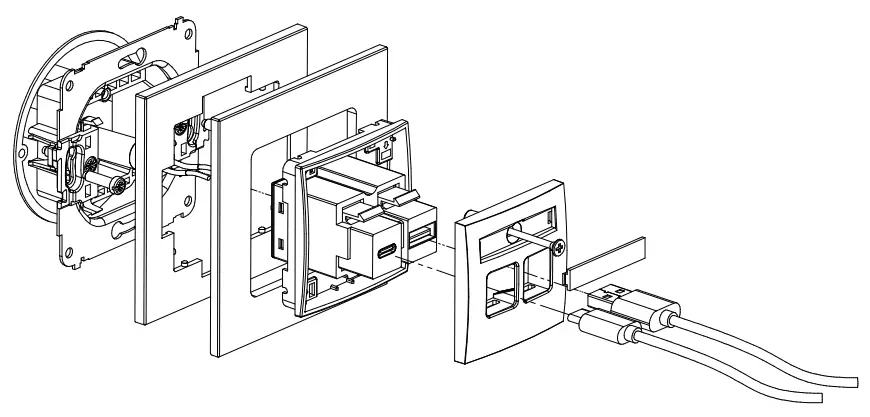

ICUSB-8 + …IRSK-1
Dual USB charger mechanism USB C + USB A, 20W max. + universal square glass effect frame
| Connection type | Connection |
| USB-C + USB-A | Screw clamps |

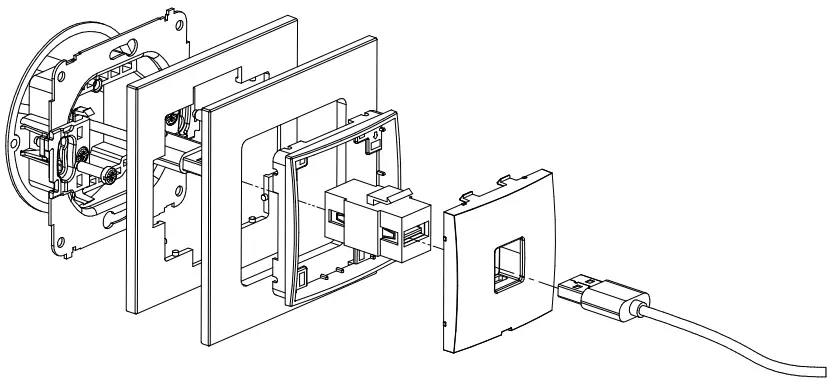

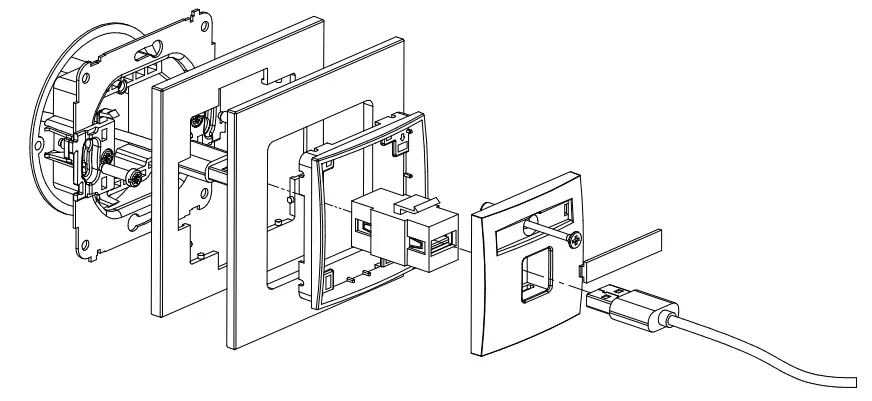

IGUSB-1 + …IRSK-1
USB A-A 2.0 single socket mechanism + universal square glass effect frame
| Connection type | Connection |
| USB-A 2.0 | 1 x USB-A socket female |
IGUSBBO-1 + …IRSK-1
USB A-A 2.0 single socket mechanism without description field + universal square glass effect frame
| Connection type | Connection |
| USB-A 2.0 | 1 x USB-A socket female |

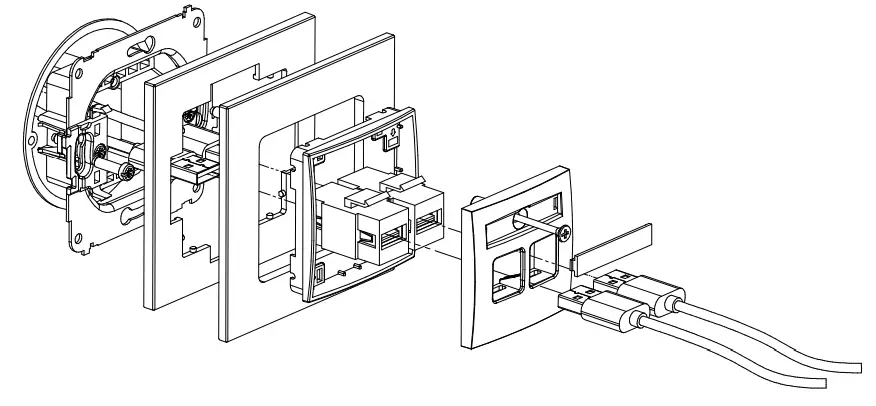

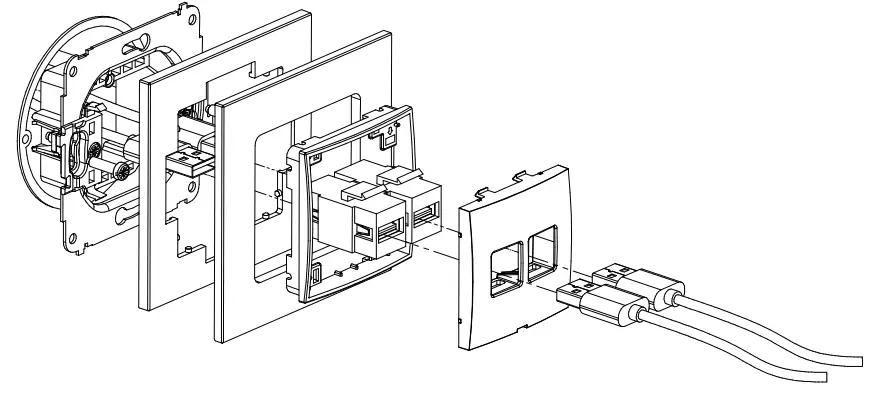

IGUSB-2 + …IRSK-1
2xUSB A-A 2.0 double socket mechanism + universal square glass effect frame
| Connection type | Connection |
| 2xUSB-A 2.0 | 2 x USB-A socket female |
IGUSBBO-2 + …IRSK-1
2xUSB A-A 2.0 double socket mechanism without description field + universal square glass effect frame
| Connection type | Connection |
| 2xUSB-A 2.0 | 2 x USB-A socket female |

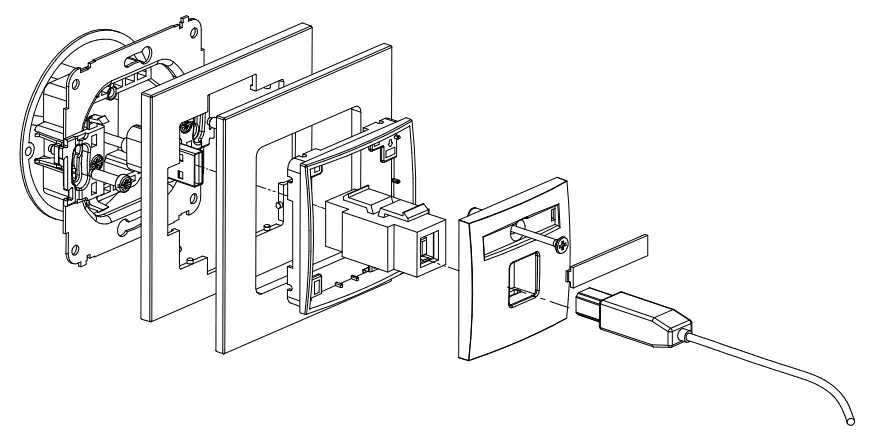

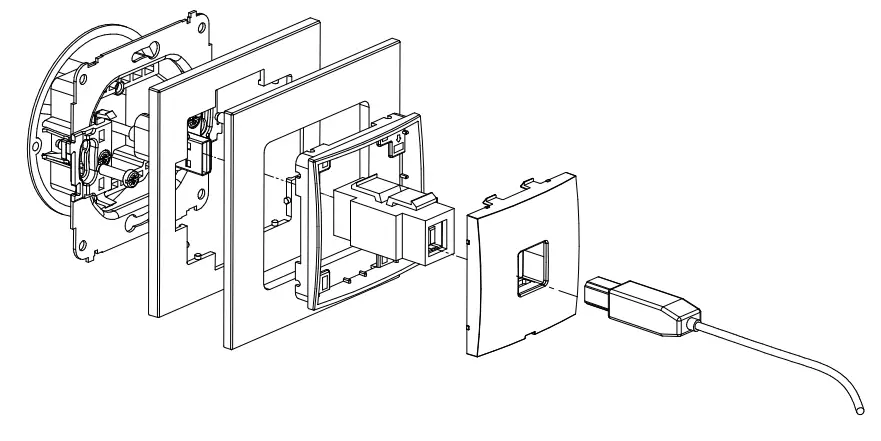

IGUSB-3 + …IRSK-1
USB A-B 2.0 single socket mechanism + universal square glass effect frame
| Connection type | Connection |
| USB-B 2.0 | 1 x USB-A socket female |
IGUSBBO-3 + …IRSK-1
USB A-B 2.0 single socket mechanism without descriptions field + universal square glass effect frame
| Connection type | Connection |
| USB-B 2.0 | 1 x USB-A socket female |

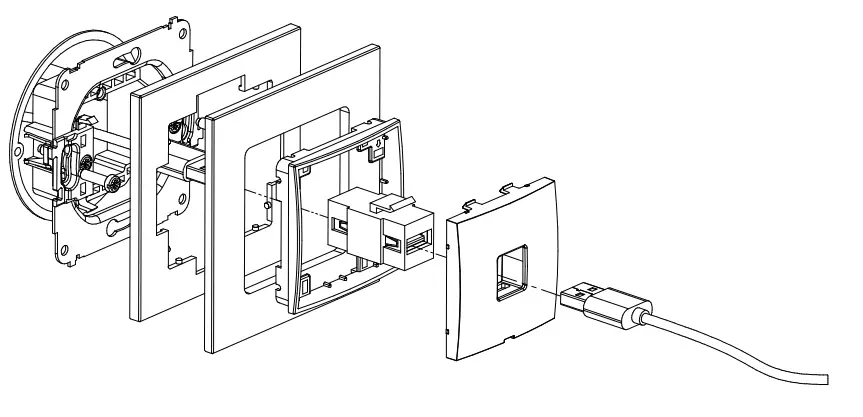

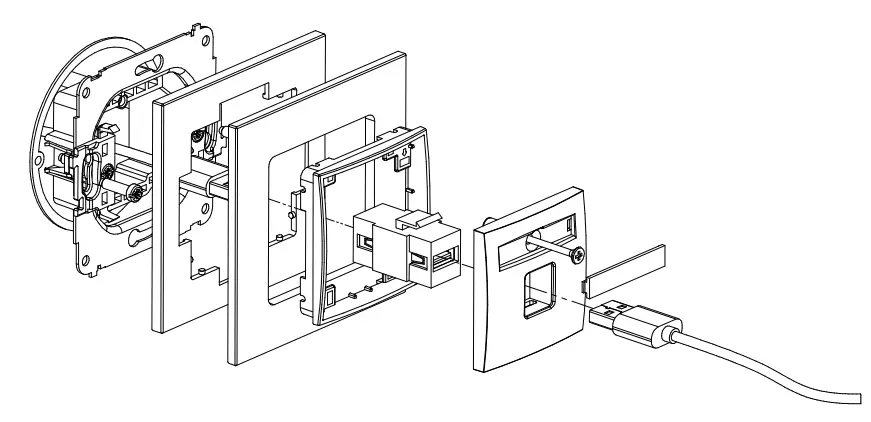

IGUSB-5 + …IRSK-1
USB A-A 3.0 single socket mechanism + universal square glass effect frame
| Connection type | Connection |
| USB-A 3.0 | 1 x USB-A socket female |
IGUSBBO-5 + …IRSK-1
USB A-A 3.0 single socket mechanism without description field + universal square glass effect frame
| Connection type | Connection |
| USB-A 3.0 | 1 x USB-A socket female |

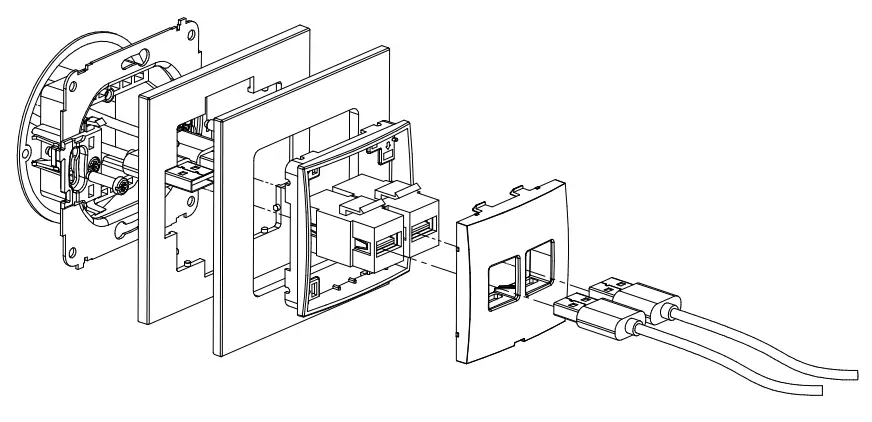

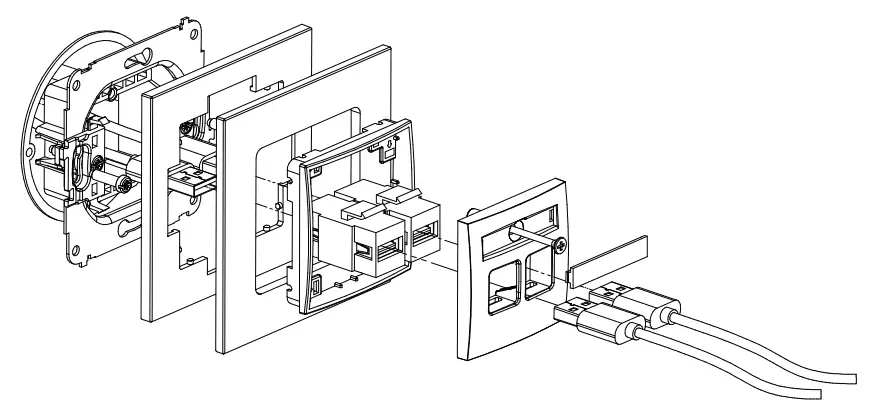

IGUSB-6 + …IRSK-1
2xUSB A-A 3.0 double socket mechanism + universal square glass effect frame
| Connection type | Connection type |
| 2xUSB-A 3.0 | 2xUSB-A 3.0 |
IGUSBBO-6 + …IRSK-1
2xUSB A-A 3.0 double socket mechanism without description field + universal square glass effect frame
| Connection type | Connection |
| 2xUSB-A 3.0 | 1 x USB-A socket female |

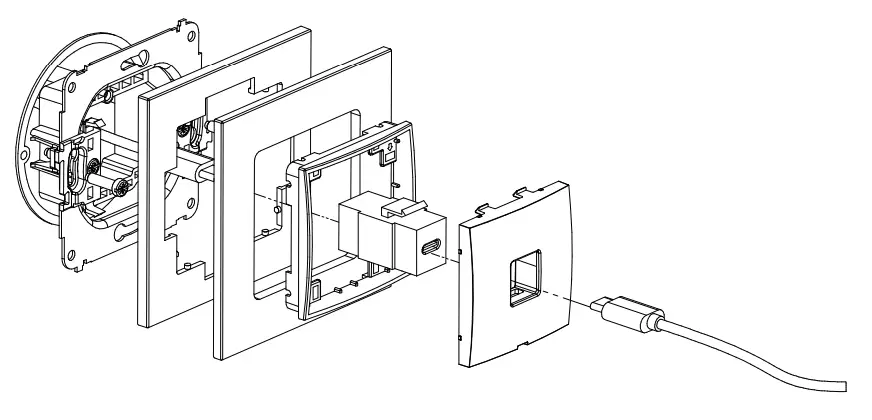

IGUSB-7 + …IRSK-1
USB C-C single socket mechanism + universal square glass effect frame
| Connection type | Connection |
| USB-C | 1 x USB-C socket female |

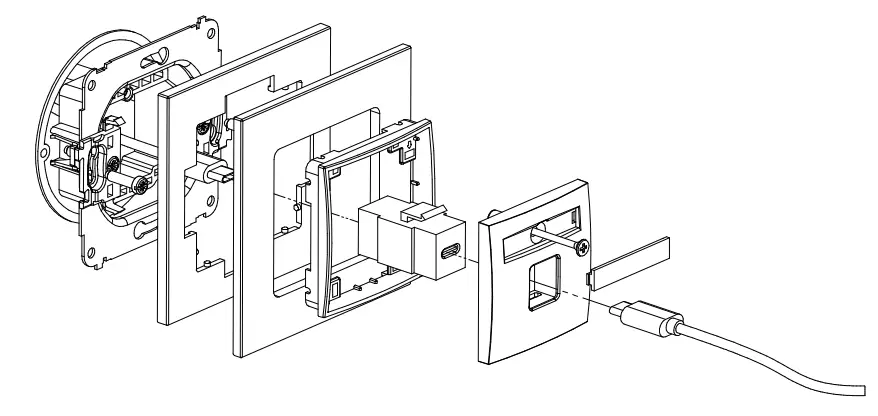

IGUSBBO-7 + …IRSK-1
USB C-C single socket mechanism without description field + universal square glass effect frame
| Connection type | Connection |
| USB-C | 1 x USB-C socket female |
IGUSB-8 + …IRSK-1
USB C-C single socket mechanism + universal square glass effect frame
| Connection type | Connection |
| USB-C | 2 x USB-C socket female |

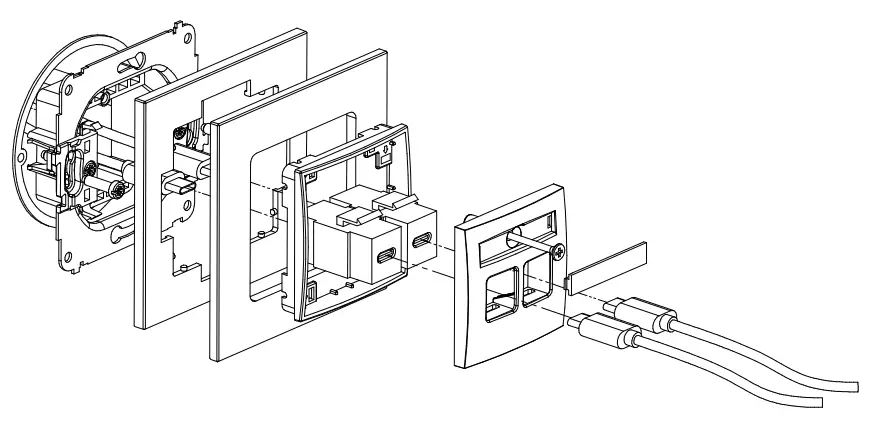

IGUSBBO-8 + …IRSK-1
USB C-C single socket mechanism without description field + universal square glass effect frame
| Connection type | Connection |
| USB-C | 2 x USB-C socket female |
