Tomey Tsl-7000h Digital Slit Lamp User Manual

TSL-7000H
SLIT LAMP
OPERATOR MANUAL
H Series

SLIT LAMP TSL-7000H by TOMEY

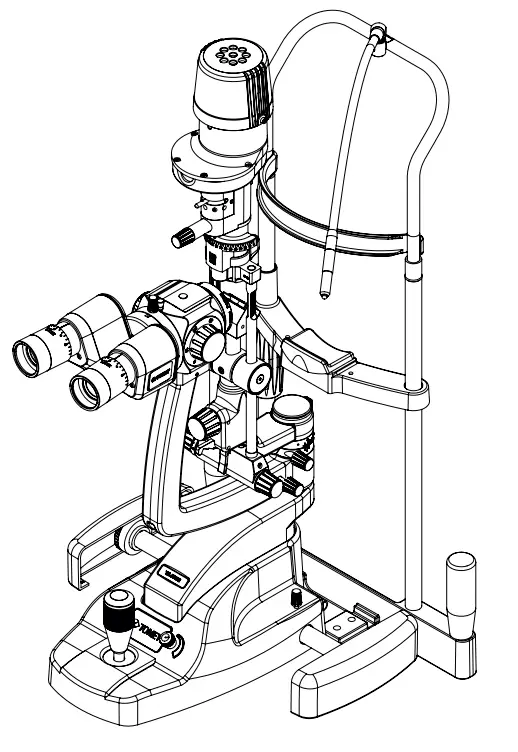

TSL-7000H Digital Slit Lamp

	Consult instructions for use		General warning sign
	Date of manufacture		Warning: Electricity
	Manufacturer’s name and address		Warning: Floor-level obstacle
	Country of manufacture		Warning: Non-ionizing radiation
	Waste Electrical and Electronic Equipment (WEEE) recycling		Warning: Optical radiation
	This way up		Warning: Hot surface
	Keep dry		Conformite Europeene
	Fragile		Type B applied part
	Do not use if the package is damaged		Class II equipment

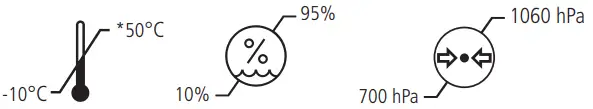

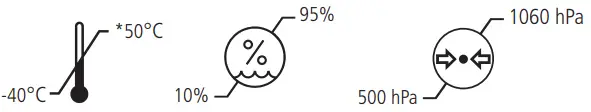

	Temperature limit		Atmospheric pressure limitation
	Authorized representative in the European Community		Humidity limitation
	Catalog number		Serial number
	Translation		Medical device

The Tomey Slit Lamp is designed and built in conformity with Directive 93/42/EEC, Regulation (EU) 2017/745, and ISO 13485 Medical Devices Quality Management Systems.
Classifi cation: CE: Class I
FDA: Class II
The information contained within this manual must not be reproduced in whole or part without the manufacturer’s prior written approval. As part of our policy for continued product development we the manufacturer reserve the right to make changes to specifications and other information contained in this document without prior notice. Copyright © Tomey GmbH 2021. Published in the UK in 2021.

INDICATIONS FOR USE

This device is intended to be used only by suitably trained and authorized healthcare professionals.

CAUTION: Federal Law restricts this device to sale by or on the order of a physician or practitioner.

Intended use/purpose of the instrument
The Tomey Slit Lamp facilitates an examination of the anterior segment or frontal structures and posterior segment, of the human eye, which includes the eyelid, sclera,  conjunctiva, iris, natural crystalline lens, and cornea. The binocular slit-lamp provides a stereoscopic magnified View of the eye structures in detail, enabling anatomical diagnoses to be made for a variety of eye conditions.
Brief description of the instrument
This Tomey Slit Lamp can either be mounted onto a custom table top supplied by Tomey or can be mounted on a third party’s tabletop (refraction unit) by suitably trained technicians. The Tomey Slit Lamp consists of 4 assemblies; Illumination Tower; Observation System; XYZ Translation Base; Chinrest Assembly
The light intensity is controlled by a variable rheostat located on the XYZ Translation Base.
There are a number of selectable filters allowing the user to control the characteristics of the examination light.

SAFETY

2.1 PHOTOTOXICITY
CAUTION: The light emitted from this instrument is potentially hazardous. The longer the duration of exposure, the greater the risk of ocular damage. Exposure to light from this instrument when operated at maximum intensity will exceed the safety guideline after 171 seconds. While no acute optical radiation hazards have been identified for slit lamps, we recommend keeping the intensity of the light reaching the patient’s retina to the minimum possible for the respective diagnosis. Children, people with aphakia, and people suffering from eye conditions are most at risk. The increased risk may also occur if the retina is exposed to the same or a similar device with a visible light source within 24 hours. This applies, in particular, if the retina has been photographed with a
flash bulb in advance.
Tomey GmbH shall on request, provide the user with a graph showing the relative spectral output of the instrument.

2.2 WARNINGS AND CAUTIONS
Please note that the proper and safe functioning of our instruments is only guaranteed if both the instruments and their accessories are exclusively from Tomey GmbH. The use of other accessories may result in increased electromagnetic emissions or reduced electromagnetic immunity of the device and may lead to incorrect operation. Observe the following precautions in order to ensure the safe operation of the instrument.

WARNINGS

• Never use the instrument if visibly damaged and periodically inspect it for signs of damage or misuse.
• Check your Tomey product for signs of transport/storage damage prior to use.
• Do not use in the presence of flammable gases/liquids, or in an oxygen-rich environment.
• US Federal Law restricts this device to sale by or on the order of a physician or practitioner.
• This device is intended to be used only by suitably trained and authorized healthcare professionals.
• This product should not be immersed in the fluid.
• Repairs and modifications to the instrument must be made only by the specialized technicians of the manufacturer’s Technical Service Centre or by personnel trained and
  authorized by the manufacturer. The manufacturer declines any and all responsibility for loss and/or damages resulting from unauthorized repairs; furthermore, any such actions will invalidate the warranty.
• The power switch and mains plug are the means of isolating the device from the mains supply – ensure both the power switch and mains plug are accessible at all times.
• Do not position the equipment so that is difficult to press the power switch or remove the mains plug from the wall socket.
• Refraction stand variants or adaptors should only be used in combination with EN/IEC 60601-1 and EN/IEC 60601-1-2 compliant power supplies and devices.
• Route power cords safely to eliminate the risk of tripping or damage to the user.
• Before any cleaning of the instrument or the base unit ensure the power lead is disconnected.
• LEDs can reach high temperatures in use – allow them to cool before handling.
• Do not exceed the maximum recommended exposure time.
• Should the instrument suffer shocks (for example, should it accidentally fall), and the optical system or the illumination system are damaged it may be necessary to return the instrument to the manufacturer for repair.
• After removal of the LED, do not touch the Slit Lamp LED electrical contacts and patient simultaneously.
• The owner of the instrument is responsible for training personnel in its correct use.
• Ensure the instrument or instrument table is placed on a level and stable surface.
• Use only genuine Tomey-approved parts and accessories or device safety and performance may be compromised.
• Shut down after every use. In case the dust cover is used: risk of overheating.
• For indoor use only (protect from moisture).
• Electrical equipment can be affected by electromagnetic interference. If this occurs whilst using this equipment, switch the unit off and reposition it.
• Do not touch accessible connectors and the patient simultaneously.

Before use, the Slit Lamp should be allowed to adjust to the ambient room temperature for several hours. This is especially important when the unit has been stored or transported in a cold environment; this can cause severe condensation to develop on the optical elements.

2.3 CONTRAINDICATION
There is no restriction to the patient population this device can be used with other than those outlined in the contra-indications stated below. Slit lamps can produce discomfort in some photophobic patients due to the high illumination. Additionally, patients must be co-operative and capable of sitting upright for the duration of the examination, therefore the technique may not be suitable for patients who are unable to sit upright for long periods of time or those with limited neck and back mobility.

CLEANING AND DISINFECTION INSTRUCTIONS

Before any cleaning of the instrument or the base unit, ensure the power lead is disconnected.

Only manual non-immersion cleaning as described should be used for this instrument. Do not autoclave or immerse in cleaning fluids. Always disconnect the power supply from the source before cleaning.

1. Wipe the external surface with a clean absorbent, non-shedding cloth dampened with de-ionized water/detergent solution (2% detergent by volume) or water/isopropyl
   alcohol solution (70% IPA by volume). Avoid optical surfaces.
2. Ensure that excess solution does not enter the instrument. Use caution to ensure the cloth is not saturated with solution.
3. Surfaces must be carefully hand-dried using a clean non-shedding cloth.
4. Safely dispose of used cleaning materials.

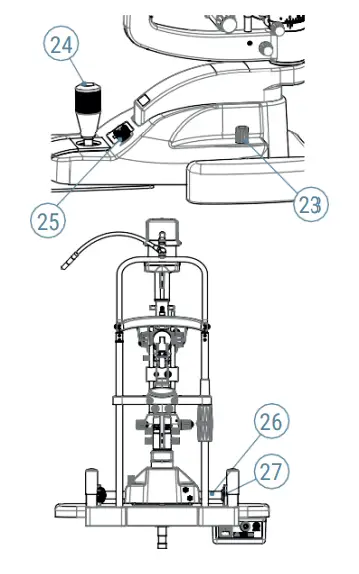

NAMES OF CONTROLS AND COMPONENTS

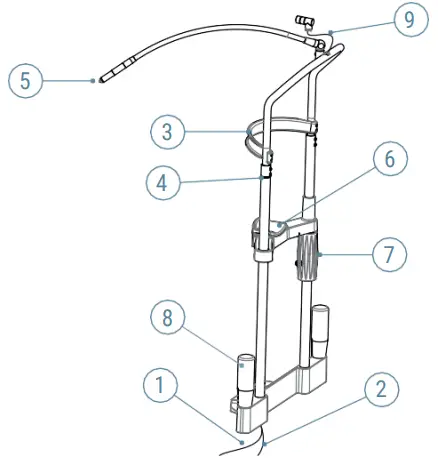

Headrest Assembly

1. Fixation light cable
2. Main lamp cable (4 pin socket)
3. Forehead rest band
4. Patient’s eye height marker
5. Fixation light
6. Chinrest
7. Chinrest height adjuster
8. Patient grab handles
9. Power lead, chinrest to the lamp housing
   TSL-7000H Series
10. Lamp cover
11. Lamp cover release screws
12. Lever for grey (ND), blue, diffuser and red free fi lters
13. Slit length, slit rotation, and aperture control
14. Scale for slit rotation
15. Illumination mirror
16. Slit offset centering knob
17. Inclination latch 5° to 20°
18. Slit width controls
19. Test bar & tonometer plate mounting hole and cover
20. Illumination arm locking knob
21. Microscope arm locking knob
22. Eyepiece assembly securing knob

23. Joystick base locking knob
24. Joystick control (X Y Z movement)
25. Illumination control rheostat

26. Axle
27. Runner covers
28. R type tonometer mounting hole

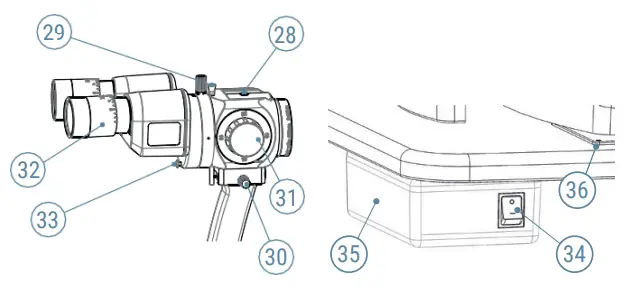

29. Yellow fi lter knob (up = out)
30. Lock for securing magnifi cation body
31. Magnifi cation change drum
32. Eyepieces – adjustable for PD and dioptre correction
33. Breath shield securing knob
34. Main power switch
35. Power supply unit
36. Glide plate

ASSEMBLY

Your Tomey Slit Lamp has been designed to fit onto an electric insulated medical table base or onto an electric insulated and fire resistant medical table top, e.g. a refraction stand or combi unit. Take care when unpacking your Slit Lamp that you do not accidentally damage or discard any of the contents.
Leave the Slit Lamp in the packing for several hours after delivery before unpacking to reduce the risk of condensation forming.

Tomey Slit Lamps can be fitted to most refraction stands/combi units. Tomey recommends that this be carried out by suitably trained technicians to ensure performance and safety are not compromised.

The Refraction Stand, Combi Unit, or table leg must be IEC 60601-1 compliant.

If you are fitting or have fitted your Slit Lamp to a medical or Tomey table leg/base ensure it is situated on a fi rm and level fl oor. If the table leg/base has castors ensure the following before moving it to another location:

1. The table is at its lowest position.
2. The power cord is removed.
3. The Slit Lamp arm and base locking knobs are tightened.
4. The runner covers are securely located.
5. The system is moved by grasping it at its lowest practical point.

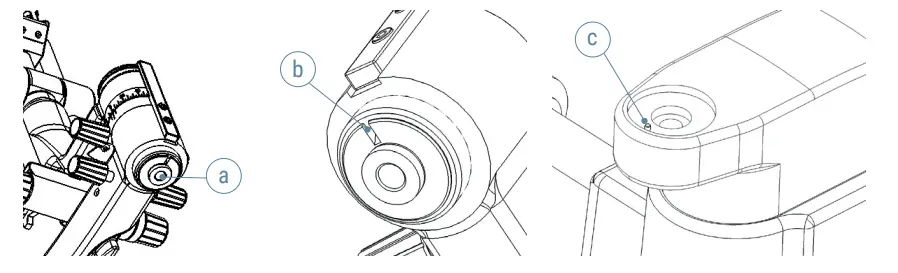

5.1 ILLUMINATION TOWER ASSEMBLY PROCEDURE

1. Remove the hex bolt (a) from the base of the Illumination tower, and then place the illumination tower on the Slit Lamp base with the base notch (b) and pin (c) aligned.
   Attach the tower to the base using the hex bolt removed earlier and tighten using the wrench provided.

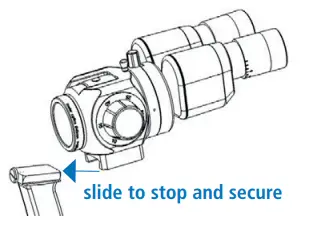

2. Carefully fi t the microscope body to the arm – ensuring it is pushed to the stop. Tighten using the securing knob on the side.

3. Attach the breath shield as indicated in the images below.

Note: Images show assembly on TSL-7000Z, however, the process is identical and applicable to TSL-7000H.

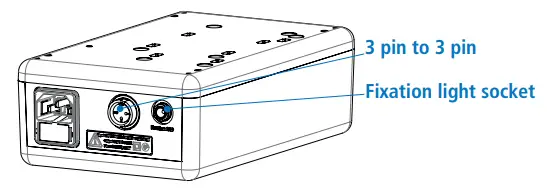

5.2 CABLE ATTACHMENT PROCEDURE

1. Connect the main lamp cable from the chinrest to the illumination tower. Do not twist the lead on the tower illumination system.
2. Connect the power cables.
   a) Chinrest fixation light cable to the power supply unit.
   b) (3 pins) cable from power supply unit to slit lamp base assembly.
   c) (4 pins) main lamp cable from the bottom of the chinrest to the slit lamp base assembly.
   d) Ensure cables are routed to allow free movement of the XYZ base and to be clear of the patients.
   If your Slit Lamp was not supplied with a transformer (Part #3020-P-5040TOM), make sure that the power connection is compatible with the specifications in this manual and is connected by a qualified technician to an available and suitable power supply, see section 9.4 Power Supply page 19.
3. Connect the mains power to the Slit Lamp transformer using the power lead provided.

Only a hospital-grade 3-conductor electrical power supply cable must be used. For USA and Canada: Detachable power supply cord set, UL listed, type SJE, SJT or SJO, 3-conductor, not smaller than 18 AWG. The plug, cable, and ground lead connection of the socket have to be in perfect condition.

5.3 FITTING APPLANATION TONOMETERS, T TYPE, AND R TYPES
Tomey Applanation Tonometer (T-TYPE)

1. Position the guide plate in the tonometer/test bar support hole on the slit lamp.
2. Lift the tonometer out of the packaging and assemble it by inserting the pin on its base into one of the two possible openings (for right or left eye) on the horizontal guide
   plate above the slit lamp axis. These positions are related to the microscope optics and observation can be made either through the right or the left eye-piece. The tonometer will slip easily onto the support plate; stability is assured by the locking pins.
3. To obtain an image as clear and as free of refl exes as possible, the angle between the illumination and the microscope should be about 60° and the slit diaphragm should be
   fully opened.
4. When not in use the tonometer should be removed from the Slit Lamp and placed securely back in the packaging or a suitable location.
   Applanation Tonometer ‘Tomey Fixed’ (R-TYPE) This instrument is for those who wish the tonometer to remain permanently on the slit lamp.
5. Mount the plate for the tonometer onto the microscope body using the securing screw.
6. Mount the tonometer mount onto the mounting post.
7. Swing the tonometer forward in front of the microscope for examination. A notch position ensures the exact centering of the prism with the left objective.
8. To obtain an image as clear and as free of refl exes as possible, the angle between the illumination and the microscope should be about 60° and the slit diaphragm should be
   fully opened.
9. When not in use the instrument is swung around and secured in a notch position to the right of the microscope.

INSTRUCTIONS FOR USE

6.1 SETTING THE BINOCULARS
It is vital that the binoculars are optimized for the user’s optical correction in order to obtain focused binocular images.

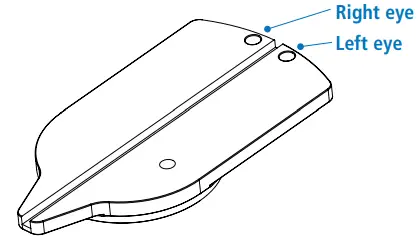

1. Remove the Test Bar locating hole cover plate (19) and place the test bar focus in the test bar location hole at the base of the microscope arm. To access the location hole first remove the cover. The test bar should be set with the fl at the projection face towards the Slit Lamp Microscope. The illumination and the microscope should be in the zero degrees position.
2. Turn on the Slit Lamp and set the slit to full width (18), set the magnification to x16 (31).
3. Adjust the eyepiece pupillary distance by holding both eyepiece bodies and rotating them inwards or outwards until they are correct for your PD.

4. Turn both eyepieces (32) to maximum plus (+) correction.
5. Close one eye, and with the other eye look through the microscope slowly turning the open eye eyepiece towards the minus (-) position until the image of the test bar is in focus. Stop.
6. Repeat the above process for the other eyepiece.
7. Make a note of the positions of the eyepieces so that you can set them quickly if the Slit Lamp has been used by another clinician.
8. Note – younger examiners are recommended to compensate for their ability to accommodate by further adjusting the eyepieces by minus one (-1) or minus two (-2) dioptres.

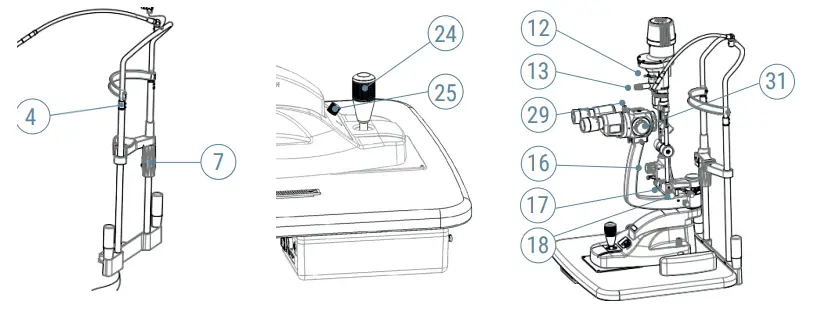

6.2 PREPARING THE PATIENT AND USING THE SLIT LAMP
Parts of the slit lamp coming into contact with the patient should be cleaned in accordance with these instructions prior to the examination. Tomey recommends the use of disposable hygienic chinrest tissues on the chinrest before the patients place their chin on it. Never use the instrument if visibly damaged and periodically inspect it for signs of damage or misuse.

1. The patient should be as comfortable as possible and with the patient in the chinrest adjust the chinrest height (7) so that the patient’s eyes are level with the height marking
   (4) on the chinrest support.
2. Focus the eyepieces using the test bar as described earlier, and if you have not already done so set them to your interpupillary distance by holding both eyepiece bodies and
   rotating them inwards or outwards until they are correct for your PD.
3. Switch on the illumination, making sure the rheostat (25) is set to a low level to minimize the patient’s exposure to light hazards.
4. Rotate the joystick (24) until the light beam is at eye level.
5. Holding the joystick vertically, move the slit Lamp base towards the patient until the slit beam appears focused on the patient’s cornea.
6. Adjust slit width (18), magnification (31), slit rotation (13) & slit angle, etc. as required to perform the examination.
7. Loosening slit offset centering knob (16) to allow the slit image to be moved off center for scleral illumination. Tightening the knob will re-center the slit image in the center of the visual field of the microscope.

8. The slit image is made vertical or given a pre-set angle by means of the inclination latch (17) (notches at 5°, 10°, and 15° & 20°).
9. When using the blue filter (12) the user may wish to insert the yellow barrier filter (29). The yellow barrier filter is out when the knob is up, in when it is down.
10. When the examination is complete, set the rheostat to a low level and switch off the Slit Lamp.

Shut down after every use. In case the dust cover is used: risk of overheating.

6.3 DESCRIPTION OF FILTERS, APERTURES, AND MAGNIFICATIONS

Stereo microscope

5 Step magnifi cation change

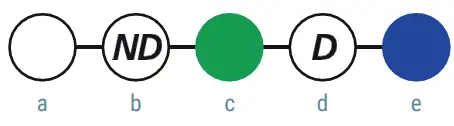

Filters
a) Clear
b) Neutral Density
c) Red Free
d) Diffuser
e) Blue

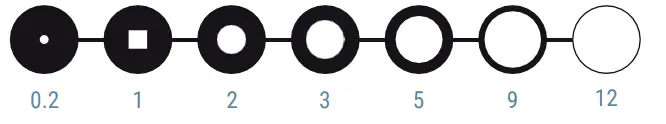

Apertures

Aperture diameters (mm)

Tower illumination
Tower has the facility to tilt towards the user and positively locates at each step. 0°, 5°, 10°, 15°, and 20°.

ROUTINE MAINTENANCE

The maintenance outlined below should only be carried out once the main power cable has been disconnected. If you have any problems that are not covered by the procedures described below, contact Tomey GmbH or your local supplier.

7.1 LED SYSTEMS
LEDs typically have a life exceeding 10,000 hours of continuous use and therefore can be considered non-consumable items that will not require changing by a user.
Whilst this is a significant life expectancy, we suggest that the Slit Lamp is always switched off between examinations to conserve energy and LED life.
In the unlikely event of an LED failure please contact Tomey or your local distributor for guidance on the replacement procedure.

7.2 REGULARLY INSPECT THE DEVICE FOR DAMAGE OR DIRT
Routinely clean as per section 3 on page 5 cleaning instructions.

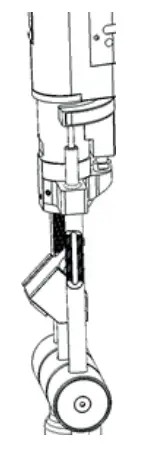

7.3 CLEANING AND CHANGING THE MIRROR
The mirror is front surfaced to avoid ghosting of the projected light and therefore is very delicate and will need to be replaced when the surface deteriorates.
The mirror should be cleaned only with a soft clean lens cloth.
The mirror is an interference fit in its holder and can be removed by grasping it firmly and pulling it out of its holder. Slide in the replacement mirror taking care to avoid touching the reflective surface.
Care must be taken to keep the objective and the eyepiece lenses clean – use only soft clean lens cloths to clean optical surfaces.
7.4 ELECTRICAL CONNECTIONS
Routinely check all electrical connections, cables, and connectors. To access the bulb connections see earlier in this section for guidance.
7.5 OPTICS
The optics should be wiped clean of any loose dirt or debris with a suitable dust brush and then cleaned with a soft dry lens cloth, washed linen, or other nonabrasive lens cleaning material. The condenser lens beneath the illumination lamp will require cleaning; to access this, remove the lamp as detailed earlier, clean the condenser lens, and then replace the lamp.
7.6 AXLE AND MECHANICAL PARTS
If the Slit Lamp becomes hard to move on the glide plate, the plate should be cleaned with a lightly oiled cloth or silicon polish. The axle should be cleaned only with dry lint-free cloths.

WARRANTY

The Tomey Slit Lamps are guaranteed for two years against faulty workmanship materials or factory assembly. Warranty is on a Return To Base (RTB) basis at the cost of the customer and may be void if the Slit Lamp has not been regularly serviced. The manufacturer’s warranty and terms and conditions are detailed on the Tomey GmbH website.
The mirror, main illumination lamp, and general ‘wear and tear are excluded from our standard warranty.

The manufacturer declines any and all responsibility and warranty coverage should the instrument be tampered with in any manner or should routine maintenance be omitted or performed in manners not in accordance with these manufacturers’ instructions.
There are no user-serviceable parts in this instrument. Any servicing or repairs should only be carried out by Tomey GmbH or by suitably trained and authorized distributors. Service manuals will be available to authorized Tomey service centers and Tomey-trained service personnel.

SPECIFICATIONS AND ELECTRICAL RATINGS

The Tomey Slit Lamp is a medical electrical instrument. The instrument requires special care concerning electromagnetic compatibility (EMC). This Section describes its suitability in terms of electromagnetic compatibility of this instrument. When installing or using this instrument, please read carefully and observe what is described here.
Portable or mobile-type radio frequency communication units may have an adverse effect on this instrument, resulting in malfunctioning.

9.1 ELECTROMAGNETIC EMISSIONS
Guidance and manufacturer’s declaration – electromagnetic emissions The Tomey Slit Lamp is intended for use in the electromagnetic environment specified below. The customer or user should ensure that it is used in such an environment.

9.2 ELECTROMAGNETIC IMMUNITY
Guidance and manufacturer’s declaration – electromagnetic immunity
The Tomey Slit Lamp is intended for use in the electromagnetic environment specified below.
The customer or user should ensure that it is used in such an environment.

Note: UT is the a. c. mains voltage prior to application of the test level.

Immunity test	IEC 60601 Test level	Compliance level	Electromagnetic environment — guidance
			Portable and mobile RF communications equipment should be used no closer to any part of the Tomey Slit Lamp, including cables, than the recommended separation distances calculated from the equation applicable to the frequency of the transmitter.
		Recommended separation distance
Conducted RF IEC 61000-4-6	6 Vrms	6 V	d= 1.2 4 p
Radiated RF IEC 61000-4-3	10 V/m 80MHz to 2.7GHz	10 V/m	d = 1.2 4 p 80MHz to 800 MHz d = 2.3 4 p 800MHz to 2.7GHz
			Where p is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in meters (m). Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey’, should be less than the compliance level in each frequency range.2 Interference may occur in the vicinity of equipment marked with this symbol.

Note: At 80MHz and 800MHz, the higher frequency range applies. These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects, and people.

1. Field strengths from fixed transmitters, such as base stations (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcasts, and TV broadcasts cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Tomey Slit Lamp is used exceeds the applicable RF compliance level above, the Tomey Slit Lamp should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orientating or relocating the Tomey Slit Lamp.
2. Over the frequency range 150kHz to 80 MHz, field strengths should be less than 10 V/m.

9.3 RECOMMENDED SAFE DISTANCES
Recommended separation distances between portable and mobile RF communications equipment and the Tomey Slit Lamp
The Tomey Slit Lamp is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Tomey Slit Lamp can help prevent electromagnetic interference by maintaining a minimum distance between mobile RF communications equipment (transmitters) and the Tomey Slit Lamp as recommended below, according to the maximum output power of the communications equipment.

For transmitters rated at a maximum output power not listed above, the recommended separation distance in meters (m) can be determined using the equation applicable to the
frequency of the transmitter, where p is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.
Note: At 80MHz and 800MHz, the separation distance for the higher frequency applies.
These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

9.4 TECHNICAL SPECIFICATIONS
Optical System

Slit Projection System & Base

Weight, packed (approx.)

Protection against ingress
IPO
Class II ME equipment
Insulation between the main parts and the functional earth provides at least two means of protection.

Power Supply

Fuse ratings and quantity
2.5 amp anti-surge
Fuse current 2.5A
Voltage rating V AC 250V
Breaking capacity 1500Amps
Blow characteristic: Time Delay

Environmental Conditions:

USE
	Shock (without packing)	10 g, duration 6 ms
STORAGE CONDITIONS
TRANSPORT CONDITIONS
	Vibration, sinusoidal	10 Hz to 500 Hz: 0.5g
	Shock	30 g, duration 6 ms
	Bump	10 g, duration 6 ms

*This instrument does not meet the temperature requirements of ISO 15004-1 for storage and transportation. Do not store or transport this instrument in conditions where the temperature may rise above 50 °C.

ACCESSORIES AND SPARES

PACKAGING AND DISPOSAL INFORMATION

Disposal of old electrical and electronic equipment
This symbol on the product or on its packaging and instructions indicates that this product shall not be treated as household waste. To reduce the environmental impact of WEEE (Waste Electrical Electronic Equipment) and minimize the volume of WEEE entering landfills we encourage at the product’s end of life that this equipment is recycled and reused.
If you need more information on the collection reuse and recycling then please contact B2B Compliance on 01691 676124 (+44 1691 676124). (the UK only). Any serious incident that has occurred in relation to the device must be reported to the manufacturer and the competent authority of your Member State.

Contact
Manufacturer
Keeler Limited
Clewer Hill Road
Windsor
Berkshire
SL4 4AA UK
Freephone 0800 521251
Tel +44 (0) 1753 857177
Fax +44 (0) 1753 827145

SUPPLIER
TOMEY GmbH
Wiesbadener Straße 21
90427 Nürnberg
Germany

Tel +49 911 938 546 2 – 0
Fax +49 911 938 546 2 – 20

Visiometrics, S. L., Vinyals, 131
08221 Terrassa, Spain
