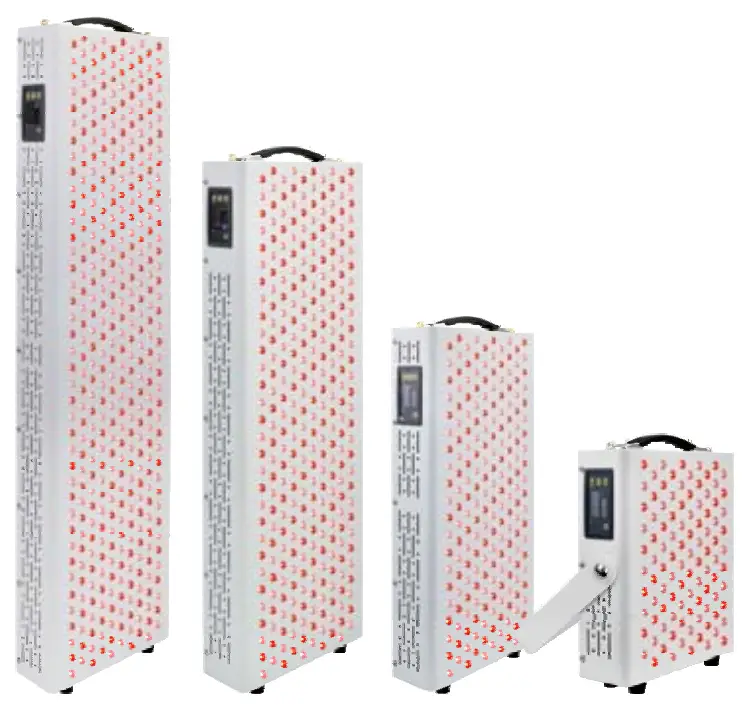

Youlumi Yl-irp-004 Full Body Red Light Therapy Panel Instruction Manual

RED LIGHT THERAPY
Instructional Manual

RED-LIGHT-THERAPY FOR HUMAN

Thank you for purchasing our red light therapy, we hope you can get benefits from our device.

SAY HELLO TO YOUR RED LIGHT
Before starting yourfirst session, please make sure to read this manual as it may explain important operating procedures. The red light devices use red 660nm and Infrared 850nm LEDs which are chosen to give the ideal wavelengths found in the scientific research of the last three decades.

SPECIFICATION

THIS PACKAGE INCLUDES

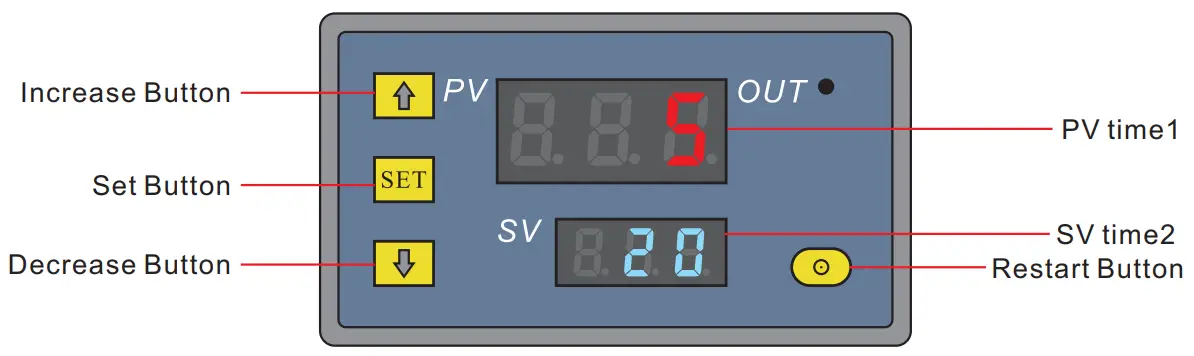

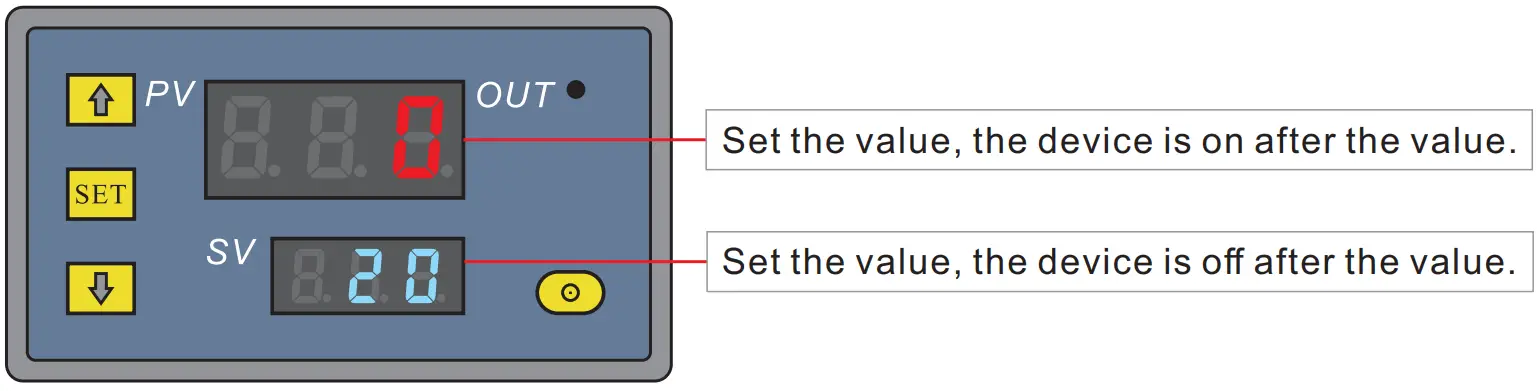

TIME CONTROLLER EXPLANATION

OPERATION GUIDE

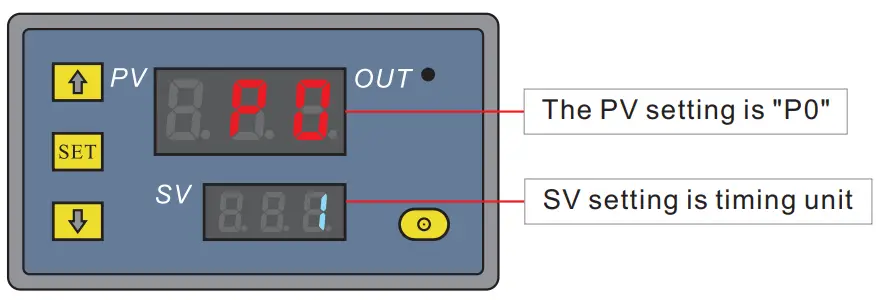

1. Turn on the power switch, and the timing controller is on. Long press the “set” button, the PV is “P0”, and press the increase/decrease button to select the type of timing unit: 0,1,2; Our product SV is “1”, which means the timing unit is minute.


   Code	Item	Value	Introduction	Remark
   P0	Timing unit	0	Second	Time range: 0-999s
   		1	Minute	Time range: 0-999min
   		2	Hour	Time range: 0-999h



   0 means the timing unit is second

   1 means the timing unit is minute

   0 means the timing unit is an hour

   In our products the timing unit is minute, so PV is “P0” / “SV” is “1”
   After P0 is set, wait for 3 seconds. The device automatically saves the Settings and rolls back the display.

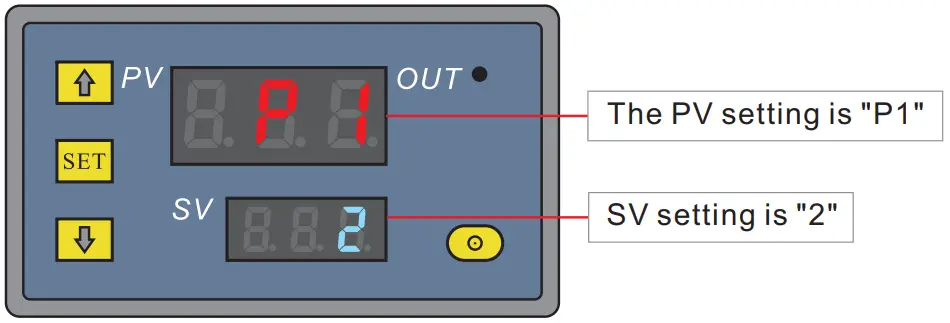

2. After setting the timing unit, long press the set button, the PV is “P0”, then press the set again, the PV change to “P1”, and press the increase/decrease button to select the type of operating mode: 0,1,2,3,4,5; Our products SV is “2”, that means timed offafter timing on.


   Code	Item	Value	Introduction
   P1	Operating mode	0	Timed on
   		1	Timed off
   		2	Timed off after timing on
   		3	Timed on after timing off
   		4	Cycle timing on-off
   		5	Cycle timing off-on

   In our products, the operating mode is timed after timing on, so PV is “P1″/”SV” is “2”.
   After P1 is set, wait for 3 seconds. The device automatically saves the Settings and rolls back the display.

3. After setting the Operating mode, short press the set button, PV digital tube is blinking, press the increase /decrease key to set the corresponding time. the device after the time is on. Press the set again, the SV digital tube is blinking, press the increase /decrease key to set the corresponding time. The device after the time is off. Our products PV is “0”, SV is “20”.
4. During the operation, it starts counting down and stops working when counting down to “0”.
5. During operation, the therapy can be stopped by pressing the power button at any time.
6. Automatically save the last setting after power off, and continue working after power on.
7. When the product is powered on, it will automatically start running. In the running state, long press the “restart” key to restart.

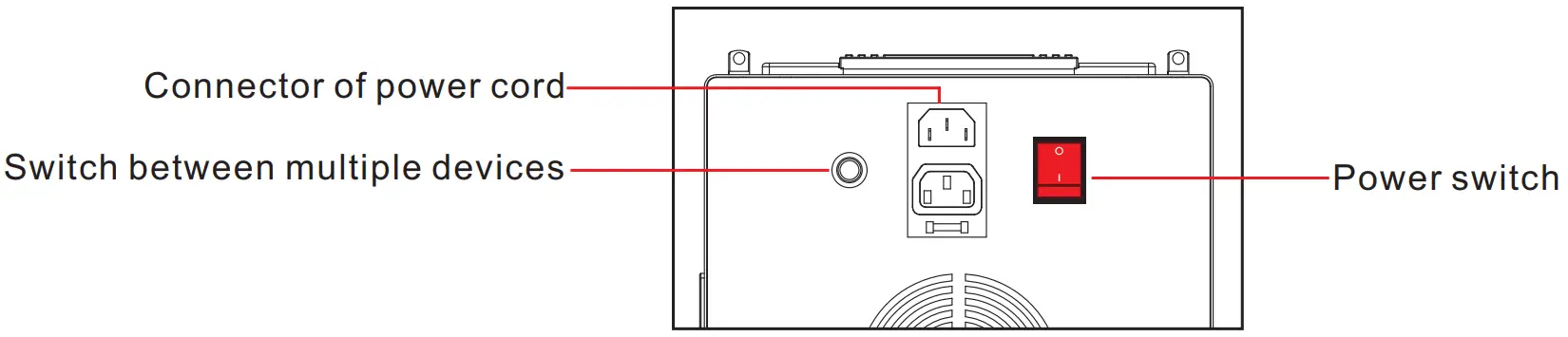

FUNCTION

USER INSTRUCTION

1. Place your device
   A: Using the hook, hand it to the place that`s most convenient for you.
   B: Using the stand, set it in the place that`s most convenient for you.
   Note: DistanceApply the light from0-18″.
2. Input voltageAC110-240V
   Flip the power switch and set the timer as per your request. Then the device will work.
3. Enjoy the red light device
   Exposure to each area for 5-30 minutes, depending on the distance, Then move to the next treatment area.

WE RECOMMEND
Expose your skin for the best results
For skin issues, we want between 5 J to roughly 15 J per area. So optimal treatment times with the lights are:
A. 30 seconds to 2.5 minutes per area (if the light is 6″ away).
B. 1 to 3.5 minutes per area (if the light is 12″ away).
C. 2 to 5 minutes per area (if the light is 18″ away).
For deeper issues (muscle, bone, brain, organs, glands, fat, etc.).
We want around 20-60 J per area, so optimal treatment times and treatment distances are:
A. 2 to 7 minutes per area (if the light is 6″ inches away).
B. 5 to 10 minutes per area (if the light is 12″ away).
C. 8 to 15 minutes per area (if the light is 18” away).
Frequency: Do this 2 to 14 times a week until results are felt.

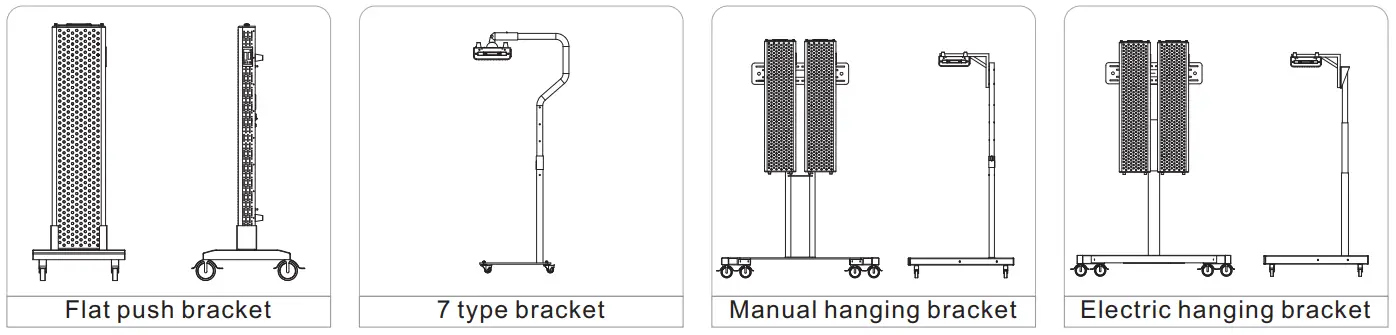

MOUNTING BRACKET SELECTION

Note: For detailed instructions, please read the bracket installation manual

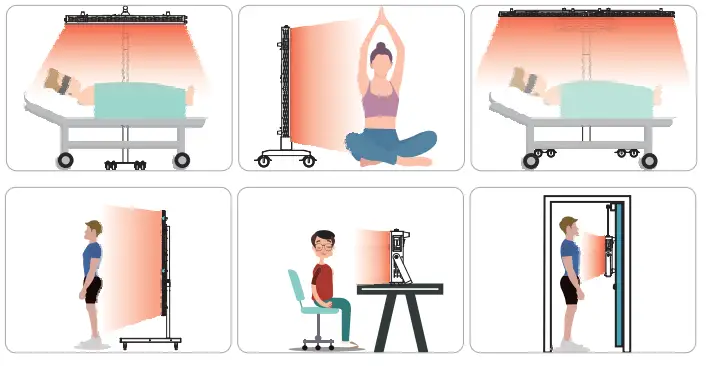

SCENE USE

WHAT ARE THE BENEFITS OF RED LIGHT?
Research shows, that the wavelengths in the spectrum of 660-850nm show optimal biotic response.

Even though this technology doesn’t have side effects, we suggest taking the following precautions.

• Not intended for use by children and pregnant women.
• Do not exceed 30 Min. On one treatment.
• Don’t stare directly at the light, or were eye protection when lighting.

Contact your doctor if you :
a. Have any medical questions?
b. Suspect that you have had a negative reaction from using the device.
c.Are taking drugs known to cause light sensitivity?
