Temtop P600 Air Quality Monitor Professional Indoor User Manual

Temtop P600 Air Quality Monitor Professional Indoor

Product Overview

Laser particle detector can accurately detect the air quality. Adopting laser particle sensor, it can directly transform the concentration of pollutants in the air into visual data and provide air quality for you to effectively safe­guard the health of your family.

Application Scope

Indoors, Outdoors, Vehicles, etc.

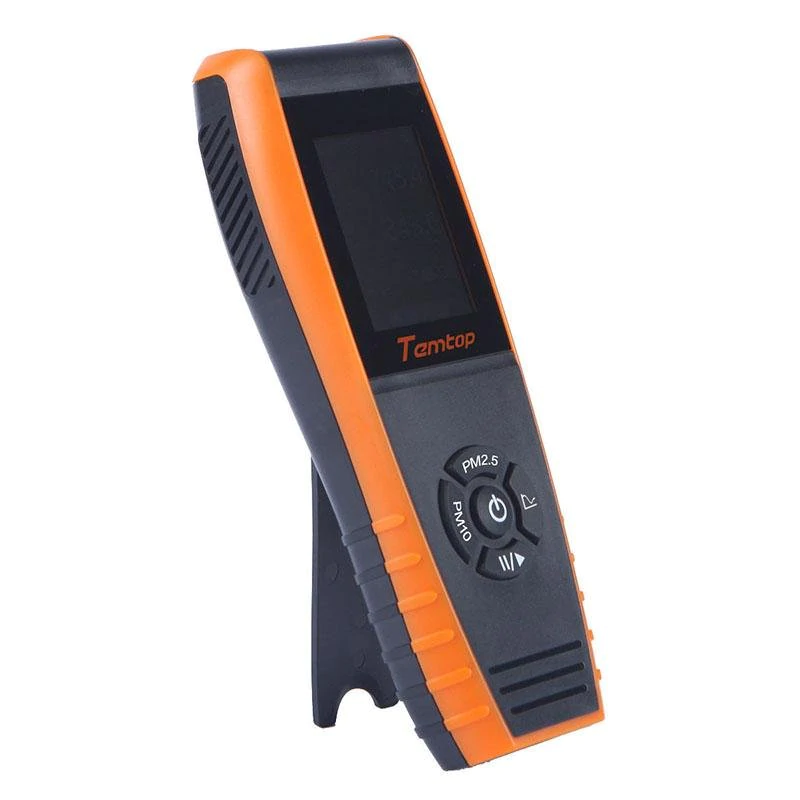

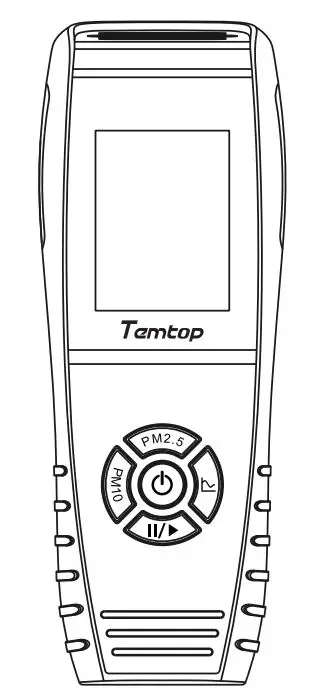

Product Appearance

Display

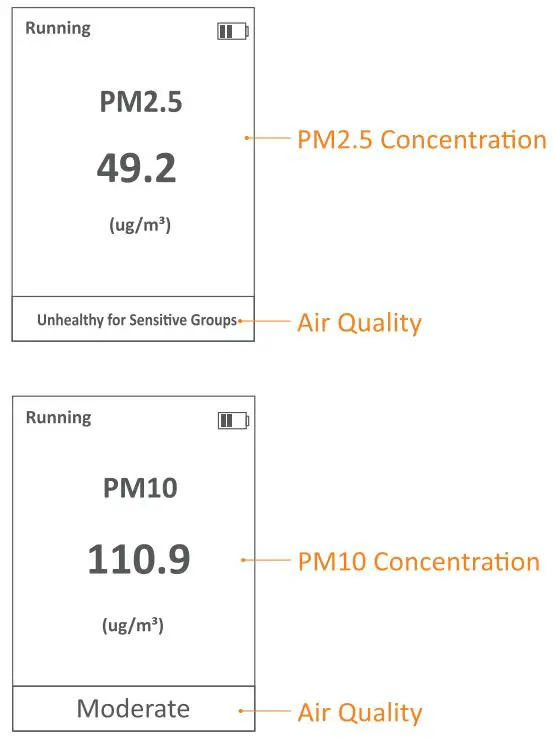

Data View

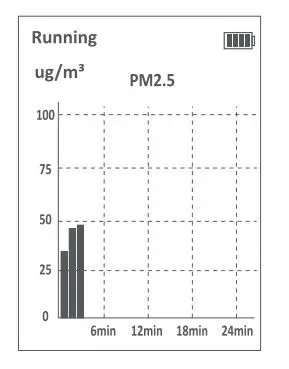

Graph View

Operation Method

1. Turn on/off the detector
   Press and hold the power button for 2 seconds to turn on/off the detector. No operation for lh, it will turn off too, except for the recording curve display interface.
2. Det ect the concentration of PM2.5, PMlO
   Turn on the detector and put it in the environ­ment which needs testing, then the system will automatically detect the concentration of PM2.5, PMlO.
3. Power indication
   The detector has the function of testing the battery power. When it is IIIID , the battery is full; When it shows D , the battery is low. Please charge.
4. Switch of display cortent
   • PM2.5 Button:Press it and the system will enter PM2.5 index display interface.
   • PMlO Button: Press it and the system will enter PMlO index display interface.
   • Button: Press it and then the system will enter PM2.5 recording curve display interface.
   • II/► Button: Under the mode of “Running” , if you press it, the system will enter detection­pause mode and all values are maintained; Under the mode of “Hold” , if you press this button, the system will reenter real time detection mode.

Product Specifications

• Name: Laser particle detector
  • e Model: P600
• Display mode: TFT color LCD screen
• Battery voltage: 3.7VDC
• Overall dimension: 177*65.5*32 mm
• Power adapter:
  • Output voltage: DC5V
  • Output current: lA
• Operating environment: Temperature range: 0-50°C (32-122°F) Humidity range: 0-90% RH Atmospheric pressure condition: latm
• Measurement index and range:
  • PM2.5 measurement technical index
  • Range: 0-999ug/m3
  • Resolution: 0.lug/m3 PMl0measurement technical index
  • Range: 0-999ug/m3
  • Resolution: 0.lugm3

Health Parameters Guide

Operation Notice

• The sensor used to detect PM2.5, PMlO adopts laser detection theory, so objects like battings and hair should be prevented from entering the detector to avoid influencing the accuracy of test data.
• Do not put the detector in the environ­ment where the concentration of particles is more than 500ug/m3 for long time. Long-time exposure to high-concentration air pollutants will damage the sensor and make it work improperly.
• Avoid using the detector in humid environ­ment to make sure the accuracy of test data.
• Avoid bump, strike and drop.
• Do not cover the detection port and air outlet port when using the detector.

Fault Description
Display problem: please check the battery power. If it still cannot display, please contact the service center.
Data problem: Change the test environment and restart the detector. If the problem still cannot solved, please contact the service center.

Packing List

• P600 Detector x 1
• USB Cable x 1
• User Manual x 1

WARRANTY

Temtop warrants the included detector for 1 year from the date of original purchase. The item can be exchanged or returned within 30 days if the defect is not caused by artificial damage.

Before return or delivery for repair, please check if the following items are ready:

Temtop warranty does NOT include:

• Malfunction or damages caused by artificial damage or modification.
• Other deliberate damages.
• Damages caused by force majeure.

Elitech Technology, Inc. 2528 Qume Dr, Ste 2 San Jose, CA 95131 USA (+1)408-844-4070 [email protected] www.temtopus.com Made in China
