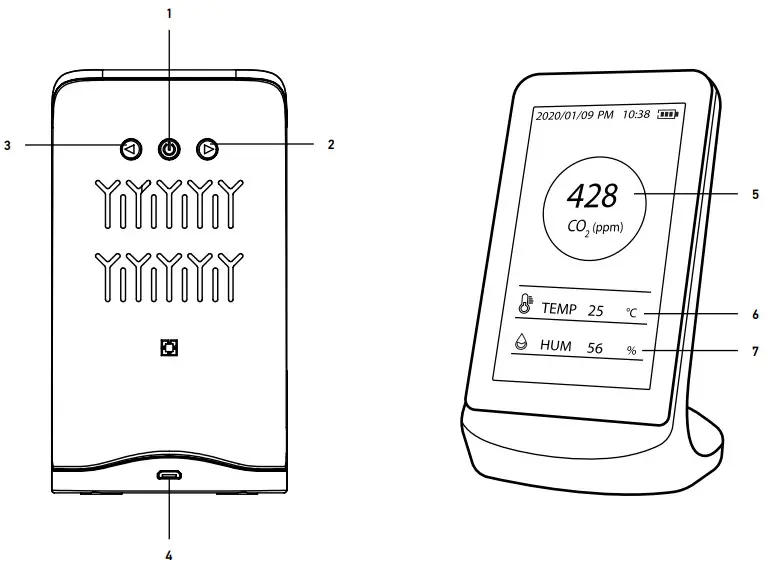

Overview

Power button
UP button
DOWN button
Micro USB port
Current CO2 value (ppm)
Temperature
Humidity

Caution! Please remember that mains voltage in most European countries is 220–240V. If you want to use your device in a country with a different mains voltage standard, remember that use of a converter is absolutely necessary.

Charging the device

Connect the micro USB cable to the device. Then, with a DC adapter (not included) via a USB plug connect it to the AC power supply. Attention! The device operates from the AC power supply, as the voltage of the computer’s USB port is insufficient for the proper operation of the device.

Using

Press (1) for 3 seconds to turn the device on/off.

Settings

Press (1) twice. Press (2) or (3) to change the value, and then press (1) to continue.

The setting order: date > time > temperature unit (°C/°F) > alarm sound on/off > temperature offset.

History record

Press (2)/(3) to navigate the trend screen. The graph shows the last 5 CO2 data values every 10 minutes over the past 50 minutes.

CO2 scale

Air quality level	Current CO2 value (ppm)	Indication
Good normal outdoor air CO2 level	400–800	Green
Ok ventilation is recommended	800–1200	Yellow
Poor is associated with such symptoms as headache, sleepiness, poor attention, increased heart rate, and nausea	1200–5000	Red

Specifications

Operating CO2 range: 400–5000ppm
Air humidity, units of measurement: % (RH)
Operating humidity range: 20… 85%
Temperature, units of measurement: °C, °F
Operating temperature range: –10… +50°C (+14… +122°F)
Power supply: Li-ion battery (3000 mA∙h), DC adapter 5V 1000mA (not included)
Micro USB cable: included

The manufacturer reserves the right to make changes to the product range and specifications without prior notice.

Care and maintenance

Take the necessary precautions when using the device with children or others who have not read or who do not fully understand these instructions. Make sure that the air flow channels at the back of the device are not blocked or covered. Do not try to disassemble the device on your own for any reason. For repairs and cleaning of any kind, please contact your local specialized service center. Protect the device from sudden impact and excessive mechanical force. Store the device in a dry cool place. Only use accessories and spare parts for this device that comply with the technical specifications. Never attempt to operate a damaged device or a device with damaged electrical parts!
If a part of the device or battery is swallowed, seek medical attention immediately. Children should use the device under adult supervision only.

Battery safety instructions

Always purchase the correct size and grade of battery most suitable for the intended use. Always replace the whole set of batteries at one time; taking care not to mix old and new ones, or batteries of different types. Clean the battery contacts and also those of the device prior to battery installation. Make sure the batteries are installed correctly with regard to polarity (+ and –). Remove batteries from equipment that is not to be used for an extended period of time. Remove used batteries promptly. Never short-circuit batteries as this may lead to high temperatures, leakage, or explosion. Never heat batteries in order to revive them. Do not disassemble batteries. Remember to switch off devices after use. Keep batteries out of the reach of children, to avoid risk of ingestion, suffocation, or poisoning. Utilize used batteries as prescribed by your country’s laws.

Levenhuk International Lifetime Warranty

All Levenhuk telescopes, microscopes, binoculars, and other optical products, except for their accessories, carry a lifetime warranty against defects in materials and workmanship. A lifetime warranty is a guarantee on the lifetime of the product on the market. All Levenhuk accessories are warranted to be free of defects in materials and workmanship for six months from the purchase date. The warranty entitles you to the free repair or replacement of the Levenhuk product in any country where a Levenhuk office is located if all the warranty conditions are met.
For further details, please visit: www.levenhuk.com/warranty
If warranty problems arise, or if you need assistance in using your product, contact the local Levenhuk branch.
