PB-7
High Power Foldable PAR Bar
Item ref: 151.558UK
User Manual
Please read through this manual thoroughly before use, any damage caused by misuse of the product will not be covered by warranty.
Thank you for choosing this QTX PB-7 PAR bar. A foldable PAR bar kit is fantastic for mobile DJs and performers who need their lighting to be quick to set up and easily transportable. This PAR bar boasts 4 high-power Cans, each fitted with 7 x 3W RGB LEDs. Smooth color blending can be achieved by controlling with the included foot controller or via DMX.
In the box:
Your PB-7 should arrive at you in two separate cartons in good condition.
Carton 1:
- PAR bar with 4 LED PAR Cans
- Foot controller
- Foam carry case
- 2 x IEC mains lead (UK and EU)
Carton 2:
- 35mmØ tripod stand
- Stand bag
Warning:
To prevent the risk of fire or electric shock, do not expose the unit to rain or damp environments.
In the event of a spillage, disconnect the mains and allow the unit to dry out naturally.
Qualified personnel should then check the unit before continuing use.
 Please do not open the cover, contain high voltage. This product is not serviceable or repairable by the end-user.Please refer to qualified personnel for service and repair.  |
- Always check the correct voltage and the condition of the IEC lead before connecting to a power outlet.
- Always ensure any DMX leads used are in good condition with no short connections or damaged plugs.
Setup:
Release the clamp that holds the top bar in the folded position and unfold to the open position as pictured below. There are two clasps at the back of the unit that needs to be locked to keep the top bar in the open position.
The opened top bar can now be placed onto the supplied tripod stand and adjusted to the desired height. Each LED PAR Can pan and tilts to face different directions and angles.
Back panel:
| 1. LCD Display 2. Manual control buttons 3. DMX signal in (DMX male socket) 4. DMX signal out (DMX female plug) | 5. Foot controller socket 6. Built-in mic 7. IEC socket 8. Earth connection screw DO NOT REMOVE |
Press the “menu” button to enter the setting menu.
Press “up” and “down” to navigate through various setting options.
Press “enter” to enter the desired setting.
Choose set value by “up” and “down” buttons and confirm the setting by pressing “enter”.
| Display | Mode | Press ENTER for setting |
 | DMX address |  to  |
 | DMX channel mode |  |
 | Slave mode |  = master,  = slave 1,  = slave 2 |
 | Auto mode | to  |
 | Sound activation |  = sound to light on,  = sound to light off |
 | Microphone sensitivity |  (0-100% gain) |
 | Blackout mode |  = on,  = blackout |
 | LED display dimmer | = display off after 20s = constant display |
 | LED display inverted |  (normal or inverted display) |
 | Fixture test sequence | Fixture steps through all functions – press MENU to exit |
 | Fixture hours | Displays how many hours of use for the fixture |
Operation:
The PB-7 can operate in stand-alone, master, slave, or DMX modes.
Stand-alone/master/slave:
For stand-alone mode, first, choose whether sound to light is required by selecting or from
. Then select one of the eight pre-programmed modes from option
to
, select for random chase option. Further PB-7 units can be controlled by one master unit allowing synchronization. Ensure the master unit slave mode
is set as
and the controlled unit slave mode is set as or . Connect DMX out from the master unit to the DMX in of the slave unit.
DMX mode:
The PB-7 can be controlled by a DMX signal, simply connect the DMX signal source to the DMX in of the unit via a balanced XLR lead. Extra fixtures can be controlled by the same DMX signal by looping through the DMX out on the PB-7. Ensure the correct DMX start address is set from the
option on the manual control.

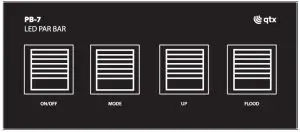

Foot Controller:
ON/OFF – Switches the PAR bar on and off
MODE – Scroll through all programmed modes
UP – Choose setting value
to
are 8 preset colours to are the 8 pre-programmed chase patterns to
are the speed option for the chase
are the Master/Slave mode
FLOOD – press to give maximum light output
DMX channel value reference:
1 channel mode:
| Channel | DMX Value | Function |
| Channel 1 sound to light active from 008-255 | 000-007 | Blackout |
| 008-037 | Pre-programmed Chase 1 | |
| 038-067 | Pre-programmed Chase 2 | |
| 068-097 | Pre-programmed Chase 3 | |
| 098-127 | Pre-programmed Chase 4 | |
| 128-157 | Pre-programmed Chase 5 | |
| 158-187 | Pre-programmed Chase 6 | |
| 188-217 | Pre-programmed Chase 7 | |
| 218-247 | Pre-programmed Chase 8 | |
| 248-255 | Random Chase 1-8 |
3 channel mode:
| Channel | DMX Value | Function |
| Channel 1 | 000-255 | Red dimmer 000-0% to 255-100% |
| Channel 2 | 000-255 | Green dimmer 000-0% to 255-100% |
| Channel 3 | 000-255 | Blue dimmer 000-0% to 255-100% |
7 channel mode:
| Channel | DMX Value | Function |
| Channel 1 | 000-255 | Red dimmer 000-0% to 255-100% |
| Channel 2 | 000-255 | Green dimmer 000-0% to 255-100% |
| Channel 3 | 000-255 | Blue dimmer 000-0% to 255-100% |
| Channel 3 | 000-255 | Master dimmer 000-0% to 255-100% |
| Channel 5 | 000-007 | N/A |
| 008-247 | Strobe, speed 0%-100% | |
| 248-255 | Sound to light strobe | |
| Channel 6 | 000-007 | N/A |
| 008-022 | Preset colour change 1 | |
| 023-037 | Preset colour change 2 | |
| 038-052 | Preset colour change 3 | |
| 053-067 | Preset colour change 4 | |
| 068-082 | Preset colour change 5 | |
| 083-097 | Preset colour change 6 | |
| 098-112 | Preset colour change 7 | |
| 113-127 | Preset colour change 8 | |
| 128-142 | Preset colour change 9 | |
| 143-157 | Preset colour change 10 | |
| 158-172 | Preset colour change 11 | |
| 173-187 | Preset colour change 12 | |
| 188-202 | Preset colour change 13 | |
| 203-217 | Preset colour change 14 | |
| 218-232 | Preset colour change 15 | |
| 233-247 | Preset colour change 16 | |
| 248-255 | Colour chase to sound | |
| Channel 7 | 000-007 | N/A |
| 008-255 | Colour change speed 0-100% |
12 channel mode:
| Channel | DMX Value | Function |
| Channel 1 | 000-255 | PARcan1 Red dimmer 0-0% to 255-100% |
| Channel 2 | 000-255 | PARcan1 Green dimmer 0- 0% to 255-100% |
| Channel 3 | 000-255 | PARcan1 Blue dimmer 0-0% to 255-100% |
| Channel 4 | 000-255 | PARcan2 Red dimmer 0-0% to 255-100% |
| Channel 5 | 000-255 | PARcan2 Green dimmer 0- 0% to 255-100% |
| Channel 6 | 000-255 | PARcan2 Blue dimmer 0-0% to 255-100% |
| Channel 7 | 000-255 | PARcan3 Red dimmer 0-0% to 255-100% |
| Channel 8 | 000-255 | PARcan3 Green dimmer 0- 0% to 255-100% |
| Channel 9 | 000-255 | PARcan3 Blue dimmer 0-0% to 255-100% |
| Channel 10 | 000-255 | PARcan4 Red dimmer 0-0% to 255-100% |
| Channel 11 | 000-255 | PARcan4 Green dimmer 0- 0% to 255-100% |
| Channel 12 | 000-255 | PARcan4 Blue dimmer 0-0% to 255-100% |
16 channel mode:
| Channel | DMX Value | Function |
| Channel 1 | 000-255 | PARcan1 Red dimmer 0-0% to 255-100% |
| Channel 2 | 000-255 | PARcan1 Green dimmer 0- 0% to 255-100% |
| Channel 3 | 000-255 | PARcan1 Blue dimmer 0-0% to 255-100% |
| Channel 4 | 000-255 | PARcan2 Red dimmer 0-0% to 255-100% |
| Channel 5 | 000-255 | PARcan2 Green dimmer 0- 0% to 255-100% |
| Channel 6 | 000-255 | PARcan2 Blue dimmer 0-0% to 255-100% |
| Channel 7 | 000-255 | PARcan3 Red dimmer 0-0% to 255-100% |
| Channel 8 | 000-255 | PARcan3 Green dimmer 0- 0% to 255-100% |
| Channel 9 | 000-255 | PARcan3 Blue dimmer 0-0% to 255-100% |
| Channel 10 | 000-255 | PARcan4 Red dimmer 0-0% to 255-100% |
| Channel 11 | 000-255 | PARcan4 Green dimmer 0- 0% to 255-100% |
| Channel 12 | 000-255 | PARcan4 Blue dimmer 0-0% to 255-100% |
| Channel 12 | 000-255 | PARcan4 Blue dimmer 0-0% to 255-100% |
| Channel 13 | 000-255 | Master dimmer 0-0% to 255- 100% |
| Channel 14 | 000-007 | N/A |
| 008-247 | Strobe, speed 0%-100% | |
| 248-255 | Sound to light strobe | |
| Channel 15 | 000-007 | N/A |
| 008-022 | Preset colour change 1 | |
| 023-037 | Preset colour change 2 | |
| 038-052 | Preset colour change 3 | |
| 053-067 | Preset colour change 4 | |
| 068-082 | Preset colour change 5 | |
| 083-097 | Preset colour change 6 | |
| 098-112 | Preset colour change 7 | |
| 113-127 | Preset colour change 8 | |
| 128-142 | Preset colour change 9 | |
| 143-157 | Preset colour change 10 | |
| 158-172 | Preset colour change 11 | |
| 173-187 | Preset colour change 12 | |
| 188-202 | Preset colour change 13 | |
| 203-217 | Preset colour change 14 | |
| 218-232 | Preset colour change 15 | |
| 233-247 | Preset colour change 16 | |
| 248-255 | Colour chase to sound | |
| Channel 16 | 000-007 | N/A |
| 008-255 | Colour change speed 0-100% |
Specifications
| Power | 110-240Vac, 50/60Hz (IEC) |
| Power consumption | 100W |
| Fuse rating | T7A |
| LED type | 3W RGB |
| Beam angle | 25° |
| DMX channels | 1, 3, 7, 12 or 16 |
| Maximum height | 1.69m |
| Dimensions : PAR bar | 1140 x 290 x 60mm |
| Dimensions : collapsed | 570 x 290 x 120mm |
| Dimensions : carry bag | 700 x 430 x 280mm |
| Weight : carry bag when full | 10.8kg |
| Weight: stand | 2.55kg |
| LED safety standard | BSEN62471:2008 |
Troubleshooting
| No power (mains) | Check mains voltage is correct and outlet is switched on |
| Check IEC lead and fuse (if fuse continually blows, refer to your dealer) | |
| No LED display | Press any control panel button and check the LED setting in the menu |
| No light output | Check control panel mode settings (standby, slave, sensitivity, DMX) |
| Check DMX settings from the controller (dimmer levels, blackout etc.) | |
| No strobe output | Check strobe settings on the control panel or from the DMX controller |
| Unresponsive to DMX | Check DMX connection and leads |
| Check that DMX mode is enabled (set “Addr” on the control panel) | |
| Overheating/ cutting out | Ensure that the unit is not too close to a heat source |
This product is classed as Electrical or Electronic equipment and should not be disposed of with other household or commercial waste at the end of its useful life.
The goods must be disposed of according to your local council guidelines.
Errors and omissions excepted.
