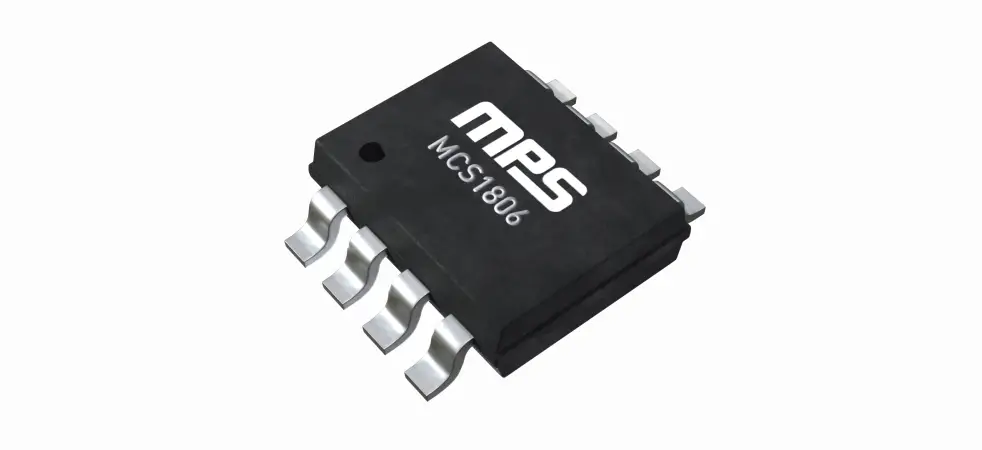

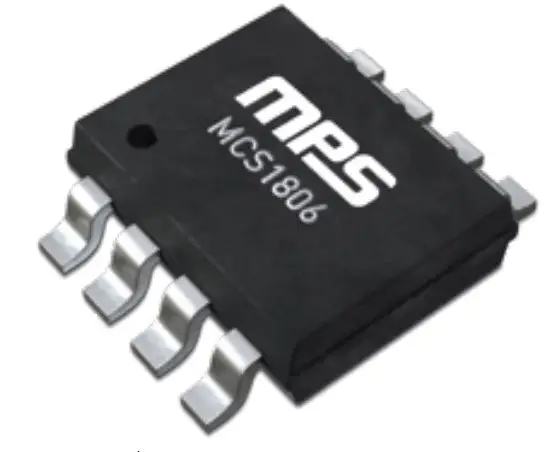

AUDAX ELECTRONICS MCS1806GS-3-05 Linear Hall-Effect Current Sensor Instructions
LINEAR HALL-EFFECT CURRENT SENSOR WITH ±2.5 % ACCURACY

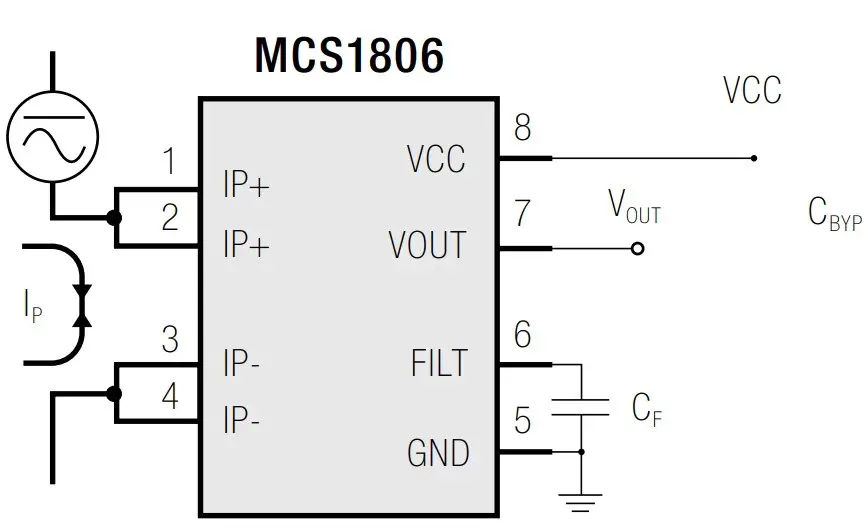

The MCS1806 is a linear Hall-effect current sensor for AC or DC current sensing. The Hall array is differential, which cancels out any stray magnetic field. A primary conductor with a low resistance allows current to flow close to the IC, which contains high-accuracy Hall effect sensors. This current generates a magnetic field that is sensed at two different points by the integrated Hall-effect transducers.
The magnetic field difference between these two points is then converted into a voltage that is proportional to the applied current. A spinning current technique is used for a low stable offset. The galvanic isolation between the pins of the primary conductive path and the sensor leads allows the MCS1806 to replace optoisolators or other isolation devices.
The MCS1806 requires a minimal number of readily available, standard external components. The device’s small footprint saves board area and makes it well suited for space-constrained applications. The MCS1806 is available in an SOIC-8 package.
The following products are in production
| PART NUMBER* | TYP. SUPPLY VOLTAGE (V) | OPTIMIZED PRIMARY CURRENT RANGE (A) | TYP. SENSITIVITY (SENS) (mV/A) | TOP MARKING | MSL RATING |
| MCS1806GS-3-05 | 3.3 | ±5 | 264 | MCS1806 | 1 |
| MCS1806GS-3-10 | 3.3 | ±10 | 132 | ||
| MCS1806GS-3-20 | 3.3 | ±20 | 66 | ||
| MCS1806GS-3-30 | 3.3 | ±30 | 44 | ||
| MCS1806GS-3-40 | 3.3 | ±40 | 33 | ||
| MCS1806GS-3-40 | 3.3 | ±50 | 26.4 | ||
| MCS1806GS-5-05 | 5 | ±5 | 400 | ||
| MCS1806GS-5-10 | 5 | ±10 | 200 | ||
| MCS1806GS-5-20 | 5 | ±20 | 100 | ||
| MCS1806GS-5-30 | 5 | ±30 | 66 | ||
| MCS1806GS-5-40 | 5 | ±40 | 50 | ||
| MCS1806GS-5-50 | 5 | ±50 | 40 |
*For tape & reel, add suffix -Z (e. g. MCS1806GS-3-05-Z)
FEATURES & BENEFITS
- 3.3 V or 5 V single supply optional
- Immune to external magnetic fields by differential sensing
- 2.6 kVRMS minimum isolation voltage
- 500 VRMS maximum working voltage
- ±2.5 % total accuracy from TJ = 25 °C to 125 °C
- 0.9 mΩ internal conductor resistance
- 5 A to 50 A bidirectional range
- Adjustable bandwidth up to 100 kHz
- Ratiometric output from supply voltage
- Output proportional to AC or DC currents
- Factory-trimmed for accuracy
- No magnetic hysteresis
- Integrated shield suppressing capacitive
- Coupling from current conductor to die (up to 10 V/ns)
- Available in an SOIC-8 package
- All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive

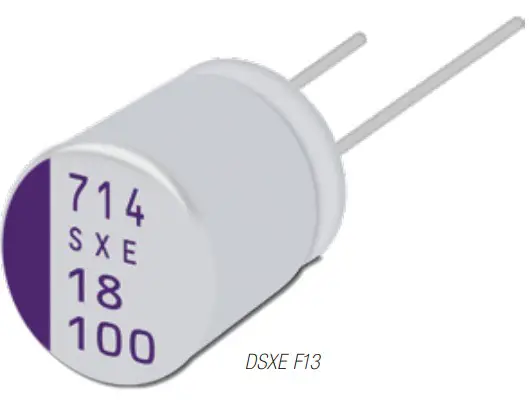

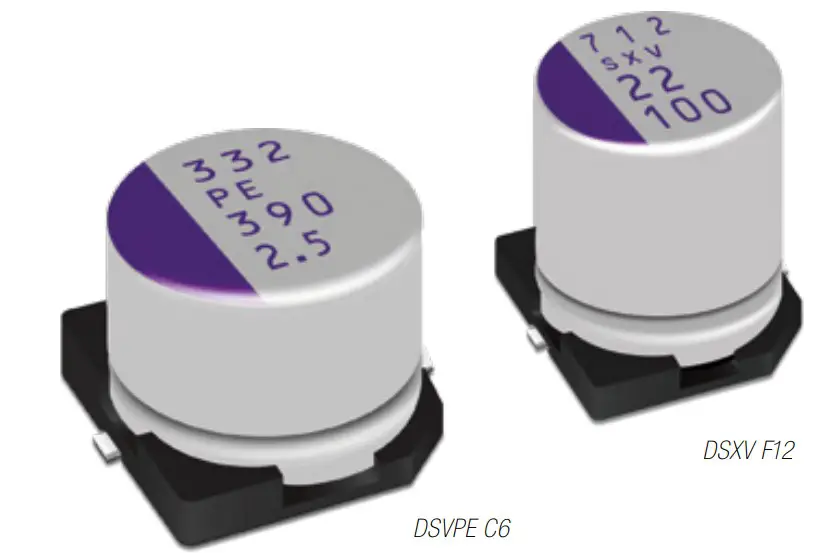

EXTENSION OF THE POPULAR PANASONIC OS-CON SXV/SXE/SVPE SERIES
Solid capacitors with conductive polymer offer highest ripple current and lowest ESR values in SMD as well in radial design with the industry’s longest life time up to 20000 hr @ 105 °C.
Panasonic announced the extension of their popular polymer capacitors
Os-Con SXV/SXE/SVPE series by 6 more part numbers. The ultra high voltage series “SXV”(SMD) and “SXE”(THT) are now enhanced by a 72 Vdc/82 µF version and offers one of the highest CV products of the series. The “SVPE” (SMD) series, that focuses mainly on low ESR and high capacitance offers now two new models with 2.5 Vdc/820 µF and6.3 Vdc/390 µF. All new part numbers have been developed to follow the market demand and are ideal solutions for high current DC/DC converters for both input and output side.
New items
| SERIES | SHAPE | TYPE | VOLTAGE Vdc | CAPACITANCE µF | ESR mOhm | RIPPLE CURRENT (105 °C) mA | ENDURANCE | SIZE CODE |
| SXV | SMD | 72SXV82M | 72 | 82 | 28 | 3100 | 125°C/1000 hr | F12 (10 x 12.6 mm) |
| SXE | THT | 72SXE82M | 72 | 82 | 28 | 3100 | 125°C/1000 hr | F13 (10 x 13 mm) |
| SVPE | SMD | 2R5SVPE820M | 2.5 | 820 | 10 | 3900 | 105°C/2000 hr | C6 (6,3 x 5,9 mm) |
| SVPE | SMD | 6SVPE390M | 6.3 | 390 | 10 | 3900 | 105°C/2000 hr | C6 (6,3 x 5,9 mm) |
FEATURES
- Very low ESR
- Very high ripple current
- Very long life time
- Ultra high voltage (SXV/SXE series)
- Very low ESR and high capacitance (SVPE series)
APPLICATIONS
- DC/DC converter in industrial, consumer and 3G applications
- Server, 5G, base-station for DC/DC input
- Game, server for DC/DC output
TAILOR-MADE SOLID STATE LIGHTING SOLUTIONS
Audax Electronics is an original design manufacturer based in Brazil and enables its light engines with the latest technologies.
Using the latest SMD technologies, for a variety of indoor, outdoor, and horticultural applications, it also has a complete electronic manufacturing area to produce your project according to international standards. These projects can cover both electronics and optics, thermal management, and mechanical validation.
| PART NUMBER | MODEL | RAD. POWER | POWER |
| 80338000100 | COB UVC 19 x 16 mm | 70 mW | 4 W |
| 80338100100 | COB UVC 24 x 19 mm | 280 mW | 16 W |
| 80338200100 | COB UVC 38 x 38 mm | 630 mW | 36 W |
| 80338300100 | COB UVC 38 x 38 mm | 120 mW | 64 W |
| 80367200100 | COB UVC 38 x 38 mm | 750 mW | 100 W |
| 80405100100 | VIOLETTA Development Kit | 70 mW | 4 W |
| 80397300100 | VIOLETTA UVC 40 x 30 mm | 70 mW | 4 W |
| 80397400100 | VIOLETTA UVC Ø86 mm | 210 mW | 12 W |
| 80397500100 | VIOLETTA UVC 80 x 80 mm | 280 mW | 16 W |
| 80338400100 | VIOLET UVC 281 x 19.2 mm + Alert Light | 420 mW | 33 W |
| 80338500100 | VIOLET UVC 281 x 19.2 mm + Alert Light | 560 mW | 38 W |

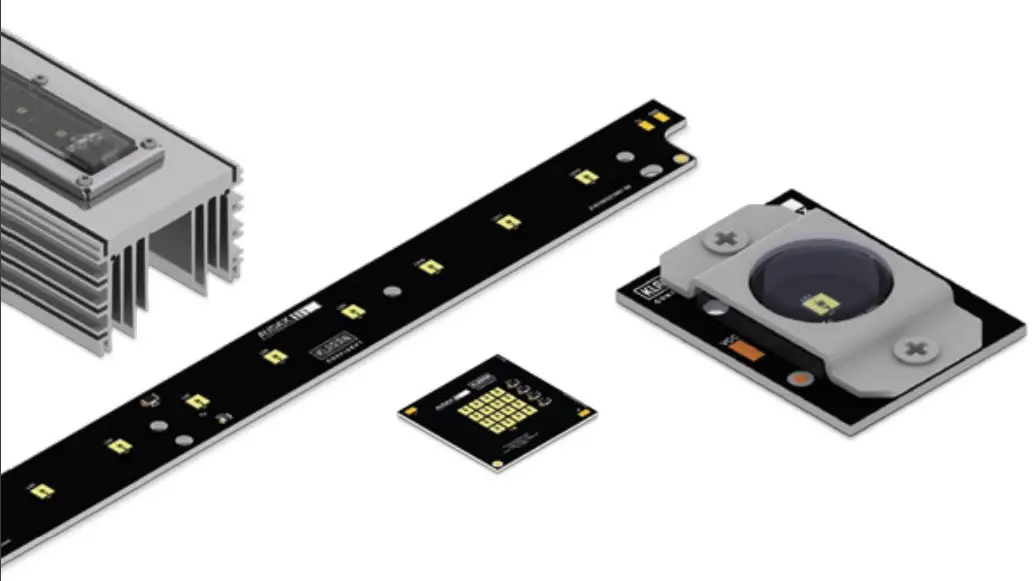

UVC LIGHT ENGINES PORTFOLIO
With the advances of UVC sterilization LED technology, Audax Electronics has partnered with Crystal IS, manufacturer of Klaran UVC LEDs, to provide you with a high quality UVC LED solution for disinfection, launching its brand new portfolio of UVC light engines. Because of their small form factor, the UVC LEDs can be implemented into a wide range of applications. Audax Electronics offers a variety of solutions that are also compatible with LEDiL optics and Bender+Wirth holders.
FEATURES
- UV emission type C
- Wavelength:
- 260 – 270 nm
- Efficiency up to 2.1 %
APPLICATIONS
- HEPA filters
- Water purification
- Medical sterilization
- Infectious disease control
HOW DOES UVC RADIATION WORK
Although illuminance is measured relatively with the human eye perception, the same is not appliable when using ultraviolet radiation.
HOW DOES UVC RADIATION WORK
All radiation is a form of energy. A given ultraviolet (UVC) power source is ought to be measured in radiant power, considering the distribution of energy along the spectrum, measured with typical units of mW (milliwatts).

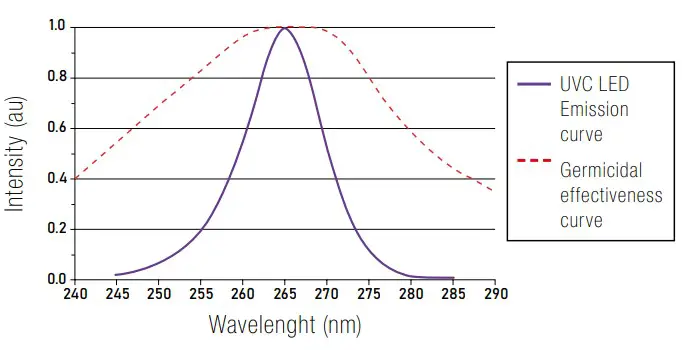

Spectral Power Distribution

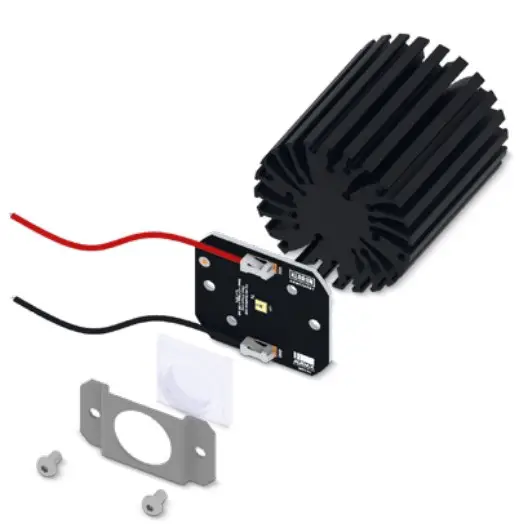

VIOLETTA DEVELOPMENT KIT

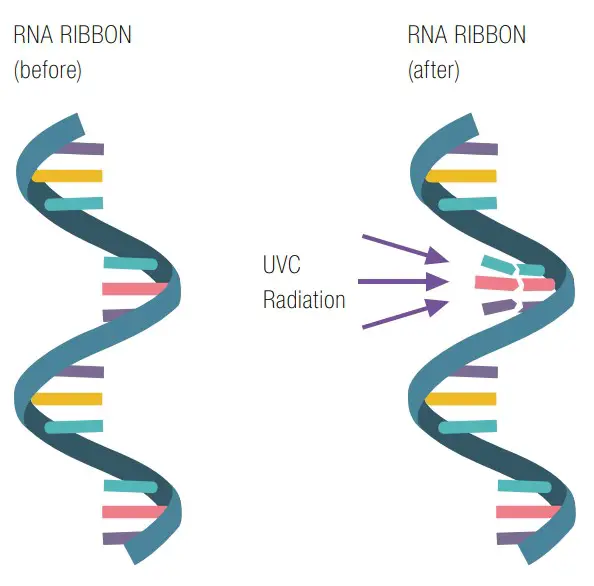

It is widely accepted that it is not necessary to kill pathogens with UV light, but rather apply enough UV light to prevent the organism from replicating. It is also proven scientifically that the LED uniqueness of controlling light emission to a specific 265 nm wavelength peak can result in higher absorption by organisms. Therefore, disabling more effectively pathogens such as Adenovirus and SARS-CoV-2 (COVID-19).
The UV doses required to prevent replication are orders of magnitude lower than required to kill, making the cost of UV treatment to prevent infection commercially viable. Interested? Test out our Violetta development kit!
UVC light engine design is one of the many capabilities that Audax Electronics can offer. Check out our website for more information.
LOW-THD-LOUDSPEAKER P40CR30PC FROM VANSONIC ENTERPRISE CO. (VECO)
The well-known Taiwan-based acoustic parts manufacturer VECO recently introduced a new state-of-the-art speaker capsular system, mainly for use in applications such as highend headsets, phone/ doorphone handsets and alike.
When being driven at 10 mW input power, the distortion level is still maximum 2 % in a frequency range from 100 Hz to 8 kHz, which mainly contributes to human audibility and therefore is most important for ensuring clarity of sound and finally producing an excellent audibility.
For try-out, first testing and evaluation purposes, a limited number of samples is already avalilable from Endrich Headquarters. So if interesting for you, please contact our staff as mentioned below.

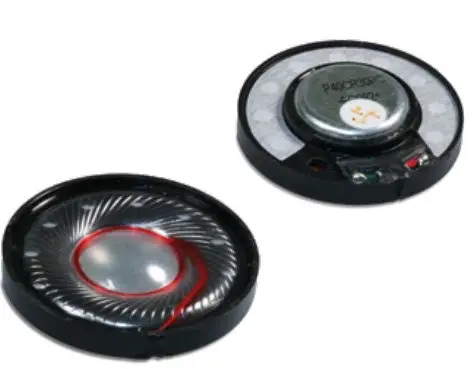

Low-THD-loudspeaker P40CR30PC
FEATURES
- Round shape with outer housing diameter of 40 mm
- Flat height of nominal 7.5 mm only
- DC resistance 30 ohm (equivalent to a nominal impedance of 32 ohm)
- Normal input driving power is 15 mW, while the item can also endure driving with a short-time peak input power of up to 30 mW, and should still operate normally afterwards
- Smooth SPL response curve without sharp peaks or dips for audible frequency range
- Very low THD (typically less than 0.5 % as per conditions mentioned in data sheet)

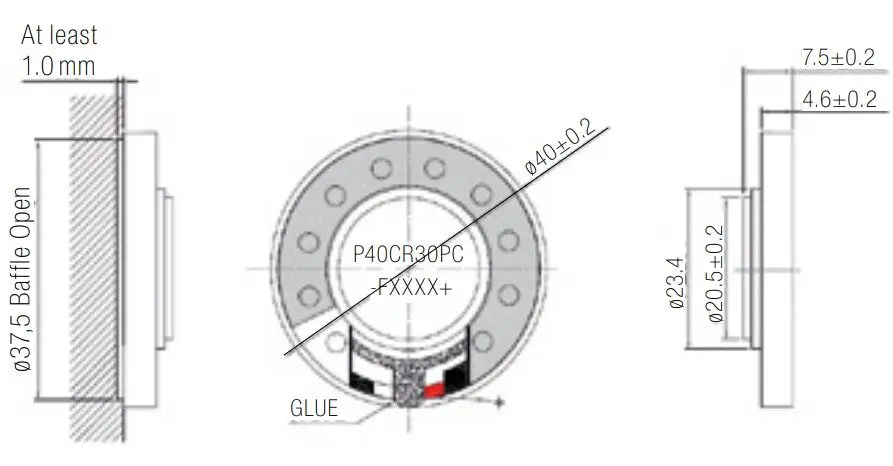

Mounting recommendation
UNSER WEBINAR IM JULI

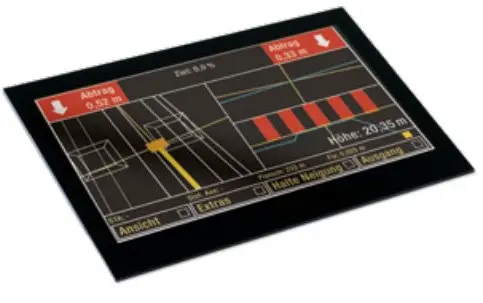

TFT-Display mit Touch

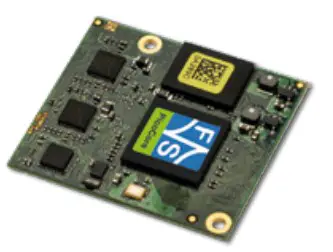

Das PicoCore CoM-Board
INVITATION TO EMBEDDED WORLD 2022 – FINALLY LIVE AGAIN IN NUREMBERG

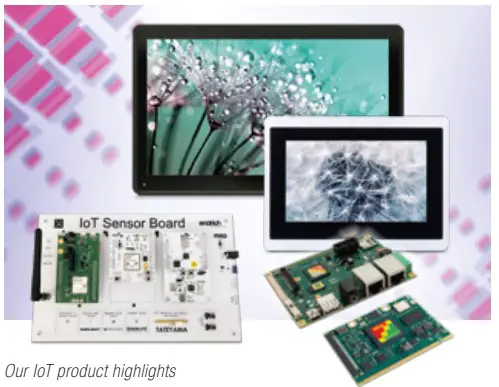

Our IoT product highlights
At Endrich, as your electronics design-in distributor, we can understand your application holistically through our technical expertise and broad product portfolio. This enables a make-orbuy decision for you to shorten your development times.
We invite you to visit our stand at embedded world again this year, where everything revolves around the topic of IoT. Our main topics are “Intelligent Connected Sensors”, “Data Visualization Gateway” and “Endrich Cloud Services”. We will be presenting our latest products in these areas.
In the area of Intelligent Connected Sensors, we will be showing live demos of how the latest LPWA technology can be used to connect sensors to the IoT. Cat-NB1, Cat-NB2, Cat-M1 and Cat-M2, but also with Bluetooth BT5.1, data can be transmitted quickly and securely to the cloud.
The very high-performance Core i5 Touch PCs, i.MX8 embedded boards, the whitest and fastest e-paper displays are only a small selection of products in the Data Visualisation Gateway area.
With the Endrich Cloud Services, Endrich provides the embedded developer with a multi-layer cloud-based solution from infrastructure (IaaS) via platform (PaaS) to software service (SaaS).
We will be happy to provide you with a free ticket for your visit to the fair. Simply redeem your personal voucher codeew22466856 under the following link: embedded-world.de/voucher
We take time for your individual needs! Therefore, let us arrange an appointment in advance. You can reach us at: [email protected]
We look forward to your visit! Your End rich Team
