GentleSpace 3
BY480P, BY481P

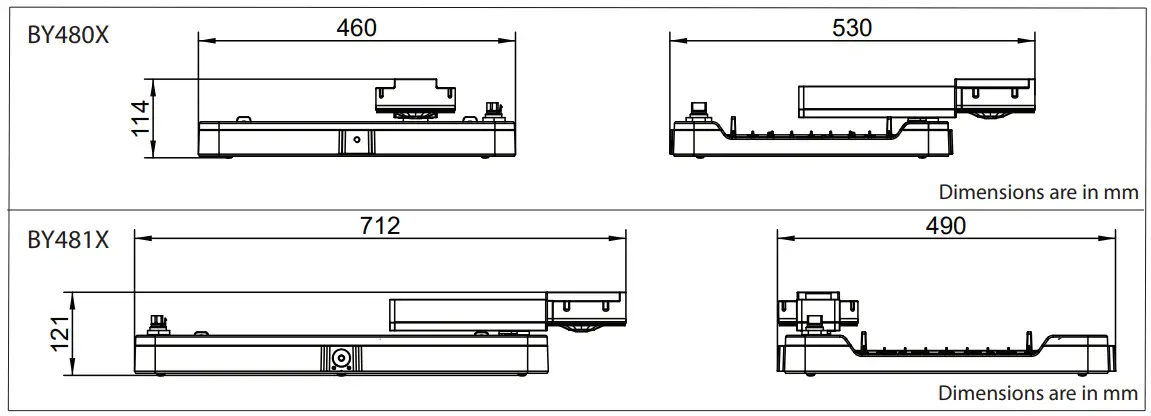

BY480X, BY481X
Swimming Pool versions
Instructions

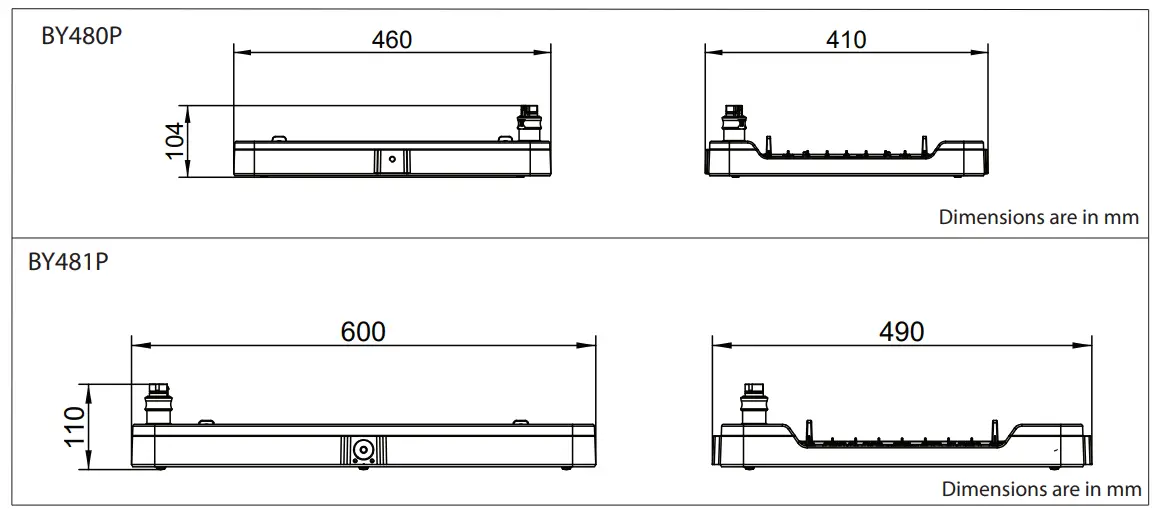

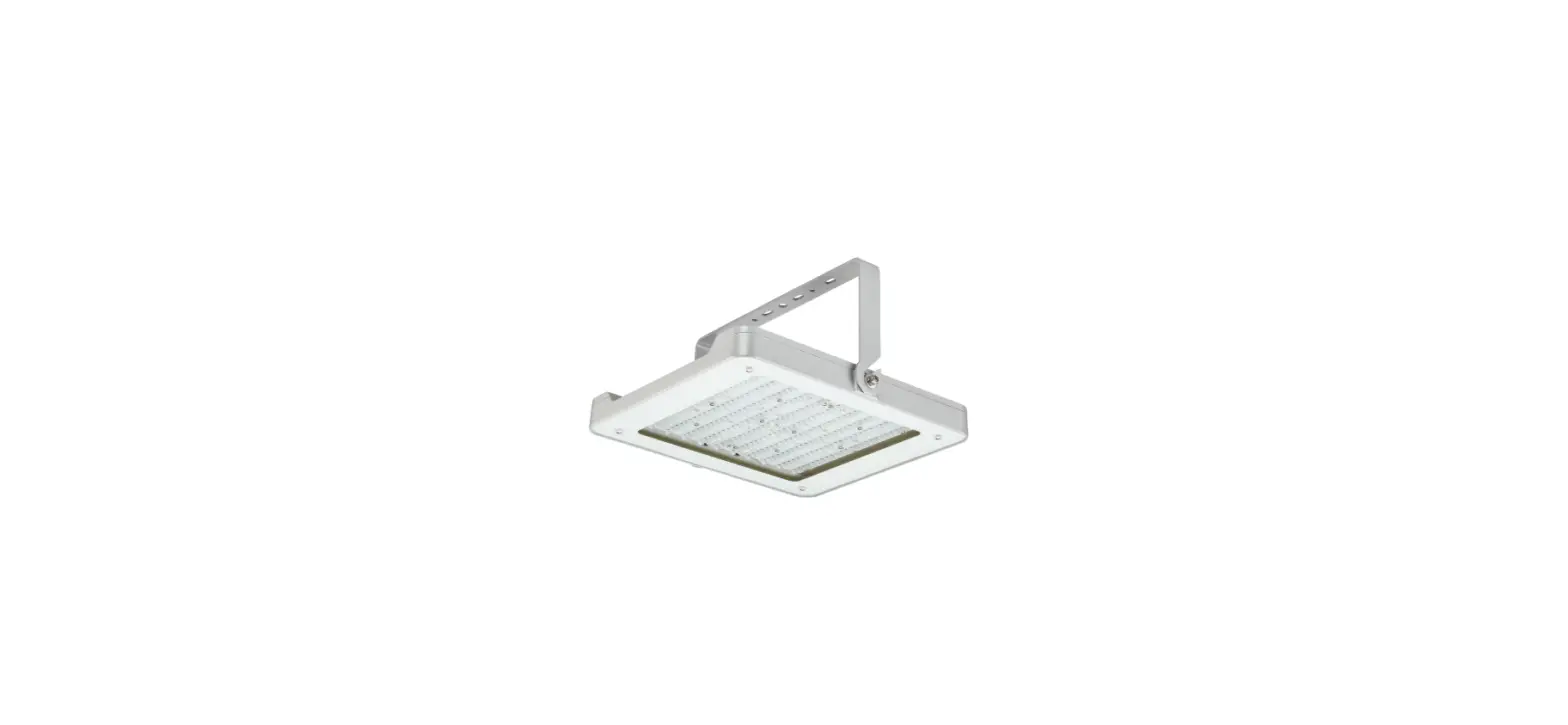

BY481P GentleSpace 3 Light
| BY48OP LED130S | 85 | 7.9 | IKO7 | 45°C | -30°C | 17,5 cm | |
| BY48OP LED170S | 113 | 8 | IKO7 | 45°C | -30°C | 17,5 cm | |
| BY481 P LED250S | 156 | 12 | IKO7 | 45°C | -30°C | 20 cm | |
| BY481 P LED350S | 235 | 12 | IKO7 | 45°C | -30°C | 20 cm | |
| BY48OP LED170S BR | 113 | 8.5 | IKO7 | 45°C | -30°C | 17,5 cm | |
| BY481 P LED250S BR | 156 | 12.9 | IKO7 | 45°C | -30°C | 20 cm | |
| BY481P LED250S ELXX | 160 | 12.5 | IKO7 | 25°C | 0°C | 20 cm | |
| BY481 P LED350S ELXX BR | 240 | 13.4 | IKO7 | 25°C | 0°C | 20 cm | |
| BY48OP LED170S PC | 113 | 7.2 | IKO8 | 45°C | -30°C | 17,5 cm | |
| BY481P LED250S PC | 156 | 11 | IKO8 | 45°C | -30°C | 20 cm | |
| BY48OX LED13OS | 85 | 8.4 | IKO2 | 45°C | -30°C | 17,5 cm | • |
| BY48OX LED170S | 113 | 8.5 | IKO2 | 45°C | -30°C | 17,5 cm | • |
| BY481X LED250S | 156 | 12.5 | IKO2 | 45°C | -30°C | 20 cm | • |
| BY481X LED350S | 235 | 12.5 | IKO2 | 45°C | -30°C | 20 cm | • |
| BY48OP LED1 30S XT | 85 | 7.9 | IKO7 | 70°C | -30°C | 17,5 cm | |
| BY48OP LED170S XT | 113 | 8 | 11(07 | 60°C | -30°C | 17,5 cm | |
| BY481P LED250S XT | 156 | 12 | 1K07 | 70°C | -30°C | 20 cm | |
| BY481P LED350S XT | 235 | 12 | IKO7 | 60°C | -30°C | 20 cm |

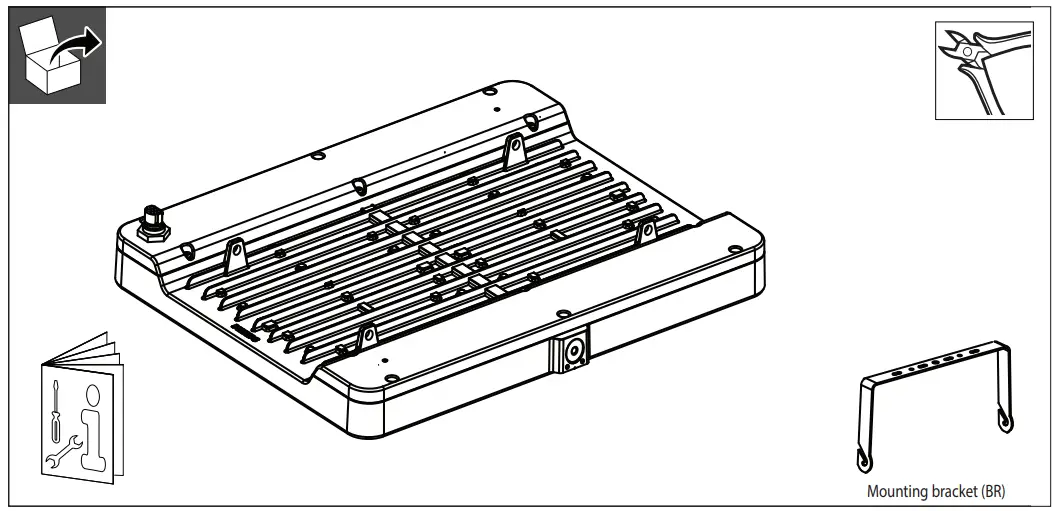

BR (Mounting bracket set)
BR (Mounting bracket set)

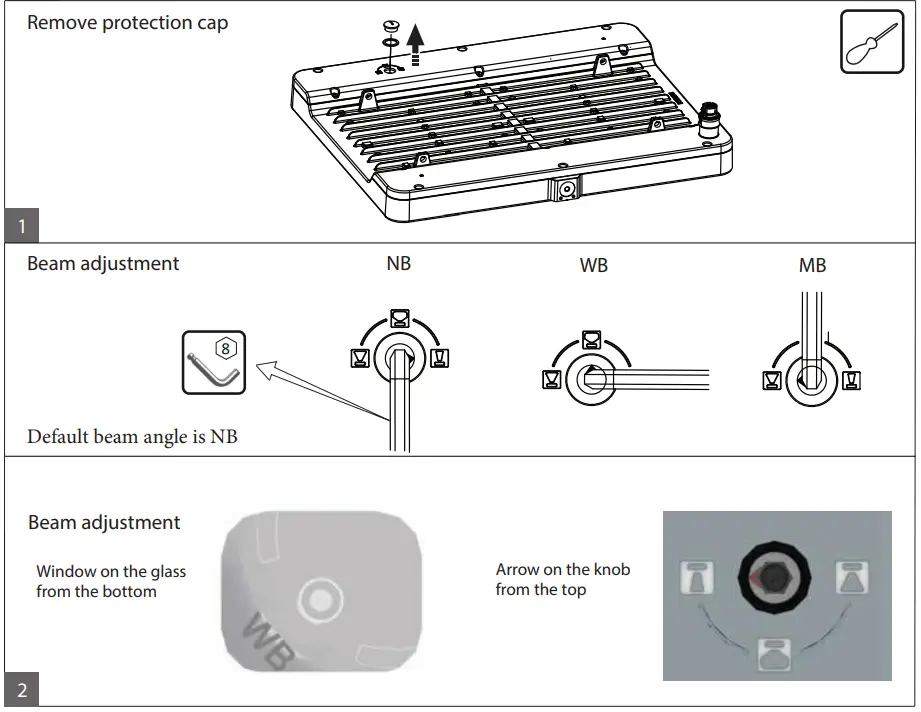

Adjustable Beam
Mount the protection cap
Protection cap must be tightened with proper torque to avoid loosing IP protection
The following versions of the luminaires should be positioned so that prolonged staring into the luminaire at a distance closer than the indicated value in the table is not expected!
All other standard luminaire types classified to Risk Group 1.
| LED engine with optic | Risk Group | Threshold distance dthr [111] |
| 130S1840 XNB | RG2 | 8,7 |
| 130S1865 NB | RG2 | 6,7 |
| 1305.865 XNB | RG2 | 11,1 |
| 170S/840 NB | RG2 | 5,6 |
| 170S/840 XNB | RG2 | 19,5 |
| 1705.865 MB | RG2 | 5,0 |
| 1705.865 HRO | RG2 | 6,2 |
| 170S1865 NB | RG2 | 7,3 |
| 1705.865 XNB | RG2 | 12,4 |
| 250S1840 XNB | RG2 | 11,6 |
| 250S/865 NB | RG2 | 9,1 |
| 250S/865 XNB | RG2 | 16,1 |
| 350S1840 NB | RG2 | 7,9 |
| 350S1840 XNB | RG2 | 13,6 |
| 3505.865 rvlB | RG2 | 7,7 |
| 350S1865 HRO | RG2 | 9,1 |
| 350S/865 NB | RG2 | 10,9 |
| 350S.7865 XNB | RG2 | 19,3 |
Aisle orientation for High Rack Optic (HRO)

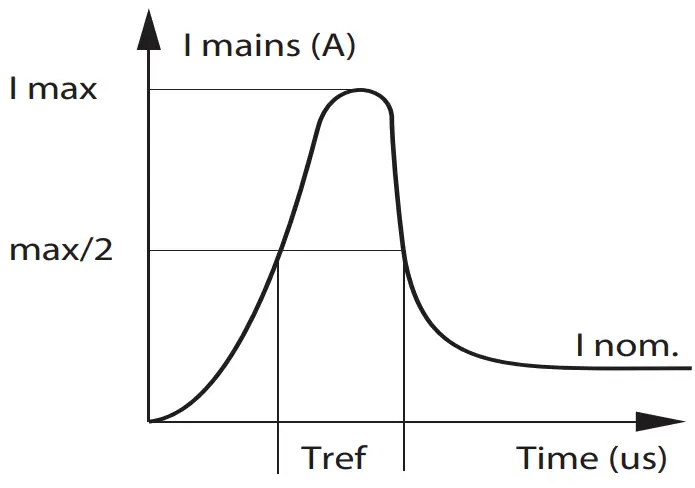

Inrush current
| LED130S, LED250S | LED170S | LED350S | |
| Electrical characteristics | |||
| Imax (A) | 5,1 | 17,7 | 15,3 |
| Tref (μs) | 2300 | 162 | 61 |
| MCB | No. of driver max. | ||
| B-10 A | 8 | 17 | 5 |
| B-16 A | 12 | 22 | 8 |
| C-10 A | 12 | 28 | 8 |
| C-16 A | 20 | 36 | 13 |

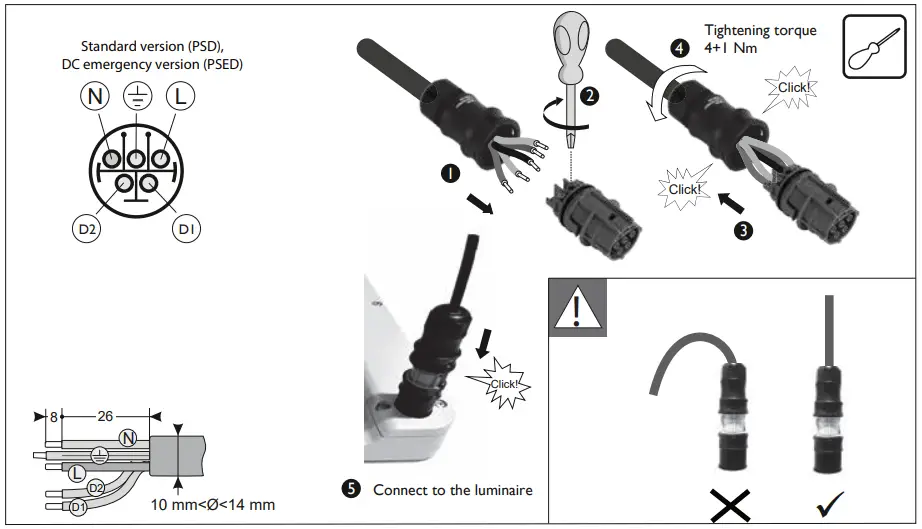

The luminaire shall be installed by a qualified electrician and wired in accordance with the latest IEE regulations or the national requirements.
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person
During the installation or maintaining the luminaire please use gloves to avoid spots on the cover
To remove dirt spots use the following:
– Dust: use micro fiber cloths
– Fingerprints, etc. : use a cleaner for with antistatic properties.
ATTENTION OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC SENSITIVE DEVICES
http://www.lighting.philips.com/main/systems/themes/service-tag.html

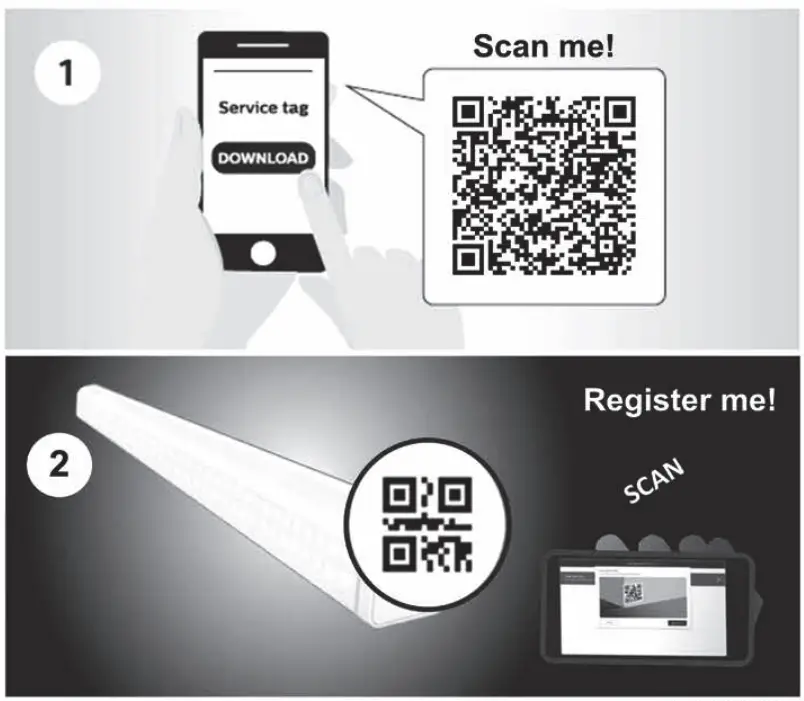

To get an overview of all spare parts for a luminaire, please refer to detailed instructions in the service manual available via the Signify Service tag apps (Android and iOS).
https://play.google.com/store/apps/details?id=com.philips.servicetag
Disconnect before servicing
Luminaire has basic insulation between Low Voltage supply and control conductors.
The light source and/or control gear and/or the external flexible cable contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
Storage, installation, use, operation and maintenance of the products needs to be performed exactly according the instructions in this manual and/or other instructions as may be provided by us to guarantee safe use of the product over its entire lifetime. Failure to adhere to these instructions will invalidate your entitlement to warranty. Bolts with indication of torque strength on the drawing need to be tightened using a calibrated torque wrench. Pre-assembledbolts need to be retightened again to the required torque specification to assure maximum strength over lifetime.
This product contains a light source of energy efficiency class: see table or label.
Printed in Hungary
Data subject to change without notice
Keep for future reference: www.lightingphilips.com
444316026292
© 03/2022 Signify Holding. All rights reserved
