PHILIPS BY480P LED Hall Light

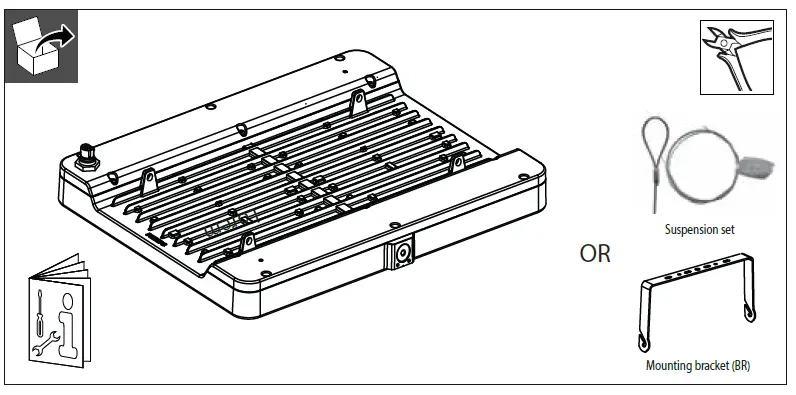

what in the box
FEATURE
 |
|  |
|
|  | |
| BY480P LED130S | 85 | 7.9 | IK07 | 45°C | -30°C | NA |
| BY480P LED170S | 113 | 8 | IK07 | 45°C | -30°C | NA |
| BY481P LED250S | 156 | 12 | IK07 | 45°C | -30°C | NA |
| BY481P LED350S | 235 | 12 | IK07 | 45°C | -30°C | NA |
| BY480P LED130S HE | 75 | 7.9 | IK07 | 45°C | -30°C | NA |
| BY480P LED170S HE | 98 | 8 | IK07 | 45°C | -30°C | NA |
| BY481P LED250S HE | 144 | 12 | IK07 | 45°C | -30°C | NA |
| BY481P LED350S HE | 205 | 12 | IK07 | 45°C | -30°C | NA |
| BY480P LED170S BR | 113 | 8.5 | IK07 | 45°C | -30°C | 17,5 cm |
| BY481P LED250S BR | 156 | 12.9 | IK07 | 45°C | -30°C | 20 cm |
| BY481P LED250S ELXX | 161 | 12.5 | IK07 | 25°C | 0°C | NA |
| BY481P LED350S ELXX BR | 240 | 13.4 | IK07 | 25°C | 0°C | 20 cm |
| BY480P LED170S PC | 113 | 7.2 | IK08 | 45°C | -30°C | NA |
| BY481P LED250S PC | 156 | 11 | IK08 | 45°C | -30°C | NA |

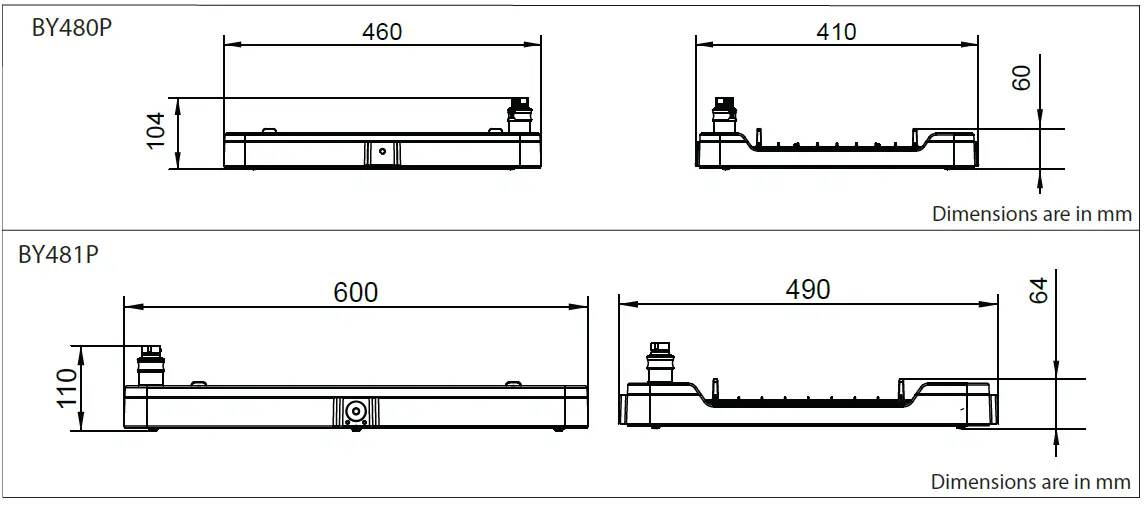

DIMENSION

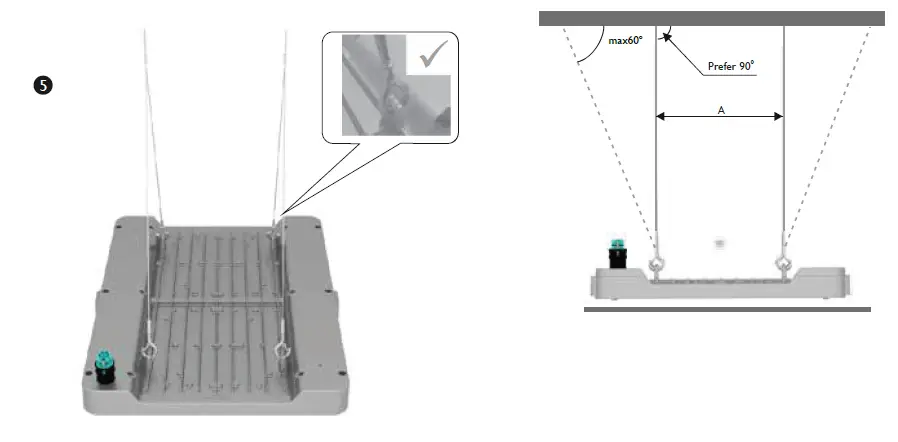

SMT (Standard suspension set)

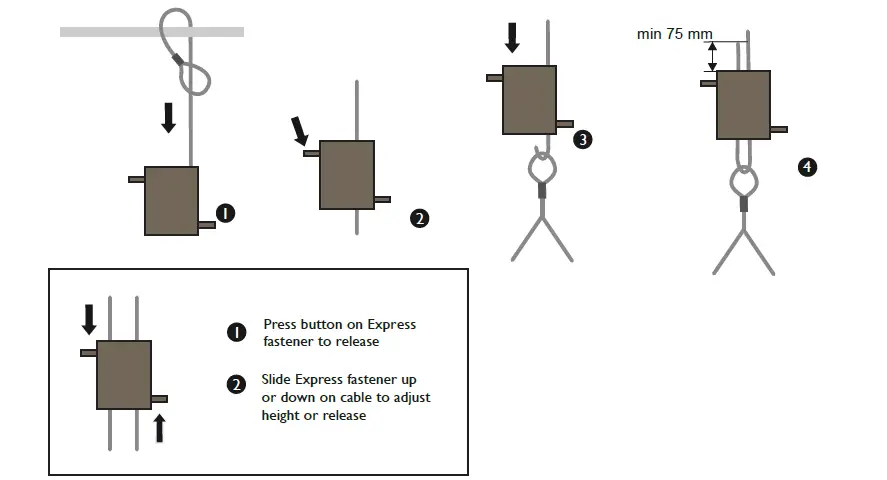

- Connect the luminaire to the suspension set
- Make sure the load is supported
Distance between the hooks BY480P BY481P A [mm] 225 240 - Max. suspension length: 4m
- Min. suspension length: 40cm

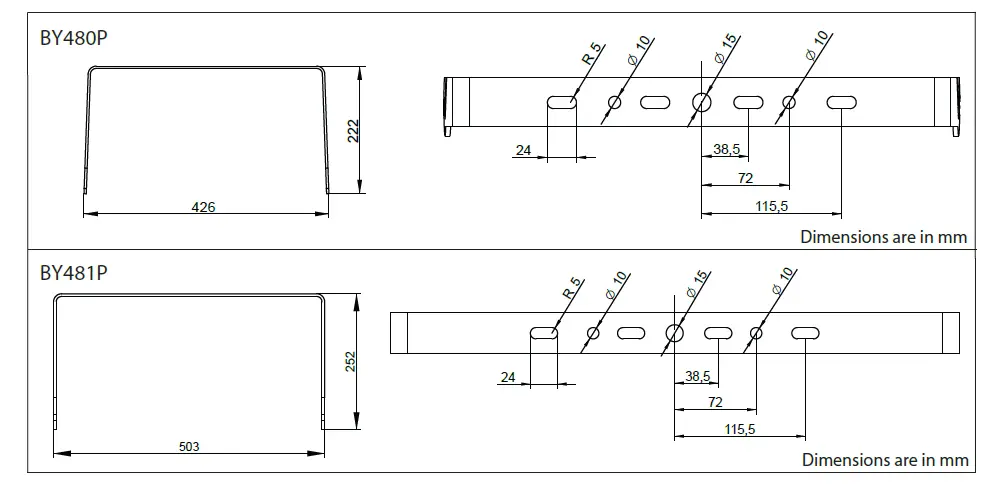

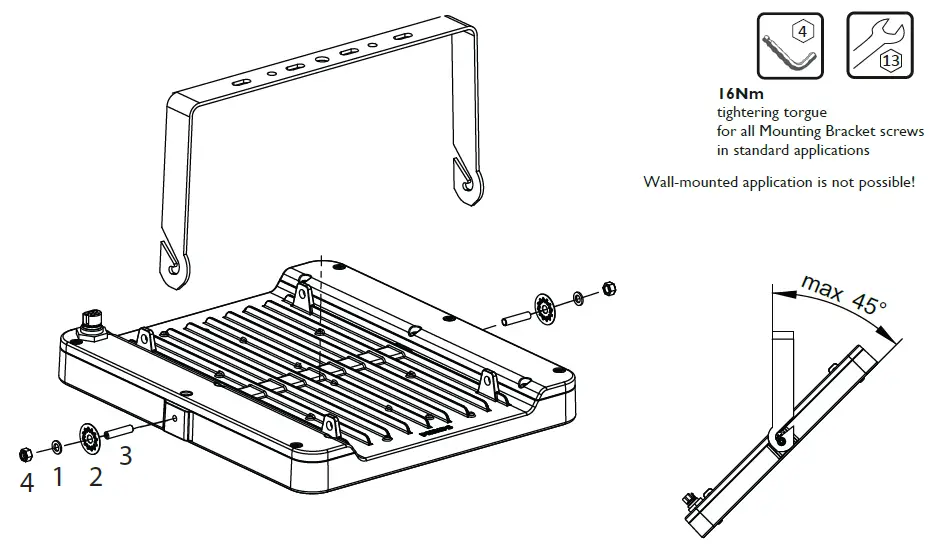

BR (Mounting bracket set)

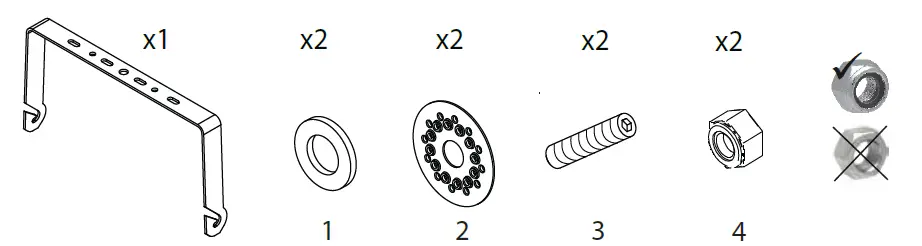

Mounting bracket set content
Adjustable Beam Optic (NBA)

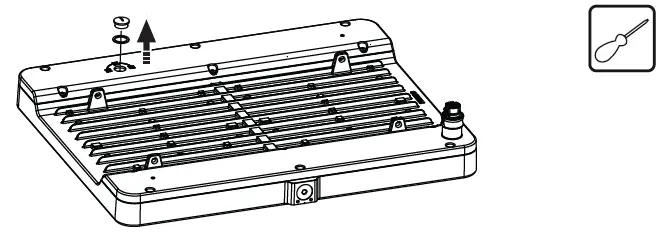

Remove protection cap

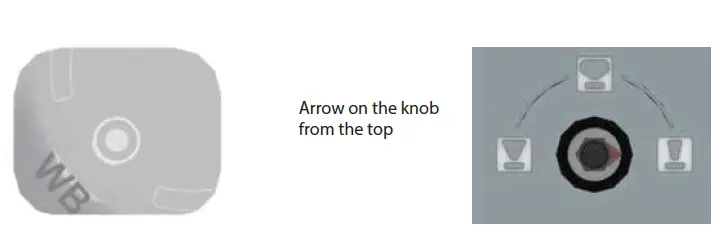

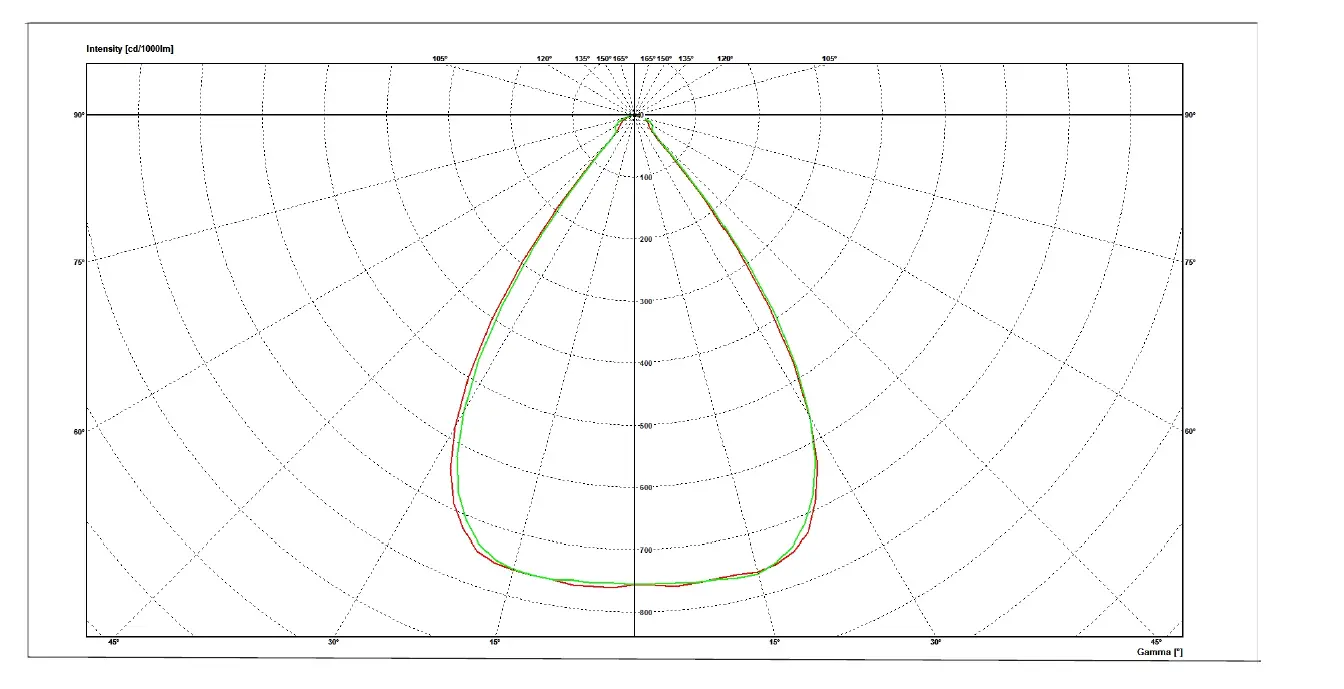

Beam adjustment
Default beam angle is NB
Beam adjustment
Window on the glass from the bottom

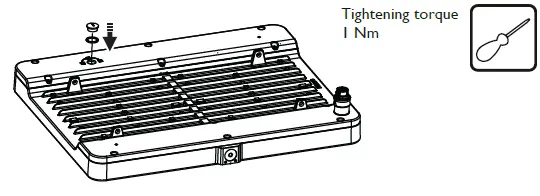

Mount the protection cap
Protection cap must be tightened with proper torque to avoid loosing IP protection

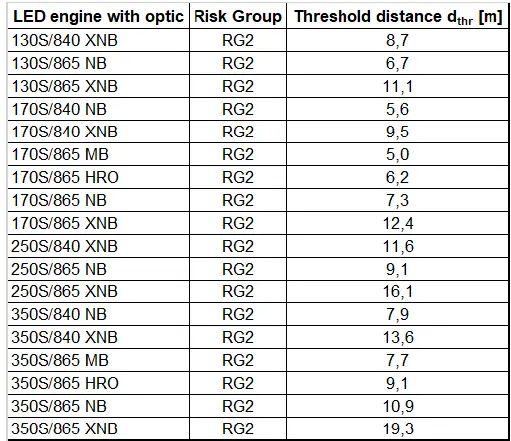

The following versions of the luminaires should be positioned so that prolonged staring into the luminaire at a distance closer than the indicated value in the table is not expected! ! All other standard luminaire types classified to Risk Group 1.

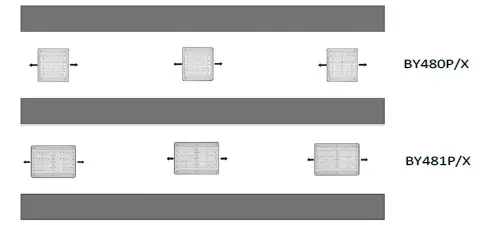

Aisle orientation for High Rack Optic (HRO)

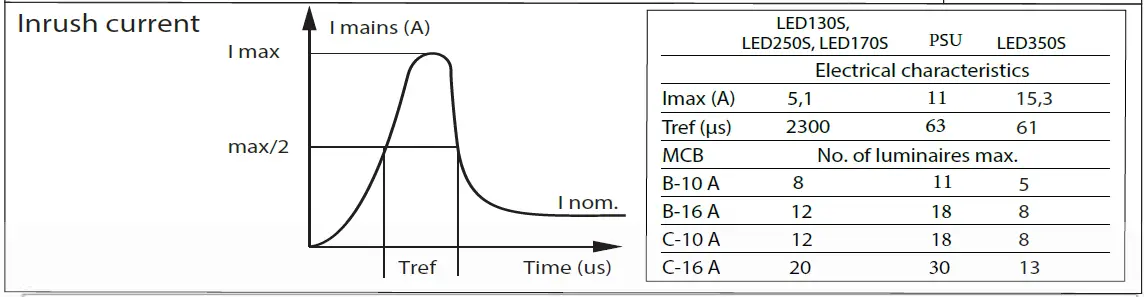

DC emergency option
DC operational range: 186…250 VDC
- DC emergency compatible versions (PSED, PSED-CLO) have 15% of the maximum light output in emergency mode.

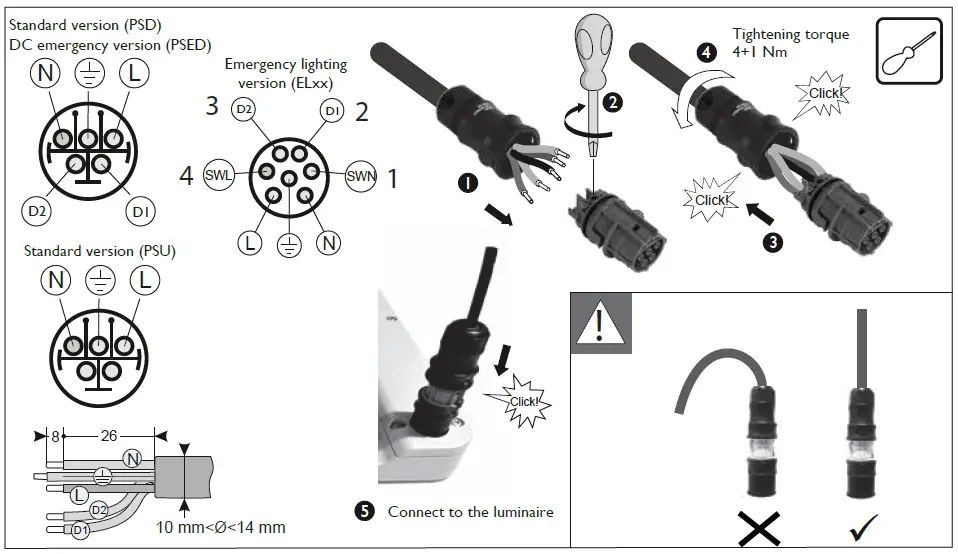

The luminaire shall be installed by a qualified electrician and wired in accordance with the latest IEE regulations or the national requirements.The light source contained in this
- luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person
- During the installation or maintaining the luminaire please use gloves to avoid spots on the cover
- To remove dirt spots use the following:
- Dust: use micro fiber cloths
- Fingerprints, etc. : use a cleaner for with antistatic properties.
- Disconnect before servicing
- Luminaire has basic insulation between Low Voltage supply and control conductors.
- The light source and/or control gear and/or the external flexible cable contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
- Storage, installation, use, operation and maintenance of the products needs to be performed exactly according the instructions in this manual and/or other instructions as may be provided by us to guarantee safe use of the product over its entire lifetime. Failure to adhere to these instructions will invalidate your entitlement to warranty. Bolts with indication of torque strength on the drawing need to be tightened using a calibrated torque wrench. Pre-assembled bolts need to be retightened again to the required torque specification to assure maximum strength over lifetime.
- This product contains a light source of energy efficiency class: see table or label.
