SMART Series | TP-MMB2AV5L
TP-MMB2AV5L

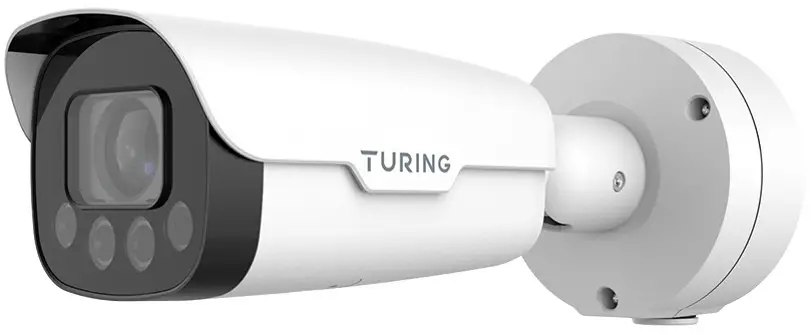

2MP HD Twilight Vision™ IR Bullet Camera
KEY FEATURES
✓ To be used with SMART Series NVR with Turing Vision Cloud
✓ 5~50mm motorized zoom lens, ideal for license plate capture
✓ Twilight Vision™ technology superior low-light performance
✓ People & vehicle detection with onboard AI
✓ Turing Vision Core license for people & vehicle search, cloud storage, and more.
SPECIFICATIONS
CAMERA
| Sensor | 1/2.8″, 2.0 megapixel, progressive scan, CMOS |
| Illumination | Colour:0.002 lux (F1.6, AGC ON)0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | ＞52dB |
LENS
| Lens type | [email protected], AF automatic focusing and motorized zoom lens |
| Iris | DC-iris |
| Angle of View (H) | 4.71°~55.87° |
| Angle of View (V) | 2.65°~33.21° |
| Angle of View (O) | 5.56°~68.72° |
ILLUMINATION
| IR Range | Up to 100m (328.1 ft) IR range |
| Wavelength | 850nm |
| IR Control | Auto/Manual |
VIDEO
| Video Comp. | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 2MP (1920*1080),Max 60fps; Sub Stream: 1080P (1920*1080), Max 60fps;Third Stream: D1 (720*576), Max 60fps; Fourth Stream: D1 (720*576), Max 60fps;Fifth Stream: D1 (720*576), Max 60fps; |
| Video Bit Rate | 128 Kbps~16 MPs |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| U-code | Support |
| ROI | Up to 8 areas |
| Video stream | Five streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 zones per scene (black block) |
| Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Noise Red. | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anticlockwise |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
EVENTS
| Detection | Motion detection, Audio detection, Tampering alarm |
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
AUDIO
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| 2-way Audio | Yes |
| Suppression | Yes |
| Sampling | 8KHz |
STORAGE
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR,NAS(NFS) |
NETWORK
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, Pepo, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, Qu’s, RTMP, SSL/TLS |
| Compatibility | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Web Browser | Plug-in: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
INTERFACE
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Serial Port | 1 RS485 |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| Built-in Heater | Yes |
| WIFI | N/A |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC |
CERTIFICATION
| EMC | FCC CFR 47 Part 15, EN 55032:2015, EN 55024:2010, EN 61000-3-2:2014, EN 61000-3-3-2013 |
| Safety | IEC 62368-1, EN 62368-1, UL 60950-1 |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
| Protection | Ingression protection: IP67 (IEC 60529-2013) Vandal resistant: IK10 (IEC 62262:2002) |
GENERAL
| Power | DC 12V(-10%,+25%) , PoE+ (IEEE 802.3at) Power consumption: Max 13W |
| Power Interface | Wires with cold-pressed terminal |
| Dimensions (L x W x H) | 354 x 105 x 98mm (13.9“ x 4.1“ x 3.9”) |
| Weight | 1.93kg(4.25lb) |
| Working Environment | -40℃~60℃(-40°F ~ 140°F)，Humidity: ≤95% RH |
| Storage Environment | -40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH |
| Surge protection | 6KV |
| Vandal Resistant | IK10 |
| Ingress Protection | IP67 |
| Reset button | Yes |

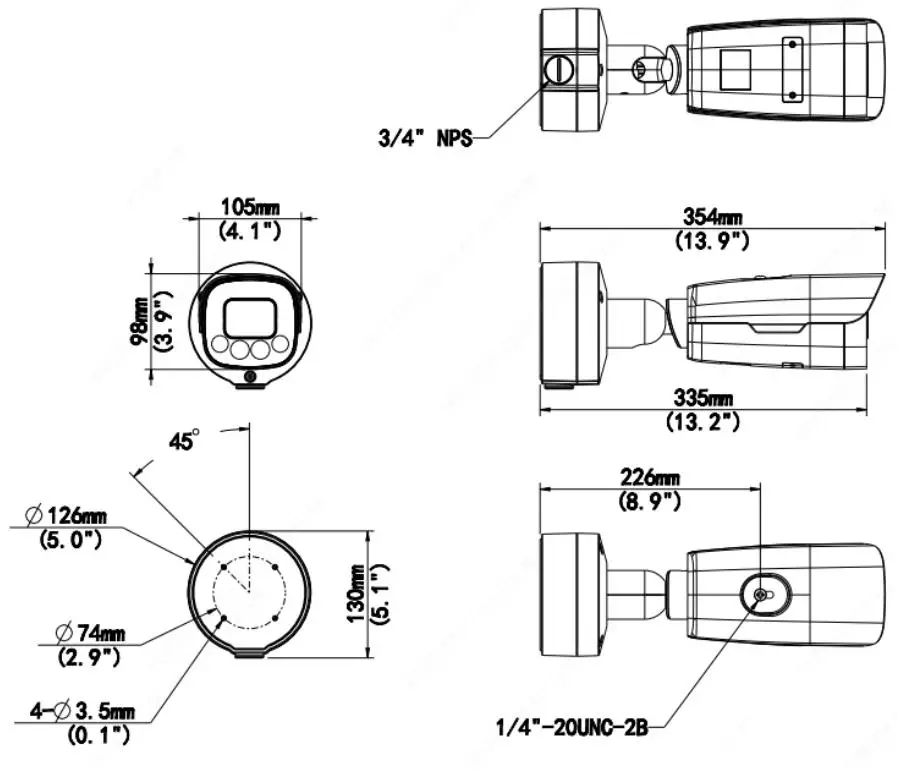

DIMENSIONS

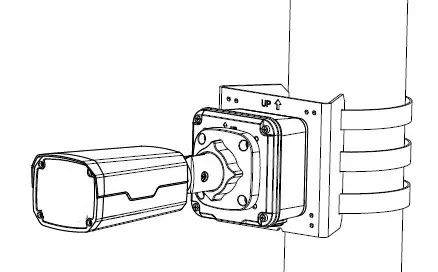

MOUNTING
 | Pole Mount: TP-FCBPM TP-FCBJB |
 | Wall Mount: Junction Box: TP-FCBJB |
 | Optional Cable Gland: TP-UWPJ |
