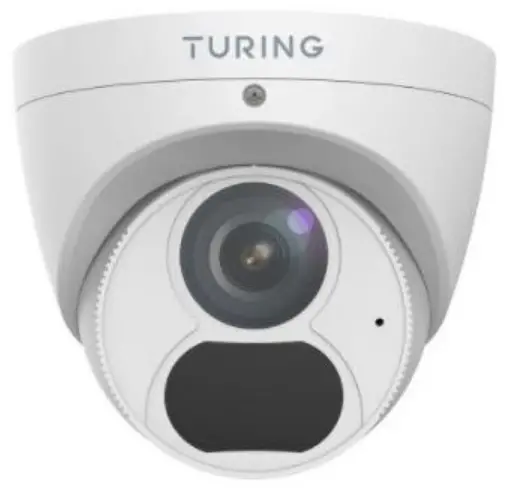

TURING TP-MED4M28 4MP HD TwilightVision IR Turret Network Camera
Product Information
SMART Series | TP-MED4M28 & TP-MED4M4
The SMART Series | TP-MED4M28 & TP-MED4M4 are 4MP HD TwilightVisionTM IR Turret Network Cameras. These cameras are designed to be used with SMART Series NVR with Turing Vision Cloud. The TP-MED4M28 has a 2.8mm fixed lens, while the TP-MED4M4 has a 4mm fixed lens. Both cameras have a maximum resolution of 4 MP (2688*1520)@30/25fps and are equipped with TwilightVisionTM technology that provides superior low-light performance.
Other key features of these cameras include
- Built-in Mic
- Smart IR, up to 30m (98 ft)
- Supports 256 G Micro SD card
- IP67, True WDR
Product Specifications
Camera
- Sensor: 1/3, 4.0 megapixel, progressive scan, CMOS
- Lens: [email protected] (TP-MED4M28), [email protected] (TP-MED4M4)
- Angle of view(H): Adjustment angle
- Angle of View (V): Shutter
- Minimum Illumination: Color: 0.003Lux (F1.6, AGC ON) 0 Lux with IR on
- IR Range Wavelength: IR-cut filter with auto switch (ICR) >56dB Up to 30m (98ft) IR range 850nm
- Defog WDR
Video
- Video Compression: Ultra 265, H.265, H.264, MJPEG Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
- Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
- Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
- Audio Compression: G.711 Supported 8KHZ
- Video Bit Rate: 128 Kbps~16 Mbps
Network
- Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
- Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
- Network Interface: 1 RJ45 10M/100M Base-TX Ethernet Supported
Certifications
- CE: EN 60950-1
- UL: UL60950-1
- FCC: FCC Part 15
Product Usage Instructions
Before using the SMART Series | TP-MED4M28 & TP-MED4M4 cameras, ensure that they are compatible with the SMART Series NVR with Turing Vision Cloud. Once you have confirmed compatibility, you can proceed with the following steps:
- Mount the camera on an appropriate surface using the recommended mounting options.
- Connect the camera to the network using the RJ45 Ethernet interface.
- Configure the camera settings using the web browser interface.
- You can now start using the camera for surveillance and monitoring purposes.
For more detailed instructions on how to configure and use the SMART Series | TP-MED4M28 & TP-MED4M4 cameras, refer to the user manual provided with the product or contact the manufacturer.
KEY FEATURES
- To be used with SMART Series NVR with Turing Vision Cloud
- TP-MED4M28: 2.8mm Fixed lens; TP-MED4M4: 4mm Fixed Lens
- Max. 4 MP (2688*1520)@ 30/25fps
- TwilightVision™ technology superior low-light performance
- Built-in Mic
- Smart IR, up to 30m (98 ft)
- Supports 256 G Micro SD card
- IP67, True WDR
SPECIFICATIONS
| CAMERA | |||
| Sensor | 1/3″, 4.0 megapixel, progressive scan, CMOS | ||
| Lens | [email protected] | [email protected] | |
| Angle of view(H) | 101.1° | 83.7° | |
| Angle of View (V) | 55.3° | 44.9° | |
| Angle of View (O) | 111.1° | 89.2° | |
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° |
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||
| Minimum Illumination | Color: 0.003Lux (F1.6, AGC ON) 0 Lux with IR on | ||
| Day/Night | IR-cut filter with auto switch (ICR) | ||
| S/N | >56dB | ||
| IR Range | Up to 30m (98ft) IR range | ||
| Wavelength | 850nm | ||
| IR On/Off Control | Auto/Manual | ||
| Defog | Digital Defog | ||
| WDR | 120dB | ||
| VIDEO | |||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||
| H.264 code profile | Baseline profile, Main profile, High profile | ||
|
Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||
| Video Bit Rate | 128 Kbps~16 Mbps | ||
| 9:16 Corridor Mode | Supported | ||
| OSD | Up to 8 OSDs | ||
| Privacy Mask | Up to 4 areas | ||
| ROI | Up to 8 areas | ||
| Motion Detection | Up to 4 areas | ||
| IMAGE | |||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||
| Digital Noise Reduction | 2D/3D DNR | ||
| Smart IR | Support | ||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti- clockwise | ||
| De-warping | N/A | ||
| HLC BLC | Supported Supported | ||
| AUDIO | |
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| STORAGE | |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR, NAS(NFS) |
| INTELLIGENCE | |
| Smart Intrusion Prevention | Cross line, intrusion, enter area detection |
| Compatible NVR | Turing SMART NVR: TR-MR(P) models |
| EVENTS | |
| Basic Detection | Motion detection, tampering alarm, audio detection |
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication |
| NETWORK | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| INTERFACES | |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Built-in Mic | Supported |
| CERTIFICATIONS | |
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
| GENERAL | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 4.0W |
| Dimensions (Ø x H) | Φ110.5 x 94.1mm (Φ4.4” x 3.7”) |
| Net Weight | 0.42kg (0.93lb) |
| Material | Metal |
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non- condensing) |
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non- condensing) |
| Surge Protection | 2KV |
| Ingress Protection Reset Button | IP67 N/A |

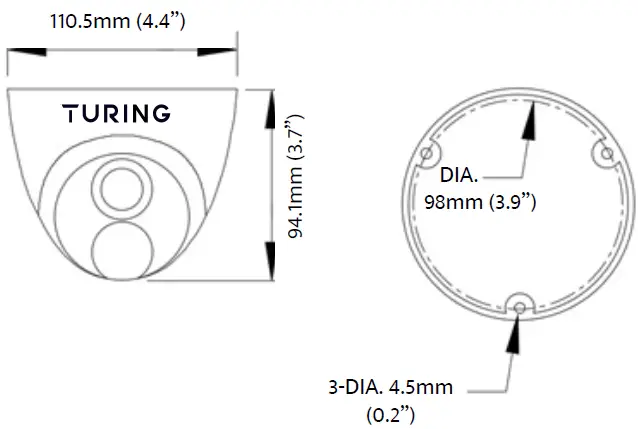

DIMENSIONS

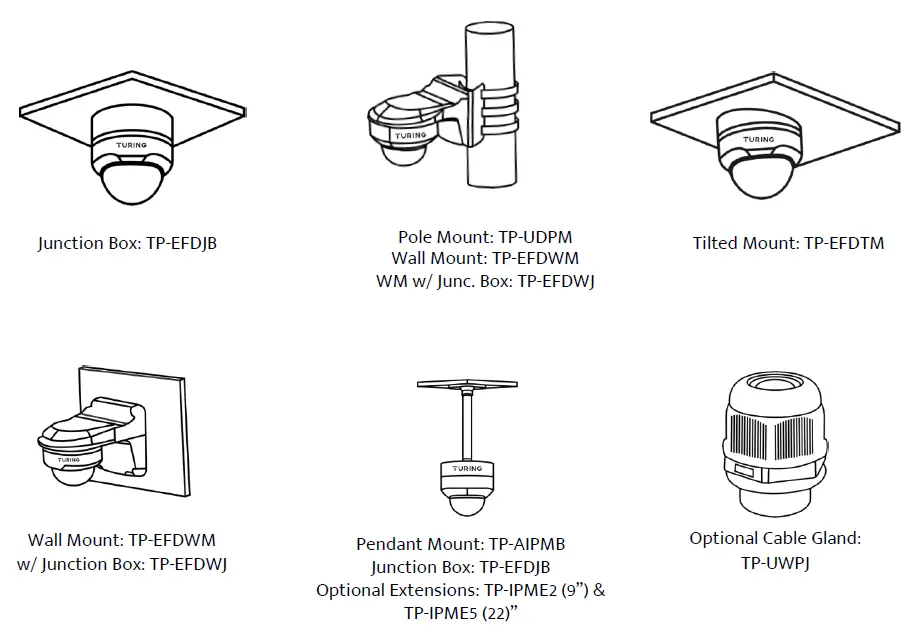

MOUNTING
