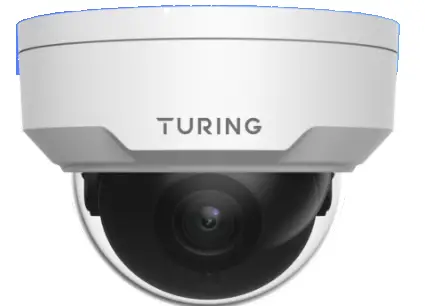

TURING TP-MFD4A28 4MP HD TwilightVision IR Dome Network Camera
KEY FEATURES
✓ To be used with SMART Series NVR with Turing Vision Cloud
✓ TP-MFD4A28: 2.8mm Fixed lens; TP-MFD4A4: 4mm Fixed Lens
✓ Max. 4 MP (2688*1520)@ 30/25fps
✓ TwilightVision™ technology superior low-light performance
✓ Smart IR, up to 30m (98ft)
✓ Supports 256 G Micro SD card
✓ IP67, IK10
SPECIFICATIONS
| Angle of View (H) | 101.1° | 83.7° | ||
| Angle of View (V) | 55.3° | 44.9° | ||
| Angle of View (O) | 111.1° | 89.2° | ||
| Adjustment angle | Pan: 3° ~ 360° | Tilt: 0° ~ 68° | Rotate: 3° ~ 360° | |
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||
| Minimum Illumination | Colour:0.003 Lux (F1.6, AGC ON) 0Lux with IR | |||
| Day/Night | IR-cut filter with auto switch (ICR) | |||
| Digital Noise Reduction | 2D/3D DNR | |||
| S/N | >56dB | |||
| IR Range | Up to 30m (98ft) IR range | |||
| Wavelength | 850nm | |||
| IR On/Off Control | Auto/Manual | |||
| Defog | Digital Defog | |||
| WDR | 120dB | |||
| VIDEO | ||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||
| H.264 code profile | Baseline profile, Main profile, High profile | |||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |||
| Video Bit Rate | 128 Kbps~16 Mbps | |||
| OSD | Up to 8 OSDs | |||
| Privacy Mask | Up to 4 areas | |||
| ROI | Up to 8 areas | |||
| IMAGE | ||||
| Motion Detection | Up to 4 areas | |||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||
| Digital Noise Reduction | 2D/3D DNR | |||
| Smart IR | Support | |||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti- clockwise | |||
| De-warping | N/A | |||
| HLC | Supported | |||
| BLC | Supported | |||
| AUDIO | ||||
| Audio Compression | G.711 | |||
| Two-way audio | Supported | |||
| Suppression | Supported | |||
| Sampling Rate | 8KHZ | |||
| STORAGE | ||||
| Edge Storage | Micro SD, up to 256GB | |||
| Network Storage | ANR | |||
| INTELLIGENCE | ||||
| Smart Intrusion Prevention | Cross line, intrusion, enter area detection | |||
| Compatible NVR | Turing SMART NVR: TR-MR(P) models | |||
| EVENTS | ||||
| Basic Detection | Motion detection, tampering alarm, audio detection | |||
| General Function | Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access Policy, ARP protection, RTSP authentication, user authentication | |||
| NETWORK | ||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | |||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||
| INTERFACES | ||||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] Output: impedance 600Ω; amplitude 2V [p-p] | |||
| Alarm I/O | 1/1 | |||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |||
| CERTIFICATIONS | ||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |||
| GENERAL | ||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 4.5W | |||
| Dimensions (Ø x H) | Φ108.7 x 81.1mm (Ø4.3” x 3.2”) | |||
| Net Weight Material Working Environment | 0.425kg (0.93lb) Metal + Plastic -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non- condensing) | |||
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non- condensing) | |||
| Surge Protection | 2KV | |||
| Ingress Protection | IP67 | |||
| Vandal Resistant | IK10 | |||

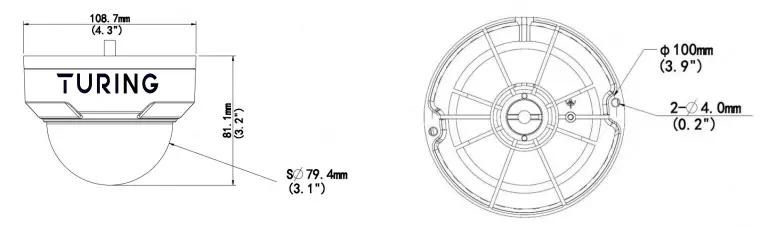

DIMENSIONS
MOUNTING

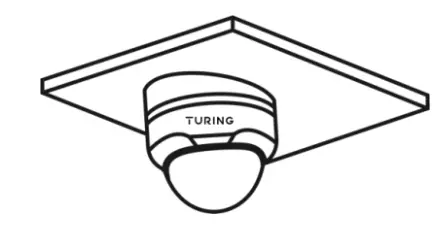

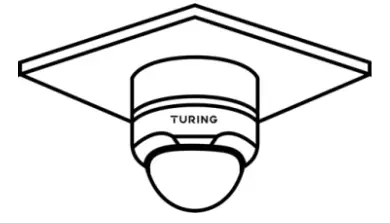

- Junction Box: TP-EFDJB

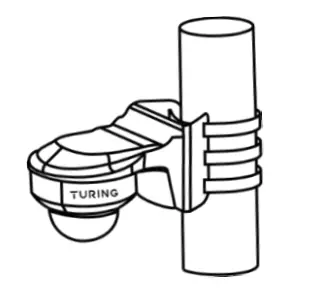

- Pole Mount: TP-UDPM Wall Mount: TP-EFDWM WM w/ Junc. Box: TP-EFDWJ
- Tilted Mount: TP-EFDTM

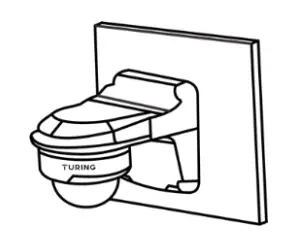

- Wall Mount: TP-EFDWM w/ Junction Box: TP-EFDWJ
- Pendant Mount: TP-AIPMB Junction Box: TP-EFDJB Optional Extensions: TP-IPME2 (9”) & TP-IPME5 (22)”
- Optional Cable Gland: TP-UWPJ
