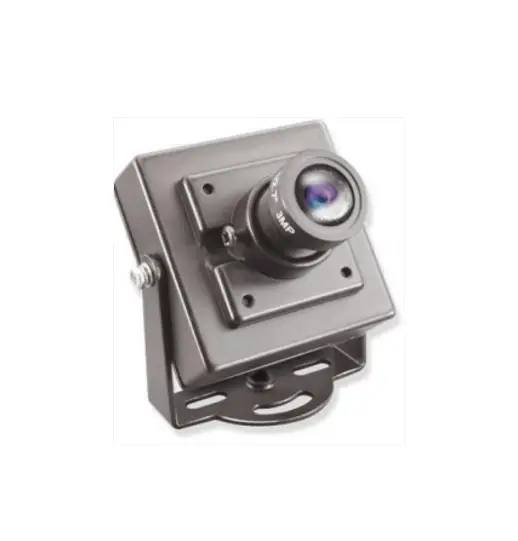

KOVERT SEE902 2mp Covert 3.6mm Board Module
User Information
- The camera must be installed in a clean, dry environment where it will not be exposed to high temperatures, moisture or excessive dust.
- Do not touch the camera or any of its connections with wet hands.
- There are no user serviceable parts in the camera and opening or attempting to repair the product will void the warranty.
- Do not install or use the device if the power cable is damaged.
Full Instruction Manual
FEATURES
- The SEE902 is a 2MP multi-format board module camera.
- The camera is provided with a fly lead with a 2.1 mm DC socket and standard BNC connector.
- Power the camera from 12V DC (via the 2.1 mm DC Socket), the current consumption is 85mA.
- The camera is polarity sensitive so connections must be made correctly.
- The SEE902 has a select able HD-TVI, HD-CVI, AHD and CVBS (Analogue) Output.
- As default the SEE902 is set to HD-TVI (2MP) which will work with the Zip Lite, Zip Supa and Zip Xtreme DVRs.
- The output can be changed via the dip switches on the fly-lead of the camera.
CONTROL INSTRUCTIONS
- OSD Menu Control viaa ZIP DVR
- Access to the camera menu is by Coaxitron.
- For the ZIPDVRs, ZIP Coaxitron is set as default.

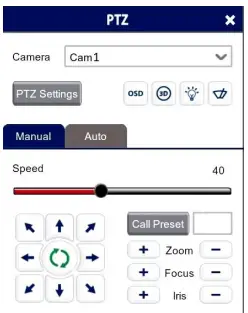

- To access the Cameras menu via coaxitron:
- Click on the image in Live view
- Click on the PTZ button at the bottom of the screen
- Click on the Iris + button to display the menu
- Upand down = Directional arrows to move up and down through the menu.
- Left and right Use the directional arrows left and right to change the option.
- Iris+ Select and enter that menu option.
PRODUCT SPECIFICATION
| Image Sensor | 1/2.8″ |
| Resolution | 2MP |
| Lens Type | 3.6mm Fixed Board |
| Image Output | TVI/ CVI/ AHD / CVBS |
| Min.Illumination | 0.001 Lux |
| Day/Night | Electronic |
| Input Voltage | 12V DC |
| Current Consumption | 85mA |
| Signal to Noise Ratio | More than 50dB |
| Gain Control | Automatic |
| Video Connection | BNC Socket |
| Power Connection | 2.1mm DC Socket |
| WDR | Yes |
| Protocol | UTC |
| Bracket | Supplied |
| Finish | Black |
| Build | Metal |
| Operating Temperature | -10°C – +60°C |
| White Balance | Auto / Manual |
| Dimensions | (H) 35x (W) 35 x (D) 29mm |
All specifications are approximate. system QLtd reserves the right to change product specification or features without notice. whilst every effort is made to ensure that these instructions are complete and accurate, syste mQLtd cannot be held responsible for any losses, no matter how they arise, from errors or omissions in these instructions, or the performance or non-performance of the equipment refered to.
