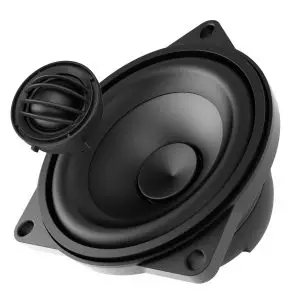

audison Prima APBMW System Owner’s Manual
Congratulations on purchasing our product. Your satisfaction is the first requirement that our products must meet: the same satisfaction as the one gained by those who long for experiencing the car audio emotion. This manual has been drawn to provide the main instructions required to install and use the system properly. However, the range of possible applications is wide; for further information, please feel free to contact your trusted dealer or our technical support at the email support@elettromedia.it Before installing the components, please carefully read all of the instructions contained in this manual. Failure to respect these instructions may cause unintentional harm or damage to the product.
- All components must be firmly secured to the vehicle structure. Do the same when installing any custom structures you may have built. Confirm your installation is solid and safe. A component coming loose while driving may cause serious damage to the passengers, as well as to other vehicles.
- Always wear protective eyewear when using tools, as splints or product residue may become airborne.
- In order to avoid incidental damage, keep the product in the original packaging until you are ready for the final installation.
- Do not carry out any installation inside the engine compartment.
- Before starting with the installation turn the head unit and all other audio system devices off, avoiding any possible damage.
- Make sure that the location you choose to install the components does not interfere with the normal operation of any mechanical or electrical devices of the vehicle.
- Do not install loudspeakers where they may be exposed to water, excessive humidity, dust or dirt.
- Do not install the tweeter without the protective grille.
- Do not install the components or make cable run close to electronic or mechanical devices of the vehicle.
- Be very cautious when drilling or cutting into the vehicle chassis, making sure there are no cables or structural elements essential to the vehicle underneath or in the selected area.
- When routing cables, make sure that the cable does not come in contact with sharp edges or near moving mechanical devices. Make sure that it is firmly attached and protected along its entire length and its insulation is self-extinguishing.
- Only use cables with the proper section (AWG) indicated herein.
- When running the cable through a hole in the vehicles chassis, protect the cable with a rubber ring (grommet). Be sure to provide proper protection for cables running close to heat-generating devices.
- Do not run the wires outside of the vehicle.
- Use top quality cables, connectors and accessories such as found in the Connection catalogue.
- Warranty certificate: For more information visit the Audison website
SAFE SOUND
USE COMMON SENSE AND PRACTICE SAFE SOUND. PLEASE REMEMBER THAT LONG EXPOSURE TO EXCESSIVELY HIGH SOUND PRESSURE LEVELS MAY DAMAGE YOUR HEARING. SAFETY MUST BE AT THE FOREFRONT WHILE DRIVING.
Information on electrical and electronic equipment waste (for those European countries which organize the separate collection of waste).
Products which are marked with a wheeled bin with an X through it can not be disposed of together with ordinary domestic waste. These electrical and electronic products must be recycled in proper facilities, capable of managing the disposal of these products and components. In order to know where and how to deliver these products to the nearest recycling/disposal site please contact your local municipal office. Recycling and disposing of waste in a proper way contributes to the protection of the environment and to prevent harmful effects on health.

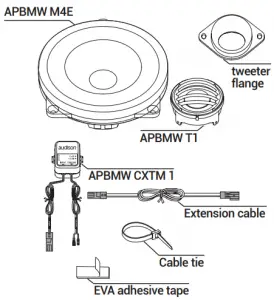

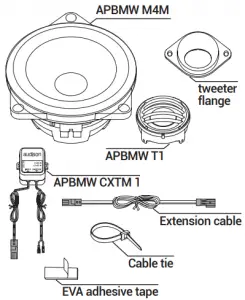

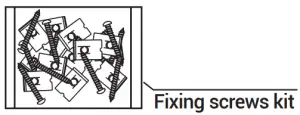

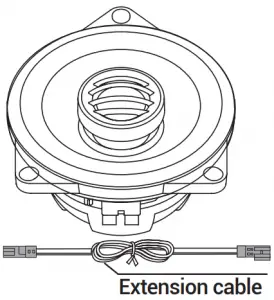

Packaging contents
APBMW X4M
APBMW X4E

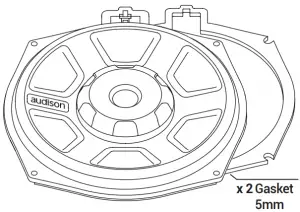

APBMW S8 – 2
APBMW S8 – 4
APBMW K4M
APBMW K4E
Dimensions

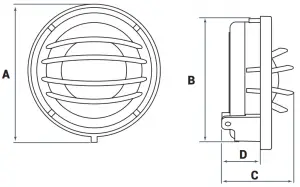

APBMW T1
| A | B | C | D | ||
| APBMW T1 | 44,8 | 41,5 | 24 | 13 | mm |
| 1.76 | 1.63 | 0.94 | 0.51 | in. |

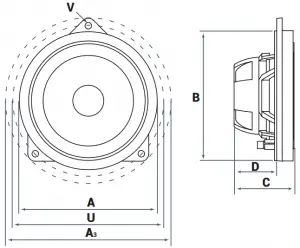

APBMW M4E – APBMW M4M

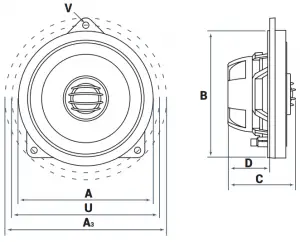

APBMW X4E – APBMW X4M”
| A | A3 | B | C | D | U | V | ||
| APBMW M4M | 102 | 128 | 91 | 55 | 44,5 | 116,5 | 5 | mm |
| 4.02 | 5.04 | 3.58 | 2.17 | 1.75 | 4.59 | 0.2 | in. | |
| APBMW M4E | 119 | 143 | 100 | 55 | 39 | 129,5 | 5 | mm |
| 4.69 | 5.63 | 3.94 | 2.17 | 1.54 | 5.1 | 0.2 | in. | |
| APBMW X4M | 102 | 128 | 91 | 63,5 | 44,5 | 116,5 | 5 | mm |
| 4.02 | 5.04 | 3.58 | 2.5 | 1.75 | 4.59 | 0.2 | in. | |
| APBMW X4E | 119 | 143 | 100 | 67,5 | 39 | 129,5 | 5 | mm |
| 4.69 | 5.63 | 3.94 | 2.66 | 1.54 | 5.1 | 0.2 | in. |
APBMW S8-2 / APBMW S8-4
| A1 | A2 | B | C | D | U | V | ||
| APBMW S8-2 APBMW S8-4 | 217 | 239 | 221 | 62 | 38 | 229 | 5 | mm |
| 8.54 | 9.41 | 8.7 | 2.44 | 1.5 | 9.02 | 0.2 | in. |
Factory cut-out mounting
APBMW T1

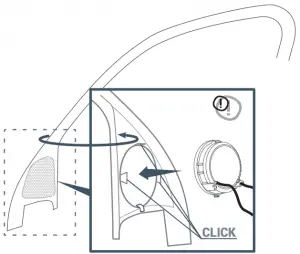

Front door installation
APBMW K4M – APBMW K4E
For detailed installation instructions visit: http://www.audison.eu/Prima/SoundPack
APBMW X4E -APBMW X4M – APBMW K4E – APBMW K4M

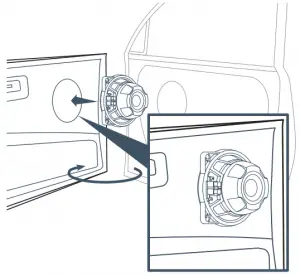

Option 1 – Trim installation
MIDRANGE / COAX
For detailed installation instructions visit: http://www.audison.eu/Prima/SoundPack

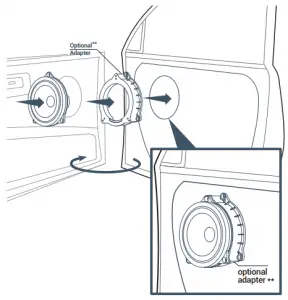

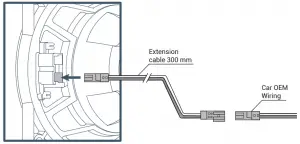

Option 2 – Door installation
MIDRANGE / COAX
Adapter necessary for some car models. For adapter selection according to car model see compatibility list at: http://www.audison.eu/Prima/SoundPack
APBMW K4M

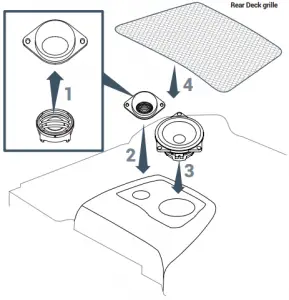

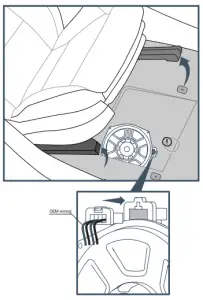

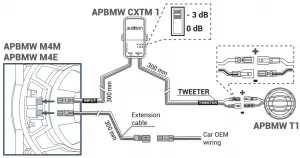

Rear deck installation
APBMW K4M – APBMW K4E
For detailed installation instructions visit: http://www.audison.eu/Prima/SoundPack
APBMW S8-2 / APBMW S8-4
For detailed installation instructions visit: http://www.audison.eu/Prima/SoundPack

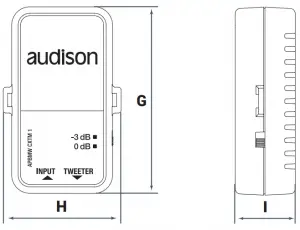

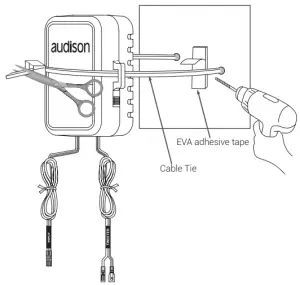

APBMW CXTM 1
| G | H | I | ||
| APBMW CXTM 1 | 72 | 45 | 23,5 | mm |
| 2.83 | 1.77 | 0.93 | in. | |
Electro-Acoustic parameters
| APBMW T1 | APBMW M4M | APBMW M4E | APBMW X4M | APBMW X4E | APBMW S8-2 | APBMW S8-4 | |
| D mm | 29 | 80 | 80 | 159 | 159 | ||
| Sd Cm2 | – | 50,3 | 50,3 | 198,6 | 198,6 | ||
| Xmax mm | – | 0,5 | 0,5 | 7 | 7 | ||
| Re Ω | 3,7 | 3,3 | 3,4 | 2,2 | 3,8 | ||
| Fs Hz | 1,6k | 90 | 100 | 45 | 40 | ||
| Le mH | – | 0,32 | 0,32 | 0,32 | 0,6 | ||
| Vas l | – | 1,8 | 1,9 | 16,3 | 21 | ||
| Mms g | – | 6,4 | 5,1 | 41 | 43 | ||
| Cms mm/N | – | 0,5 | 0,53 | 0,3 | 0,38 | ||
| BL T•m | – | 4,8 | 5 | 5,6 | 6 | ||
| Qts | – | 0,48 | 0,4 | 0,61 | 0,72 | ||
| Qes | – | 0,51 | 0,42 | 0,83 | 1,14 | ||
| Qms | – | 8,2 | 7,1 | 2,3 | 2 | ||
| dB Spl (2.83V/1m) | 90 | 88 | 88 | 91 | 88 | ||
specifications
| Component | Size | Power handling | Impedance | Frequency response | |||
| Peak | Continuous | ||||||
| mm (in.) | W | W | Ω | Hz | |||
| APBMW X4M | Two way coaxial | Midrange 100 (4) | 80 | 40 | 4 | 100 ÷ 22k | |
| Tweeter diaphragm 24 (0.9) | |||||||
| APBMW X4E | Two way coaxial | Midrange 100 (4) | 80 | 40 | 4 | 100 ÷ 22k | |
| Tweeter diaphragm 24 (0.9) | |||||||
| APBMW S8-2 | Subwoofer | 200 (8) | 300 | 150 | 2 | 40 ÷ 500 | |
| APBMW S8-4 | Subwoofer | 200 (8) | 300 | 150 | 2 | 35 ÷ 500 | |
| APBMW K4M | Two way System | APBMW M4M | Midrange 100 (4) | 100 | 50 | 4 | 90 ÷ 23k |
| APBMW T1 | Tweeter diaphragm 29 (1.14) | ||||||
| APBMW K4E | Two way System | APBMW M4E | Midrange 100 (4) | 100 | 50 | 4 | 90 ÷ 23k |
| APBMW T1 | Tweeter diaphragm 29 (1.14) | ||||||
| Component | Specific component | Size | Crossover weight | Type – Cutoff | |
| mm (in.) | Kg (lb.) | ||||
| APBMW CXTM1 | Crossover | APBMW T1 | 72 x 45 x 23,5 (2.83 x1.77 x0.93) | 0,055 (0.12) | Hi-Pass: 6 KHz @ 6dB/Oct. |
| Magnet size | Voice coil ∅ | Magnet | Cone | Weight of one component |
| mm (in.) | mm (in.) | Kg (lb.) | ||
| 50 x 29 x 3 (1.97 x 1.14 x 0.12) | 25 (1) | Neodymium | Pressed-paper cone | 0,464 (1.02) |
| 19,5 x 3 (0.77 x 0.12) | 20 (0.8) | Neodymium | Tetolon | |
| 50 x 29 x 3 (1.97 x 1.14 x 0.12) | 25 (1) | Neodymium | Pressed-paper cone | 0,5 (1.1) |
| 19,5 x 3 (0.77 x 0.12) | 20 (0.8) | Neodymium | Tetolon | |
| 48 x 18 x 7 (1.89 x 0.71 x 0.28) | 50 (2) | Neodymium | Paper | 1,21 (2.67) |
| 48 x 18 x 7 (1.89 x 0.71 x 0.28) | 50 (2) | Neodymium | Paper | 1,21 (2.67) |
| 50 x 29 x 3 (1.97 x 1.14 x 0.12) | 25 (1) | Neodymium | Pressed-paper cone | 0,426 (0.94) |
| 24,5 x 4 (0.96 x 0.16) | 25 (1) | Neodymium | Tetolon | 0,06 (0.13) |
| 50 x 29 x 3 (1.97 x 1.14 x 0.12) | 25 (1) | Neodymium | Pressed-paper cone | 0,462 (1.02) |
| 24,5 x 4 (0.96 x 0.16) | 25 (1) | Neodymium | Tetolon | 0,06 (0.13) |
Audison Warranty
The Audison products are warranted, under normal functioning conditions, for the period of time as set by the laws in force, against defects concerning materials or their manufacturing. The warranty is valid from the date of purchase, certified by receipt.
The warranty is not valid if:
- the product is damaged by incidents, installations and/or improper use, or by any other causes not depending on materials or manufacturing defects;
- the product is modified or tampered with by unauthorized people;
- its serial number has been altered or cancelled.
While the product is under warranty, defective parts will be repaired or replaced at the manufacturer’s discretion.
The defective product, along with notification about it, must be returned to the dealer from which it was purchased together with the warranty certificate duly filled in. If the product is no longer under warranty, it will be repaired at the current costs.
Elettromedia s.r.l. does not undertake any liability for damages due to transportation. Elettromedia s.r.l. does not take any responsibility for: costs or loss of profit due to the impossibility to use the product, other accidental or consequential costs, expenses or damages suffered by the customer.
Warranty according to laws in force.
For more information visit the Audison website.
