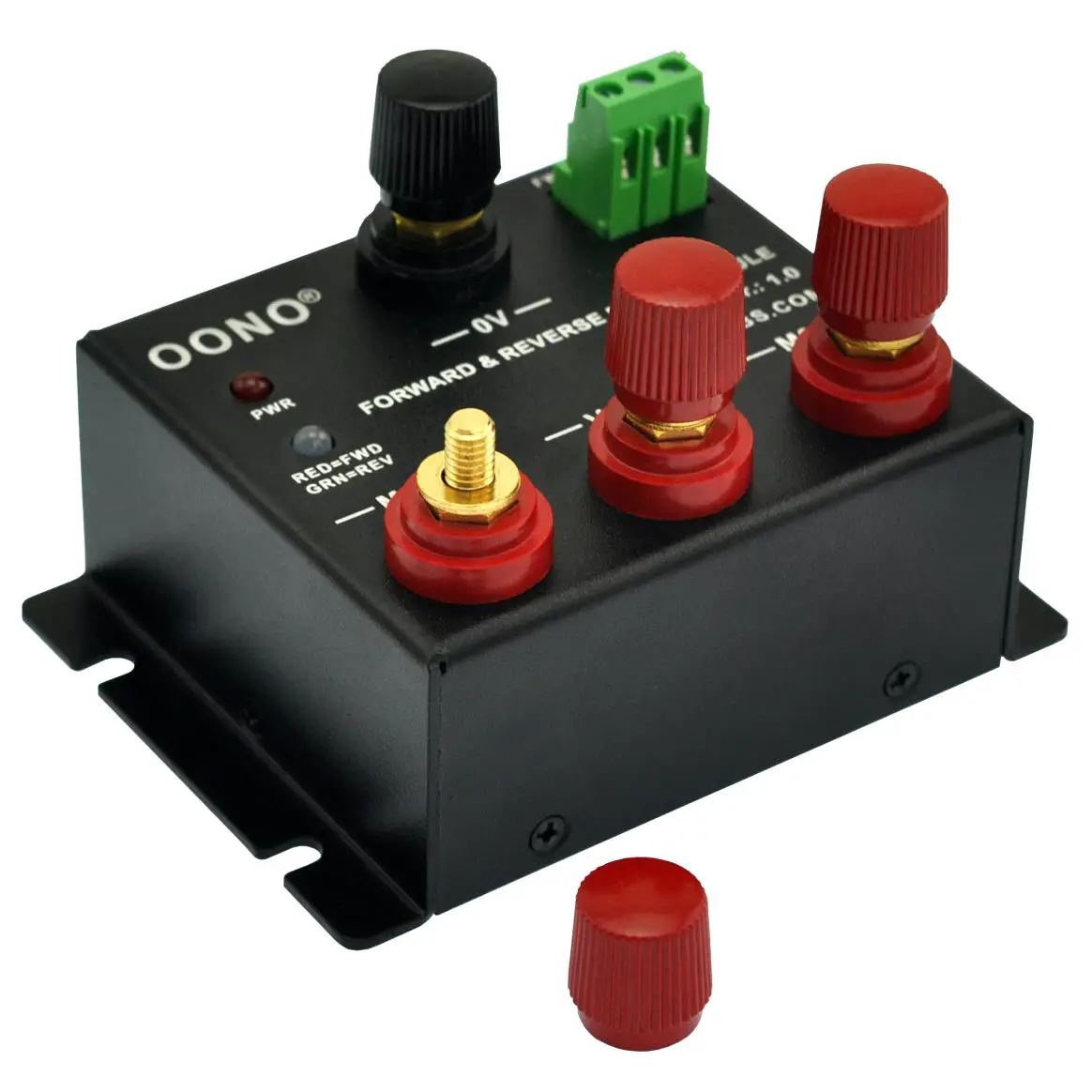

50 Amp Forward & Reverse Relay Module
Model: F-1021 series
Features:
- Reversing relay module. Powers any reversing motor equipment, can be used for any application that requires the ability to reverse motion.
- Support Momentary-action(Self-resetting) switch and Alternate-action (Self-holding) switch. For the Self-resetting switch, when the switch is pressed the motor operates, and when the switch is released the motor stops.
- High-quality aluminum enclosure, thickness 1.5mm/0.06″. Diameter M6 / 6mm threaded copper terminals for battery and load. Connect switch terminal block: pitch 5.0mm/0.197″, wire size 26~12 AWG / 2.5mm square, stripping length 7mm/0.28″, Metric M2.5 slotted screw.
- Power on indicating red LED. Forward and Reverse status indicating LED, forward status lighting red reverse lighting green.
- Operating voltage: 10~15VDC or 20~30VDC, Rated current: 50 Amp.
Specifications:
| 12V Version | 24V Version | |
| Operating voltage | 10 – 15V DC | 20 – 30V DC |
| Switch short current | 150mA @12V | 75mA @24V |
| Switch disconnect voltage | = V+ | |
| Load rated current | 50A | |
| Static current consumption | 0.5mA (for power on LED) | |
Action Status:
| FWD Switch | REV Switch | M1 Voltage | M2 Voltage | Motor Status |
| Disconnect | Disconnect | V+ | V+ | Stop |
| Connect | Disconnect | V+ | OV | Forward |
| Disconnect | Connect | OV | V+ | Reverse |
| Connect | Connect | OV | OV | Stop |

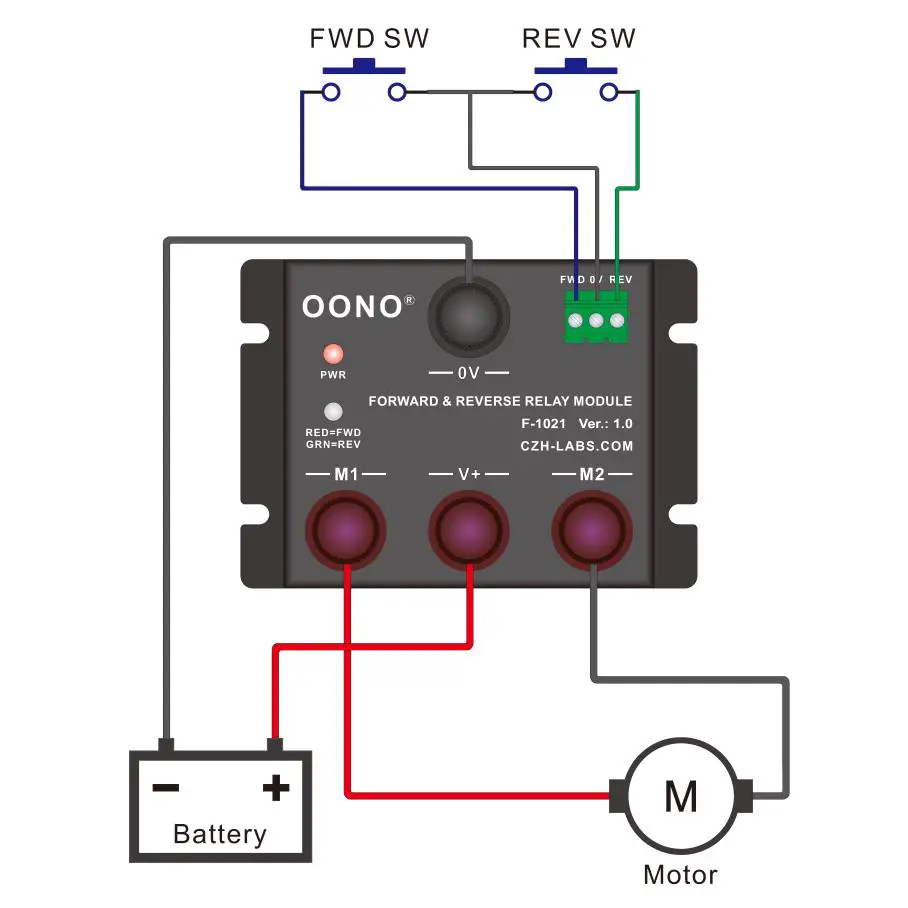

Wiring diagram:
For Momentary-action(Self-resetting) switch
For Alternate-action(Self-holding) switch:

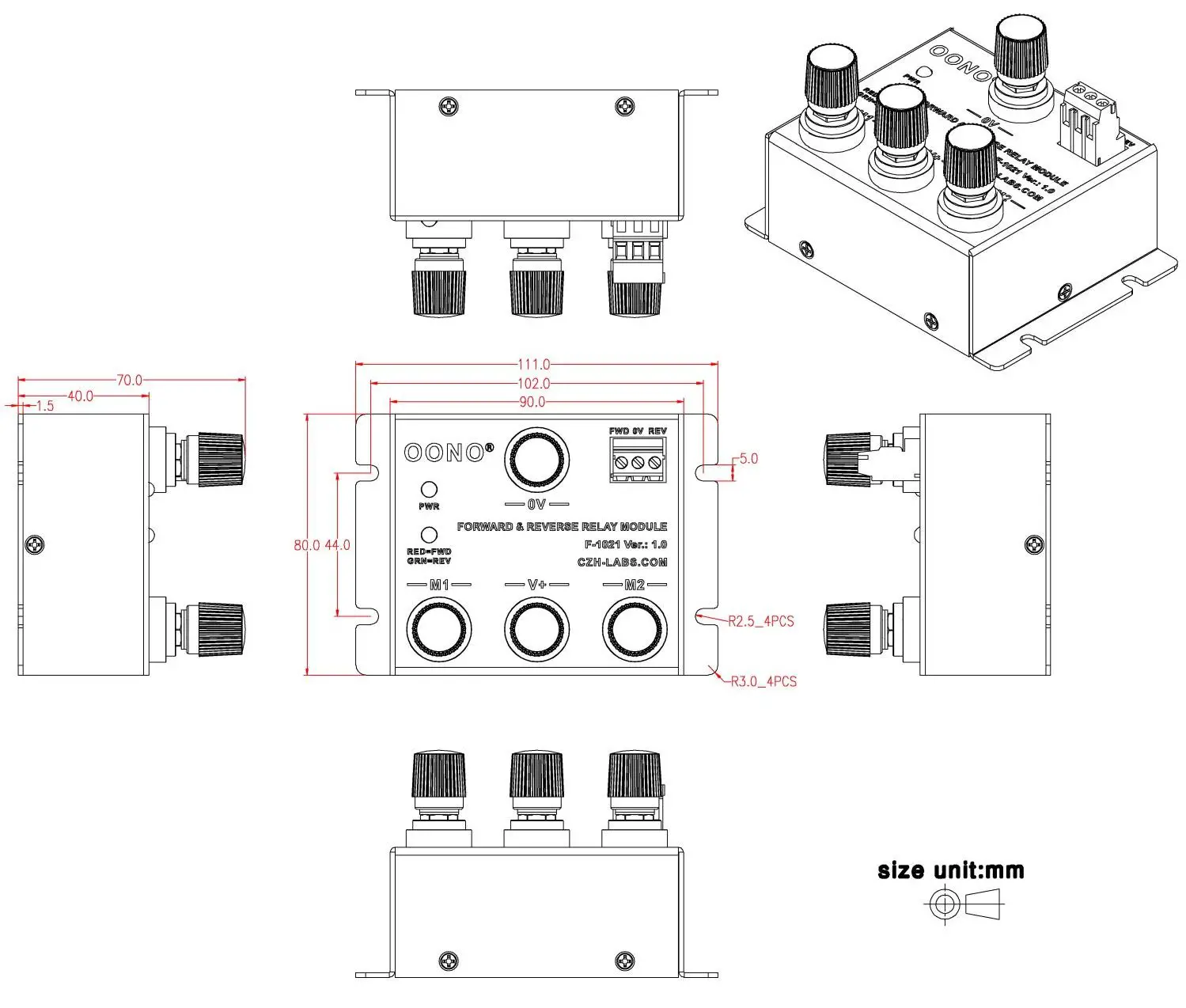

Dimensions:
