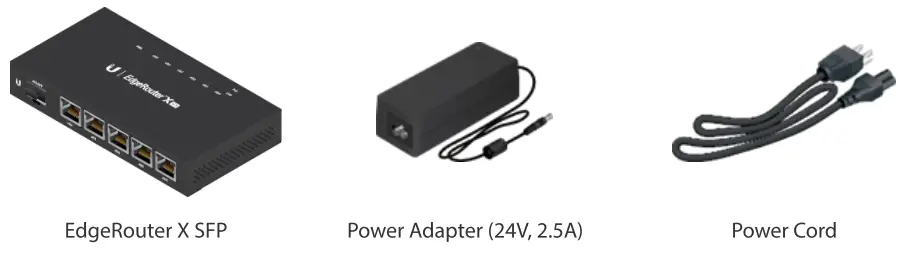

ER-X-SFP Quick Start Guide

Installation Requirements

• For indoor applications, use Category 5 (or above) UTP cabling approved for indoor use.
• For outdoor applications, shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC  ground of the power supply.
  We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable

Note: Although the cabling can be located outdoors, the EdgeRouter itself should be housed inside a protective enclosure.

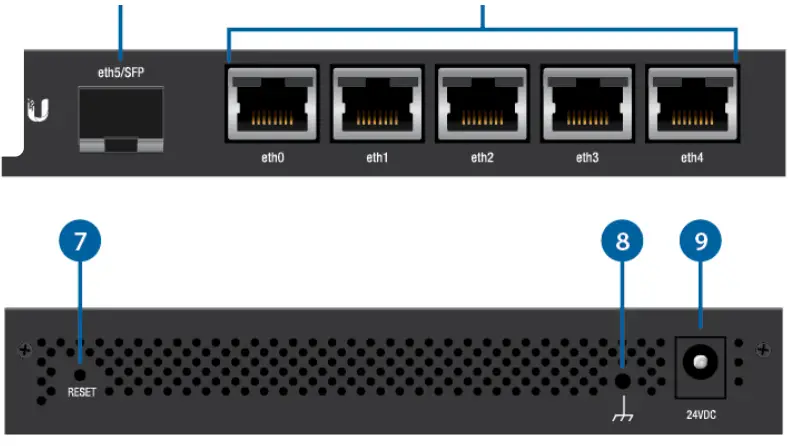

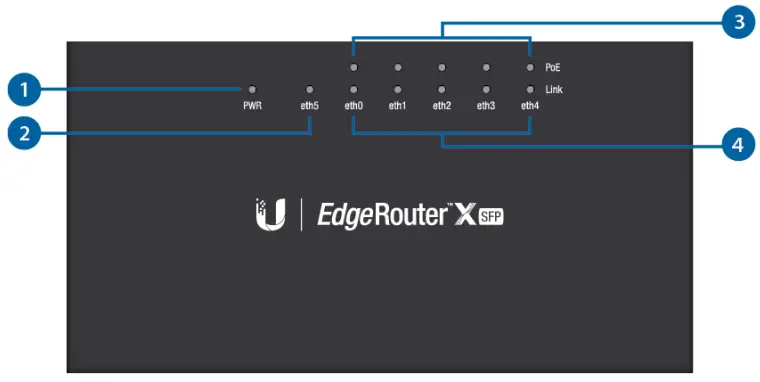

Hardware Overview

Hardware Installation

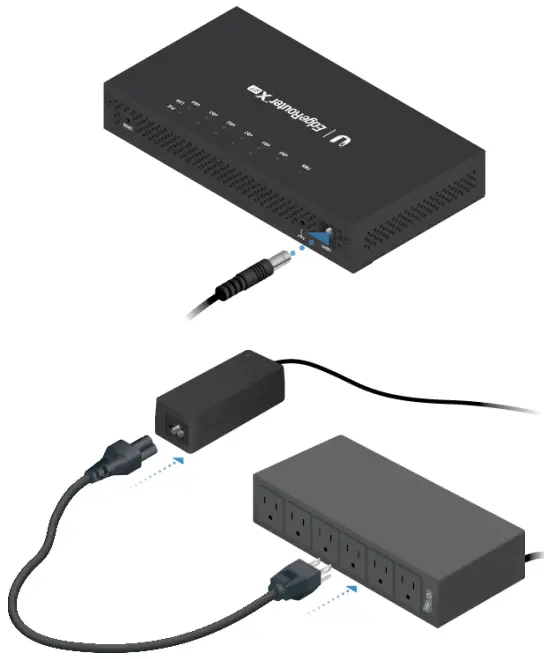

Connecting Power

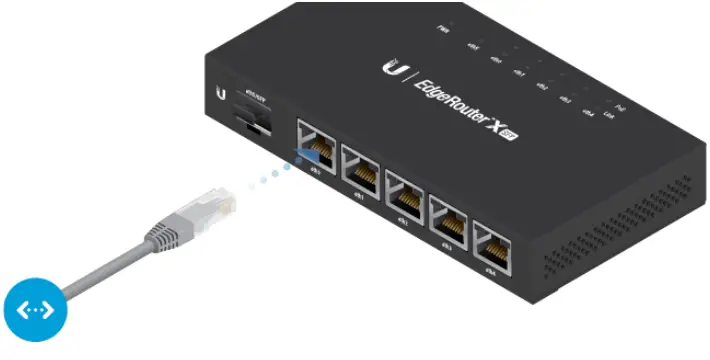

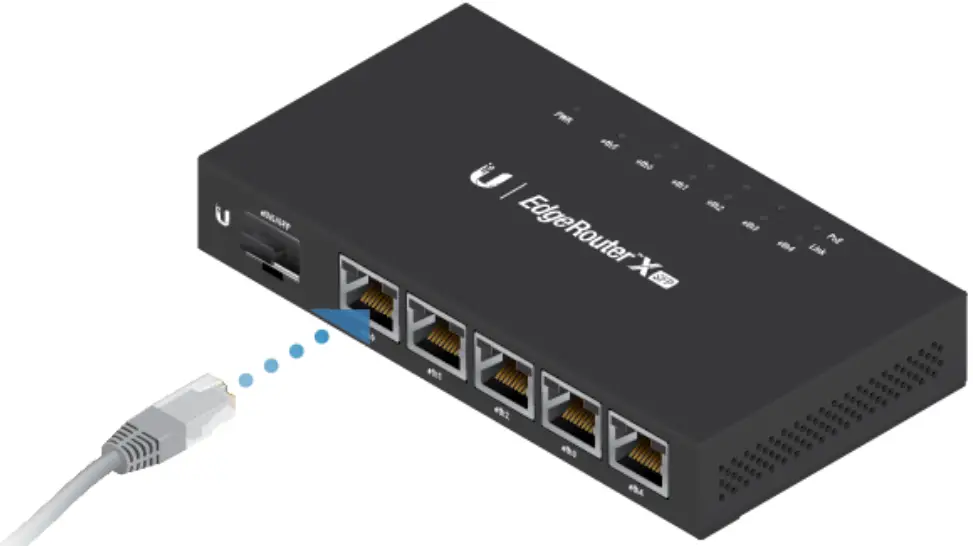

Connecting Ethernet

Note: PoE is disabled by default.

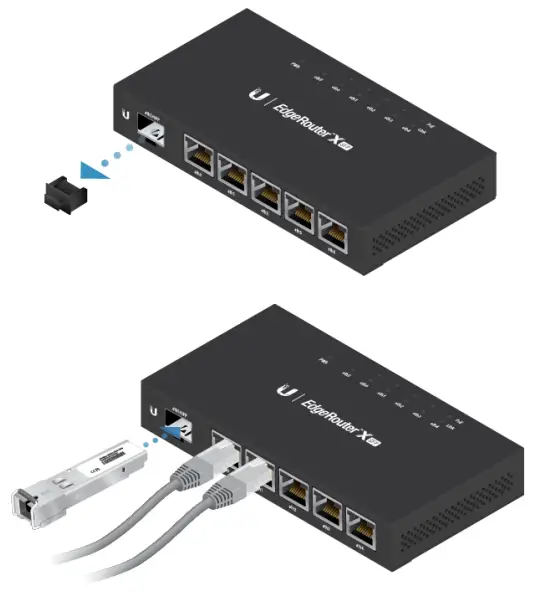

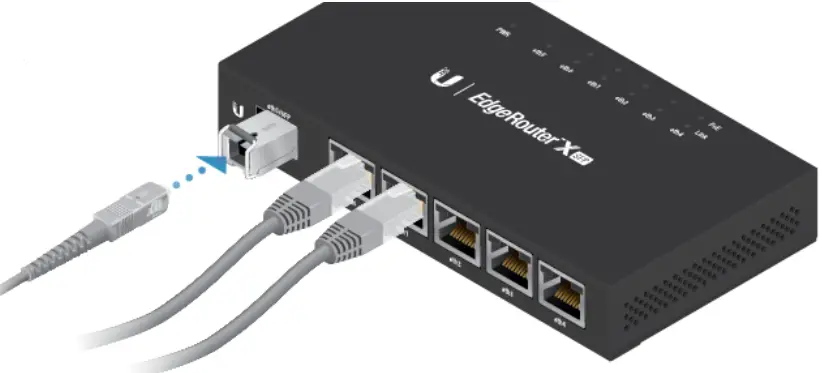

Connecting SFP (Optional)

For information about compatible ber SFP modules, visit ubnt.link/SFP_DAC_Compatibility

Accessing the EdgeOS Configuration Interface

The EdgeOS® configuration interface can be accessed via DHCP or static IP address assignment. By default, eth1 is set up as a DHCP client, while eth0 is assigned a  static IP address of 192.168.1.1. To configure the EdgeRouter, proceed to the appropriate section: DHCP or “Static IP Address”.

DHCP

1. Connect an Ethernet cable from eth1 on the EdgeRouter to a LAN segment that has an existing DHCP server.

2. To check the IP address of the EdgeRouter, use one of the following methods:
   • Set up the DHCP server to provide a specic IP address to the EdgeRouter based on its MAC address (on the label).
   • Let the EdgeRouter obtain an IP address and then check the DHCP server to see which IP address was assigned.
3. . Launch your web browser. Enter the appropriate IP address in the address eld. Press enter (PC) or return (Mac).

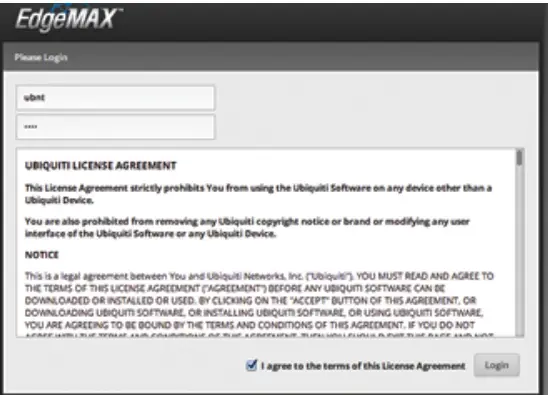

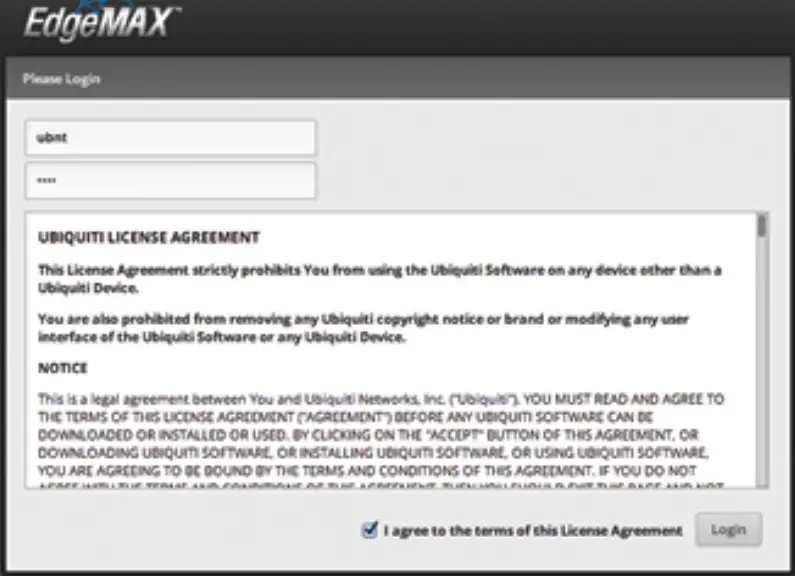

4. Enter ubnt in the Username and Password elds. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License  Agreement to accept it. Click Login.

The EdgeOS Configuration Interface will appear, allowing you to customize your settings as needed. For more information, refer to the EdgeOS User Guide, which  is available at ui.com/download/edgemax
For more information on PoE configuration, refer to “Configuring PoE Settings”.

Static IP Address

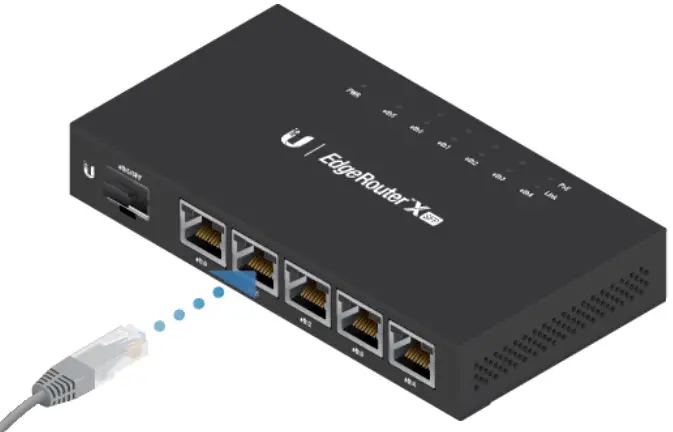

1. Connect an Ethernet cable from the Ethernet port on your computer to the port labeled eth0 on the EdgeRouter.

2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet.
3. Launch your web browser. Type https://192.168.1.1 in the address eld, and press enter (PC) or Return (Mac).
4. Enter ubnt in the Username and Password fields. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License  Agreement to accept it. Click Login.

The EdgeOS Configuration Interface will appear, allowing you to customize your settings as needed. For more information, refer to the EdgeOS User Guide, which  is available at ui.com/download/edgemax
For more information on PoE configuration, refer to “Configuring PoE Settings”.

UNMS Management

You can also manage your device using the Ubiquiti Network Management System. UNMS™ lets you congure, monitor, upgrade, and back up your devices using a  single application. Get started at www.unms.com

Configuring PoE Settings

The PoE setting for ports eth0-eth4 is set to Off by default.

WARNING: Before activating 24V passive PoE, ensure that the connected device supports PoE and the supplied voltage.

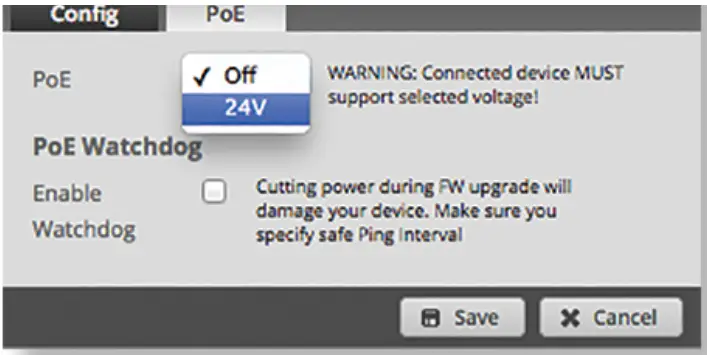

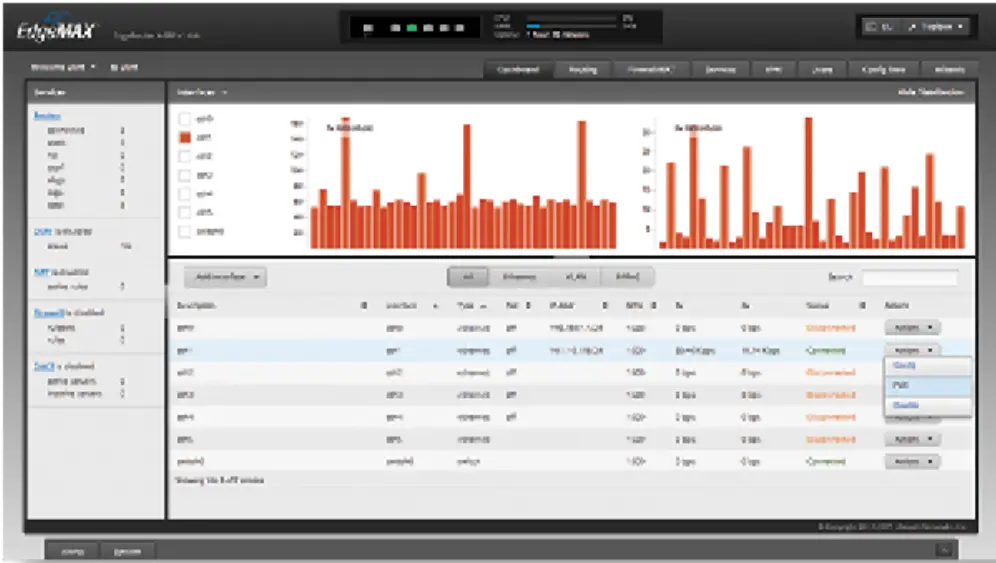

1. On the Dashboard screen, go to Actions > PoE for the interface you want to configure.

2. Select Off or 24V from the PoE drop-down menu.

3. Click Save.
   For more information, refer to the EdgeOS User Guide, which is available at ui.com/download/edgemax

Specifications

Safety Notices

1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.

WARNING: To reduce the risk of re or electric shock, do not expose this product to rain or

WARNING: Do not use this product in a location that can be submerged by water.

WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.

Electrical Safety Information

1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment, or pose is a hazard if the limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician.
3. This equipment is provided with a detachable power cord which has an integral safety ground wire intended for connection to a grounded safety outlet.
   a. Do not substitute the power cord with one that is not the provided approved type. Never use an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding wire.
   b. The equipment requires the use of the ground wire as a part of the safety certification, medication or misuse can provide a shock hazard that can result in serious injury or death.
   c. Contact a qualified electrician or the manufacturer if there are questions about the installation prior to connecting the equipment.
   d. Protective earthing is provided by a Listed AC adapter. Building installation shall provide appropriate short-circuit backup protection.
   e. Protective bonding must be installed in accordance with local national wiring rules and regulations.

Limited Warranty

ui.com/support/warranty
The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions.

Compliance

FCC
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions.

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the required to correct the interference at his own expense.

CAN ICES-3(A)/NMB-3(A)
Australia and New Zealand

Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment, this equipment may cause radio interference.

CE Marking
CE marking on this product represents the product is in compliance with all directives that are applicable o it.

WEEE Compliance Statement
Declaration of Conformity
Online Resources
