MANUEL D’UTILISATION
CASQUE
PERFORMANCE
TUNE 230 NC TWS
Tune 230 NC Performance TWS Earbuds
QUICK START GUIDE BC
TUNE 230NC TWS

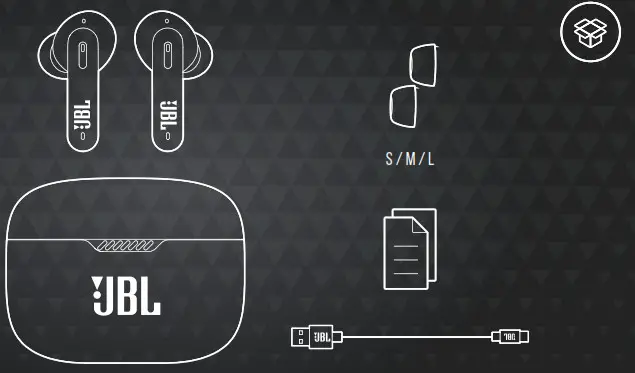

WHAT’S IN THE BOX

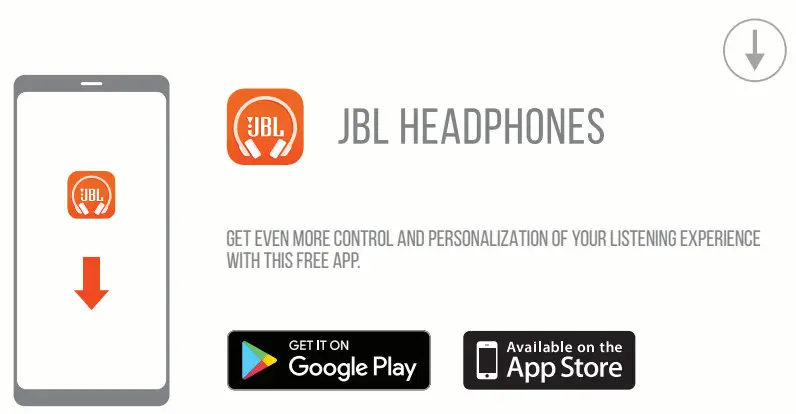

APP

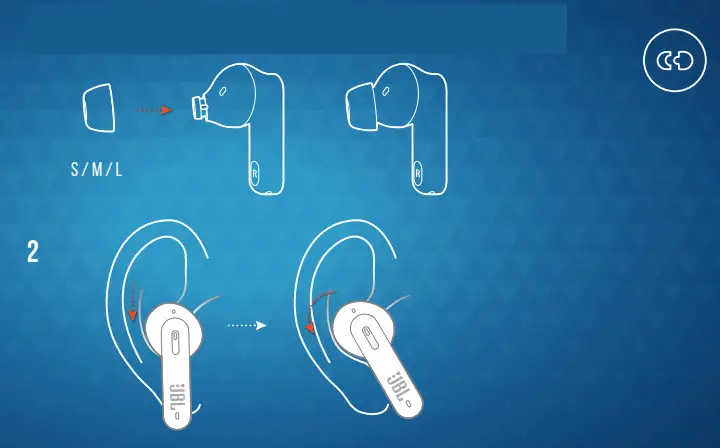

HOW TO WEAR
- Try different sizes for a perfect fit and audio performance

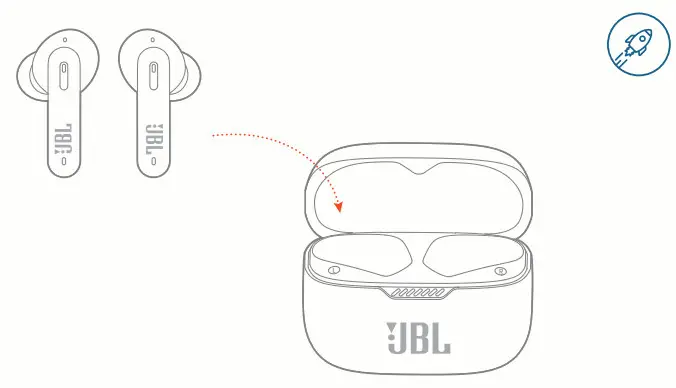

FIRST TIME USE

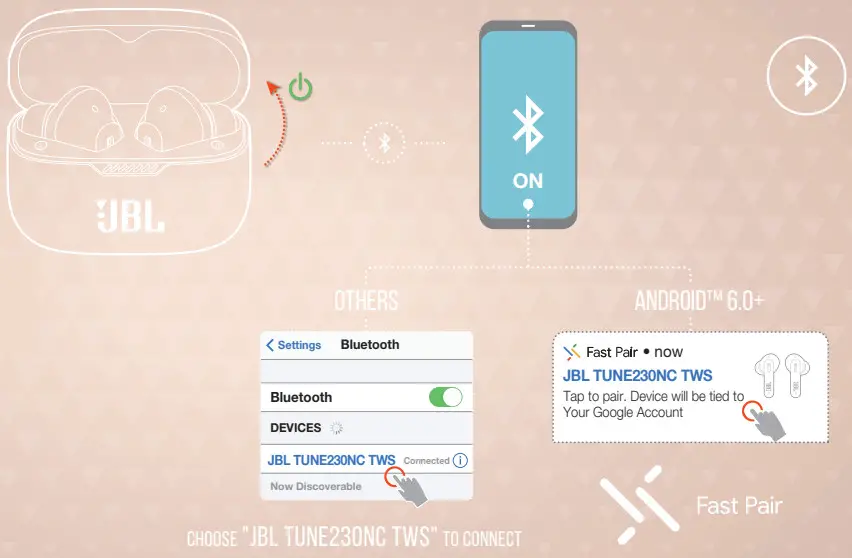

POWER ON & CONNECT

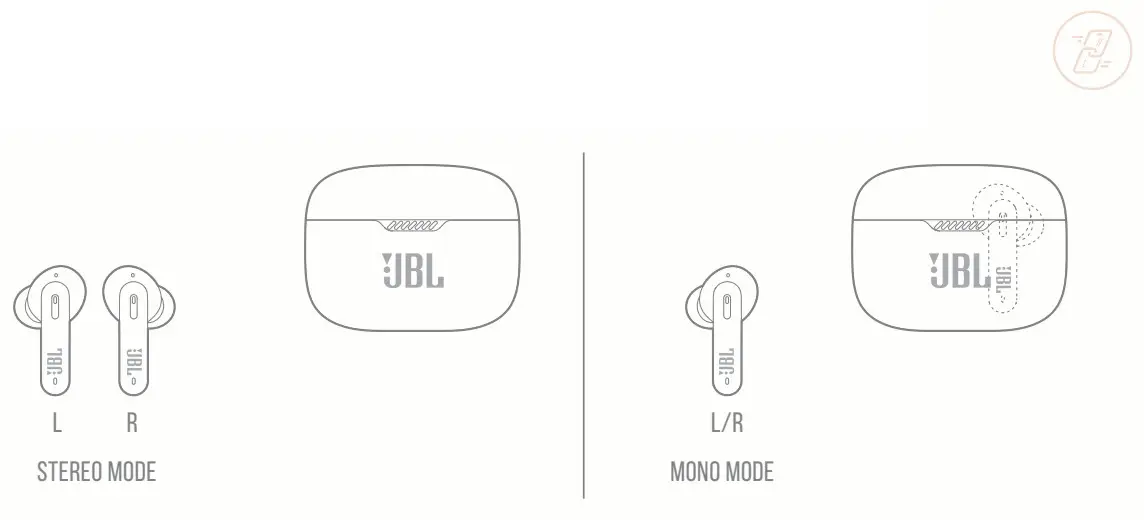

DUAL CONNECT + SYNC

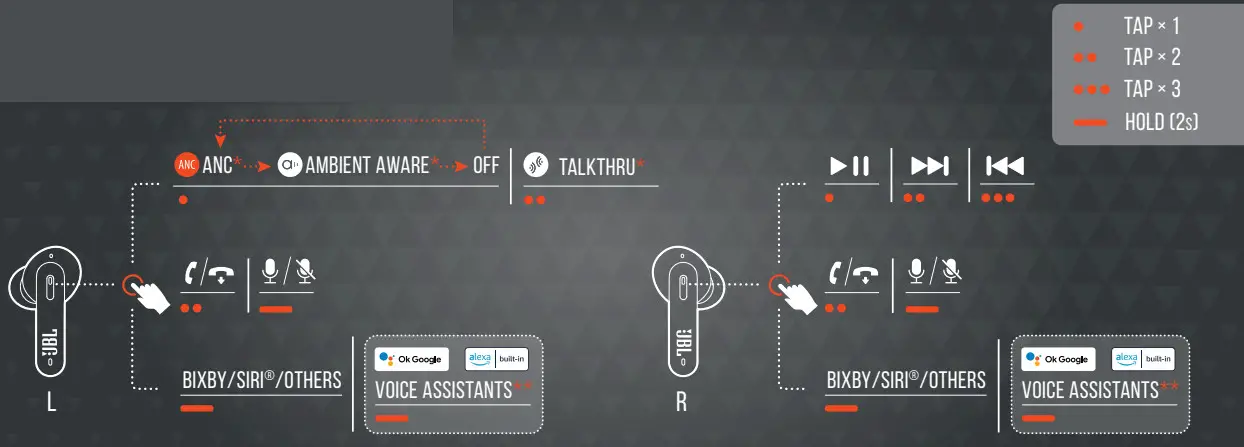

CONTROLS
* Enable advance controls by connecting your JBL TUNE230NC TWS to JBL Headphones App
.
** ENABLE YOUR VOICE ASSISTANT THROUGH JBL HEADPHONES APP AND ASSIGN IT TO YOUR PREFERRED EARBUD (L/R).

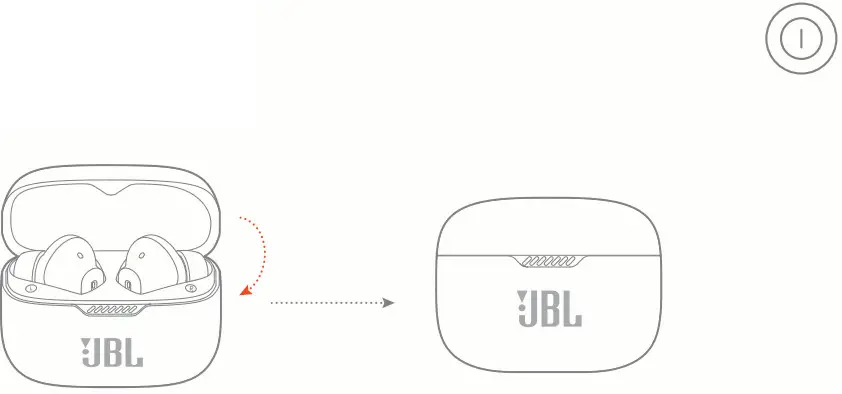

POWER OFF

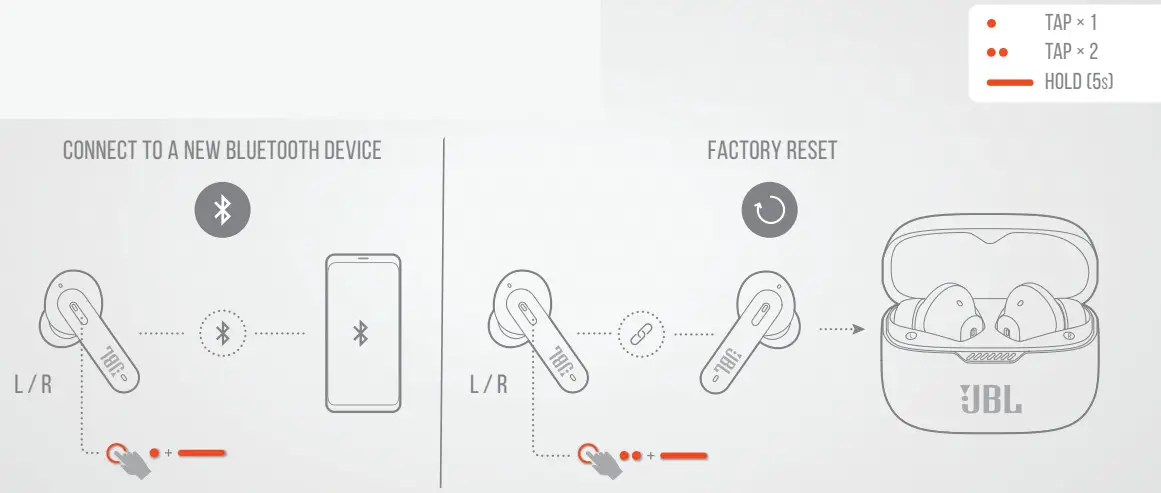

MANUAL SETUP

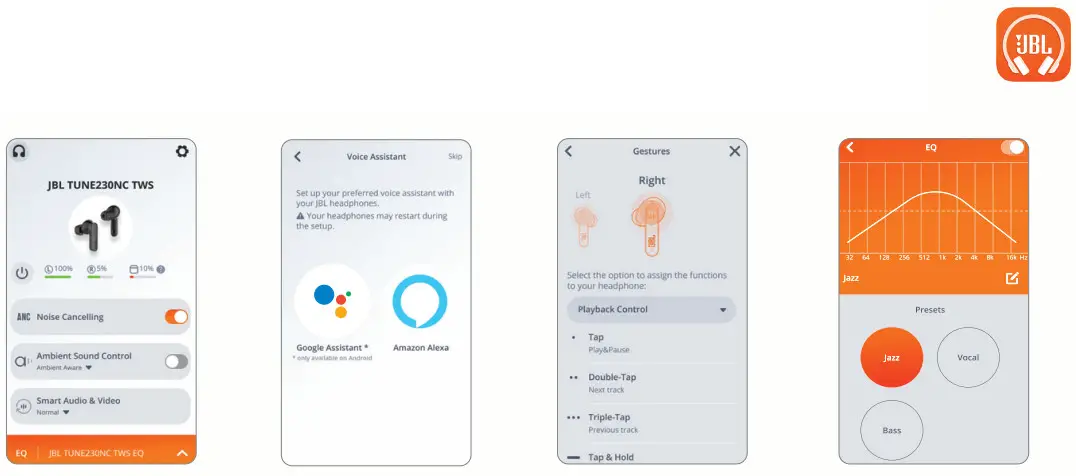

DO MORE WITH THE APP

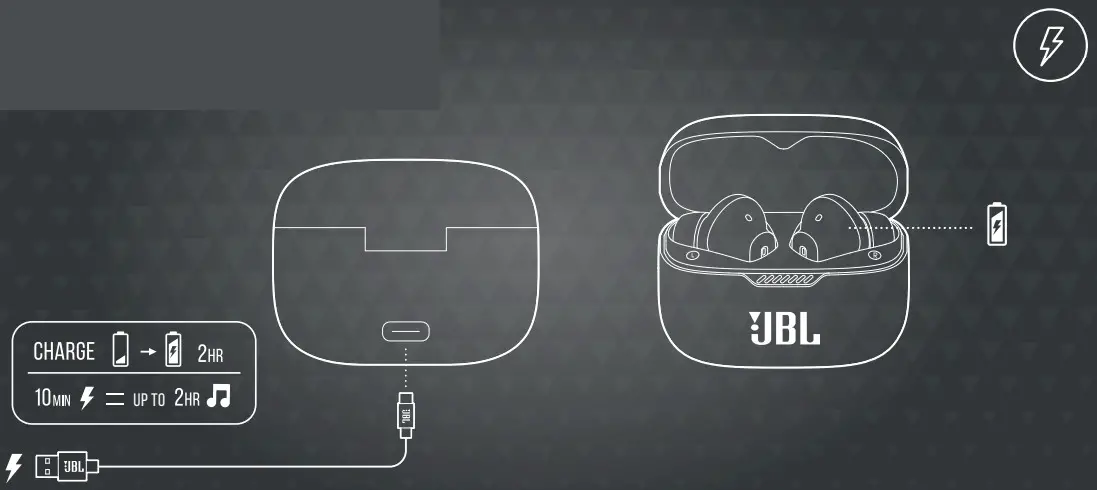

CHARGING

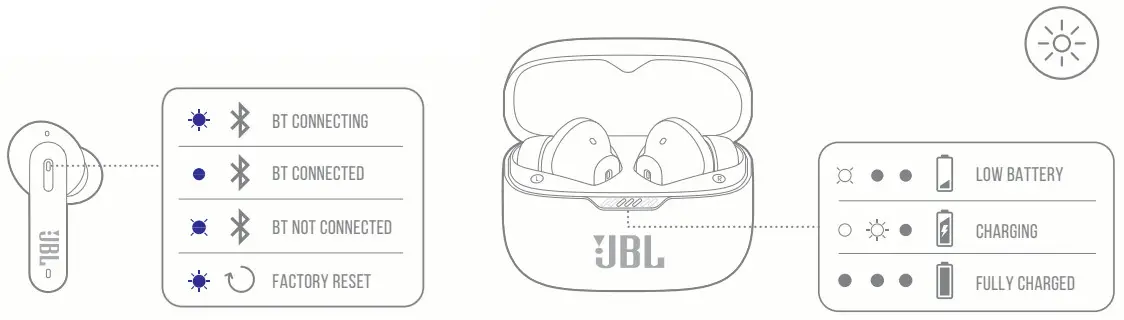

LED BEHAVIORS
TECH SPEC
TECH SPEC| Model: | TUNE230NCTWS | Impedance: | 16 ohm |
| Driver Size: | 6 mm/ 0.24’’ Dynamic Driver | Sensitivity: | 105 dB SPL@1 kHz |
| Power supply: | 5V  1A | Maximum SPL: | 93 dB |
| Earbud: | 5.1 g per pc (10.2 g combined)/ 0.011 lbs per pc (0.022 lbs combined) | Microphone sensitivity: | -38 dBV/Pa@1 kHz |
| Charging case: | 47.3 g/ 0.104 lbs | Bluetooth version: | 5.2 |
| Earbud battery type: | Lithium-ion polymer (70 mA/ 3.85 V) | Bluetooth profile version: | A2DP 1.3 , AVRCP 1.6 HFP 1.7 |
| Charging case battery type: | Lithium-ion polymer (750 mA/ 3.7 V) | Bluetooth transmitter frequency range: | 2.4 GHz – 2.4835 GHz |
| Charging time: | 2 hrs from empty | Bluetooth transmitter power: | <10 dBm |
| Music playtime with BT on and ANC off: | up to 10 hrs | Bluetooth transmitter modulation: | GFSK, π/4-DQPSK, 8-DPSK |
| Music playtime with BT on and ANC on: | up to 8 hrs | Maximum operation temperature: | 45°C |
| Frequency response: | 20 Hz – 20 kHz |
IC RF Exposure Information and Statement
The SAR limit of Canada (C) is 1.6 W/kg averaged over one gram of tissue. Device types: (IC:6132A-JBLT230NT) has also been tested against this SAR limit According to this standard, the highest SAR value reported during product certification for head use is 0.4278 W / kg.
The device was tested for typical bodily operations where the product was kept 0 mm from the head. To maintain compliance with IC RF exposure requirements, use accessories that maintain a separation distance of 0mm between the user’s head and the back of the headset. The use of belt clips, holsters and similar accessories shall not contain metal parts in its assembly. Use of accessories that do not meet these requirements may not comply with IC RF exposure requirements and should be avoided.
Head operation
The device was subjected to a typical head manipulation test. In order to comply with RF exposure requirements, a minimum separation distance of 0 cm must be maintained between the user’s ear and the product (including the antenna). Head exposure that do not meet these requirements may not meet RF exposure requirements and should be avoided. Use only the supplied or approved antenna.
WARNING
DO NOT ATTEMPT TO OPEN, SERVICE, OR DISASSEMBLE THE BATTERY | DO NOT SHORT CIRCUIT | MAY EXPLODE IF DISPOSED OF IN FIRE | RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE | DISPOSE OR RECYCLE USED BATTERIES ACCORDING TO THE INSTRUCTIONS
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
Google, Android and Google Play are trademarks of Google LLC.
Amazon, Alexa, Amazon Music, and all related logos are trademarks of Amazon, Inc. or its affiliates.
FCC ID: APIJBLT230NT
018-210239
HP_JBL_TUNE230NC TWS_QSG_Global_SOP_V14
