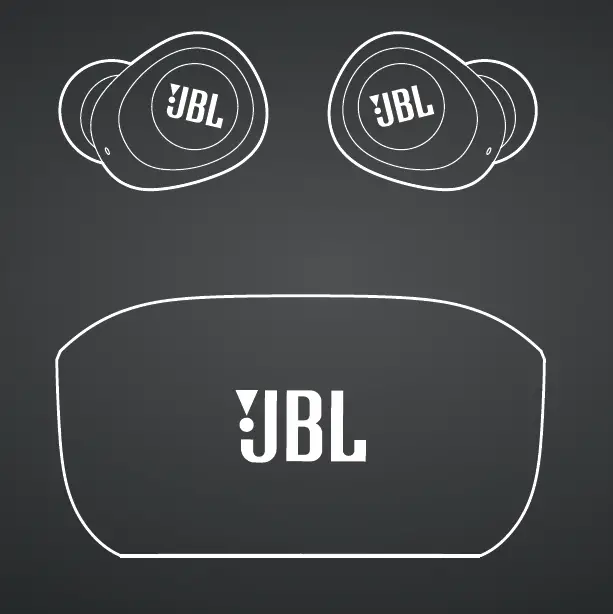

JBL WAVE 100 TWS Earbuds
JBL WAVE 100 TWS Earbuds

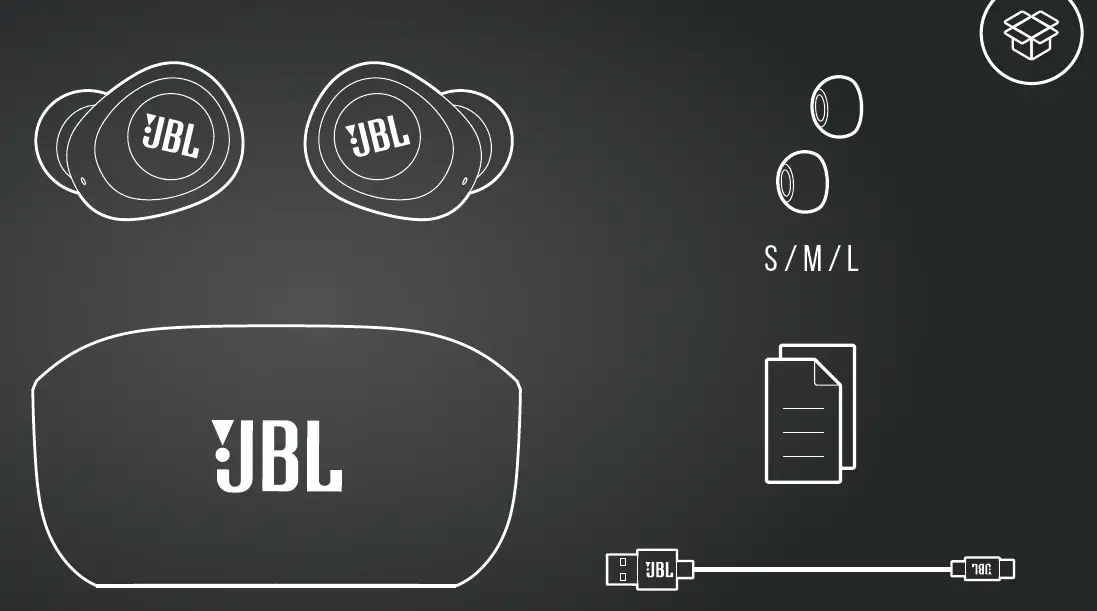

WHAT’S IN THE BOX

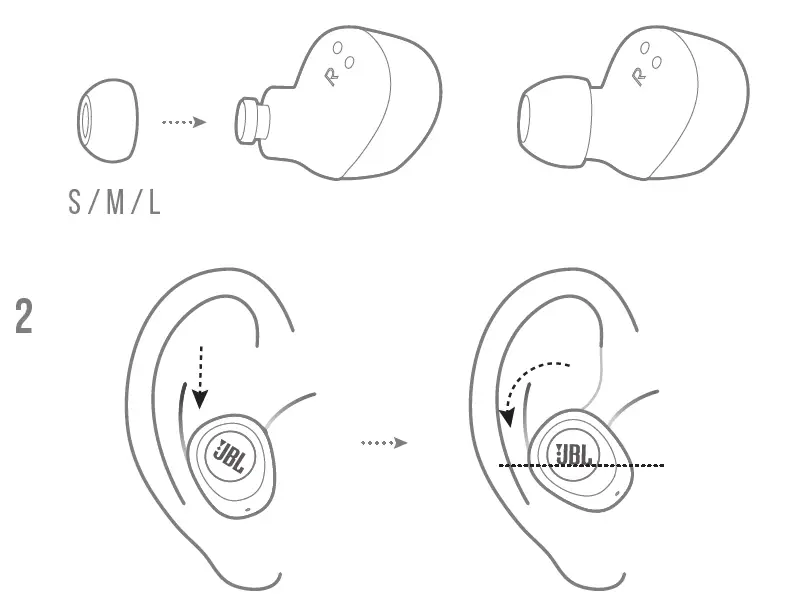

how to wear

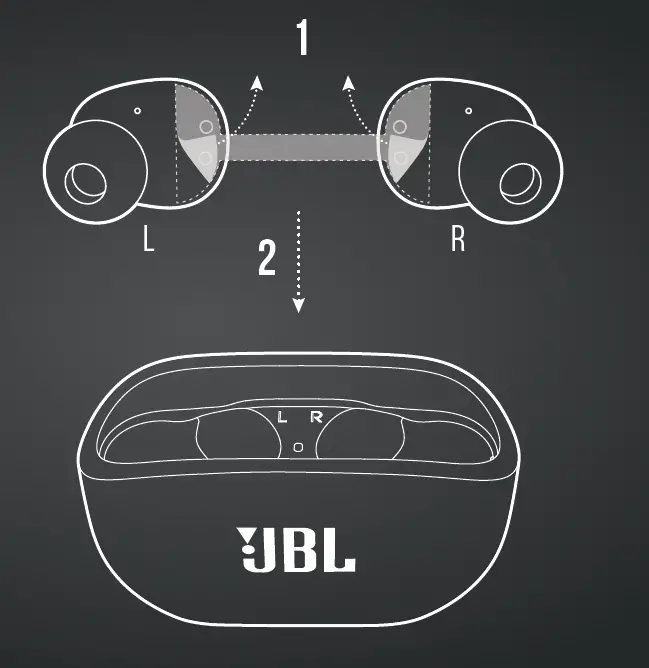

FIRST TIME USE
power on & CONNECT

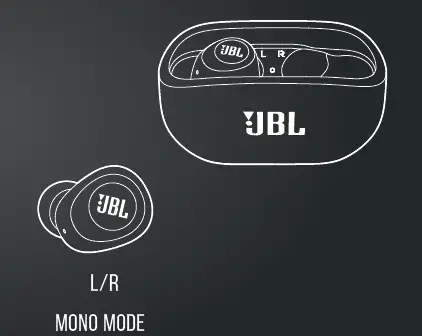

DUAL CONNECT

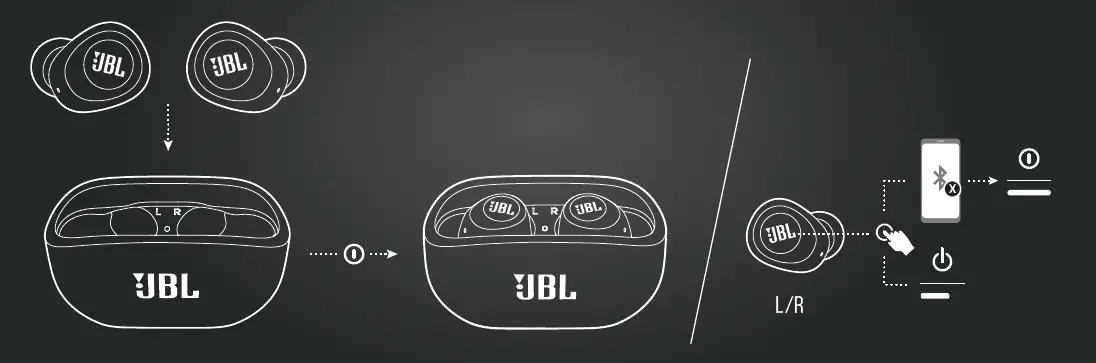

power off

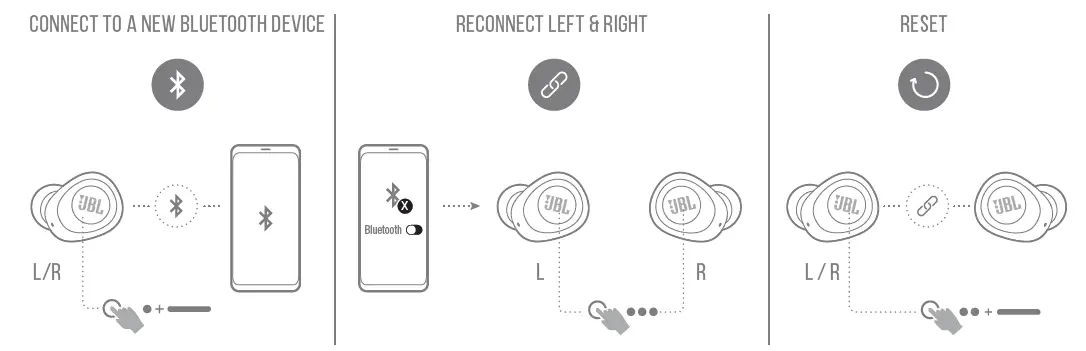

Manual Controls

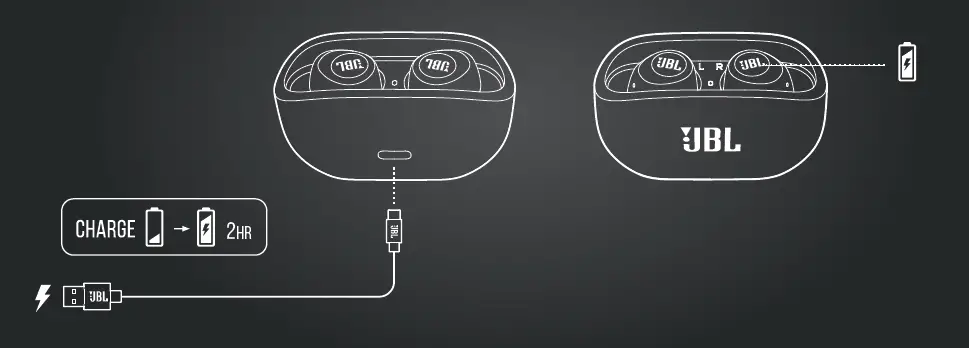

Charging

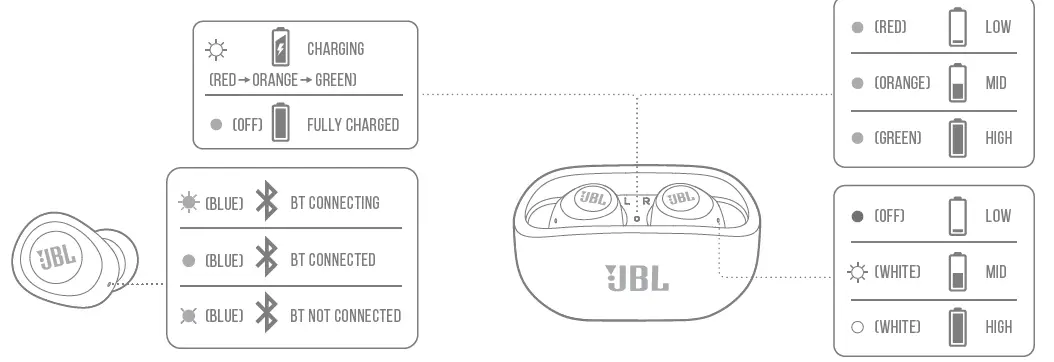

led behaviors
TECH SPECIFICATION
- Model: WAVE100TWS
- Driver Size: 8 mm / 0.31” Dynamic Driver
- Power supply: 5 V 1 A
- Weight: 46.3 g / 0.102 lbs
- Earpiece: 5.1 g / 0.011 lbs (10.2 g / 0.022 lbs combined )
- Charging case: 36.1 g / 0.08 lbs
- Headset battery type: Lithium-ion Battery (45 mAh / 3.7 V)
- Charging case battery type: Lithium-ion Battery (550 mAh / 3.7 V)
- Charging time: 2 hrs from empty
- Music playtime with BT on: up to 5 hrs
- Frequency Response: 20 Hz – 20 kHz
- Impedance: 16 ohm
- Sensitivity: 105.5 dB SPL@1kHz
- Maximum SPL: 94 dB
- Microphone sensitivity: -11.3 dBV@1 kHz / Pa
- Bluetooth version: 5.0
- Bluetooth profile version: A2DP V1.3 AVRCP V1.6 HFP V1.7
- Bluetooth transmitter frequency range: 2.4 – 2.4835 GHz
- Bluetooth transmitter power: < 10 dBm
- Bluetooth transmitter modulation: GFSK, π/4-DQPSK, 8-DPSK
- Maximum operation temperature: 45°C
