Jbl Wave200 Tws Earbuds User Guide

JBL WAVE200 TWS Earbuds

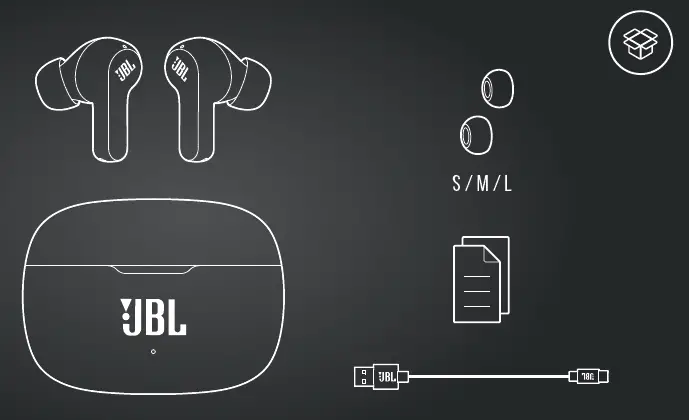

WHAT’S IN THE BOX

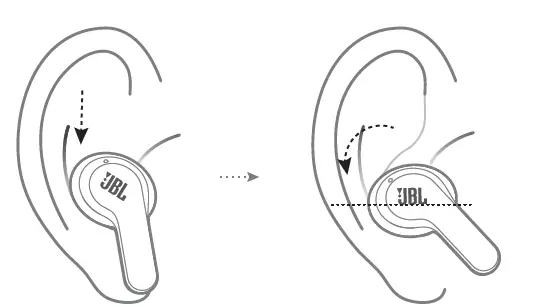

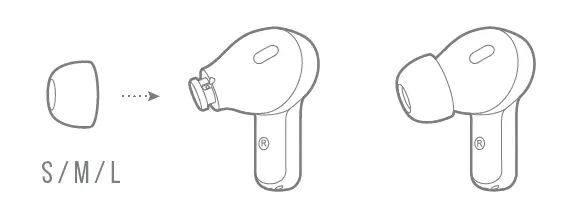

How to wear

1. Try different sizes of eartips for best fit and seal.

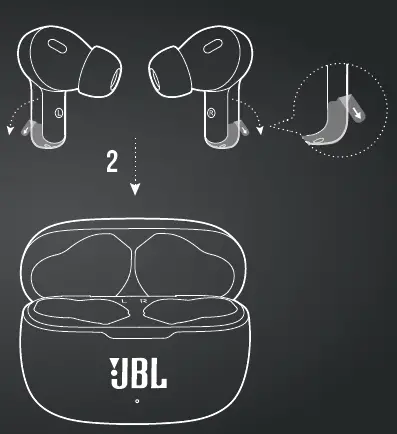

FIRST TIME USE

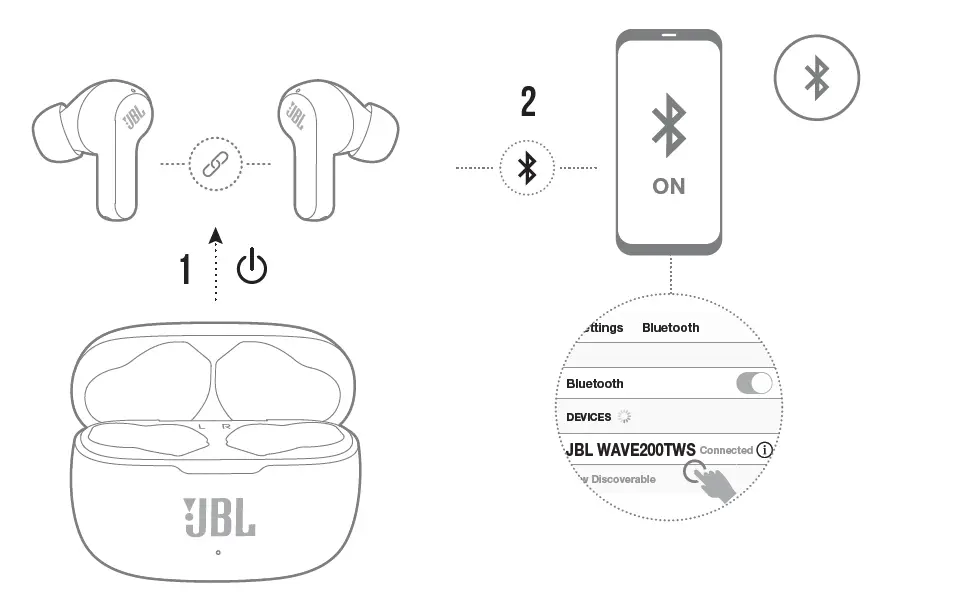

Power on & CONNECT

• Choose “JBL WAVE200TWS” to connect

DUAL CONNECT

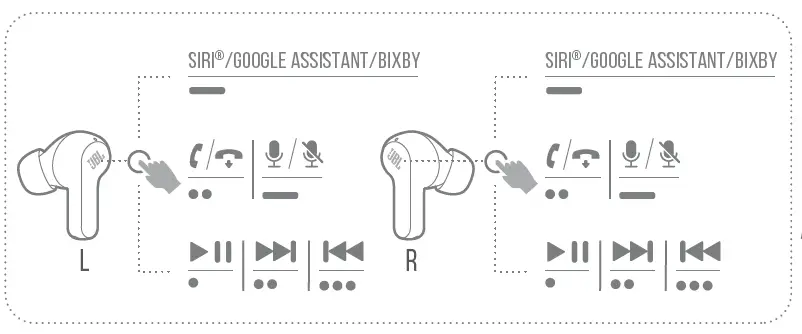

BUTTON COMMAND

• TAP × 1
• TAP × 2
• TAP × 3
• HOLD (2S)

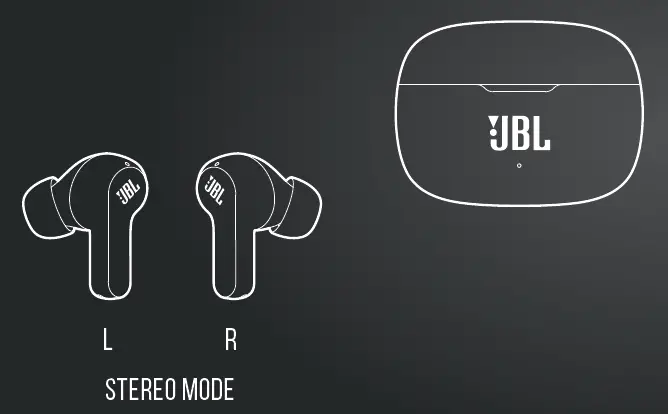

Stereo Mode

• Seamless automatic switch

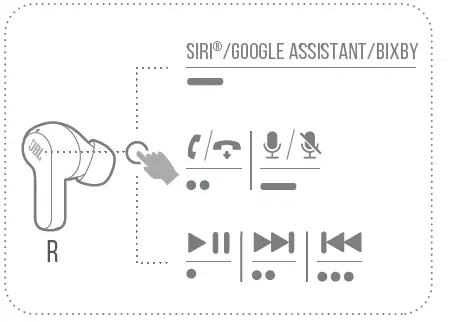

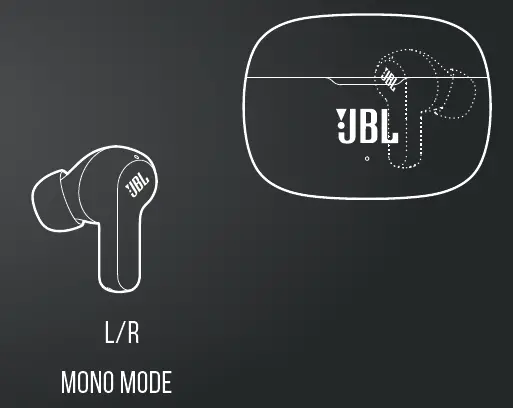

Mono Mode

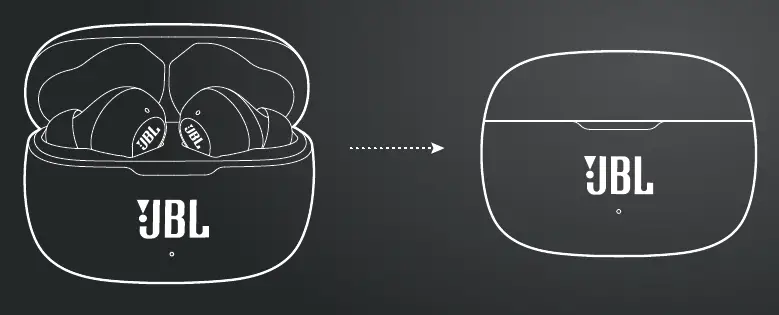

power off

Manual Controls

• TAP × 1
• TAP × 2
• TAP × 3
• HOLD (5S)

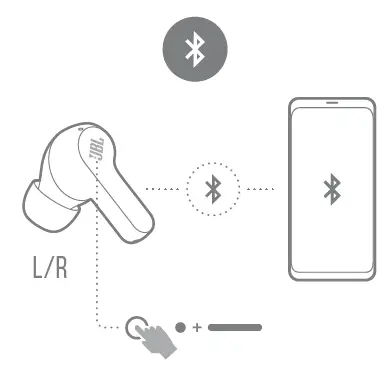

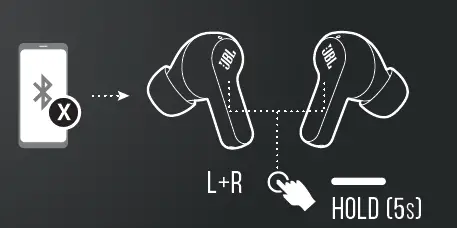

Connect to a new Bluetooth device

RECONNECT LEFT & RIGHT

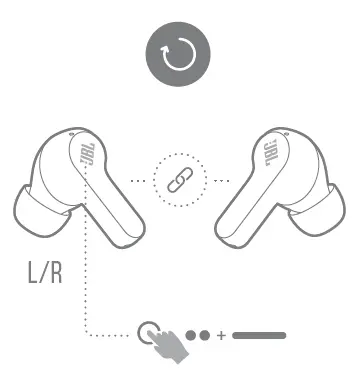

Factory reset

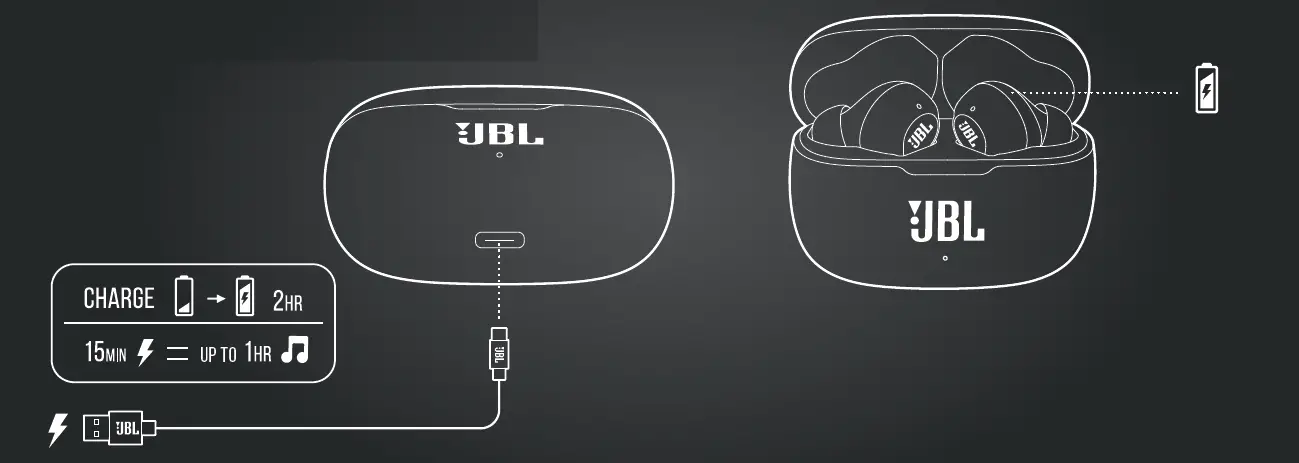

Charging

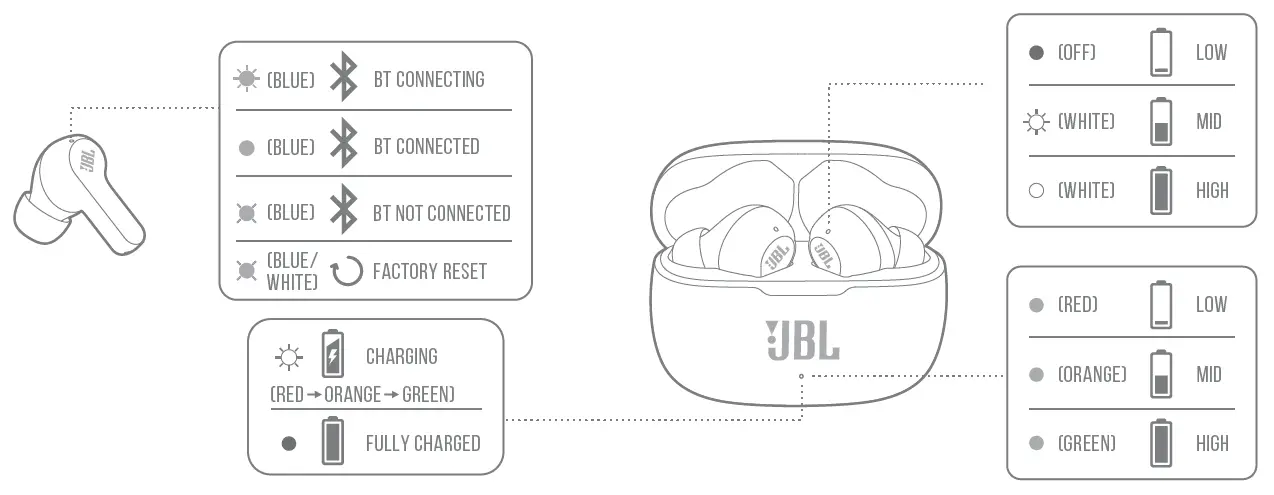

led behaviors

TECH SPEC

• Model: WAVE200TWS
• Driver size: 8 mm/ 0.315” Dynamic Driver
• Power supply: 5 V 1 A
• Weight: 47.5 g/ 0.105 lbs
• Headset battery type: Lithium-ion Battery (48 mAh/ 3.7 V)
• Charging case battery type: Lithium-ion Battery(500 mAh/ 3.7 V)
• Charging time: 2 hrs from empty
• Music playtime with BT on: up to 5 hrs
• Frequency response: 20 Hz – 20 kHz
• Impedance: 16 ohm
• Sensitivity: 108 dB SPL@1 kHz
• Maximum SPL: 93 dB
• Microphone sensitivity: -38 dBV/Pa @1 kHz
• Bluetooth version: 5.0
• Bluetooth profile version: A2DP V1.3, AVRCP V1.6, HFP V1.7
• Bluetooth transmitter frequency range: 2.400 GHz – 2.4835 GHz
• Bluetooth transmitter power: 12 dBm
• Bluetooth transmitter modulation: GFSK, π/4 QPSK, 8DPSK
• Maximum operation temperature: 45°C

BLUETOOTH

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.

HP_JBL_WAVE200TWS_QSG_Global_SOP_V14
