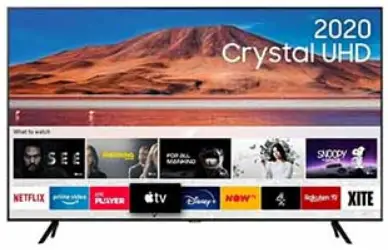

SAMSUNG 82AU7 Series 82 Inch Ultra HD 4K Smart TV
Product Information
- Model Numbers: 82AU7***, 82UA7***, 85AU7***, 85UA7***
- Dimensions:
- 72.0 inches (1829.9 mm) (182.99 cm)
- 74.6 inches (1895.9 mm) (189.59 cm)
- 41.1 inches (1045.0 mm) (104.50 cm)
- 42.7 inches (1083.9 mm) (108.39 cm)
- 2.4 inches (59.9 mm) (5.99 cm)
- 2.4 inches (60.9 mm) (6.09 cm)
- 45.2 inches (1148.2 mm) (114.82 cm)
- 46.7 inches (1186.7 mm) (118.67 cm)
- 15.4 inches (392.2 mm) (39.22 cm)
- 15.4 inches (392.2 mm) (39.22 cm)
- 81.5 inches (207 cm)
- 84.5 inches (214 cm)
- Weight:
- 82AU7*** and 82UA7***: 83.1 lbs (37.7 kg)
- 85AU7*** and 85UA7***: 88.6 lbs (40.2 kg) or 85.8 lbs (38.9 kg)
or 91.1 lbs (41.3 kg)
- VESA: 600 x 400 mm
- Number of screws: 4 M8
Product Usage Instructions
- Identify the model number of your product. It should be either 82AU7***, 82UA7***, 85AU7***, or 85UA7***.
- Refer to the dimensions listed in the manual to determine the size of your product.
- Use the VESA measurements and number of screws provided in the manual to ensure proper mounting of your product.
- For models 85AU7*** and 85UA7***, determine the weight of your product and use caution when handling or mounting to avoid injury or damage.

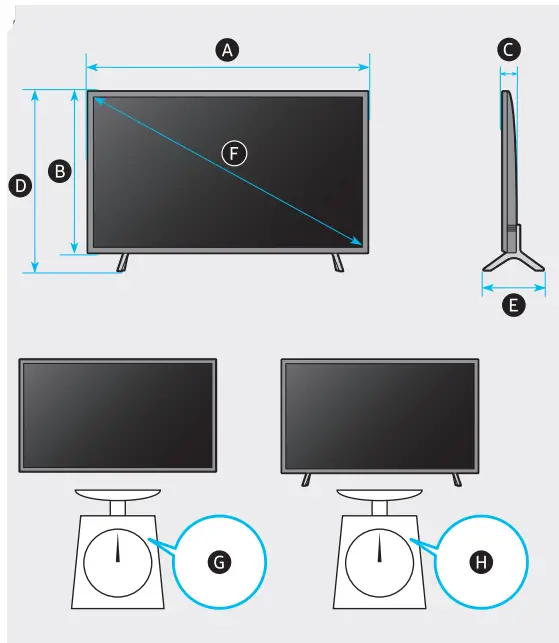

DIMENSION
| 82AU7*** 82UA7*** | 72.0 inches (1829.9 mm) (182.99 cm) | 41.1 inches (1045.0 mm) (104.50 cm) | 2.4 inches (59.9 mm) (5.99 cm) | 45.2 inches (1148.2 mm) (114.82 cm) | 15.4 inches (392.2 mm) (39.22 cm) | 81.5 inches (207 cm) | 83.1 lbs (37.7 kg) | 85.8 lbs (38.9 kg) |
| 85AU7*** 85UA7*** | 74.6 inches (1895.9 mm) (189.59 cm) | 42.7 inches (1083.9 mm) (108.39 cm) | 2.4 inches (60.9 mm) (6.09 cm) | 46.7 inches (1186.7 mm) (118.67 cm) | 15.4 inches (392.2 mm) (39.22 cm) | 84.5 inches (214 cm) | 88.6 lbs (40.2 kg) | 91.1 lbs (41.3 kg) |
| * : 0~9, A~Z | ||||||||

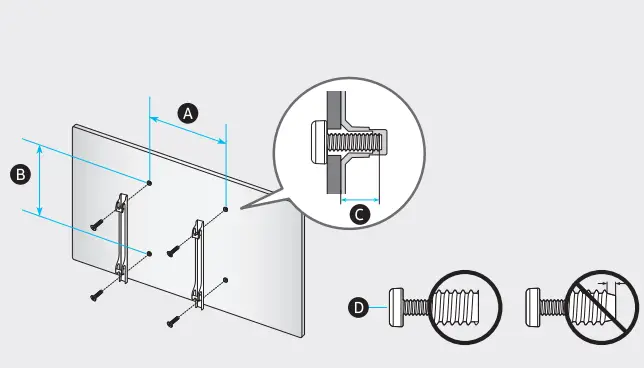

MOUNTING
| VESA x (mm) | (mm) | x 4 | |
| 82AU7*** 82UA7*** |
600 x 400 |
20-22 |
M8 |
| 85AU7*** 85UA7*** | |||
| * : 0~9, A~Z | |||

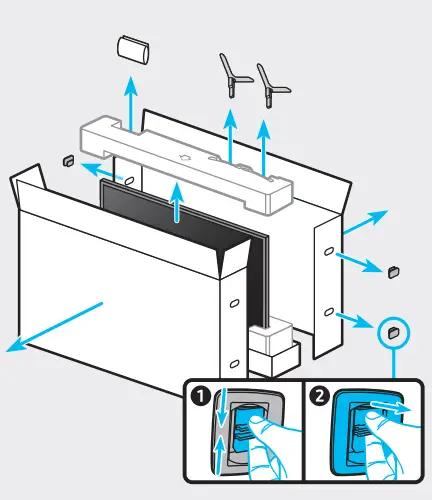

UNBOXING

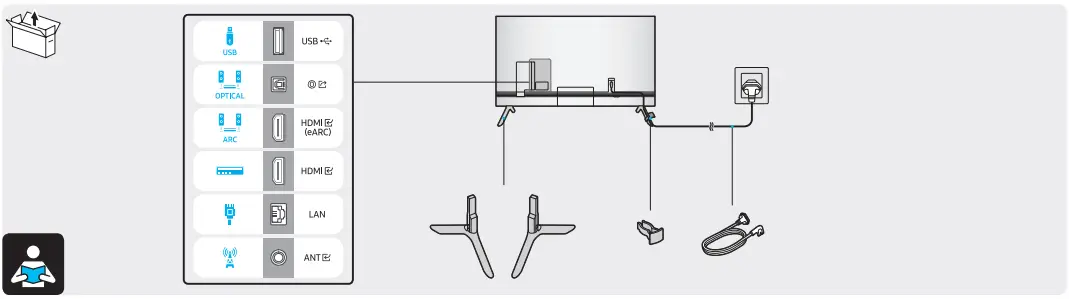

WHAT’S IN THE BOX

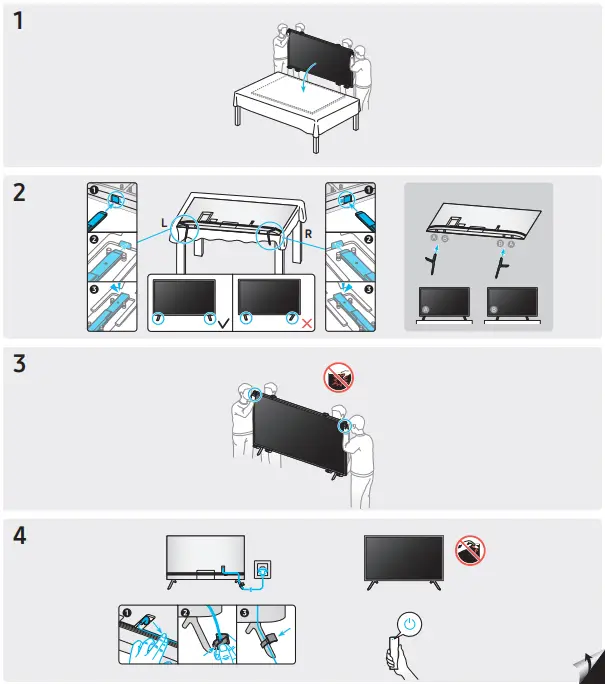

INSTALLATION INSTRUCTION
